TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
103
AUDIO
3

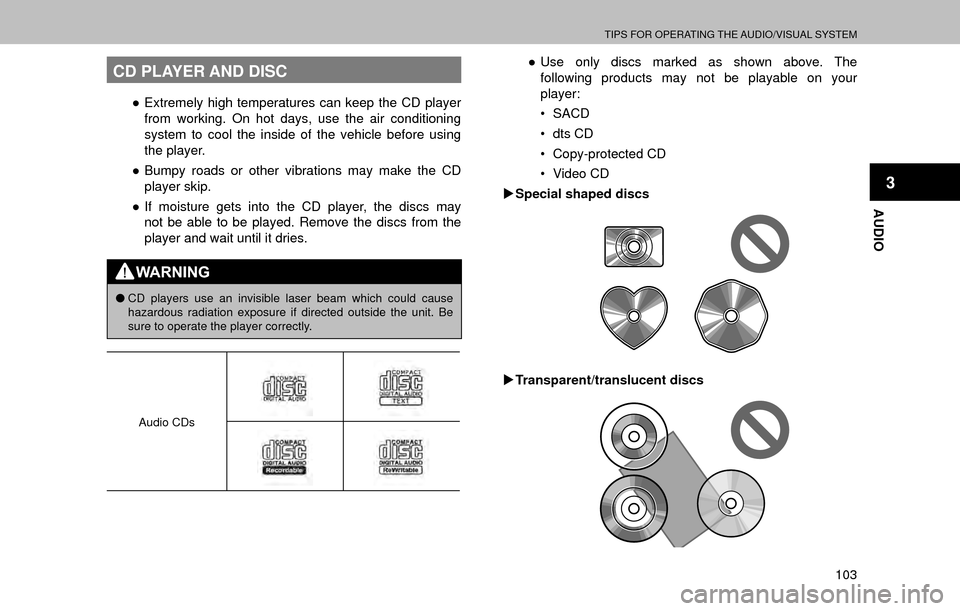

CD PLAYER AND DISC
”Extremely high temperatures can keep the CD player
from working. On hot days, use the air conditioning
system to cool the inside of the vehicle before using
the player.
” Bumpy roads or other vibrations may make the CD
player skip.
” If moisture gets into the CD player, the discs may
not be able to be played. Remove the discs from the
player and wait until it dries.
WARNING
O CD players use an invisible laser beam which could cause
hazardous radiation exposure if directed outside the unit. Be
sure to operate the player correctly.
Audio CDs
”Use only discs marked as shown above. The
following products may not be playable on your
player:
‡ SACD
‡ dts CD
‡ Copy-protected CD
‡ Video CD
X Special shaped discs
XTransparent/translucent discs
Page 106 of 308
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
104 XLow quality discs
XLabeled discs
CAUTION
O Do not use special shaped, transparent/translucent,
low quality or labeled discs such as those shown in the
illustrations. The use of such discs may damage the player, or
it may be impossible to eject the disc.
O This system is not designed for use of Dual Discs. Do not use
Dual Discs because they may cause damage to the player.
O Do not use discs with a protection ring. The use of such discs
may damage the player, or it may be impossible to eject the
disc.
O Do not use printable discs. The use of such discs may
damage the player, or it may be impossible to eject the disc.
Correct Wrong
”
Handle discs carefully, especially when inserting
them. Hold them on the edge and do not bend them.
$ Y R L G J H W W L Q J
Page 107 of 308
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
105
AUDIO
3
”Dirt, scratches, warping, pin holes or other disc
damage could cause the player to skip or to repeat a
section of a track. (To see a pin hole, hold the disc up
to the light.)
” Remove discs from the players when not in use.
Store them in their plastic cases away from moisture,
heat and direct sunlight.
To clean a disc: Wipe it with a soft, lint-free cloth that has
been dampened with water. Wipe in a straight line from
the center to the edge of the disc (not in circles). Dry it
with another soft, lint-free cloth. Do not use a conventional
record cleaner or anti-static device.
CD-R/RW DISCS
” CD-R/CD-RW discs that have not been subject to
W K H
Page 110 of 308
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
108”
The player is compatible with VBR (Variable Bit Rate).
” MP3 (MPEG Audio Layer 3), WMA (Windows Media
Audio) and AAC (Advanced Audio Coding) are audio
compression standards.
Page 112 of 308
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
11 0
COMPATIBLE COMPRESSED FILES (Video)
XVideo Codec
File Type 3 U R ¿ O HResolution (Pixels)
WMV9 WMV
AV I ‡ 6 L P S O H 3 U R ¿ O H
‡ 0 D L Q 3 U R ¿ O H
‡ $ G Y D Q F H G 3 U R ¿ O H 128×96
160×120
176×144
320×240
352×240
352×288
640×480
720×480
720×576
MPEG4
AV I
MPEG4 ‡ 6 L P S O H 3 U R ¿ O H
‡ $ G Y D Q F H G 6 L P S O H 3 U R ¿ O H
H.264/AVC AV I
MPEG4 ‡ % D V H O L Q H 3 U R ¿ O H
‡ 0 D L Q 3 U R ¿ O H
‡ + L J K 3 U R ¿ O H
X
Audio Codec
File Type Corresponding Sampling
Frequency (kHz) Corresponding Bit Rates (kbps) Channel Mode
MP3 WMV
AV I
MPEG4 MPEG1 Layer3: 32/44.1/48
MPEG2 LSF Layer3: 16/22.05/24
MPEG1 Layer3: 32-320
MPEG2 LSF Layer3: 8-160Stereo
Joint Stereo
Dual Channel
Monaural
W M A Ve r. 7 / 8 / 9 WMV
AV I 32/44.1/48 Ver. 7/8: 48-192
Ver. 9 (9.1/9.2): 48-320Stereo
AAC AV I
MPEG4 11.025/16/22.05/24/32/44.1/48 16-320 Stereo
Monaural
”
The player is compatible with VBR (Variable Bit Rate).
Page 179 of 308
SETTINGS
7
Bluetooth® SETTINGS
177
REGISTERING A Bluetooth AUDIO DEVICE
FOR THE FIRST TIME
To use the Bluetooth Audio, it is necessary to register an
audio device with the system.
Once the player has been registered, it is possible to use
the Bluetooth Audio.
This operation cannot be performed while driving.
) R U G H W D L O V D E R X W U H J L V W H U L Q J D % O X H W R R W K G H Y L F H : 3
1.Turn the Bluetooth connection setting of your audio
device on.
”This function is not available when the Bluetooth
connection setting of your audio device is set to off.
2.Press the “AUDIO/TUNE” knob.
”The screen can also be displayed by selecting
followed by AUDIO (AUDIO).
” If the audio control screen appears, select
Source
(Source) on the audio screen, or press the “AUDIO/
TUNE” knob again.
3.SelectBluetooth Audio (Bluetooth Audio).
4.SelectYes (Yes) to register an audio device.
5.Follow the steps in “REGISTERING A Bluetooth
' ( 9 , & (
Page 299 of 308
ERROR MESSAGES
297
APPENDIX/WHAT TO DO IF/INDEX
10
ModeMessage CauseAction
Bluetooth Audio “Music tracks not supported. Please
check your audio player. (Music
tracks not supported. Please check
your audio player.)” A device that is incompatible with
audio playback was connected.
‡
Check the device settings.
‡ Connect a device that is compatible
with audio playback.
SUBARU
STARLINK Please disconnect mobile device
and install the SUBARU STARLINK
application on your mobile device and
try again.
Bluetooth disconnected, please
reconnect and try again.
Smartphone data connection is poor,
please try to connect again. ‡
The SUBARU STARLINK
application has not been installed
on your smartphone.
‡ Your smartphone power was turned
OFF.
‡ The Bluetooth connection has been
lost.
‡ The signal quality is weak.
‡ Lines are congested. ‡
Install the SUBARU STARLINK
application.
‡ Turn ON the your smartphone
power.
‡ Check the Bluetooth connection.
‡ Move the car and connect to
SUBARU STARLINK again.
‡ Wait a short while and connect to
SUBARU STARLINK again.
‡ Start the SUBARU STARLINK
application on your smartphone,
check the service availability, and
then reconnect.
aha “Information acquisition error.
(Information acquisition error.)”
When not able to get the requested
information.Please try again (Refresh etc.) later
or reconnect it.
“Poor wireless reception. (Poor
wireless reception.)” When a communication error has
been detected.Please try again in a better
communications environment.
“Entry not recognized. (Entry not
recognized.)” When an invalid operation has been
executed.Please try again (Refresh etc.) later
or reconnect it.
“The station list cannot be acquired.
(The station list cannot be acquired.)” When not able to get the station
information.Please try again (Refresh etc.) later
or reconnect it.
Page 303 of 308
INDEX
301
APPENDIX/WHAT TO DO IF/INDEX
10
I
“INFO (INFO)” screen ..................................................................... 24
Info screen operation ...................................................................... 47 Reordering the menu icons......................................................... 47
Initial screen ........................................................................\
........... 38
iPod ...................................................................\
............................. 84
L
Loading/removing an SD card ........................................................ 42 Loading ................................................................\
....................... 42
Removing........................................................................\
............ 44
M
Maintenance ............................................................\
..................... 196
Map screen operation ................................................................... 205 Current position display ............................................................ 205
Map scale ........................................................................\
......... 206
Orientation of the map .............................................................. 207
Position marker ........................................................................\
. 208
Show map ........................................................................\
......... 205
Memory points settings..................................................\
............... 237 Saving destinations................................................................... 238
Setting up home........................................................................\
237
MirrorLink
TM........................................................................\
........... 150
O
Operating information ................................................................... 101 CD player/disc ........................................................................\
.. 103
File information ........................................................................\
. 107
iPod........................................................................\
................... 106
Radio ..................................................................\
...................... 101
SD card ........................................................................\
............. 107
Terms ....................................................................\
.................... 111
Overview buttons ........................................................................\
.... 20
P
Pandora ................................................................\
........................ 158
Phone/message settings .............................................................. 133 “Contact/Call History Settings (Contact/Call History Settings)” screen ................................. 135
“Messaging Settings (Messaging Settings)” screen ................. 142
“Phone Display Settings (Phone Display Settings)” screen ...... 143
“Phone/Message Settings (Phone/Message Settings)” screen ...................................... 133
“Sound Settings (Sound Settings)” screen ............................... 134
