2017 SUBARU FORESTER display

MEDIA OPERATION
90 XControl screen (Photo)
No. Function
Select to set slideshow.
The slideshow displays the images contained within the
currently selected folder.
Select to set play time of slideshow.
Select to set random playback.
7KH¿OHVFDQEHVZLWFKHG
Select to display the microSD photo folder list selection
screen.
WARNING
ODo not operate the player’s controls or insertion and pulling
out the SD card while driving.
CAUTION
ODo not insert foreign objects into the SD card slot.
NOTE
O$XGLR

MEDIA OPERATION
92 XControl screen
No. Function
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVVFUHHQ
:3
Select to play/pause.
Shows progress.
No.Function
Select to enable/disable repeat playback of the track
currently playing.
Select to enable/disable random playback for the tracks
currently playing on the Bluetooth audio device.
Select to display the playlist screen.
To return to the top screen, select
Now Playing (Now
Playing) on the list screen.
Select to display the portable device connection screen.

:3
Displays cover art.
Select to display a track list.

MEDIA OPERATION
95
AUDIO
3
XControl screen
No. Function
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVFUHHQ
:3
WARNING
ODo not operate the player’s controls or connect the portable
audio device while driving.
CAUTION
ODo not leave portable audio device in the vehicle. The
temperature inside the vehicle may become high, resulting in
damage to the player.
O Do not push down on or apply unnecessary pressure to
the portable audio device while it is connected as this may
damage the portable audio device or its terminal.
O Do not insert foreign objects into the port as this may damage
the portable audio device or its terminal.

AUDIO/VISUAL REMOTE CONTROLS
97
AUDIO
3
X“/ ” switch
Mode Operation Function
AM/FM Radio,
SiriusXM
®
Press Preset channel up/down
Press and hold Seek up/down continuously
aha Press
Content up/down
Press and hold Rewind the current content
item for 15 seconds/ Fast
forward the current content
item for 30 seconds
Audio CD, MP3/
WMA/AAC disc,
SD*
1,USB, iPod,
Bluetooth audio Press
6HOHFWDWUDFN¿OH
Press and hold Fast forward/rewind
Pandora*
2Press Track up (“”only)
Press and hold Thumbs up/down
List screen Press Cursor left/right
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
X Mute/enter switch
Mode Operation Function
Except list
screen Press
Mute/unmute
List screen Press Select cursor entry
XBack switch
Mode Operation Function
All Press
Return to the previous screen
when
is displayed on
the screen.
Press and hold Return to the “HOME
(HOME)” screen
X
List switch
Mode Operation Function
Audio screen,
Navigation*
screen Press
Show list screen
*: With navigation function

SETUP
99
AUDIO
3

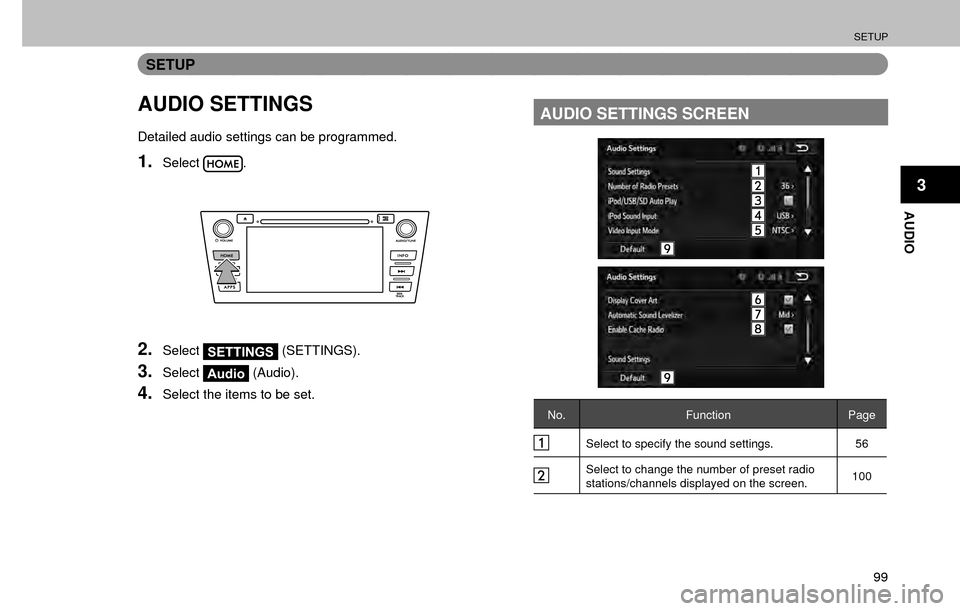

SETUP
AUDIO SETTINGS
Detailed audio settings can be programmed.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectAudio (Audio).
4.Select the items to be set.
AUDIO SETTINGS SCREEN
No.
Function Page
Select to specify the sound settings. 56
Select to change the number of preset radio
stations/channels displayed on the screen.100

SETUP
100
No.Function Page
Select to specify the iPod/SD*/USB auto play
settings on/off. -
Select to specify the iPod sound signal input
settings.101
Unsupported.
-
Select to specify cover art settings on/off. -
Select to specify automatic sound levelizer
settings.101
Select to enable cache radio.
-
Select to reset all setup items. -
*: With navigation function
DISPLAYING THE “Audio Settings (Audio
Settings)” SCREEN IN A DIFFERENT WAY
XUSB video/SD video*
*: With navigation function
1.Select on the audio control screen.
2.SelectSettings (Settings).
SETTING THE NUMBER OF RADIO PRESETS
1.Display the “Audio Settings (Audio Settings)” screen.

:3
2.SelectNumber of Radio Presets (Number of Radio
Presets).
3.Select the button with the desired number to be
displayed.

SETUP
101
AUDIO
3
iPod SETTINGS
1.Display the “Audio Settings (Audio Settings)” screen.

:3
2.SelectiPod Sound Input (iPod Sound Input).
3.Select a screen button for the desired setting.
AUTOMATIC SOUND LEVELIZER (ASL)
The system adjusts to the optimum volume and tone quality
according to vehicle speed to compensate for increased
vehicle noise.
1.Display the “Audio Settings (Audio Settings)” screen.

:3
2.SelectAutomatic Sound Levelizer (Automatic Sound
Levelizer).
3.SelectHigh (High), Mid (Mid), Low (Low), or Off
(Off).

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 6
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
QUICK REFERENCE
The phone top screen can be used to make a phone call. To
display the hands-free operation screen, select
and
then select
PHONE (PHONE), select *, or press
the
switch on the steering wheel.
Several functions are available to operate on each screen
that is displayed by selecting the 4 tabs.
*: Without navigation function
Function Page
Phone
operation Registering/connecting Bluetooth phone 176
Calling on the Bluetooth phone
121
Receiving on the Bluetooth phone 126
Talking on the Bluetooth phone 127
Message
function Using the Bluetooth phone message
function
130
Setting up
a phone Phone settings
136
Bluetooth settings 181
