334
4-3. Do-it-yourself maintenance

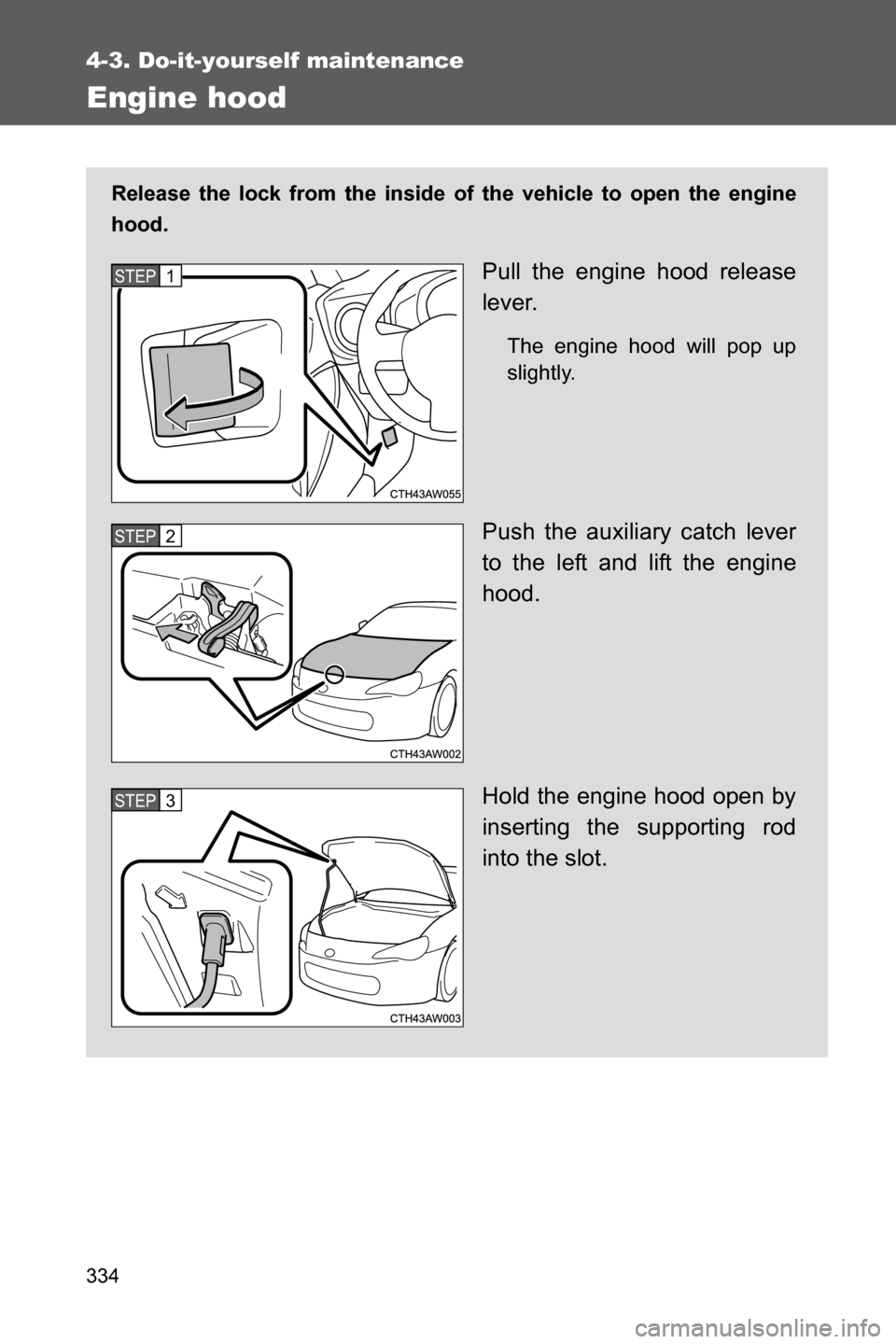

Engine hood
Release the lock from the inside of the vehicle to open the engine
hood.
Pull the engine hood release
lever.
The engine hood will pop up
slightly.
Push the auxiliary catch lever
to the left and lift the engine
hood.
Hold the engine hood open by
inserting the supporting rod
into the slot.
STEP 1
STEP 2
STEP 3

335 4-3. Do-it-yourself maintenance
4
Maintenance and care
WARNING
■Pre-driving check
Check that the engine hood is fully closed and locked.
If the engine hood is not locked properly it may open while the vehicle is in
motion and cause an accident, which may result in death or serious injury.
CAUTION
■When opening the engine hood
●Do not lift up or operate the wipers. Doing so may cause the engine hood
and wipers to contact, scratching the engine hood.
●Use caution when opening the engine hood in windy weather as it may
close suddenly in strong wind.
●Do not attach any accessories other than genuine SUBARU products to
the engine hood. Such additional weight on the engine hood may cause it
to be too heavy to be supported by the supporting rod when opened.
■When closing the engine hood
Do not apply excessive weight or force when closing the engine hood as
doing so may result in damage.

460 5-2. Steps to take in an emergency
WARNING
■To prevent an accident or injury when inspecting under the hood of
your vehicle
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
●Do not loosen the radiator cap and the coolant reservoir cap while the
engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
CAUTION
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
●Do not use any coolant additives.

529 Alphabetical index
Language (multi-information
display) .................................. 223
License plate lights
Replacing light bulbs ............ 380
Wattage ................................ 475
Light bulbs
Replacing ............................. 380
Wattage ................................ 475
Lights
Door courtesy lights.............. 296
Engine switch light................ 296
Fog light switch..................... 233
Hazard light switch ............... 392
Hazard warning flasher
switch ................................. 392
Headlights switch ................. 228
Interior light switch................ 297
Replacing light bulbs ............ 380
Trunk light............................... 48
Turn signal lever ................... 191
Vanity lights .......................... 304
Wattage ................................ 475
Load capacity .......................... 267
Maintenance
Do-it-yourself
maintenance ...................... 331
General maintenance ........... 327
Maintenance data................. 464
Maintenance requirements ... 324
Manual air conditioning
system ................................... 276
Manual transmission .............. 188
Meter
Indicators.............................. 198
Instrument panel
light control......................... 196
Meters .................................. 194
Multi-information
display ........................ 205, 213
Settings ........................ 205, 223
Warning lights....................... 402
Warning messages............... 414Microphone...............................295
Mirrors
Inside rear view mirror.............68
Side mirror heater .................292
Side mirrors .............................69
Vanity mirrors ........................304
Multi-information display
Drive information ...................216
G-force display ......................219
Language ..............................223
Multi-information
display.........................205, 213
Settings .................................223
Trip information .....................206
Warning messages ...............414
Noise from under vehicle ..........16
Odometer ..........................205, 225
Oil
Engine oil ..............................337
Opener
Engine hood ..........................334
Fuel filler lid .............................76
Trunk lid ..................................46
Outside rear view mirrors
Adjusting and folding ...............69
Outside temperature
display ............................205, 225
Overheating, Engine ................458
Paddle shift levers ...................184
Parking brake ...........................192
Parking lights
Switch....................................228
Power outlets ...........................306
Power windows ..........................72
Radiator ....................................342
Rear seats...................................56
Rear side marker lights
Switch....................................228L
M
N
O
P
R

533

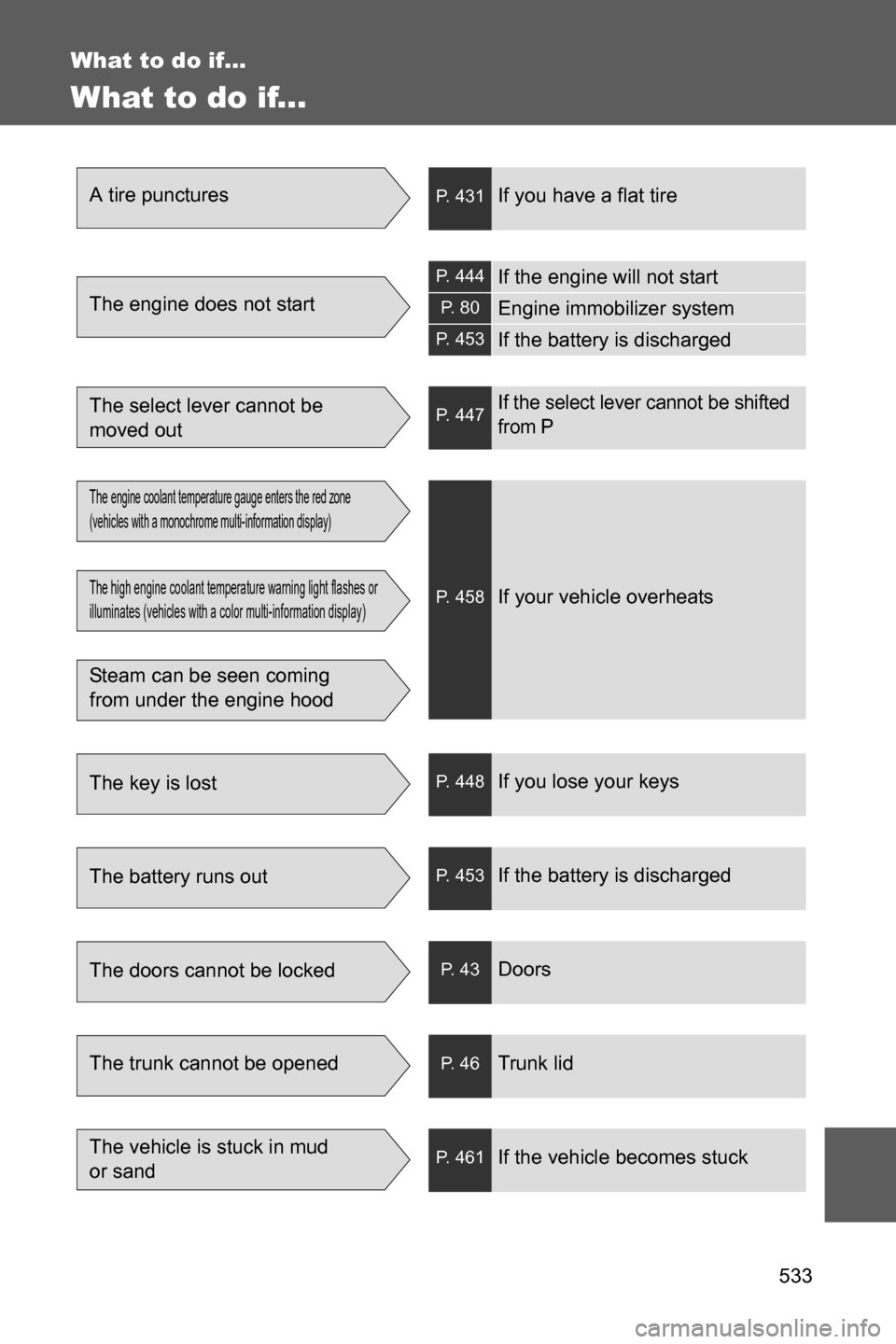

What to do if...
