2017 SUBARU BRZ light

385 4-3. Do-it-yourself maintenance
4
Maintenance and care
■License plate lights
Remove the trunk lid panel cover
clips and partly remove the trunk
lid panel cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

386 4-3. Do-it-yourself maintenance
■Interior light
Remove the lens.
To prevent damage to the interior
light, cover the tip of the screw-
driver with a rag.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3

387 4-3. Do-it-yourself maintenance
4
Maintenance and care
■Vanity lights (if equipped)
Open the cover and remove the
lens.
To prevent damage to the vanity
light, cover the tip of the screw-
driver with a rag.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3

388 4-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your SUBARU dealer.
●Headlights
●Parking lights/daytime running lights
●Front turn signal lights
●Front fog lights (if equipped)
●Stop/tail lights
●Stop lights
●Rear turn signal lights
●Rear side marker lights
●High mounted stoplight
●Door courtesy lights (if equipped)
●Trunk light

389 4-3. Do-it-yourself maintenance
4
Maintenance and care
■Condensation build-up on the inside of the lens
Contact your SUBARU dealer for more information in the following situa-
tions. Temporary condensation build-up on the inside of the headlight lens
does not indicate a malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED light bulbs
The headlights, parking lights/daytime running lights, front turn signal lights,
front fog lights (if equipped), stop/tail lights, stop lights, rear turn signal lights,
rear side marker lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your SUBARU dealer
to have the light replaced.
■When replacing light bulbs
SUBARU recommends that you use genuine SUBARU products designed
for this vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
■Removing and installing the luggage trim cover and trunk lid panel
cover clip
Removing
Installing

390 4-3. Do-it-yourself maintenance
WARNING
■Replacing light bulbs
●Only replace a bulb when it is cool enough to touch. Do not attempt to
replace bulbs while they are hot, as doing so may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install the light bulbs and any parts used to secure them. Failure to
do so may result in heat damage, fire, or water entering a light unit. This
may damage the light or cause condensation to build up on the inner side
of the lens.
■When changing the back-up lights
Stop the engine and wait until the exhaust pipes have cooled down suffi-
ciently. The lights are located near the exhaust pipe and touching a hot
exhaust pipe can cause burns.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

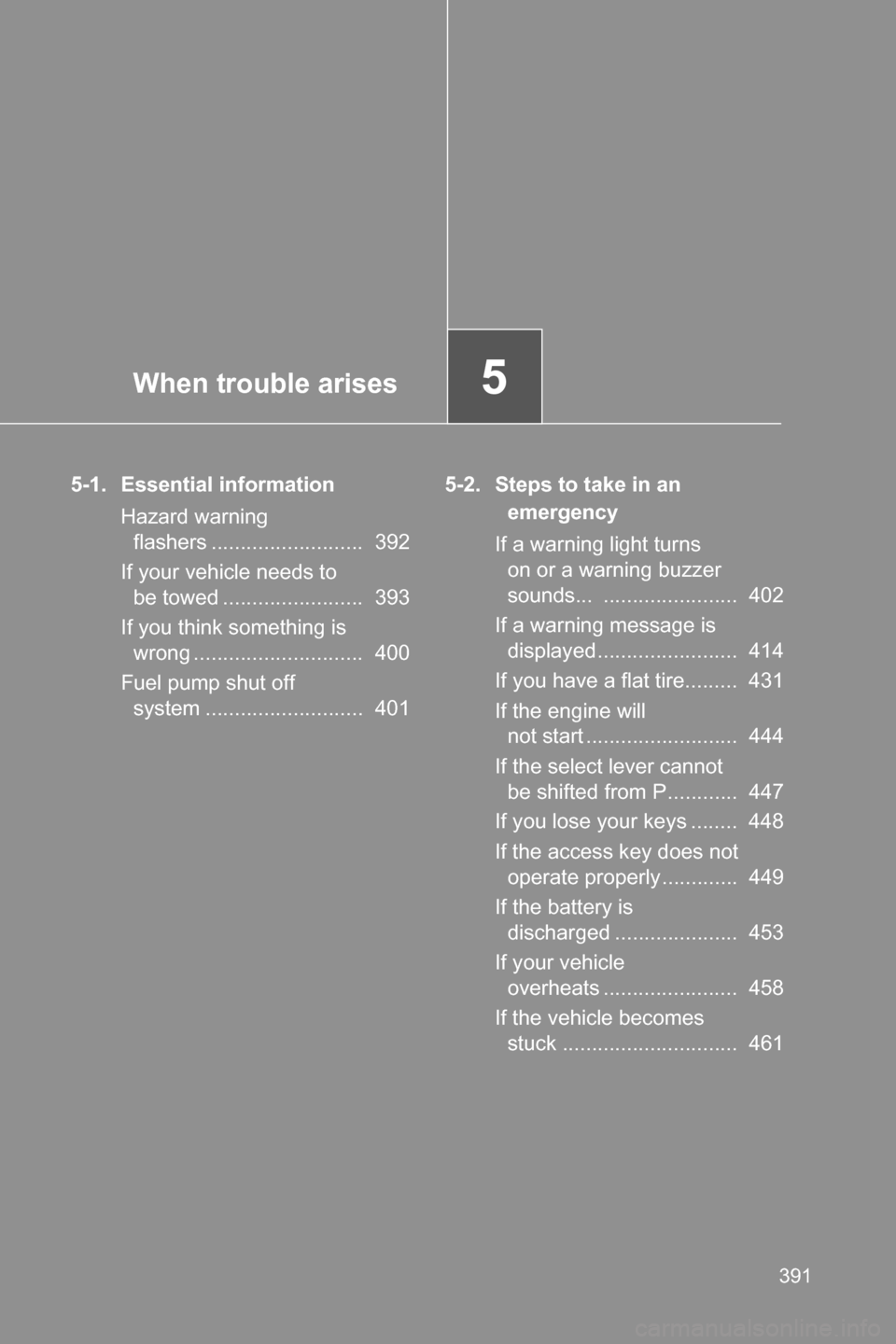

When trouble arises5
391
5-1. Essential information
Hazard warning
flashers .......................... 392
If your vehicle needs to
be towed ........................ 393
If you think something is
wrong ............................. 400
Fuel pump shut off
system ........................... 4015-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ....................... 402
If a warning message is
displayed ........................ 414
If you have a flat tire......... 431
If the engine will
not start .......................... 444
If the select lever cannot
be shifted from P ............ 447
If you lose your keys ........ 448
If the access key does not
operate properly ............. 449
If the battery is
discharged ..................... 453
If your vehicle
overheats ....................... 458
If the vehicle becomes
stuck .............................. 461

392
5-1. Essential information
Hazard war ning flashers
■Hazard warning flashers
If the hazard warning flashers are used for a long time while the engine is
not operating, the battery may discharge. The hazard warning flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash. To turn them off, press
the switch once again.
