2017 SKODA OCTAVIA engine

WARNINGThe maximum vertical load and the maximum trailer load must not be ex-ceeded - there is risk of accident!
Towing a trailer
Driving speed
For safety reasons, do not drive faster than 100 km/h when towing a trailer.
Immediately reduce your speed as soon as even the slightest swaying of the
trailer is detected. Never attempt to stop the trailer from “swaying” by accel-
erating.
Brakes
Apply the brakes in good time! If the trailer is fitted with a trailer brake, apply
the brakes gently at first, then brake firmly. This will avoid brake jolts resulting
from the trailer wheels locking.
On downhill sections shift down a gear in good time to also use the engine as a
brake.
WARNINGAlways drive particularly carefully with the trailer.
CAUTION
With frequent towing, the vehicle is excessively loaded so this must also be
checked between service intervals.
Anti-theft alarm system
The alarm is triggered if, with a vehicle with activated anti-theft alarm (herein-
after only warning system), the electrical connection to the trailer (accessory)
is interrupted.
Always switch off the anti-theft alarm system before a trailer (accessory) is
coupled or uncoupled

Fig. 311
Fuel filler tube on vehicles with
diesel engines

vPetrol with a lower Octane count than 91 should not even be used in an
emergency!
v
If a fuel other than unleaded fuel which complies to the above mentioned
standards (e.g. leaded petrol) is put in the tank by mistake, do not start the en-
gine or switch on the ignition.
CAUTION
Additives - The following instructions must be observed, otherwise there is a
risk of engine damage and damage to the exhaust system.
v
Do not use petrol containing metal-based additives, e.g. manganese, iron,
lead, and do not use, for example, any LRP petrol

No.Consumer41Belt tensioner - front passenger side42Central - rear doors, headlamp washers, washer43Music amplifier44Tow hitch45Electrically adjustable seats46230 volt power socket47Rear window wiper48Assist system for blind spot monitoring49Engine starting, clutch pedal switch50Opening the boot lid51SCR (AdBlue

No.Consumer8Lambda probe9Ignition, exhaust flap, engine components10Fuel pump, ignition11Electric auxiliary heater12Electric auxiliary heater13Windscreen heater - left14Windscreen heater - right15Horn16Ignition, fuel pump, CNG relay17ABS, ESC, motor control system, Relay for heated windscreen18Databus, battery data module19Windscreen wipers20Anti-theft alarm21Automatic gearbox22Engine control system23Starter24Electric auxiliary heater31Vacuum pump for the brake system32Not used33Oil pump for automatic gearbox34Front differential35Not used36Not used37Aux. heating38Not assignedBulbs

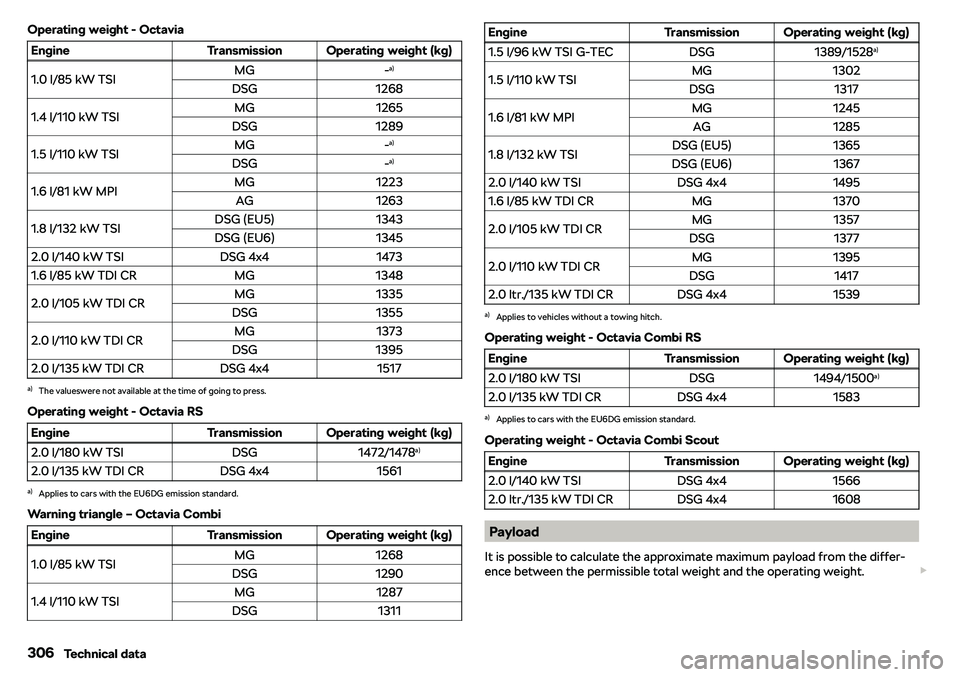

Operating weight - OctaviaEngineTransmissionOperating weight (kg)1.0 l/85 kW TSIMG-a)DSG12681.4 l/110 kW TSIMG1265DSG12891.5 l/110 kW TSIMG- a)DSG-a)1.6 l/81 kW MPIMG1223AG12631.8 l/132 kW TSIDSG (EU5)1343DSG (EU6)13452.0 l/140 kW TSIDSG 4x414731.6 l/85 kW TDI CRMG13482.0 l/105 kW TDI CRMG1335DSG13552.0 l/110 kW TDI CRMG1373DSG13952.0 l/135 kW TDI CRDSG 4x41517a)
The valueswere not available at the time of going to press.
Operating weight - Octavia RS
EngineTransmissionOperating weight (kg)2.0 l/180 kW TSIDSG1472/1478 a)2.0 l/135 kW TDI CRDSG 4x41561a)
Applies to cars with the EU6DG emission standard.
Warning triangle

Track gauge front/rearEngineFront trackRear track1.0 l/85 kW TSI154915401.4 l/110 kW TSI154315341.5 l/96 kW TSI G-TEC153915301.5 l/110 kW TSI154315341.6 l/81 kW MPI154915401.8 l/132 kW TSI154315422.0 l/140 kW TSI1543a)
/1538 b)1542a)
/1539 b)2.0 ltr./180 kW TSI153515441.6 l/85 kW TDI CR15491540- 1548 a)2.0 l/105 kW TDI CR154315342.0 l/110 kW TDI CR1543- 1538b)1534/1539b)
/1542 a)2.0 l/135 kW TDI CR1543a)
/1535 c)
/1538 b)1542a)
/1544 c)
/1539 b)a)
Applies to Octavia 4x4/Octavia Combi 4x4 vehicles.
b)
Applies to Octavia Scout vehicles.
c)
Applies to Octavia RS/Octavia Combi RS vehicles.
310Technical data

Vehicle-specific details per engine type
