2017 SKODA KODIAQ display

Operation

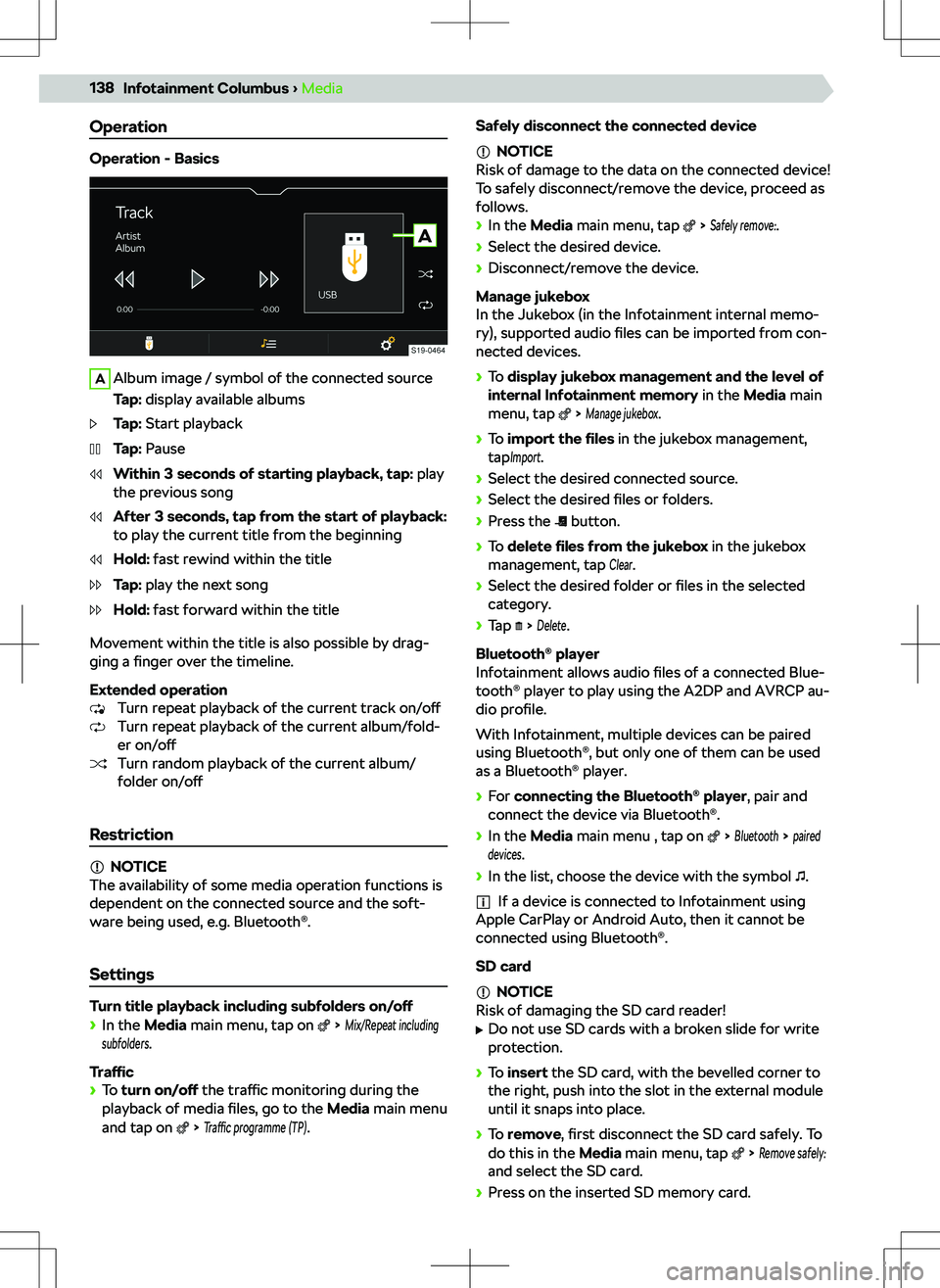

Operation - Basics
AAlbum image / symbol of the connected source
Tap: display available albumsTap: Start playbackTap: PauseWithin 3 seconds of starting playback, tap: play
the previous songAfter 3 seconds, tap from the start of playback:
to play the current title from the beginningHold: fast rewind within the titleTap: play the next songHold: fast forward within the title
Movement within the title is also possible by drag-
ging a finger over the timeline.
Extended operation Turn repeat playback of the current track on/o

Media Command
Functionality
The Media Commandfunction allows playback of au-
dio files or videos in up to two tablets that are con-
nected to Infotainment via Wi-Fi, to control Infotain-
ment.
Overview
Display main menu

APreviously connected deviceBCurrently connected deviceDisplay information about SmartLinkSeparation of the active connectionSettings for the SmartLink menu
Android Auto
Navigation applicationsTelephone applicationsOverview of running applications, phone calls, in-
coming text messages, and more.Music applicationsDisplay of other available applications as well as
the option to return to the SmartLink main menuTurn on voice control (Google Voice)
Apple CarPlay
AList of available applicationsDepending on the duration of operation:

Map optionsAAutomatic map display in day or night mode (de-
pending on the currently active vehicle lighting)BDaytime map displayCNight-time map displayDSwitch the split screen display on/o

BDepending on the search mode, the following
symbols are displayed

The navigation announcements provided may vary
from the actual situations, e.g. due to out-of-date
navigation data.
Route overview
During route guidance the display of a route over-
view is possible.

Pedestrian detection system
Functionality
Pedestrian recognition helps to prevent a collision
with crossing pedestrians by enabling automatic
braking interventions.
Status display in the instrument cluster display or
lights up - Danger of collision
Risk of collision in a speed range of 5-30 km/h
The system triggers automatic braking.
Risk of collision in a speed range of 30-60 km/h
The system warns of a collision hazard first. If the
driver does not respond, the vehicle is automatically
braked.
Operating conditions
q Front Assist activated.
q Driving speed between 5-60 km/h.
Speed limiter Functionality
The speed limiter controls the maximum driving
speed according to the set speed limit.
If the limit is exceeded when driving downhill, brake
the vehicle with the brake pedal.
Status display in the instrument cluster display illuminated - the cruise control is activated.
When the control starts,
is highlighted and the
set limit is displayed.
illuminated - cruise control is active
flashing - the set limit is exceeded
Operating conditions
q The driving speed is higher than 30 km/h.
Operation
Variant without GRA
A Activate limiter (control inactive)
Deactivate limiter
Interrupt control (sprung position)
B Resume control 1)
/Increase limitC Start control with current speed/Reduce
limit
Variant with GRA
A Activate GRA (condition for the subsequent
activation of the limiter).
To enable the speed limiter , press the key D
and in the instrument cluster choose the menu
item
Speed limit
.
Deactivate limiter
Interrupt control (sprung position)
B Resume control 1)
/Increase limitC Start control with current speed/Reduce
limitD Show menu of assist systems - Possibility of
switching between GRA and speed limiter
Switching to GRA interrupts the control.
Adjusting the speed limit with the buttons
B
and
C
By pressing in steps of 1 km/h.
By holding in steps of 10 km/h.
1)
If no speed limit is set, the current speed is set as the speed limit.
176Driver assist systems

Line A appears in the
display, indicating the
change in distance.
