2017 Seat Toledo jump start

Frequently Asked Ques-
tion
sBefore driving
How do you adjust the seat?
››› page 11
How do you adjust the steering wheel? ››› page 13
How do you adjust the exterior mirrors? ››› page 13
How do you turn on the exterior lights? ››› page 18
How does the automatic gearbox selector lever work?
››› page 36
How do you refuel? ››› page 40
How do you activate the windscreen wipers and wind-
screen washer system? ››› page 20
Emergency situations
A warning lamp lights up or flashes. What does this
mean? ››› page 33
Where are the first-aid kit and the warning triangle in
the vehicle? ››› page 76
How do you open the bonnet? ››› page 11
How do you perform a jump start? ››› page 52
Where is the vehicle tool kit located? ››› page 47
How do you repair a tyre with the anti-puncture kit?
››› page 46
How do you change a wheel? ››› page 47
How do you change a fuse? ››› page 44
How do you change a light? ››› page 45
How do you tow a vehicle? ››› page 51
Useful tips
How do you set the time? ››› page 97
When should the vehicle inspection should be per-
formed? ››› page 31
What functions do the buttons/thumbwheels on the
steering wheel perform? ››› page 103
How do you drive in an economical and environmental-
ly-friendly way? ››› page 166
How do you check and top up the engine oil?
››› page 41
How do you check and top up the engine coolant?
››› page 42
How do you top up the windscreen washer fluid?
››› page 43
How do you check and top up the brake fluid?
››› page 43
How do you check and adjust tyre pressure values?
››› page 218
Vehicle washing tips ››› page 196
Functions of interest
Easy Connect, CAR menu ››› page 21
How does the START-STOP system work? ››› page 183
What parking assistants are available? ››› page 170
How does the rear assist work? ››› page 175
How does tyre pressure monitoring work? ››› page 221
How do you open the vehicle without a key (Keyless Ac-
cess)? ››› page 114
Interior lighting and ambient light ››› page 126

Table of Contents
Table of Contents
The e s
senti
als . . . . . . . . . . . . . . . . . . . . . . . . 5
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Interior view (left-hand drive) . . . . . . . . . . . . . . 7
Interior view (right-hand drive) . . . . . . . . . . . . . 8
How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unlocking and locking . . . . . . . . . . . . . . . . . . . . 9
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . 18
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . 18
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Driver information System . . . . . . . . . . . . . . . . . 23
Status display . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . 37
Fluid Level control . . . . . . . . . . . . . . . . . . . . . . . 40
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Action in the event of a puncture . . . . . . . . . . . 45
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . 47
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Emergency towing of the vehicle . . . . . . . . . . . 51
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . 52
Changing the windscreen wiper blades . . . . . . 54
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safety first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Advice about driving . . . . . . . . . . . . . . . . . . . . . 56 Correct position of the vehicle occupants . . . . 57
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Seat belts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
The whys and wherefores of seat belts . . . . . . . 62
How to properly adjust your seatbelt . . . . . . . . 65
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . 66
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . 67
Airbag safety instructions . . . . . . . . . . . . . . . . . 70
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . 72
Transporting children safely . . . . . . . . . . . . . . . 73
Safety for children . . . . . . . . . . . . . . . . . . . . . . . 73
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Emergency equipment . . . . . . . . . . . . . . . . . . . . 76
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . 76
Tyre repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Towing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 79
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 81
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 84
Changing the fog light bulbs . . . . . . . . . . . . . . . 88
Changing the rear lights (on the side panel) . . 88
Changing tail lights (on the rear lid) . . . . . . . . . 90
Changing the bulb on the number plate . . . . . . 92
Side turn signals . . . . . . . . . . . . . . . . . . . . . . . . 92
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Controls and displays . . . . . . . . . . . . . . . . . . . . 95
General instrument panel . . . . . . . . . . . . . . . . . 94
Instruments and warning lamps . . . . . . . . . . . . 96
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Introduction to the Easy Connect system* . . . . 101
System settings (CAR)* . . . . . . . . . . . . . . . . . . . 101 Communications and multimedia
. . . . . . . . . . . 103
Steering wheel controls* . . . . . . . . . . . . . . . . . . 103
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Opening and closing . . . . . . . . . . . . . . . . . . . . . 108
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Central locking system . . . . . . . . . . . . . . . . . . . . 111
Anti-theft alarm* . . . . . . . . . . . . . . . . . . . . . . . . 116
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Controls for the windows . . . . . . . . . . . . . . . . . . 119
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . 120
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Windscreen wipers and windscreen wash-
ers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Mirr

ors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Seats and head restraints . . . . . . . . . . . . . . . . . 131
Adjusting seats and head restraints . . . . . . . . . 131
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Transport and practical equipment . . . . . . . . . 135
Practical equipment . . . . . . . . . . . . . . . . . . . . . . 135
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Luggage compartment . . . . . . . . . . . . . . . . . . . . 141
Roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . 146
Heating and air conditioning . . . . . . . . . . . . . . . 146
Heating and fresh air . . . . . . . . . . . . . . . . . . . . . 148
Air conditioning (manual)* . . . . . . . . . . . . . . . . 148
Climatronic* (automatic air conditioning) . . . . 150
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Starting and stopping the engine . . . . . . . . . . . 152
Brakes and brake servo systems . . . . . . . . . . . . 156
Braking and stability systems . . . . . . . . . . . . . . 158
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 160
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 160
Run-in and economical driving . . . . . . . . . . . . . 165
3

The essentials
Notes for the driver of the towing vehicle
● The tow rope must be taut before you drive
off .
● Rel
ease the clutch very carefully when start-
ing the v
ehicle (manual gearbox), or acceler-
ate gently (automatic gearbox).
Driving style
Towing requires some experience, especially
when using a tow rope. Both drivers should
realise how difficult it is to tow a vehicle. In-
experienced drivers should not attempt to
tow.
Do not pull too hard with the towing vehicle
and take care to avoid jerking the tow rope.
When towing on an unpaved road, there is al-
ways a risk of overloading and damaging the
anchorage points.
The towline anchorages are located under
the floor panel in the luggage compartment.
Switch on the ignition so that the turn sig-
nals, windscreen wipers and windscreen
washer can work. Ensure that the steering
wheel is unlocked and moves freely.
Place the gear lever in neutral on vehicles
with a manual gearbox. With an automatic
gearbox, place the lever in N.
To brake, press the brake pedal firmly. The
brake servo does not work when the engine
is switched off. The power steering only works when the igni-
tion is sw

itched on and the vehicle is moving,
provided that the battery is sufficiently charg-
ed. Otherwise, it will need more force.
Ensure that the tow rope remains taut at all
times.

››› page 79 Tow-starting
If the engine will not start, first try starting it
u
s
in

g the battery of another vehicle
››› page 52. You should only attempt to tow-
start a vehicle if charging the battery does
not work. This is done by leveraging wheel
movement.
When tow-starting a vehicle with a petrol en-
gine, do not tow it more than a short dis-
tance, otherwise unburned fuel can enter the
catalytic converter.
● Engage 2nd or 3rd gear before moving off.
● Press the clutch and hold the pedal down.
● Switch the ignition on.
● Once both vehicles are moving, release the
clutc
h.
● As soon as the engine has started, press
the clutc
h and move the gear lever to neutral. How to jump start
Jump lea
ds The jump lead must have a sufficient wire
cr
o

ss section.
If the engine fails to start because of a dis-
charged battery, the battery can be connec-
ted to the battery of another vehicle to start
the engine.
Both batteries need to have nominal voltage
of 12 V. The capacity (Ah) of the back-up bat-
tery should not be notably less than the
drained battery.
Jump leads must comply with standard DIN
72553 (see cable manufacturer's instruc-
tions). The wire cross section must be at least
25 mm 2
for petrol engines and at least
35 mm 2
for diesel engines.
Jump leads
Positive cable – usually red
Negative cable – usually black WARNING
● A flat b

attery can also freeze at tempera-
tures slightly below 0°C (+32°F). Do not at-
tempt to start the vehicle with a frozen bat-
tery. Risk of explosion! 52

The essentials
●
Ple a
se note the safety warnings referring to
working in the engine compartment
›››  page 204.
● The non-insulated parts of the battery
clamp
s must not be allowed to touch. Addi-
tionally, the jump lead attached to the posi-
tive battery terminal must not touch metal
parts of the vehicle. Risk of short circuit!
● Do not connect the negative lead to the
negativ
e terminal of the discharged battery.
In the event of sparks when starting the en-
gine, the explosive gas given off by the bat-
tery could catch fire.
● Position the jump leads in such a way that
they cannot
come into contact with any mov-
ing parts in the engine compartment.
● Do not bend over the battery. Risk of acid
burns!
● The s

crew plugs on the battery cells must
be scr
ewed in firmly.
● Keep sources of fire (flames, lit cigarettes,
etc.) a
way from the battery. - Risk of explo-
sion!
● Never use the jump leads on batteries in
which the electr
olyte level is too low. Risk of
explosion and acid burns. Note
● The v ehic

les must not touch each other, as
electricity could flow as soon as the positive
terminals are connected. ●
The dis c

harged battery must be properly
connected to the vehicle electrical system.
● The jump leads should be checked in a spe-
cia
list vehicle battery shop. How to jump start: description
Fig. 68
Diagram of connections for vehicles
w ithout


Start Stop system Fig. 69
Diagram of connections for vehicles
w ith
St

art Stop system Jump lead terminal connections
Switc

h off the ignition of both vehicles
››› .
C onnect
one end of

the red jump lead to
the positive + terminal of the vehicle
w ith the fl
at

battery A
› ››
Fig. 68
.
C
onnect the other end of the red jump
lead to the positive terminal + in the
v ehic
l

e providing assistance B .
F or

vehicles without Start-Stop system:
connect one end of the black jump lead
to the negative terminal – of the vehi-
c l
e pr

oviding the current B
› ›
› Fig. 68 .
For vehicles with Start-Stop system: con-
nect one end of the black jump lead X to a suitable ground terminal, to a solid
piec
e of
met

al in the engine block, or to
the engine block itself ››› Fig. 69.
Connect the other end of the black jump
lead X to a solid metal component bol-
t ed t
o the en

gine block or to the engine
block itself of the vehicle with the flat
battery. Do not connect it to a point near
the battery A .
P o
s

ition the leads in such a way that
they cannot come into contact with any
moving parts in the engine compart-
ment. »
1.
2.
3.
4a.
4b.
5.
6.
53

The essentials
Starting Star
t
the engine of the vehicle with the
boosting battery and let it run at idling
speed.
Start the engine of the vehicle with the
flat battery and wait for 2 or 3 minutes
until the engine is running.
Removing the jump leads Before you remove the jump leads,
switch off the dipped beam headlights if
they are switched on.
Turn on the heater blower and heated
rear window in the vehicle with the flat
battery. This helps minimise voltage
peaks which are generated when the
leads are disconnected.
When the engine is running, disconnect
the leads in reverse order to the details
given above.
Make sure the battery clamps have sufficient
metal-to-metal contact with the battery termi-
nals.
If the engine fails to start after about 10 sec-
onds, switch off the starter and try again after
about 1 minute. WARNING
● Ple a

se note the safety warnings referring to
working in the engine compartment
›››  page 204. 7.
8.
9.
10.
11. ●
The batt er

y providing assistance must have
the same voltage as the flat battery (12V) and
approximately the same capacity (see imprint
on battery). Failure to comply could result in
an explosion.
● Never use jump leads when one of the bat-
teries
is frozen. Danger of explosion! Even af-
ter the battery has thawed, battery acid could
leak and cause chemical burns. If a battery
freezes, it should be replaced.
● Keep sparks, flames and lighted cigarettes
awa
y from batteries, danger of explosion.
Failure to comply could result in an explo-
sion.
● Observe the instructions provided by the
manufact
urer of the jump leads.
● Do not connect the negative cable from the
other vehic
le directly to the negative terminal
of the flat battery. The gas emitted from the
battery could be ignited by sparks. Danger of
explosion.
● Never attach the negative cable to fuel sys-
tem component
s or the brake lines in the oth-
er vehicle.
● The non-insulated parts of the battery
clamp
s must not be allowed to touch. The
jump lead attached to the positive battery
terminal must not touch metal parts of the ve-
hicle, this can cause a short circuit.
● Position the leads in such a way that they
cannot c
ome into contact with any moving
parts in the engine compartment.
● Do not lean on the batteries. This could re-
sult
in chemical burns. Note
The vehicles must not touch each other, oth-
erw i

se electricity could flow as soon as the
positive terminals are connected. Changing the windscreen wiper
bl
a

des
Changing the wiper blades Fig. 70
Windscreen wiper blades. Set the windscreen wiper arms to the service
po
s
ition bef

ore changing the blades.
Service position
● Close the bonnet.
● Switch the ignition on and off. 54

Index
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
p u
nct
ure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 44
Emergency fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Emergency brake assist system indications on the display . . . . . . . . . . . . . . . . 179
Emergency braking assistance system malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
switching off temporarily . . . . . . . . . . . . . . . . . 182
system limitations . . . . . . . . . . . . . . . . . . . . . . 183
Emergency operation front passenger door . . . . . . . . . . . . . . . . . . . . . 10
selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Emission control system catalytic converter . . . . . . . . . . . . . . . . . . . . . . 168
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
diesel particulate filter . . . . . . . . . . . . . . . . . . . 168
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 52
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
run-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 183
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
starting the engine . . . . . . . . . . . . . . . . . . . . . . 156
switching off the engine . . . . . . . . . . . . . . . . . 156
Engine and ignition starting the engine with Keyless Access . . . . . 155
Engine compartment . . . . . . . . . . . . . . 11, 204, 207 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
engine oil
. . . . . . . . . . . . . . . . . . . . . . . . 207, 209
opening the bonnet . . . . . . . . . . . . . . . . . . . . . 205
windscreen washer fluid . . . . . . . . . . . . . . . . . 212
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 checking level . . . . . . . . . . . . . . . . . . . . . . . . . . 210
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
G13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Engine fault control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Engine management . . . . . . . . . . . . . . . . . . . . . . 167 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 207 changing . . . . . . . . . . . . . . . . . . . . . . . . . 207, 210
checking oil level . . . . . . . . . . . . . . . . . . . . . . . 209
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
inspection service . . . . . . . . . . . . . . . . . . . . . . 207
maintenance intervals . . . . . . . . . . . . . . . . . . . 207
oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 207
temperature display . . . . . . . . . . . . . . . . . . . . . . 29
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Environment ecological driving . . . . . . . . . . . . . . . . . . . . . . . 166
environmental compatibility . . . . . . . . . . . . . . 165
Environmental tips refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 138, 194
ESC electronic stability control . . . . . . . . . . . . . . . . 158
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Extending
the luggag e compartment . . . . . . . . . . . . . . . . 134
Exterior lighting changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 84
Exterior mirrors adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 6
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
F Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Fatigue detection . . . . . . . . . . . . . . . . . . . . . . . . . 185
Filling up the tank . . . . . . . . . . . . . . . . . . . . . . . . 201
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Fluid Level control . . . . . . . . . . . . . . . . . . . . . . . . . 40
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 70
Front Assist indications on the display . . . . . . . . . . . . . . . . 179
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
deactivating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
manual adjustment . . . . . . . . . . . . . . . . . . . . . . 11
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
fuel level gauge . . . . . . . . . . . . . . . . . . . . . . . . 100
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . 201, 202
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
238

Index
Fuel consumption en gine c
ut
-off due to inertia . . . . . . . . . . . . . . 166
why does fuel consumption increase? . . . . . . 168
Fuel tank flap opening and closing . . . . . . . . . . . . . . . . . . . . . 40
Full-LED Headlights . . . . . . . . . . . . . . . . . . . . . . . . 84
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 identifying blown fuses . . . . . . . . . . . . . . . . . . . 44
identifying by colours . . . . . . . . . . . . . . . . . . . . . 44
in the dash panel . . . . . . . . . . . . . . . . . . . . . . . . 82
in the engine compartment . . . . . . . . . . . . . . . . 83
in the instrument panel . . . . . . . . . . . . . . . . . . . 44
preparation before replacing . . . . . . . . . . . . . . . 44
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
G Gauge fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Gear-change indicator . . . . . . . . . . . . . . . . . . . . . . 29
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
engaging the gears (manual gearbox) . . . . . . 160
manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 160
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Gear recommendation . . . . . . . . . . . . . . . . . . . . . . 29
General instrument panel control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
controls and displays . . . . . . . . . . . . . . . . . . . . . 95
warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 33
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . 156, 158 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Hazard warning lights . . . . . . . . . . . . . . . . . 19, 125
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 Head-on collisions and their laws of physics . . . . 64
Head-pr
otection airbags
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 71
Headlight range control . . . . . . . . . . . . . . . . . . . . 122
Headlights driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 126
Headlight washers . . . . . . . . . . . . . . . . . . . . . . 130
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
front head restraints . . . . . . . . . . . . . . . . . . . . . . 60
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 60
Headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Heated rear window . . . . . . . . . . . . . . . . . . . . . . . 127
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . 148
introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
rear window . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Heating and fresh air . . . . . . . . . . . . . . . . . . . . . . . 39
HHC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Hill hold control . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . 52 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
I
Identifying letters on engine . . . . . . . . . . . . . . . . 223
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . 18, 152, 154
Ignition lock . . . . . . . . . . . . . . . . . . . . . 18, 152, 154
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Incorrect position . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Indications on the display . . . . . . . . . . . . . . . . . . . 97 assist systems submenu . . . . . . . . . . . . . . . . . . 26
compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
distance travelled . . . . . . . . . . . . . . . . . . . . . . . . 97 doors, bonnet and rear lid open . . . . . . . . . . . . 28
driver inform
ation system . . . . . . . . . . . . . . . . . 23
driving data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
ECO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Emergency brake assist system (Front Assist) 179
MKB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
outside temperature . . . . . . . . . . . . . . . . . . . . . . 29
recommended gear . . . . . . . . . . . . . . . . . . . . . . 98
second speed display . . . . . . . . . . . . . . . . . . . . 98
selector lever position . . . . . . . . . . . . . . . 98, 162
service intervals . . . . . . . . . . . . . . . . . . . . . . . . . 31
speed warning . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
warning and information messages . . . . . . . . . 28
Infotainment system . . . . . . . . . . . . . . . . . . . . . . . 21
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Inspection service . . . . . . . . . . . . . . . . . . . . . . . . 207
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . 96 control and warning lamps . . . . . . . . . . . . . . . 100
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96, 97
instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
service interval indication . . . . . . . . . . . . . . . . . 31
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Interior view left guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
right-hand drive . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47, 76 mounting points . . . . . . . . . . . . . . . . . . . . . . . . . 49
239

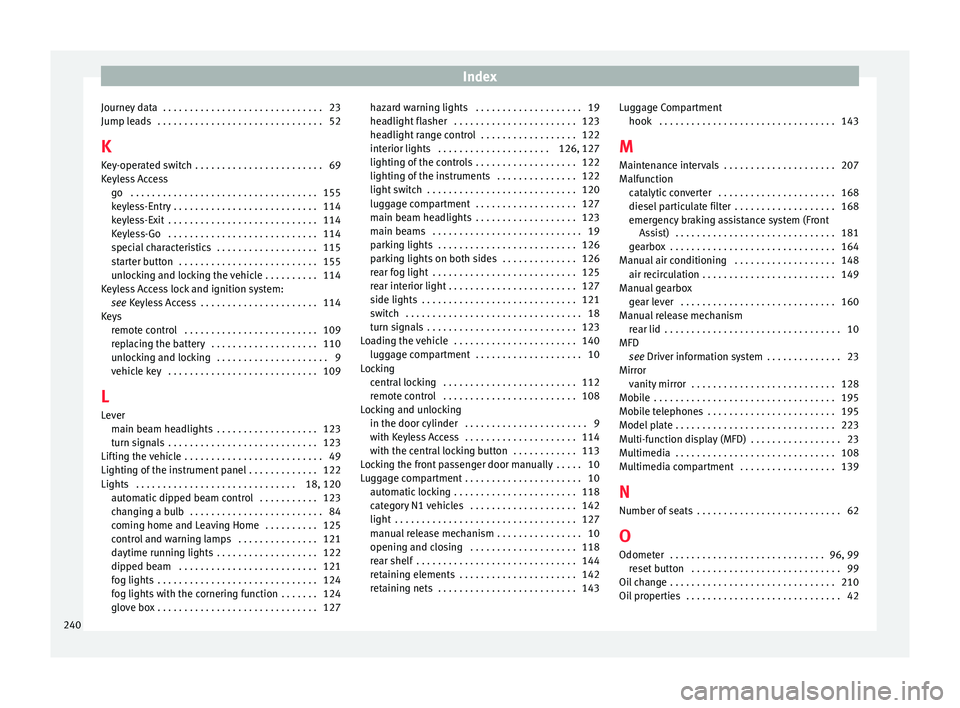

Index
Journey data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Jump l e
a
ds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
K Key-operated switch . . . . . . . . . . . . . . . . . . . . . . . . 69
Keyless Access go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
keyless-Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
keyless-Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Keyless-Go . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
special characteristics . . . . . . . . . . . . . . . . . . . 115
starter button . . . . . . . . . . . . . . . . . . . . . . . . . . 155
unlocking and locking the vehicle . . . . . . . . . . 114
Keyless Access lock and ignition system: see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 114
Keys remote control . . . . . . . . . . . . . . . . . . . . . . . . . 109
replacing the battery . . . . . . . . . . . . . . . . . . . . 110
unlocking and locking . . . . . . . . . . . . . . . . . . . . . 9
vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
L Lever main beam headlights . . . . . . . . . . . . . . . . . . . 123
turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Lifting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Lighting of the instrument panel . . . . . . . . . . . . . 122
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 120 automatic dipped beam control . . . . . . . . . . . 123
changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 84
coming home and Leaving Home . . . . . . . . . . 125
control and warning lamps . . . . . . . . . . . . . . . 121
daytime running lights . . . . . . . . . . . . . . . . . . . 122
dipped beam . . . . . . . . . . . . . . . . . . . . . . . . . . 121
fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
fog lights with the cornering function . . . . . . . 124
glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 hazard warning lights . . . . . . . . . . . . . . . . . . . . 19
headlight
flasher . . . . . . . . . . . . . . . . . . . . . . . 123
headlight range control . . . . . . . . . . . . . . . . . . 122
interior lights . . . . . . . . . . . . . . . . . . . . . 126, 127
lighting of the controls . . . . . . . . . . . . . . . . . . . 122
lighting of the instruments . . . . . . . . . . . . . . . 122
light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
luggage compartment . . . . . . . . . . . . . . . . . . . 127
main beam headlights . . . . . . . . . . . . . . . . . . . 123
main beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 126
parking lights on both sides . . . . . . . . . . . . . . 126
rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
rear interior light . . . . . . . . . . . . . . . . . . . . . . . . 127
side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Loading the vehicle . . . . . . . . . . . . . . . . . . . . . . . 140 luggage compartment . . . . . . . . . . . . . . . . . . . . 10
Locking central locking . . . . . . . . . . . . . . . . . . . . . . . . . 112
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 108
Locking and unlocking in the door cylinder . . . . . . . . . . . . . . . . . . . . . . . 9
with Keyless Access . . . . . . . . . . . . . . . . . . . . . 114
with the central locking button . . . . . . . . . . . . 113
Locking the front passenger door manually . . . . . 10
Luggage compartment . . . . . . . . . . . . . . . . . . . . . . 10 automatic locking . . . . . . . . . . . . . . . . . . . . . . . 118
category N1 vehicles . . . . . . . . . . . . . . . . . . . . 142
light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
manual release mechanism . . . . . . . . . . . . . . . . 10
opening and closing . . . . . . . . . . . . . . . . . . . . 118
rear shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
retaining elements . . . . . . . . . . . . . . . . . . . . . . 142
retaining nets . . . . . . . . . . . . . . . . . . . . . . . . . . 143 Luggage Compartment
hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
M Maint
enance intervals . . . . . . . . . . . . . . . . . . . . . 207
Malfunction catalytic converter . . . . . . . . . . . . . . . . . . . . . . 168
diesel particulate filter . . . . . . . . . . . . . . . . . . . 168
emergency braking assistance system (FrontAssist) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Manual air conditioning . . . . . . . . . . . . . . . . . . . 148 air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . 149
Manual gearbox gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Manual release mechanism rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
MFD see Driver information system . . . . . . . . . . . . . . 23
Mirror vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Mobile telephones . . . . . . . . . . . . . . . . . . . . . . . . 195
Model plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Multi-function display (MFD) . . . . . . . . . . . . . . . . . 23
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Multimedia compartment . . . . . . . . . . . . . . . . . . 139
N
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
O Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96, 99 reset button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
240
