2017 Seat Leon SC technical data

Technical specifications
Diesel engine 1.6 85 kW (115 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/3,250-4,000250/1,500-3,2504/1,598Diesel according to standard EN 590, min.
51 CN
Outputs and weightsLEON
manualLEON
automaticLEON SC manualLEON SC
automaticLEON ST manualLEON ST
automaticLEON ST
X-PERIENCE manual
Top speed (km/h)197 (V)197 (VII)197 (V)197 (VII)197 (V)197 (VII)193 (V)
Acceleration from 0-80 km/h (seconds)6.86.86.56.86.86.96.5
Acceleration from 0-100 km/h (seconds)9.89.89.59.99.910.09.5
Maximum authorised weight (kg)1,8101,8301,7501,7701,8701,8901,890
Weight in running order (with driver) (kg)1,2601,2801,2401,2611,3051,3261,331
Maximum authorised weight on front axle (kg)960980960980950970950
Maximum authorised weight on rear axle (kg)900900840840970970990
Permitted roof load (kg)75757575757575
Maximum trailer weight without brakes (kg)630640620630650660660
Weight of trailer with brakes on gradients up to 8% (kg)1,8001,8001,8001,8001,8001,8001,800
Weight of trailer with brakes on gradients up to 12% (kg)1,5001,5001,5001,5001,5001,5001,500 307
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Diesel engine 2.0 TDI CR 105 kW (143 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
105 (143)/3,500-4,000320/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
Outputs and weightsLEONLEON SC
Top speed (km/h)211 (V)211 (V)
Acceleration from 0-80 km/h (seconds)6.26.1
Acceleration from 0-100 km/h (seconds)8.78.6
Maximum authorised weight (kg)1,8301,800
Weight in running order (with driver) (kg)1,3011,281
Maximum authorised weight on front axle (kg)990990
Maximum authorised weight on rear axle (kg)890860
Permitted roof load (kg)7575
Maximum trailer weight without brakes (kg)650640
Weight of trailer with brakes on gradients up to 8% (kg)1,8001,800
Weight of trailer with brakes on gradients up to 12% (kg)1,6001,600308

Technical specifications
Diesel engine 2.0 110 kW (150 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500-4,000340/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
Outputs and weightsLEON
Start-StopLEON
AutomaticLEON SC
Start-StopLEON SC
AutomaticLEON ST
Start-StopLEON ST
AutomaticLEON ST
All-wheel driveLEON ST
X-PERIENCE 4WDLEON ST
X-PERIENCE 4WD
automatic
Top speed (km/h)215 (VI)211 (VI)215 (VI)211 (VI)215 (VI)213 (VI)211 (VI)208 (VI)205 (VI)
Acceleration from 0-80 km/h (sec-
onds)6.16.06.06.06.26.26.36.35.8
Acceleration from 0-100 km/h (sec-
onds)8.48.48.38.38.68.68.78.78.9
Maximum authorised weight (kg)1,8201,8501,8101,8101,9101,9402,0102,0102,040
Weight in running order (with driver)
(kg)1,3051,3351,2851,3051,3581,3881,4741,4911,519
Maximum authorised weight on
front axle (kg)1,0001,0309901,0109901,0201,0101,0101,040
Maximum authorised weight on rear
axle (kg)8708708708509709701,0501,0501,050
Permitted roof load (kg)757575757575757575
Maximum trailer weight without
brakes (kg)650660640650670690730740750
Weight of trailer with brakes on gra-
dients up to 8% (kg)1,8001,8001,8001,8001,8001,8001,9002,0002,000» 309
Technical data
Advice
Operation
Emergencies
Safety

Technical dataOutputs and weightsLEON
Start-StopLEON
AutomaticLEON SC
Start-StopLEON SC
AutomaticLEON ST
Start-StopLEON ST
AutomaticLEON ST
All-wheel driveLEON ST
X-PERIENCE 4WDLEON ST
X-PERIENCE 4WD
automatic
Weight of trailer with brakes on gra-
dients up to 12% (kg)1,6001,6001,6001,6001,6001,6001,7002,0002,000 310

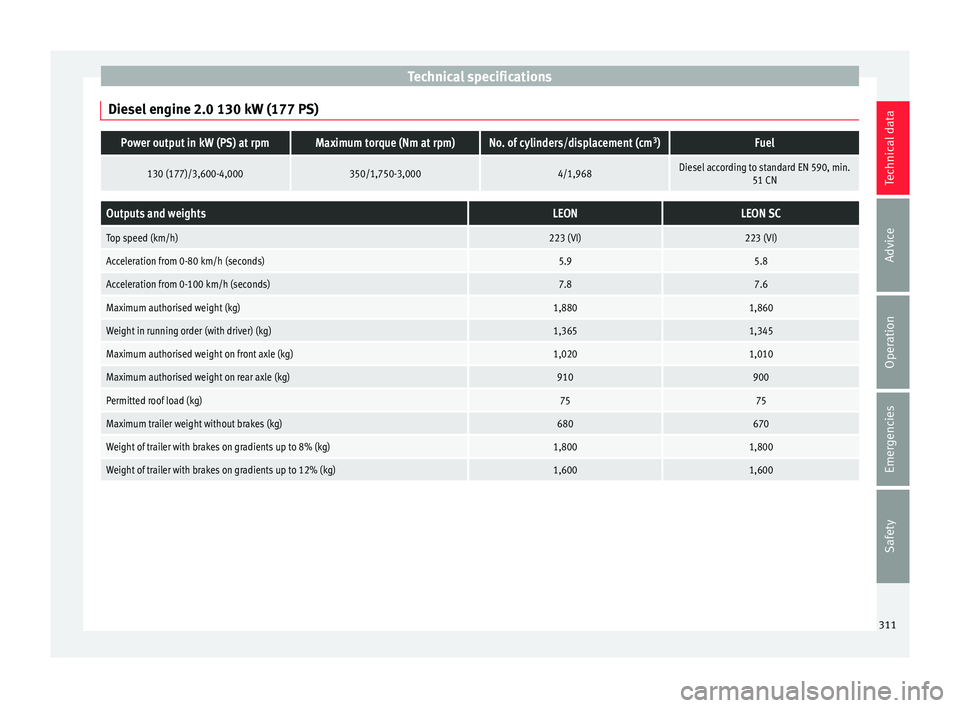

Technical specifications
Diesel engine 2.0 130 kW (177 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
130 (177)/3,600-4,000350/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
Outputs and weightsLEONLEON SC
Top speed (km/h)223 (VI)223 (VI)
Acceleration from 0-80 km/h (seconds)5.95.8
Acceleration from 0-100 km/h (seconds)7.87.6
Maximum authorised weight (kg)1,8801,860
Weight in running order (with driver) (kg)1,3651,345
Maximum authorised weight on front axle (kg)1,0201,010
Maximum authorised weight on rear axle (kg)910900
Permitted roof load (kg)7575
Maximum trailer weight without brakes (kg)680670
Weight of trailer with brakes on gradients up to 8% (kg)1,8001,800
Weight of trailer with brakes on gradients up to 12% (kg)1,6001,600 311
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Diesel engine 2.0 135 kW (184 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
135 (184)/3,500-4,000380/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
Outputs and weightsLEON
Start-StopLEON
AutomaticLEON SC
Start-StopLEON SC
AutomaticLEON ST
Start-StopLEON ST
AutomaticLEON ST
X-PERIENCE 4WD
Top speed (km/h)228 (VI)226 (VI)228 (VI)226 (VI)228 (VI)226 (VI)224 (VI)
Acceleration from 0-80 km/h (seconds)5.75.75.65.65.95.94.9
Acceleration from 0-100 km/h (seconds)7.57.57.47.47.87.87.1
Maximum authorised weight (kg)1,8801,9001,8601,8901,9701,9902,050
Weight in running order (with driver) (kg)1,3701,3901,3501,3701,4151,4351,529
Maximum authorised weight on front axle (kg)1,0201,0401,0101,0301,0101,0301,050
Maximum authorised weight on rear axle (kg)9109109009101,0101,0101,050
Permitted roof load (kg)75757575757575
Maximum trailer weight without brakes (kg)680690670680700710750
Weight of trailer with brakes on gradients up to
8% (kg)1,8001,8001,8001,8001,8001,8002,000
Weight of trailer with brakes on gradients up to
12% (kg)1,6001,6001,6001,6001,6001,6002,000312

Technical specifications
Dimensions Fig. 259
Dimensions. LEONLEON SCLEON STLEON ST X-PERIENCE
A/BFront and rear projection (mm)861/785861/785861/1,052861/1,060
CWheelbase (mm)2,6362,6012,6362,630
DLength (mm)4,2824,2474,5494,551
E/FFront/rear a)
track width (mm)1,533/1,504
1,549/1,5201,541/1,504
1,547/1,510
GWidth (mm)1,8161,8101,8161,816
HHeight at kerb weight (mm)1,4591,4461,454 b)1,481b)
Turning radius (m)10.9
a)
This data will change depending on the type of wheel rim.
b) Dimension to the roof bars.
313
