2017 RENAULT TWIZY ESP

1.26
CHILD SAFETY: booster seat
Only a booster seat should be used.
Booster cushions
From 15 kg or 4 years, the child can
travel using a booster seat, which will
enable the seat belt to be adapted
to suit his/her size and shape. The
booster seat cushion must be fitted with
guides to position the seat belt on the
child’s thighs rather than the stomach.
It is recommended that you use a seat-
back fitted with a belt strap guide which
can be adjusted in terms of height to
position the seat belt in the centre of the
shoulder. It must never rest on the neck
or on the arm.
Choose a bucket type seat for optimum
side protection.
Driver’s responsibility
Never use the storage
space as a booster seat for
a child or a pet. Otherwise,
this could place your child or pet in
danger, or endanger the driver, in
the event of hard braking or impact.
Risk of death or serious injuries.

1.30
CHILD SAFETY: installing a booster seat (3/3)
Type of child seatWeight of the child Rear seat
Carrycot fitted across the vehicle
Group 0 < 10 kg
X
Rear-facing shell seat
Group 0 or 0+ < 13 kg and 9 to 18 kg
X
rear-facing seat
Group 0+ and 1 9 to 18 kg
X
Forward-facing seat
Group 1 9 to 18 kg
X
Booster seat
Group 2 and 3 15 to 25 kg and 22 to 36 kg
UF (1)
X = Seat not suitable for fitting child seats.
UF = Seat which only allows a standardised “Universal” booster seat to \
be installed using a seat belt; check that it can be fitted.
(1) place the back of the booster seat against the vehicle seatback an\
d move the front seat backwards without allowing it to co me
into contact with the child. The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.

1.39

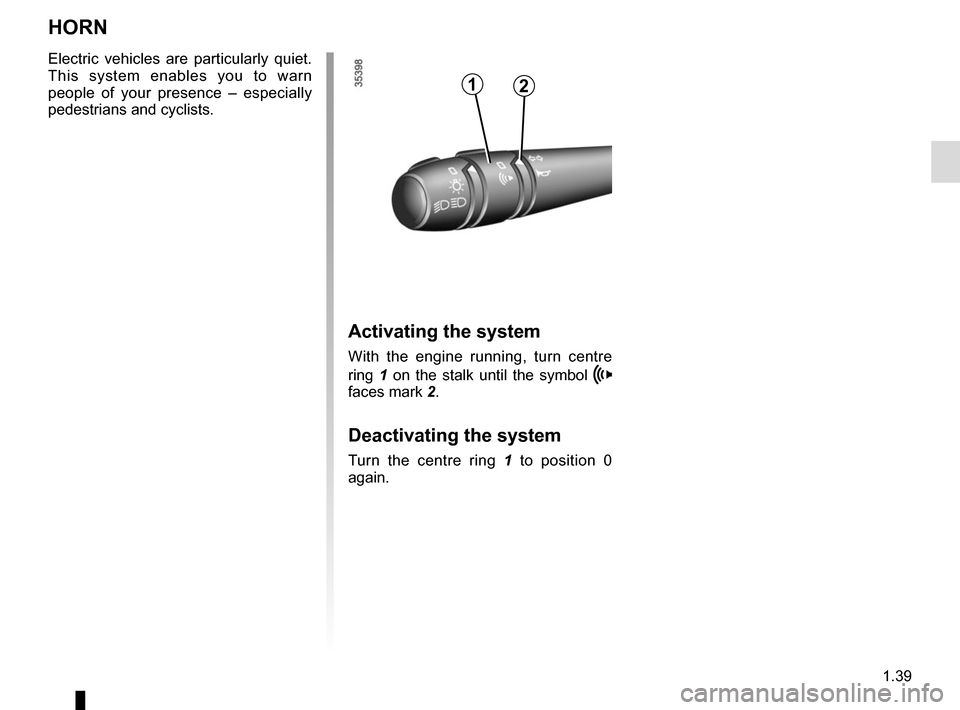

HORN
Electric vehicles are particularly quiet.
This system enables you to warn
people of your presence – especially
pedestrians and cyclists.
Activating the system
With the engine running, turn centre
ring 1 on the stalk until the symbol
ṫ
faces mark 2.
Deactivating the system
Turn the centre ring 1 to position 0
again.
12

2.2
“Accessories” position ANo power-consuming device will oper-
ate when the ignition is switched off.
“On” position MThe ignition is switched on:
Start position D
Starting the engine
Turn the key to the D position and hold
it in this position until you hear a beep.
Release the key.
As soon as warning light
Ṑ stops
flashing, your vehicle is ready to drive.“Stop, steering and
handbrake lock” position St
To unlock: turn the key and the steering
wheel slightly.
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To release the handbrake, please see
the information on “Handbrake” in
Section 2.
STARTING, STOPPING THE ENGINE
The vehicle cannot be started if the
charging cord is plugged in and
powered or if the charging flap is
open.
Stopping the engine
Bring the key to “Stop” position.
Warning light
Ṑ goes out.
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk of injury, such
as by starting the engine or activat-
ing equipment.
Risk of serious injury.

2.7
VEHICLE RANGE: recommendations (2/2)
Tyres
An under-inflated tyre increases energy
consumption. Comply with the speci-
fied tyre pressures for your vehicle.
When replacing them, you must use
tyres made by the same manufacturer,
with the same dimensions, type and
structure as the originals.
Please see the information on “Tyres”
in Section 5.
Use of electrical accessories
and equipment
In the event of freezing, manually
de-ice the windscreen (using a scraper)
to reduce usage of the de-icing/demist-
ing function and to save energy.
Please see the information on “Deicing,
demisting the windscreen” in Section 3.
The use of electrical accessories (GPS,
phone charger, etc.) reduces vehicle
range.
Vehicle loading
Avoid pointlessly overloading your ve-
hicle.
For safety reasons, the use
of tyres other than those
recommended by the man-
ufacturer is prohibited.
Failure to respect this recommen-
dation may adversely affect stability,
behaviour, braking or the play be-
tween the bodywork and the tyres...
Some of these effects may lead to
the loss of control of the vehicle
under certain driving conditions,
and lead to an accident and serious
injury.

2.8
ENVIRONMENT
Please make your own
contribution towards
protecting the environment
too.
– Worn parts replaced in the course of routine vehicle maintenance (vehi-
cle battery, etc.) must be disposed of
through specialist bodies.
– At the end of the vehicle’s service life, it should be sent to approved
centres to ensure that it is recycled.
– In all cases, comply with local legis- lation.
Recycling
Your vehicle is 85% recyclable and
95% recoverable.
To achieve these objectives, many of
the vehicle components have been de-
signed to enable them to be recycled.
The materials and structures have
been carefully designed to allow these
components to be easily removed and
reprocessed by specialist companies.
In order to preserve raw material re-
sources, this vehicle incorporates nu-
merous parts made from recycled plas-
tics or renewable materials (vegetable
or animal-derived materials such as
cotton or wool).
Your vehicle has been designed with
respect for the environment in mind for
its entire service life: during production,
use and at the end of its life.
Manufacture
Your vehicle has been manufactured at
an industrial site which uses a progress
policy to reduce environmental impacts
on rivers and natural areas (reduc-
tion of water and energy consumption,
visual and noise pollution, atmospheric
emissions and waste water, sorting and
reusing waste).

3.6
Driver’s responsibility
Never use the storage
space as a booster seat for
a person or pet. Otherwise,
this could place your child or pet in
danger, or endanger the driver, in
the event of hard braking or impact.
Risk of death or serious injury.
Driver’s responsibility
Do not place any objects
in the storage space if this
space is not secured using
the specific accessory for your ve-
hicle.
Please see an authorised dealer.
Risk of serious injury when braking
sharply or in heavy impacts.
PASSENGER COMPARTMENT STORAGE/FITTINGS (4/4)
B
– turn the seat B;
– insert the seat B into the runners 9;
– correctly position the seat B;
– clip the seatback A from top to
bottom;
– lock the seat cushion B and the seat-
back A using lock 7.
7
A
9
Maximum load allowed in the rear
storage space: 10 kg, evenly distrib-
uted.

4.4
12V BATTERY (1/2)
The secondary battery is a 12 V battery:
this supplies the energy required to op-
erate vehicle equipment (lights, wind-
screen wipers, audio system, etc) and
certain safety systems, such as ABS.
For your safety and the
proper operation of the
vehicle’s electrical equip-
ment (lights, windscreen
wipers, etc.), any work on the se-
condary 12V battery (removal, dis-
connection, etc.) must be carried
out by a specialist.
Risk of serious burns or electric
shocks.
Respect categorically the replace-
ment intervals (without exceeding
them) as stated in the maintenance
document.
The battery is a specific type.
Please ensure it is replaced with the
same type.
Contact an Authorised Dealer.
A123
456
Label A
Observe the indications on the battery:
– 1 naked flames and smoking are for-
bidden;
– 2 eye protection required;
– 3 keep away from children;
– 4 explosive materials;
– 5 please consult the driver’s hand-
book;
– 6 corrosive materials.
