2017 RENAULT TRAFIC remote control

5.22

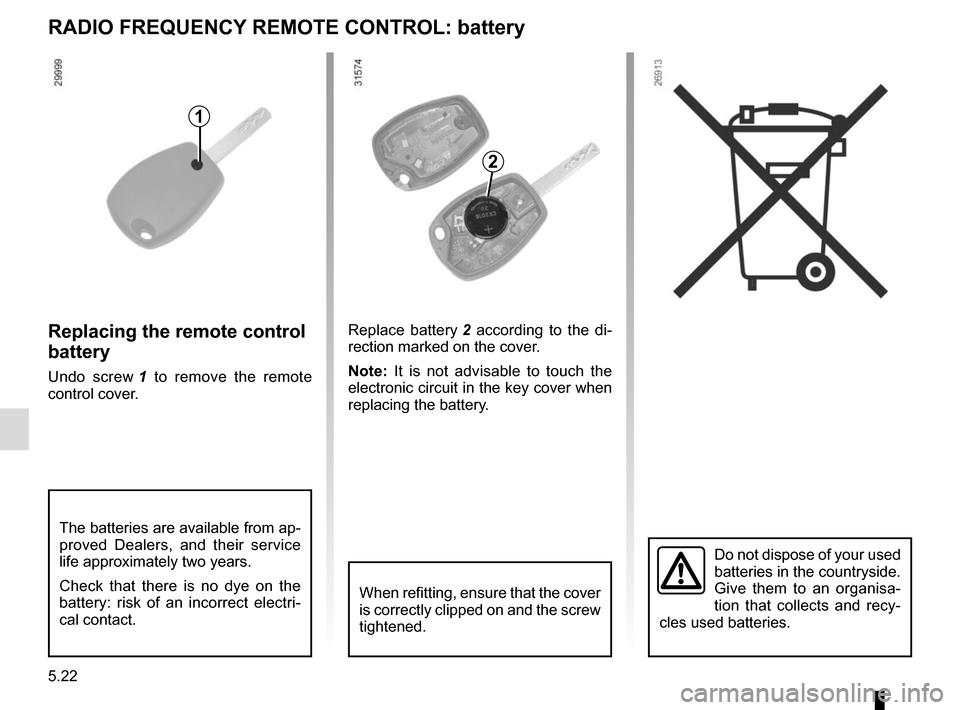

RADIO FREQUENCY REMOTE CONTROL: battery
Do not dispose of your used
batteries in the countryside.
Give them to an organisa-
tion that collects and recy-
cles used batteries.
1
Replacing the remote control
battery
Undo screw 1 to remove the remote
control cover. Replace battery
2 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.
2

5.36
The following advice will enable you to carry out quick, temporary repai\
rs. For safety reasons you should always contact
an approved dealer as soon as possible.
Using the remote controlPOSSIBLE CAUSES ACTION REQUIRED
The remote control does not lock or
unlock the doors. The remote control battery is flat.
Use the emergency key.
Use of appliances operating on the same
frequency as the remote control (mobile
phone, etc.). Stop using the devices or use the key.
Vehicle located in a high electromagnetic
radiation zone.
Discharged battery. Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
The vehicle is started. With the engine running, the key’s locking/
unlocking device is blocked. Turn off the
ignition.
OPERATING FAULTS (2/7)

7.4
ALPHABETICAL INDEX (4/5)
P
paintworkmaintenance ..................................................... 4.13 – 4.14
parking distance control.......................................... 2.35 – 2.36
power-assisted steering..................................................... 1.31
pretensioners .........................................................1.37 → 1.40
puncture...................................................5.2 – 5.3, 5.7 → 5.10
R
radio........................................................................\
........... 3.42
radio frequency remote control/key use ........................................................................\
1.4 – 1.5
rear bench seat......................................................3.32 → 3.35
rear seats........................................................................\
... 1.34 functions ..........................................................3.32 → 3.35
rear view mirrors ................................................. 1.101 – 1.102
remote control door locking batteries ..............................................................\
......... 5.22
remote control door locking unit ................................. 1.2 – 1.3
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.27
RENAULT card battery ................................................................\
.......... 5.23
use ................................................... 1.7 → 1.13, 2.4 → 2.6
RENAULT card battery ...................................................... 5.23
replacement parts .............................................................. 6.11
reverse gear selecting ..............................................................\
......... 2.11
reversing sensor ..................................................... 2.35 – 2.36
running in ........................................................................\
..... 2.2
S
seat belt pretensioners front seat belt ...................................................1.37 → 1.40
seat belts ......................................................1.32 → 1.40, 1.43
service sheets........................................................6.12 → 6.17
side protection devices ...................................................... 1.42 signals and lights ...............................................1.103
→ 1.109
speakers location ...............................................................\
......... 5.26
special features of diesel versions..................................... 2.10
speed limiter .................................................1.87, 2.26 → 2.28
starting the engine .....................................................2.2 → 2.9
steering wheel adjustment .............................................................\
...... 1.31
Stop & Start ......................................................1.87, 2.7 → 2.9
Stop & Start function..................................................2.7 → 2.9
stopping the engine ...................................................2.3 → 2.6
storage compartment.............................................3.20 → 3.28
storage compartments ...........................................3.20 → 3.28
sun visor ........................................................................\
.... 3.17
switching on the vehicle ignition .........................2.2, 2.4 → 2.6
T
tailgate ...............................................................\
....3.37 → 3.40
tank AdBlue ......................................................... 1.116 → 1.119
tanks and reservoirs brake fluid ...................................................................... 4.8
coolant ................................................................\
........... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications ............................................ 6.4 → 6.11
telephone ..............................................................\
............. 3.42
temperature regulation ............................................3.8 → 3.13
tool kit ........................................................................\
. 5.7 – 5.8
towing driving ................................................................\
.......... 2.23
breakdown ........................................................ 5.33 – 5.34
towing equipment ......................................................... 3.41
towing a caravan ............................................. 3.41, 6.9 – 6.10
towing equipment fitting ................................................................\
............ 3.41
