2017 RENAULT MEGANE selector

2.79
Operation
With the selection lever 1 in position P,
switch on the ignition.
To move out of position P, you must de-
press the brake pedal before pressing
the unlocking button 2.
With your foot on the brake pedal (warn-
ing light
Ó on the display goes out),
move the lever out of position P.
Only engage D or R when the vehi-
cle is stopped, with your foot on the
brake and the accelerator pedal re-
leased.
Selector lever 1
P: park
R: reverse
N: Neutral
D: automatic mode
M: manual mode
+: upper gear
–: lower gear
The gear engaged is displayed on the
instrument panel B and on the dis-
play A.
Note: Press button 2 to go from posi-
tion D or N to R or P.

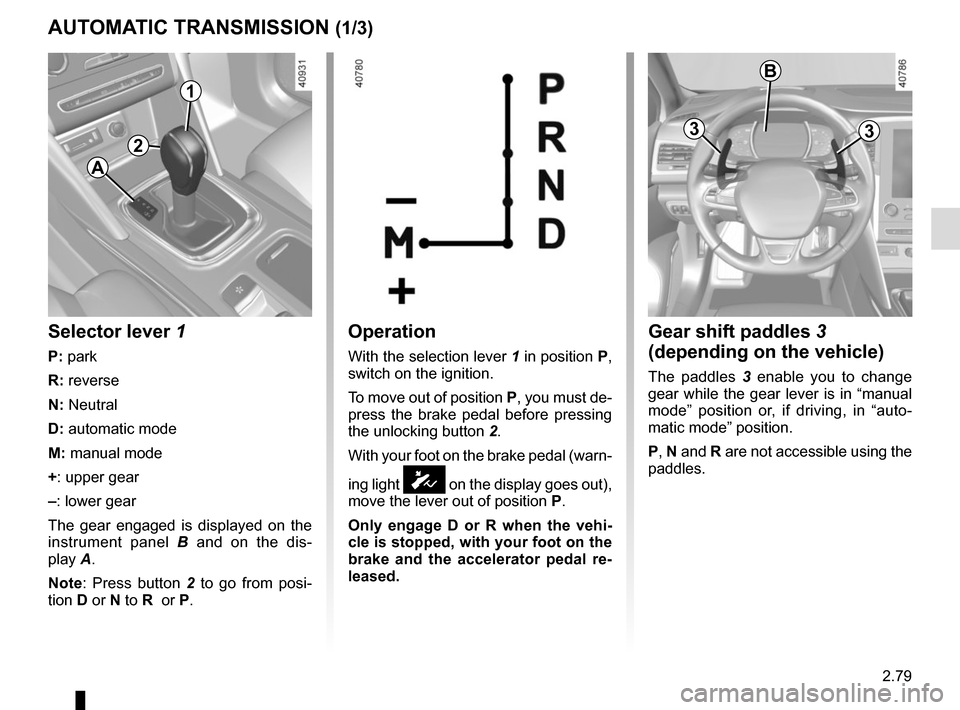

AUTOMATIC TRANSMISSION (1/3)
A
Gear shift paddles 3
(depending on the vehicle)
The paddles 3 enable you to change
gear while the gear lever is in “manual
mode” position or, if driving, in “auto-
matic mode” position.
P, N and R are not accessible using the
paddles.
33
1
2
B

2.80
AUTOMATIC TRANSMISSION (2/3)
Driving in manual modeWith the selector lever in position D,
move the lever to the left into the M po-
sition. Shifting the lever or the paddles
repeatedly allows you to change gears
manually:
– to move down through the gears, push the lever forwards or press the
left-hand paddle;
– to move up through the gears, push the lever backwards or press the
right-hand paddle.
The gear selected is displayed on the
instrument panel.
Special casesIn certain driving conditions (for exam-
ple, engine protection, operation of the
Electronic Stability Programme: the au-
tomatic system may change gear auto-
matically. Likewise, to prevent incorrect
manoeuvres, a gear change may be re-
fused by the automatic system: in this
case the gear display flashes for a few
seconds as a warning.
Special circumstances
– If the bends and road surface do
not allow you to stay in automatic
mode (e.g. in the mountains), we
recommend that you change to
manual mode. This will prevent the
automatic gearbox from changing
gear repeatedly when climbing, and
permit engine braking on long de-
scents.
Driving in automatic mode
Put lever 1 into position D.
In most road conditions you will en-
counter, you will not need to touch your
lever again: the gears will change au-
tomatically at the right time and at the
most suitable engine speed because
the automatic system takes into ac-
count the vehicle load and road contour
and adjusts itself to the particular driv-
ing style you have chosen.
Economical driving
When driving, always leave the lever
in position D, keeping the accelerator
pedal lightly depressed to ensure auto-
matic gear changes at a lower engine
speed.
Accelerating and overtaking
Depress the accelerator pedal firmly
and fully (so that it goes beyond the
kickdown point).
This will enable you to change down
to the optimum gear within the
engine range.
When facing uphill, to remain
stopped, do not keep your foot on
the accelerator.
Risk of overheating the automatic
gearbox.

7.1
ALPHABETICAL INDEX (1/5)
A
ABS ....................................................................\
...2.30 → 2.39
accessories........................................................................\
5.34
accessories socket ........................................ 3.33 – 3.34, 3.57
adaptive cruise control...........................................2.61 → 2.67
additional methods of restraint .....................1.28 → 1.31, 1.34
side protection ............................................................. 1.33
to the rear seat belts ........................................1.28 → 1.32
adjusting your driving position ...............................1.24 → 1.27
advice on antipollution ....................................................... 2.25
air bag....................................................................1.28 → 1.34
activating the front passenger air bags ........................ 1.52
deactivating the front passenger air bags .................... 1.50
air conditioning ........................................................3.6 → 3.19
air vents ...................................................................... 3.4 – 3.5
anti-corrosion check ..............................................6.17 → 6.21
anti-corrosion protection .................................................... 4.15
anti-lock braking system: ABS ...............................2.30 → 2.39
antipollution advice .................................................................\
......... 2.25
armrest: front ..................................................................\
............ 3.31
ashtray .................................................................... 3.33 – 3.34
assisted parking............................... 2.68 → 2.72, 2.75 → 2.78
automatic gearbox (use) ........................................2.79 → 2.81
automatic gearbox selector lever...........................2.79 → 2.81
B
battery..................................................................... 4.11 – 4.12 troubleshooting ................................................. 5.30 – 5.31
battery (remote control) ..................................................... 5.33
blind spot warning signal .......................................2.43 → 2.46
blind spot: warning signal ......................................2.43 → 2.46
bonnet........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.9 bulbs
changing ......................................5.14 → 5.27, 5.26 – 5.27
C
catalytic converter................................................... 2.14 – 2.15
central door locking ...............1.2 – 1.3, 1.5, 1.12 → 1.15, 1.19
changing a bulb .................................5.14 → 5.27, 5.26 – 5.27
changing a wheel...................................................... 5.9 – 5.10
changing gear ...............................................2.16, 2.79 → 2.81
child restraint/seat .............................1.35 – 1.36, 1.38 → 1.49
child safety.........1.6, 1.9, 1.18, 1.35 – 1.36, 1.38 → 1.49, 3.21
child seats..........................................1.35 – 1.36, 1.38 → 1.49
children .......................................................... 1.35 – 1.36, 1.36
children (safety) .......................................... 1.6, 1.9, 1.18, 3.21
cigar lighter ............................................................. 3.33 – 3.34
cleaning: inside the vehicle .............................................. 4.17 – 4.18
clock ..................................................................\
................ 1.84
closing the doors ...................................................1.13 → 1.18
control instruments ................................................. 1.70 – 1.71
controls ...............................................................\
...1.54 → 1.57
coolant ................................................................\
................. 4.8
courtesy light ...................................... 3.26 – 3.27, 5.25 – 5.26
courtesy mirrors ................................................................. 3.28
cruise control ................................... 2.51 → 2.53, 2.57 → 2.60
cruise control-speed limiter.............. 2.51 → 2.53, 2.57 → 2.60
customised vehicle settings ................................... 1.80 – 1.81
customising the vehicle settings ............................ 1.80 – 1.81
D
dashboard..............................................................1.54 → 1.57
deadlocking the doors ................................................ 1.5, 1.12
demisting rear screen ...........................................................3.6 →

3.8
windscreen ...........................................................3.6 → 3.8
dimensions .............................................................\
...6.5 → 6.7
