2017 RENAULT MEGANE sensor

2.78
ASSISTED PARKING (4/4)
This function is an additional driving aid. This function is not under any circumstances intended to replace the due\
care
and attention of the driver, who should at all times be in control of the vehicle.
Make sure that the manoeuvre complies with the applicable traffic regulations at your location.
– The driver should always look out for sudden hazards during driving: alw\
ays ensure that there are no moving obstacles (such as a child, animal, pram, bicycle, etc.) or small, narrow object\
s such as stones or posts in your path when manoeu-
vring.
– The system cannot detect objects located in the sensor blind spots.
– During manoeuvring, the steering wheel may turn quickly: do not place yo\
ur hands inside the wheel, and ensure nothing is located in this space.
– Always visually check that the parking space proposed by the system is s\
till available and contains no obstacles.
– The system should be deactivated when towing a trailer.

3.40
LUGGAGE COMPARTMENT: 4-DOOR VERSION (2/3)
The sensor detects the approach and
then the removal of your foot and trig-
gers the opening of the boot lid.
Do not keep your foot in the air. Perform
the movement without stopping and wi-
thout touching the rear bumper.Activation/deactivation of the
hands-free function
Using the multifunction screen, select
menu “Vehicle”, “User settings” then
“Use handsfree card: open/close”.
Select “ON" or "OFF" to activate or de-
activate the function.
Usage features of the hands-free
function
– The hands-free function is no longer
available after a few days of lack of
movement of the vehicle, or after
around 15 minutes if the vehicle is
unlocked. To reactivate it, use the
unlocking button on the RENAULT
card.
– The hands-free function is only avail- able if the vehicle is stationary and
the engine is switched off (and not
on standby with the Stop and Start
function).
– The ‘hands-free’ feature may not work if the vehicle is equipped with a
towbar or is in an area of high elec-
tromagnetic radiation.
Using the hands-free function
The hands-free function enables
access to the luggage compartment
when you have your hands full.
Ensure that the RENAULT card is ap-
proximately 1 metre away in the cen-
tral area of the rear bumper of the vehi-
cle (area B). With the ignition off, stand
approximately 45 cm from the vehicle’s
rear bumper and move your foot for-
wards and backwards in area
A.
A
B
Disable the “hands-free”
function before you:
– wash the vehicle in a
roller-type car wash;
– wash the vehicle by hand;
– handle the towbar;
– ...
Risk of accidental opening of the
luggage compartment lid which
may cause injury.

3.41

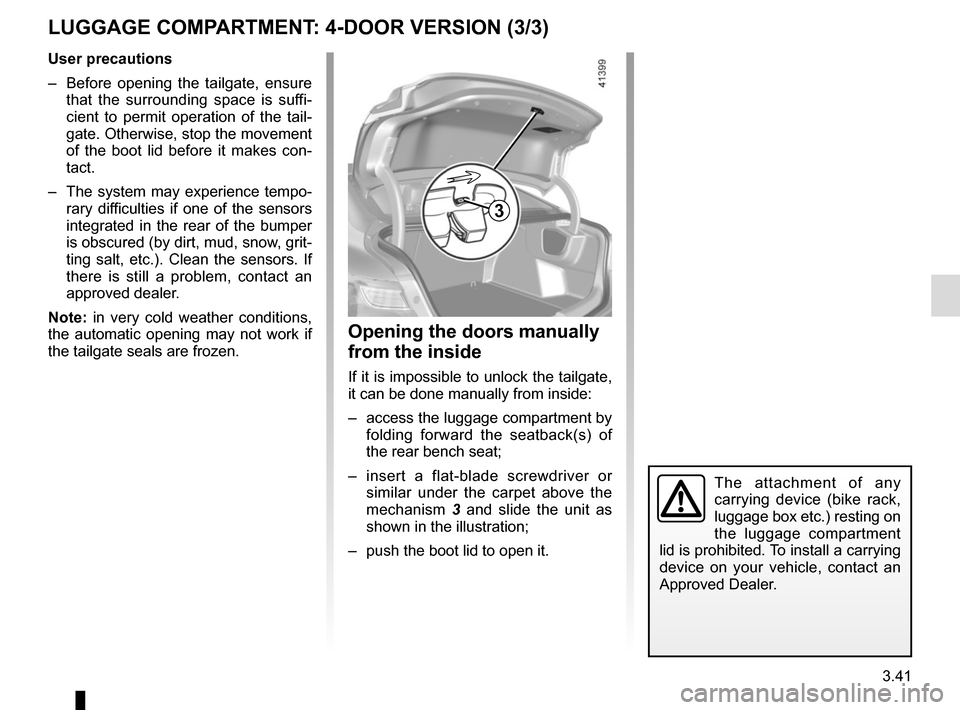

Opening the doors manually
from the inside
If it is impossible to unlock the tailgate,
it can be done manually from inside:
– access the luggage compartment by folding forward the seatback(s) of
the rear bench seat;
– insert a flat-blade screwdriver or similar under the carpet above the
mechanism 3 and slide the unit as
shown in the illustration;
– push the boot lid to open it.
3
User precautions
– Before opening the tailgate, ensure that the surrounding space is suffi-
cient to permit operation of the tail-
gate. Otherwise, stop the movement
of the boot lid before it makes con-
tact.
– The system may experience tempo- rary difficulties if one of the sensors
integrated in the rear of the bumper
is obscured (by dirt, mud, snow, grit-
ting salt, etc.). Clean the sensors. If
there is still a problem, contact an
approved dealer.
Note: in very cold weather conditions,
the automatic opening may not work if
the tailgate seals are frozen.
LUGGAGE COMPARTMENT: 4-DOOR VERSION (3/3)
The attachment of any
carrying device (bike rack,
luggage box etc.) resting on
the luggage compartment
lid is prohibited. To install a carrying
device on your vehicle, contact an
Approved Dealer.

5.45
OPERATING FAULTS (7/7)
Electrical equipmentPOSSIBLE CAUSESWHAT TO DO
Traces of condensation in the lights. Traces of condensation may be a nat- ural phenomenon caused by varia-
tions in temperature.
In this case, the traces will disappear
slowly once the lights are switched
on.
The front seat belt reminder light
comes on when the seat belts are
fastened. An object is stuck between the floor
and the seat and is disrupting the op-
eration of the sensor. Remove all objects from underneath the
front seats.

7.4
ALPHABETICAL INDEX (4/5)
menu for customising the vehicle settings .............. 1.80 – 1.81
methods of restraint in addition to the seat belts ...1.32 → 1.34
multimedia (equipment) .......................................... 3.56 – 3.57
multimedia equipment ............................................ 3.56 – 3.57
Multi-Sense................................................................. 3.2 – 3.3
N
navigation ............................................................... 3.56 – 3.57
navigation system ................................................... 3.56 – 3.57
O
oil change ..................................................................... 4.4, 4.7
opening the doors ..................................................1.13 → 1.18
operating faults ......................................................5.39 → 5.45
overspeed warning ..............................1.64, 1.66, 2.54 → 2.56
P
paintwork maintenance ..................................................... 4.15 – 4.16
parking assistance: assisted parking .....................2.75 → 2.78
parking distance control................... 2.68 → 2.72, 2.75 → 2.78
power-assisted steering..................................................... 1.83
puncture............................................. 5.2 – 5.3, 5.7, 5.9 – 5.10
R
radio........................................................................\
3.56 – 3.57
radio frequency remote control/key use ....................................................................\
...1.2 → 1.4
rear bench seat....................................................... 3.37 – 3.38
rear drive wheels ..........................................2.30 → 2.39, 2.39
rear parcel shelf ...................................................... 3.43 – 3.44
rear screen de-icing/demisting ................................. 3.11, 3.16
rear seats........................................................................\
... 1.26 functions ........................................................... 3.37 – 3.38
rear view camera .................................................... 2.73 – 2.74
rear view mirrors ..................................................... 1.85 – 1.86 remote control door locking
batteries ..............................................................\
......... 5.33
remote control door locking unit ................................1.2 → 1.4
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.19
RENAULT card battery ................................................................\
.......... 5.32
use ....................................................................\
.1.6 → 1.12
RENAULT card battery ...................................................... 5.32
replacement parts .............................................................. 6.10
reverse gear selecting ..............................................................\
......... 2.16
reversing sensor ....................................................2.68 → 2.72
roof bars ................................................................. 3.54 – 3.55
roof rack roof bars ............................................................ 3.54 – 3.55
running in .................................................................... 2.2 – 2.3
S
safety distance warning .......................................... 2.47 – 2.48
safety distances ...................................................... 2.47 – 2.48
screen fold-away screen .......................................................... 1.68
navigation display ......................... 1.65, 1.67, 3.56 – 3.57
navigation screen ............................ 1.65, 1.67, 3.56 – 3.57
seat belt pretensioners ..........................................1.28 → 1.31
seat belts ...............................................................1.24 → 1.31
service sheets........................................................ 6.11 → 6.16
sign detection: overspeed warning ........................2.54 → 2.56
signals and lights ...................................................1.87 → 1.94
special features of diesel versions..................................... 2.15
special features of petrol vehicles ..................................... 2.14
speed limiter ..........................................................2.51 → 2.53
standing start .............................................................. 2.8 – 2.9
standing start procedure ............................................. 2.8 – 2.9
starting the engine ............................... 2.3 → 2.7, 2.10 → 2.13
