5.16
Front fog lights 10
The front bumper needs to be removed;
consult an approved Dealer.
Bulb type: H8.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

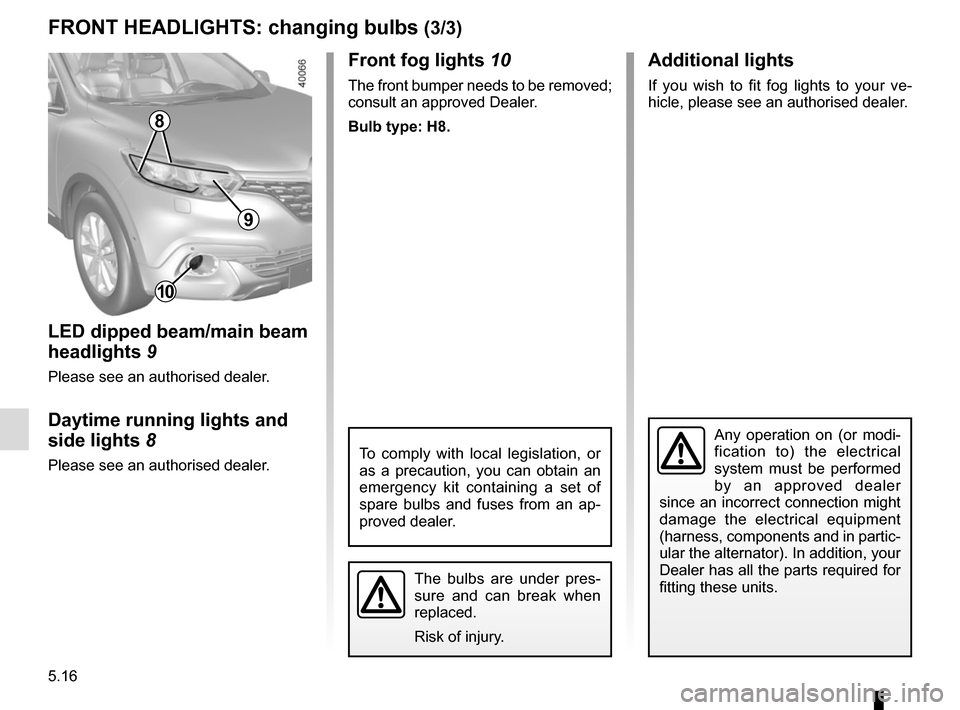

FRONT HEADLIGHTS: changing bulbs (3/3)
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap-
proved dealer.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
LED dipped beam/main beam
headlights 9
Please see an authorised dealer.
Daytime running lights and
side lights 8
Please see an authorised dealer.
10
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
8
9
5.19

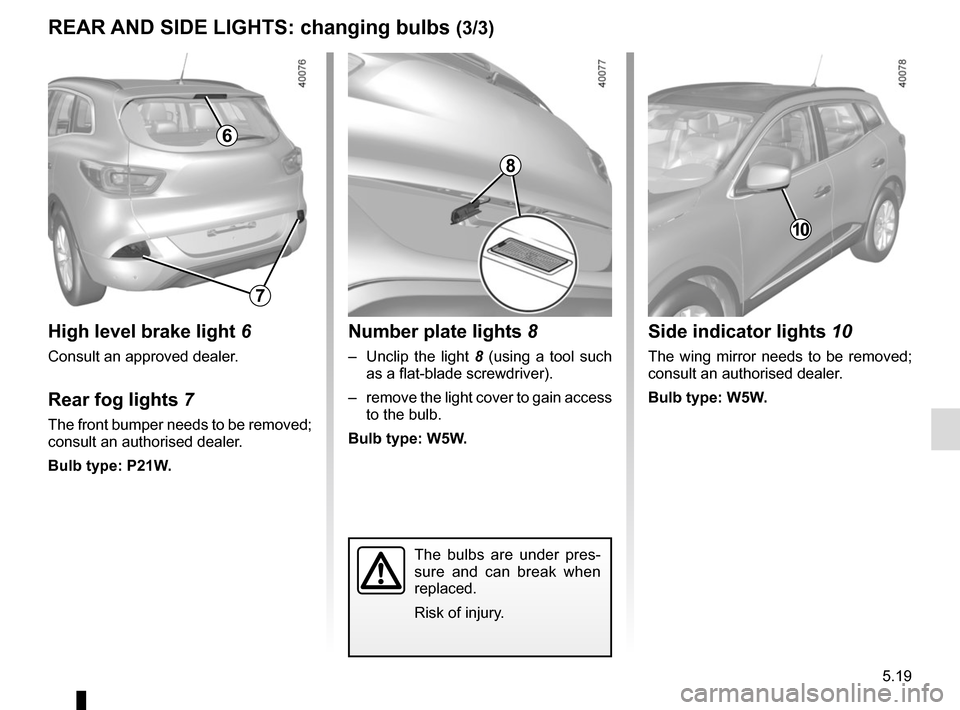

REAR AND SIDE LIGHTS: changing bulbs (3/3)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Side indicator lights 10
The wing mirror needs to be removed;
consult an authorised dealer.
Bulb type: W5W.
10
Number plate lights 8
– Unclip the light 8 (using a tool such
as a flat-blade screwdriver).
– remove the light cover to gain access to the bulb.
Bulb type: W5W.
High level brake light 6
Consult an approved dealer.
Rear fog lights 7
The front bumper needs to be removed;
consult an authorised dealer.
Bulb type: P21W.
6
7
8
7.3
ALPHABETICAL INDEX (3/5)
hazard warning lights signal .............................................. 1.85
headlight beam adjustment .................................... 1.86 – 1.87
headrest.................................................................... 1.19, 3.25
heated seats ...................................................................... 1.20
heated windscreen ..................................................3.7 → 3.12
heating and air conditioning system ........................3.4 → 3.13
heating system ........................................................3.4 → 3.13
Hill Start Assist.......................................................2.29 → 2.38
horn ...................................................................\
................ 1.85
horn: flash ..................................................................\
........... 1.85
hubcap tool ................................................................. 5.7 – 5.8
I
ignition switch ...................................................................... 2.3
indicators ......................................................1.85, 5.14 → 5.19
indicators: direction indicators ....................................................... 1.85
instrument panel ..............................................1.54 → 1.63
instrument panel ....................................................1.54 → 1.71
instrument panel messages...................................1.62 → 1.71
interior trim maintenance ..................................................... 4.17 – 4.18
Isofix ....................................................................... 1.37 – 1.38
J
jack ...................................................................\
................... 5.7
K
keys ...................................................................\
........1.2 → 1.5
L
lane departure warning ..........................................2.43 → 2.45
levels .................................................................\
......4.8 → 4.10
levels: brake fluid ...................................................................... 4.9 coolant ................................................................\
........... 4.8
windscreen washer reservoir ....................................... 4.10
lifting the vehicle changing a wheel ................................................ 5.9 – 5.10
lighting: exterior .............................................................1.79 → 1.87
instrument panel .......................................................... 1.79
interior ........................................... 3.17 – 3.18, 5.20 – 5.21
lights adjustment ........................................................ 1.86 – 1.87
changing bulbs .................................................5.14 → 5.16
front ..................................................................\
5.14 → 5.16
lights: adjusting ........................................................... 1.86 – 1.87
brake lights ......................................................5.17 → 5.19
dipped beam headlights .................1.54, 1.79, 5.14 → 5.16
direction indicators .........................1.54, 1.85, 5.14 → 5.17
fog lights .................................................... 1.54, 1.82, 5.19
hazard warning ............................................................ 1.85
main beam headlights ................................ 1.54, 1.79, 5.14
reversing lights ............................................................. 5.19
side lights ................................................1.79, 5.14 → 5.17
load permitted on the roof.................................................... 6.6
locking the doors ..............................................1.4, 1.6 → 1.18
luggage compartment cover .............................................. 3.29
luggage retaining net .............................................. 3.34 – 3.35
M
maintenance ............................................................\
.......... 2.24
maintenance: bodywork .......................................................... 4.15 – 4.16
interior trim ........................................................ 4.17 – 4.18
mechanical ..............................4.4, 4.13 – 4.14, 6.8 → 6.13
map reading lights .................................................. 3.17 – 3.18
menu for customising the vehicle settings .............. 1.72 – 1.73
methods of restraint in addition to the seat belts ...1.27 → 1.33
