4.16
You are strongly recom-
mended not to use high-
pressure or spray cleaning
equipment inside the pas-
senger compartment: use of such
equipment could impair the correct
functioning of the electrical or elec-
tronic components in the vehicle, or
have other detrimental effects.

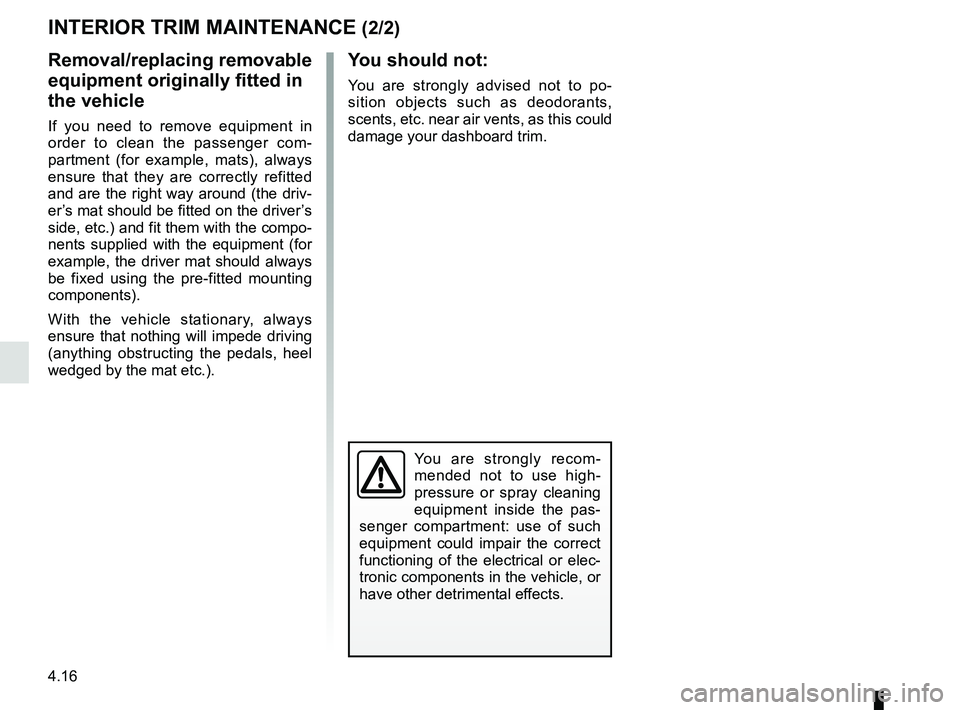

INTERIOR TRIM MAINTENANCE (2/2)
You should not:
You are strongly advised not to po-
sition objects such as deodorants,
scents, etc. near air vents, as this could
damage your dashboard trim.
Removal/replacing removable
equipment originally fitted in
the vehicle
If you need to remove equipment in
order to clean the passenger com-
partment (for example, mats), always
ensure that they are correctly refitted
and are the right way around (the driv-
er’s mat should be fitted on the driver’s
side, etc.) and fit them with the compo-
nents supplied with the equipment (for
example, the driver mat should always
be fixed using the pre-fitted mounting
components).
With the vehicle stationary, always
ensure that nothing will impede driving
(anything obstructing the pedals, heel
wedged by the mat etc.).

5.8
TYRE PRESSURE KIT (3/3)
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the ve-
hicle but contact an approved dealer.
Once the tyre is correctly inflated,
remove the kit: slowly unscrew the in-
flation adapter 1 to prevent any repair
product from escaping and store the
container in plastic packaging to pre-
vent the product from escaping.
– Affix the driving recommendation label to the dashboard where it can
easily be seen by the driver;
– Put the kit away.
– At the end of this initial inflation op- eration, air will still escape from the
tyre. You must drive a short distance
in order to seal the hole.
– Start immediately and drive at between 12 and 40 mph (20 and
60 km/h) in order to distribute the
product evenly in the tyre and, after
driving for 2 miles (3 km), stop and
check the pressure.
– If the pressure is greater than 1.3 bar but less than the recom-
mended pressure (refer to the label
affixed to the edge of the driver’s
door), readjust it. Otherwise, please
contact an authorised dealer: the
tyre cannot be repaired.Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
Nothing should be placed
around the driver’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
1
Please be aware that a
poorly tightened or miss-
ing valve cap can make the
tyres less airtight and may
lead to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi-
tion, reduce your speed and
under no circumstances exceed
48 mph (80 km/h). The sticker,
which you must affix in a prominent
position on the dashboard, reminds
you of this.
Depending on the country or local
legislation, a tyre repaired with the
inflation kit may need to be replaced.

7.1
ALPHABETICAL INDEX (1/5)
A
ABS ..............................................................1.58, 2.23 → 2.26
accessories........................................................................\
5.34
accessories socket ............................................................ 3.20
additional methods of restraint .......................................... 1.30 side protection ............................................................. 1.29
to the front seat belts .......................................1.24 → 1.27
to the rear seat belts .................................................... 1.28
adjusting your driving position ......................1.16 → 1.23, 3.21
advice on antipollution ....................................................... 2.18
air bag...........................................................1.24 → 1.30, 1.56
activating the front passenger air bags ........................ 1.50
deactivating the front passenger air bags .................... 1.48
air conditioning ........................................................ 3.4 → 3.11
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check ..............................................6.15 → 6.20
anti-corrosion protection .................................................... 4.13
anti-lock braking system: ABS ...............................2.23 → 2.26
antipollution advice .................................................................\
......... 2.18
armrest: front ..................................................................\
............ 3.17
ashtray ................................................................\
............... 3.20
assisted parking.....................................................2.40 → 2.43
audible and visual signals.................................................. 1.80
automatic gearbox (use) ........................................2.44 → 2.46
automatic gearbox selector lever...........................2.44 → 2.46
B
battery............................................................ 4.12, 5.31 – 5.32 troubleshooting ................................................. 5.31 – 5.32
bonnet........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.8
bulbs changing .................................................5.16 → 5.24, 5.24C
catalytic converter................................................... 2.10 – 2.11
central door locking ........................... 1.5
→ 1.10, 1.13 → 1.15
changing a bulb ............................................5.16 → 5.24, 5.24
changing a wheel.................................................... 5.11 – 5.12
changing gear ...............................................2.12, 2.44 → 2.46
child restraint/seat ....................1.31 – 1.32, 1.34 → 1.42, 1.48
child safety......1.9, 1.12, 1.27, 1.31 – 1.32, 1.34 → 1.42, 1.48,
2.3, 3.12 – 3.13
child seats..........................................1.31 – 1.32, 1.34 → 1.42
children ................................. 1.2, 1.9, 1.31 – 1.32, 3.12 – 3.13
children (safety) .......................................................... 1.2, 1.12
cigar lighter ........................................................................\
3.20
cleaning: inside the vehicle .............................................. 4.15 – 4.16
clock ....................................................................... 1.73 – 1.74
closing the doors ................................................... 1.11 → 1.15
control instruments ............................1.56 → 1.64, 1.73 – 1.74
controls ...............................................................\
...1.52 → 1.55
courtesy light ............................................................ 3.15, 5.23
courtesy mirrors ........................................................ 3.14, 5.24
cruise control ................................................1.59, 2.30 → 2.33
cruise control-speed limiter....................................2.27 → 2.33
D
dashboard..............................................................1.52 → 1.55
deadlocking the doors ....................................................... 1.10
demisting rear screen ..................................................3.4, 3.7 → 3.10
windscreen ..................................................3.5, 3.7 → 3.10
dimensions ................................................................. 6.4 – 6.5
dipstick................................................................\
................. 4.4
display ................................................................\
...1.56 → 1.62
doors/tailgate .........................................................\
..1.2 → 1.15
driver assistance....................................................2.40 → 2.43
driver’s position
.....................................................1.52 → 1.60
