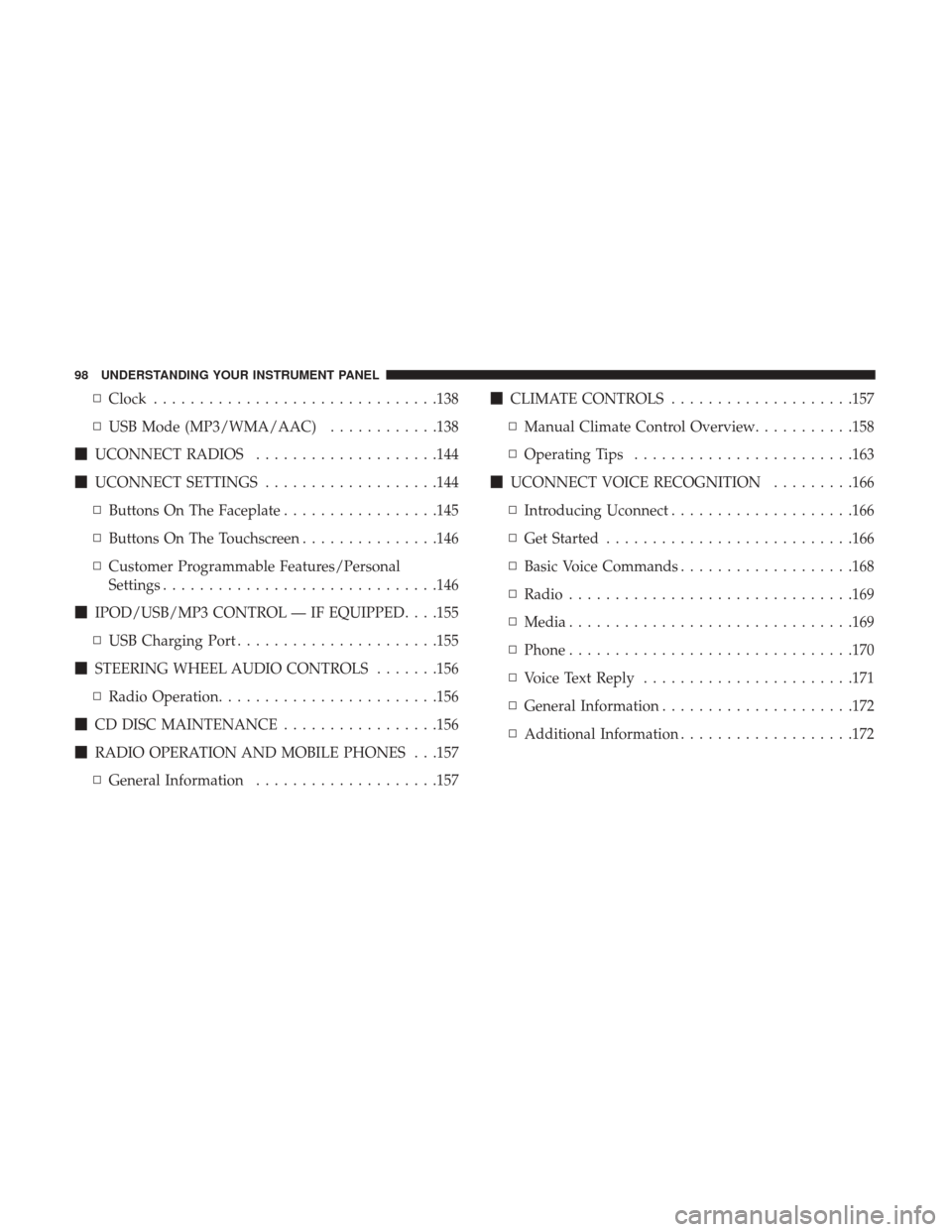

▫Clock .............................. .138
▫ USB Mode (MP3/WMA/AAC) ............138
 UCONNECT RADIOS ....................144
 UCONNECT SETTINGS ...................144
▫ Buttons On The Faceplate .................145
▫ Buttons On The Touchscreen ...............146
▫ Customer Programmable Features/Personal
Settings ............................. .146
 IPOD/USB/MP3 CONTROL — IF EQUIPPED . . . .155
▫ USB Charging Port ..................... .155
 STEERING WHEEL AUDIO CONTROLS .......156
▫ Radio Operation ....................... .156
 CD DISC MAINTENANCE .................156
 RADIO OPERATION AND MOBILE PHONES . . .157
▫ General Information ....................157
CLIMATE CONTROLS ....................157
▫ Manual Climate Control Overview ...........158
▫ Operating Tips ....................... .163
 UCONNECT VOICE RECOGNITION .........166
▫ Introducing Uconnect ....................166
▫ Get Started .......................... .166
▫ Basic Voice Commands ...................168
▫ Radio .............................. .169
▫ Media .............................. .169
▫ Phone .............................. .170
▫ Voice Text Reply ...................... .171
▫ General Information .................... .172
▫ Additional

Information ...................172
98 UNDERSTANDING YOUR INSTRUMENT PANEL

•Language
• Buzzer Volume
• Seat Belt Buzzer (*)
• (*) just available after SBR disable made by CHR
Service
• Service (Diesel Only)
• DRL - Daytime Running Lights (if equipped)
• Exit menu
NOTE:
• If equipped with Uconnect 5.0 radio, some customer
programmable features will display in the Uconnect
5.0 system. Refer to the radio supplement for further
Uconnect 5.0 information.
• The clock setting and Uconnect 5.0 clock setting pro-
cedure can be done through the radio or the Instru-
ment Cluster Display.
Selecting An Option Of The Main Menu Without Submenu
1. Briefly push and release the MODEbutton to select the
main menu option to set. 2. Push and release the
UPorDOWNarrow
button (by single pushes) to select the new setting.
3. Briefly push and release the MODEbutton to store the
new setting and go back to the main menu option
previously selected.
Selecting An Option Of The Main Menu With Submenu
1. Briefly push and release the MODEbutton to display
the first submenu option.
2. Push and release the UP
orDOWNarrow
button (by single pushes) to scroll through all the
submenu options.
3. Briefly push and release the MODEbutton to select the
displayed submenu option and to open the relevant
setup menu.
4. Push and release the UP
orDOWNarrow
button (by single pushes) to select the new setting for
this submenu option.
5. Briefly push and release the MODEbutton to store the
new setting and go back to the previously selected
submenu option.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 123

•Seat Belt Buzzer (*)
• (*) just available after SBR disable made by CHR
Service
• Service (Diesel Only)
• DRL - Daytime Running Light (if equipped)
• Exit menu
NOTE:
• If equipped with Uconnect 5.0/5.0N radio, some cus-
tomer programmable features will display in the
Uconnect 5.0/5.0N system. Refer to the Uconnect Set-
tings for further Uconnect 5.0/5.0N information.
• The Instrument Cluster Display clock setting and
Uconnect 5.0/5.0N clock setting procedure can be done
through the radio or the Instrument Cluster Display.
CYBERSECURITY
Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly. Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems.
The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.
WARNING!
•
It is not possible to know or to predict all of the
possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.
(Continued)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 127

MP3/WMA/AAC (USB Mode)
•“Last position” memory
• MP3/WMA/AAC track selection (forward/reverse)
• MP3/WMA/AAC track fast forward/reverse
• (RND) RaNDom (music shuffle) function
General
•Separate BASS and TREBLE settings
• BALANCE/FADE (balances left/right and front/rear
channels)
• Equalizer
• Loudness
• Digital clock in 24-hour format with weekday setting
• Illuminated buttons and display
• LCD display
• Extended functions field (Setup MENU) allows you to
change the default settings
Uconnect RH3 Display
Description Of Commands
Rotary Knob: Turn radio on and off, volume, forward/
reverse track, confirm selected option.
 And Buttons: Station search in automatic mode,
station search in manual mode, forward/reverse tracks,
forward/reverse within track.
Mute/Pause Button: Interrupts the sound by muting or
pausing the audio.
RH3 Display Panel
4
UNDERSTANDING YOUR INSTRUMENT PANEL 131

DISP Button:Switches between display modes, clock
display.
RND Button: Enables/Disables shuffle play.
SRC Button: Switches the audio source to TUNER.
Switches the audio source to USB.
Fast Track Buttons (F-Trk): Fast forward/reverse track
(used with the ROTARY knob).
Audio Button: Activates audio setting functions.
Preset Buttons (1 To 6): Store station in memory, access
preset stations.
Buttons 1 And 2: Forward/reverse folder.
Band/AS Button: Select tuned frequency band, preset best
stations.
Menu Button: Access setup menu.
General Functions And Settings
Turn The Radio On Or Off
To turn the radio on or off, push the ROTARY knob (push
once to turn on and hold for about three seconds to turn
off), not dependent on the ignition position. The default radio configuration is “Auto Switch ON
(see
SETUP MENU section). In this configuration, the radio will
follow two parameters: ignition and previous state. If the
ignition is turned off with the radio on, the radio will be
turned off, but will come on again when the ignition is
turned on. If the ignition is turned off with the radio off, the
radio continues to be turned off when the ignition is turned
on again.
If you prefer, you can set Auto Switch OFF(see SETUP
MENU section). The radio will only consider the ignition
switch position when it executes the 60 min function: when
the ignition is turned off, the radio will display the message
60 MIN for three seconds and switch off automatically
after 60 minutes if no buttons are pushed.
When it is turned on, the radio will display a greeting
message. When it is turned off, the radio will display the
message GOOD BYE before it switches off.
Audio
You can use the AUDIO button to access the available
audio settings (described in the sections below).
Equalizer
Pushing the AUDIO button for more than two seconds
activates the audio equalizer functions in the following
132 UNDERSTANDING YOUR INSTRUMENT PANEL

sequence: FLATPOPROCKCLASSICVO-
CAL
JAZZUSERFLAT. Push AUDIO repeat-
edly to change the equalization. If this button is not
pushed again within five seconds, or if you push the
ROTARY knob, the display returns to the previously
selected view and the settings will be saved.
Custom Audio Setting Functions
Push the AUDIO button for less than two seconds to
activate the Balance function.
Repeatedly pushing the AUDIO button activates the other
custom audio setting functions in the following sequence:
Bass
TrebleBalanceFaderLoudness
Bass. If this button is not pushed again within five
seconds, or if you push the ROTARY knob, the display
returns to the previously selected view and the settings
will be saved. USER equalization must be selected to
activate the Bass and Treble functions.
Bass
The display will show BASS 00to indicate that the Bass
function can be set. To increase the bass level, turn the
ROTARY knob clockwise. To decrease the bass level, turn
the ROTARY knob counterclockwise. The bass levels can be
set between -15 and 15. Treble
The display will show
TREB 00to indicate that the Treble
function can be set. To increase the treble level, turn the
ROTARY knob clockwise. To decrease the treble level, turn
the ROTARY knob counterclockwise. The treble levels can
be set between -15 and 15.
Balance
The display will show the message BAL 00to indicate
that the balance function can be set. Turn the ROTARY
knob clockwise to transfer the sound to the right-hand side;
the display will show BAL R 01. Turn the ROTARY knob
counterclockwise to transfer the sound to the left-hand
side; the display will show BALL01. The balance levels
can be set between 0 and 15.
Fader
The display will show FA D 0 0to indicate that you can set
the Fader function. Turn the ROTARY knob clockwise to
transfer the sound to the front; the display will show FA D
F01 . Turn the ROTARY knob counterclockwise to transfer
the sound to the back; the display will show FADR01.
The fader levels are set from 0 to 15.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 133

Presetting stations with a strong signal: when the
BAND/AS button is pushed for more than two seconds,
the radio will search for the 6 best stations and automati-
cally store them in the 6 memory positions of the current
band. During the search, the display will indicateFM AST
or AM AST, depending on the band selected. To record
the stations that are found, these are sorted in ascending
order of frequency and the first one is stored in memory
position 1, and so on, until positions 1-6 are all in use. If
fewer than 6 stations are found, the unused channels will
be allocated to the 107.9 MHz frequency for FM and AM
1710 KHz for the AM band. At the end of the search
process, the radio tunes in to the first preset position and
the display will indicate the associated preset number (1)
and the station frequency for three seconds. The display
will then return to the previous view.Setup Menu
You can use the Setup menu to change the various factory
settings to suit your own preferences.
Push MENU to activate the Maximum Volume function.
Repeatedly pushing this button will activate the other
functions in the following sequence: Maximum Volume
(MVOL)
Auto Switch (AUTO)Beep (BEEP)Set
Clock
Maximum Volume (MVOL). If this button or
the button for adjusting the selected function is not
pushed for five seconds or if the ROTARY knob is
pushed, the display returns to the previous view and
the changes will be saved.
Maximum Volume
This function allows you to set the maximum permissible
volume. Turn the ROTARY knob to set the volume. The
display will show a message in the format MVOL 26
indicating the maximum volume selected. When the maxi-
mum volume selected is the maximum radio volume, the
display will show MVOL OFF.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 137

Auto Switch
This function changes the on/off sequence of the radio as
described in the section:Turning the device on and off. To
enable it, turn the ROTARY knob clockwise. The display
will show AUTO ON. To disable it, turn the ROTARY
knob counterclockwise and the display will show AUTO
OFF.
Beep
With this feature is enabled, the radio will emit a beep
when any knob is activated.
Clock settings
When you select this function, the display will show the
clock. To select the field to be set, push
or. Turn the
ROTARY knob to adjust the selected field. Clock
Pushing the DISP button for more than two seconds
enables or disables the clock display. When this feature is
enabled, the display shows
CLK ONand the clock is
displayed whenever the ignition is switched on, even if the
radio is off. This function takes priority in the display
whenever you access any of the radio functions. If no
buttons are pushed within 10 seconds, the display will go
back to showing the clock. When this function is disabled,
the display shows CLK OFF.
USB Mode (MP3/WMA/AAC)
CAUTION!
To remove devices connected to the USB port, first
select the other audio source. Failure to follow this
procedure can cause damage to the connected device.
Due to the extensive range of makes and models of
storage devices available on the market, not all devices
have compatibility required for proper functioning of
Car Radios. Use only quality USB devices.
138 UNDERSTANDING YOUR INSTRUMENT PANEL
