2017 Ram 5500 Chassis Cab headlamp

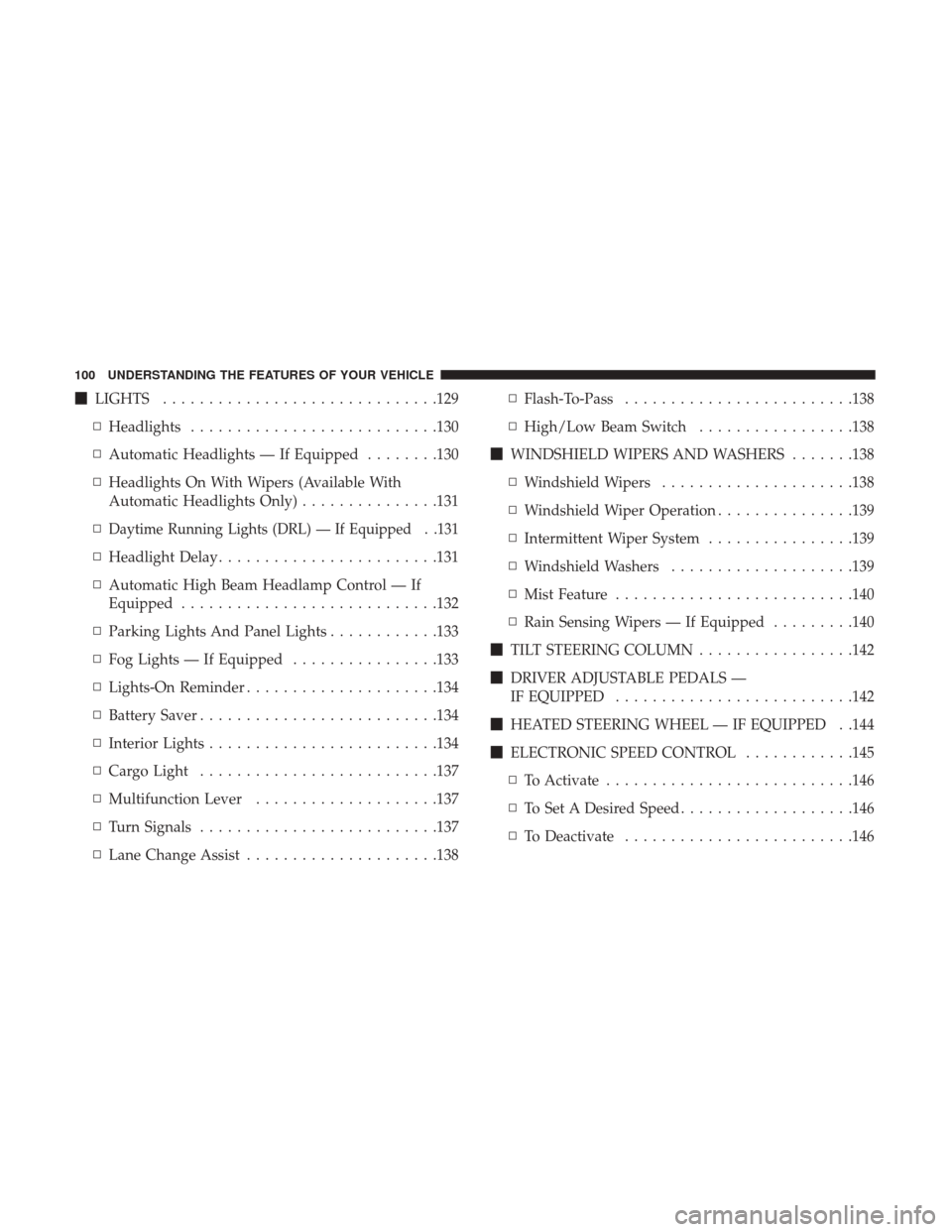

LIGHTS ............................. .129
▫ Headlights .......................... .130
▫ Automatic Headlights — If Equipped ........130
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ...............131
▫
Daytime Running Lights (DRL) — If Equipped . .131
▫ Headlight Delay ....................... .131
▫ Automatic High Beam Headlamp Control — If
Equipped ........................... .132
▫ Parking Lights And Panel Lights ............133
▫ Fog Lights — If Equipped ................133
▫ Lights-On Reminder .....................134
▫ Battery Saver ......................... .134
▫ Interior Lights ........................ .134
▫ Cargo Light ......................... .137
▫ Multifunction Lever ....................137
▫ Turn Signals ......................... .137
▫ Lane Change Assist .....................138 ▫
Flash-To-Pass ........................ .138
▫ High/Low Beam Switch .................138
 WINDSHIELD WIPERS AND WASHERS .......138
▫ Windshield Wipers .....................138
▫ Windshield Wiper Operation ...............139
▫ Intermittent Wiper System ................139
▫ Windshield Washers ....................139
▫ Mist Feature ......................... .140
▫ Rain Sensing Wipers — If Equipped .........140
 TILT STEERING COLUMN .................142
 DRIVER ADJUSTABLE PEDALS —
IF EQUIPPED ......................... .142
 HEATED STEERING WHEEL — IF EQUIPPED . .144
 ELECTRONIC SPEED CONTROL ............145
▫ To Activate .......................... .146
▫ To Set A Desired Speed ...................146
▫ T

o Deactivate ........................ .146
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic High Beam Headlamp Control — If
Equipped
The Automatic High Beam Headlamp Control system
provides increased forward lighting at night by automat-
ing high beam control through the use of a digital camera
mounted on the inside rearview mirror. This camera de-
tects vehicle specific light and automatically switches from
high beams to low beams until the approaching vehicle is
out of view.
NOTE:
•If your vehicle is equipped with a touchscreen the
Automatic High Beam Headlamp Control can be turned
on or off using the Uconnect System. Refer to “Uconnect
Settings” in “Understanding Your Instrument Panel” for
further information.
• If your vehicle is not equipped with a touchscreen the
Automatic High Beam Headlamp Control can be turned
on or off using the instrument cluster display. Refer to
“Instrument Cluster Display” in “Understanding Your
Instrument Panel” for further information.
• Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film, and other obstructions on the windshield or camera lens
will cause the system to function improperly.
• To opt out of the Advanced Auto High-Beam Sensitivity
Control (default) and enter Reduced High-Beam Sensi-
tivity Control (not recommended), toggle highbeam
lever 6 full on/off cycles within 10 seconds of ignition
ON. System will return to default setting upon ignition
off.
If the windshield or Automatic High Beam Headlamp
Control mirror is replaced, the mirror must be re-aimed to
ensure proper performance. See your local authorized
dealer.
To Activate
1. If your vehicle is equipped with a touchscreen, the Automatic High Beams are enabled through the
Uconnect system. Refer to “Uconnect Settings” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.
If your vehicle is not equipped with a touchscreen, the
Automatic High Beams are enabled through the instru-
ment cluster display. Refer to “Instrument Cluster Display”
in “Understanding Your Instrument Panel” for further
information.
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

FUSES ............................... .486
▫ Power Distribution Center ................486
 VEHICLE STORAGE .....................493
 REPLACEMENT BULBS ...................493
 BULB REPLACEMENT ....................494
▫ Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park And
Turn — If Equipped ....................494
▫ Fog Lamps — If Equipped ................496 ▫
Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp ......................... .496
▫ Cab Top Clearance Lamps — If Equipped .....498
 FLUID CAPACITIES ..................... .499

FLUIDS, LUBRICANTS, AND GENUINE PARTS . . .500
▫ Engine ............................. .500
▫ Chassis ............................ .502
446 MAINTAINING YOUR VEHICLE

LIGHT BULBS — Exterior
Bulb Number
Quad Headlamp – Low Beam H11
Quad Headlamp – High Beam 9005
Quad Headlamp – Front Turn Signal Lamp 3157NA
Premium Headlamp – Low Beam HIR2
Premium Headlamp – High Beam 9005
Premium Headlamp –
Front Turn Signal Lamp LED (See authorized
dealer for service)
Horizontal Fog Lamp 9145
Vertical Fog Lamp 9006
Cab Roof Marker Lamps 194NA
Center High Mounted Stop Lamp 921
Rear Cargo Lamp 921
Box Off Tail Lamps –
Stop/Turn/Tail/License 1157
Bulb Number
Plate
Box Off Tail Lamps – Back Up 1156
BULB REPLACEMENT
NOTE:
Lens fogging can occur under certain atmospheric
conditions. This will usually clear as atmospheric condi-
tions change to allow the condensation to change back into
a vapor. Turning the lamps on will usually accelerate the
clearing process.
Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park And
Turn — If Equipped
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Remove the six plastic push-in fasteners that secure the upper radiator seal to the grille support and both fender
ledges.
4. Remove the two plastic push-in rivets that secure the upper radiator seal to the radiator.
494 MAINTAINING YOUR VEHICLE

5. Remove the upper radiator seal from the vehicle.
6. Remove the two headlamp assembly attachment screws.
7. Reach into the front wheel house ahead of the frontwheel, remove the fastener, and lift the cover over the
access hole in the front of the wheel house splash shield.
Access to the rear of the lamp can be gained through this
access hole. 8. Reach through the access hole of the wheel house splash
shield and lift the slide lock upward far enough to
disengage it from the lock post on the back of the front
lamp unit housing.
9. Remove the headlamp assembly. Grasp the outboard edge of the lamp and pull it straight forward to disen-
gage the ball stud from the plastic grommet.
10. Disconnect the wiring harness connectors from the bulb socket.
11. Replace bulb(s) as necessary.
Headlamp Assembly Attachment Screw LocationsSlide Lock
7
MAINTAINING YOUR VEHICLE 495

CAUTION!
•Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
• Always use the correct bulb size and type for replace-
ment. An incorrect bulb size or type may overheat
and cause damage to the lamp, the bulb socket, or the
lamp wiring.
NOTE: There are access covers over both headlamp bulb
access holes in the quad front lamp unit housing (if
equipped). These covers MUST be reinstalled after the bulb
has been replaced.
Fog Lamps — If Equipped
1. Reach under and behind the front bumper to access the back of the front fog lamp housing.
2. Disconnect the fog lamp wiring harness connector from the fog lamp bulb.
3. Rotate the bulb counterclockwise ¼ turn to unlock the bulb from the housing.
4. Pull the bulb straight out from the housing.
CAUTION!
Do not contaminate the bulb glass by touching it with
your fingers or by allowing it to contact other oily
surfaces. Shortened bulb life will result.
Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp
1. Remove the two screws holding the housing/lens to the body as shown.
CHMSL Mounting Screw Locations
496 MAINTAINING YOUR VEHICLE
