2017 Ram 5500 Chassis Cab display

Removing Key Fob From Ignition
Place the gear selector in PARK (if equipped with an
automatic transmission). Turn the key fob to the OFF
position and then remove the key fob.NOTE:
•
The power window switches, radio, power sunroof (if
equipped), and power outlets will remain active for up
to 10 minutes after the ignition switch is turned to the
OFF position. Opening either front door will cancel this
feature. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.
• For vehicles not equipped with a touchscreen radio,
refer to “Instrument Cluster Display in “Understanding
Your Instrument Panel” for further information.
• For vehicles equipped with a touchscreen radio, refer to
“Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.WARNING!
• Before exiting a vehicle, always shift the automatic
transmission into PARK or the manual transmission
into REVERSE, apply the parking brake, turn the
vehicle OFF, remove the key fob from the ignition
and lock your vehicle. If equipped with Keyless
Enter-N-Go, always make sure the keyless ignition
node is in “OFF” mode, remove the key fob from the
vehicle and lock the vehicle.
(Continued)
Key Fob With Remote Keyless Entry (IGNM)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

NOTE:
•Keyed Ignition systems will chime in OFF or ACC
when the driver door is open.
• “Keyless Ignition systems will chime in ACC or RUN
when the driver door is open.
• The Instrument Cluster Display will display “Key In
Ignition.”
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
SENTRY KEY
The Sentry Key Immobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The system
does not need to be armed or activated. Operation is
automatic, regardless of whether the vehicle is locked or
unlocked.
The system uses a key fob, an Ignition Node Module,
Keyless Push Button Ignition and a RF receiver to prevent
unauthorized vehicle operation. Therefore, only key fobs
that are programmed to the vehicle can be used to start and
operate the vehicle. The system will not allow the engine to
crank if an invalid key fob is used to start and operate the
vehicle. The system will shut the engine off in two seconds
if an invalid key fob is used to start the engine.
NOTE: A key fob that has not been programmed is also
considered an invalid key.
During normal operation, after placing the keyless ignition
in the ON/RUN position, the Vehicle Security Light will
turn on for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is a
problem with the electronics. In addition, if the light begins
to flash after the bulb check, it indicates that someone used
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

remain armed when the battery is reconnected; the exterior
lights will flash, and the horn will sound. If this occurs,
disarm the Vehicle Security Alarm.
Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
ILLUMINATED APPROACH
The courtesy lights will turn on when you use the key fob
to unlock the doors or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in “Un-
derstanding The Features Of Your Vehicle” for further
information.
The lights will fade to off after approximately 30 seconds,
or they will immediately fade to off once the ignition
switch is turned to ON/RUN from the OFF position.
The front courtesy overhead console and door courtesy
lights will not turn off if the dimmer control is in the
“Dome ON” position (rotate horizontal thumb wheel on
the bottom of the switch to the far right detent position).The illuminated entry system will not operate if the
dimmer control is in the “Dome OFF” position (rotate
horizontal thumb wheel on the bottom of the switch to the
far left detent position).
NOTE:
If your vehicle is equipped with illuminated ap-
proach lights under the outside mirrors, they can be turned
off by using the Instrument Cluster Display controls (if
NOT equipped with a touchscreen radio) or the Uconnect
radio (if equipped with a touchscreen radio). Refer to
“Instrument Cluster Display” or “Uconnect Settings” in
“Understanding Your Instrument Panel” for further infor-
mation.
REMOTE KEYLESS ENTRY
The Remote Keyless Entry system allows you to lock or
unlock all doors, tailgate, and the RamBox (if equipped) as
well as activate the Panic Alarm from distances up to
approximately 66 ft (20 m) using a hand-held radio key fob
with integrated key. The key fob does not need to be
pointed at the vehicle to activate the system. Push and
release the LOCK button on the key fob to lock all doors,
the tailgate and the RamBox (if equipped). The turn signal
lights will flash and the horn will chirp to acknowledge the
signal.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

NOTE:Inserting the key fob into the ignition switch
disables the system from responding to any button pushes
from that key fob. Driving at speeds 5 mph (8 km/h) and
above disables the system from responding to all key fob
buttons for all key fobs.
Remote Unlock The Doors
Push and release the UNLOCKbutton on the key fob
once to unlock the driver ’s door. Push the unlock
button twice within five seconds to unlock all doors,
the tailgate and the RamBox (if equipped). The turn
signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will also turn on.
NOTE: The Instrument Cluster Display or Uconnect Set-
tings are setup for driver door first, otherwise this will
unlock all doors.
Remote Keyless Entry Key Fob (IGNM)
Key Fob Keyless Enter-N-Go

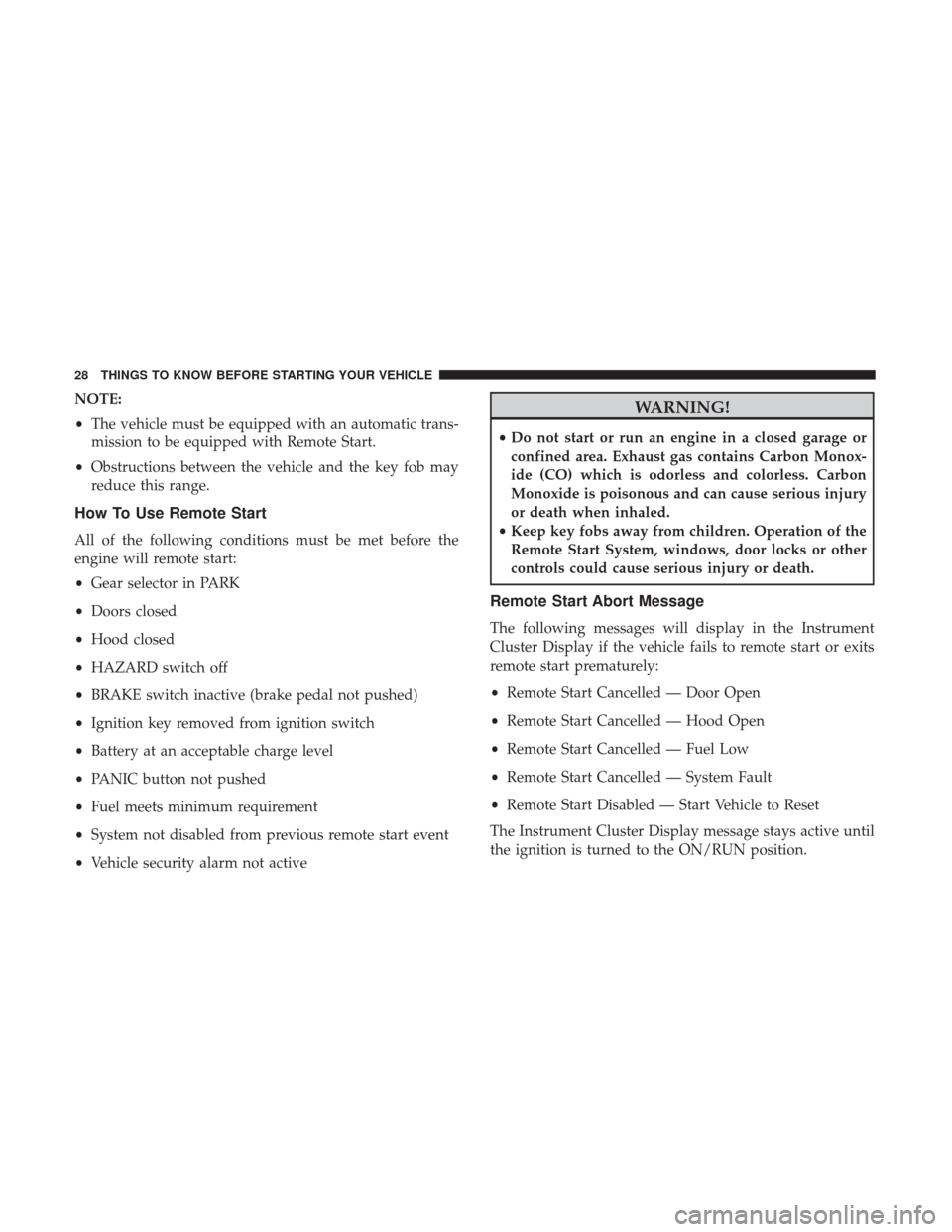

22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:
•The vehicle must be equipped with an automatic trans-
mission to be equipped with Remote Start.
• Obstructions between the vehicle and the key fob may
reduce this range.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
• Gear selector in PARK
• Doors closed
• Hood closed
• HAZARD switch off
• BRAKE switch inactive (brake pedal not pushed)
• Ignition key removed from ignition switch
• Battery at an acceptable charge level
• PANIC button not pushed
• Fuel meets minimum requirement
• System not disabled from previous remote start event
• Vehicle security alarm not active
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Message
The following messages will display in the Instrument
Cluster Display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Cancelled — Door Open
• Remote Start Cancelled — Hood Open
• Remote Start Cancelled — Fuel Low
• Remote Start Cancelled — System Fault
• Remote Start Disabled — Start Vehicle to Reset
The Instrument Cluster Display message stays active until
the ignition is turned to the ON/RUN position.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ............................ .103
▫ Inside Day/Night Mirror — If Equipped ......103
▫ Automatic Dimming Mirror — If Equipped . . . .104
▫ Automatic Dimming Mirror With Rear View
Camera Display — If Equipped ............109
▫ Outside Mirrors .......................110
▫ Outside Mirrors Folding Feature ............110
▫ Power Mirrors — If Equipped .............111
▫ Heated Mirrors — If Equipped .............112
▫ Illuminated Vanity Mirror — If Equipped ......112
▫ “Slide-On-Rod” Features Of Sun Visor — If
Equipped ............................113
▫ Trailer Towing Mirrors — If Equipped ........113
 SEATS................................114
▫ Driver’s Power Seat — If Equipped ..........115▫
Passenger ’s Power Seat — If Equipped .......116
▫ Power Lumbar — If Equipped .............117
▫ Heated Seats — If Equipped ...............117
▫ Ventilated Seats — If Equipped .............119
▫ Manual Seat Adjuster — If Equipped ........119
▫ 40-20-40 Front Bench Seat — If Equipped .....121
▫ Head Restraints ...................... .121
 DRIVER MEMORY SEAT — IF EQUIPPED .....124
▫ Programming The Memory Feature ..........125
▫ Linking And Unlinking The Remote Keyless Entry
Key Fob To Memory .....................125
▫ Memory Position Recall ..................126
▫ Easy Entry/Exit Seat ....................127
 TO OPEN AND CLOSE THE HOOD ..........1283

▫To Resume Speed ..................... .146
▫ To Vary The Speed Setting ................146
▫ To Accelerate For Passing .................147
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ......................... .148
▫ ParkSense Sensors ..................... .148
▫ ParkSense Warning Display ................149
▫ ParkSense Display ..................... .149
▫ Enabling And Disabling ParkSense ..........152
▫ Service The ParkSense Rear Park Assist System. .152
▫ Cleaning The ParkSense System .............153
▫ ParkSense System Usage Precautions .........153
 PARKSENSE FRONT AND REAR PARK ASSIST —
IF EQUIPPED ......................... .155
▫ ParkSense Sensors ..................... .155
▫ ParkSense Warning Display ................156
▫ ParkSense Display ..................... .156▫
Enabling And Disabling Front And/Or Rear
ParkSense ........................... .158
▫ Service The ParkSense Park Assist System .....158
▫ Cleaning The ParkSense System .............159
▫ ParkSense System Usage Precautions .........159
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED ........................... .161
 OVERHEAD CONSOLE — IF EQUIPPED ......164
▫ Courtesy/Reading Lights .................164
 GARAGE DOOR OPENER — IF EQUIPPED . . . .165
▫ Before You Begin Programming HomeLink . . . .166
▫ Programming A Rolling Code ..............167
▫ Programming A Non-Rolling Code ..........168
▫ Canadian/Gate

Operator Programming .......169
▫ Using HomeLink ...................... .170
▫ Security ............................. .170
▫ Troubleshooting Tips ....................171
▫ General Information .....................171
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

WARNING!(Continued)
can cause the 9-1-1 Call system to fail, never add
aftermarket equipment (e.g., two-way mobile radio,
CB radio, data recorder, etc.) to your vehicle’s electri-
cal system or modify the antennas on your vehicle. IF
YOUR VEHICLE LOSES BATTERY POWER FOR
ANY REASON (INCLUDING DURING OR AFTER
AN ACCIDENT), THE UCONNECT FEATURES,
APPS AND SERVICES, AMONG OTHERS, WILL
NOT OPERATE.
• Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you need
it. You could be injured if the air bag system is not
there to help protect you.
9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico DO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is de-
tected, and at the beginning of each ignition cycle: •
The rearview mirror light located between the ASSIST
and 9-1-1 buttons will continuously be illuminated red.
• The device screen will display the following message
“Vehicle device requires service. Please contact your
dealer.”
• An in-vehicle audio message will state “Vehicle device
requires service. Please contact your dealer.”
WARNING!
• Ignoring the rearview mirror light could mean you
will not have 9-1-1 Call services. If the rearview
mirror light is illuminated, have an authorized dealer
service the 9-1-1 Call system immediately.
• The Occupant Restraint Control module turns on the
Air Bag Warning Light on the instrument panel if a
malfunction in any part of the system is detected. If
the Air Bag Warning Light is illuminated, have an
authorized dealer service the Occupant Restraint
Control system immediately.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
