REMOTE STARTING SYSTEM
This system uses the key fob to start the engine
conveniently from outside the vehicle while still
maintaining security. The system has a range of
approximately 300 ft (91 m).
NOTE:
• The vehicle must be equipped with an automatic trans-
mission to be equipped with Remote Start.
• Obstructions between the vehicle and the key fob may
reduce this range.
• The Remote Start system will wait for the “Wait To Start”
amber telltale to extinguish before cranking the engine.
This allows time for the engine pre-heat cycle to pre-heat
the cylinder air, and is normal in cold weather. Refer to
“Instrument Cluster Display” in “Understanding Your
Instrument Panel” for further information on the “Wait
To Start” amber telltale and the pre-heat cycle.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
• Gear selector in PARK
• Doors closed
• Hood closed
• HAZARD switch off
• BRAKE switch inactive (brake pedal not pressed)
• Battery at an acceptable charge level
• PANIC button not pushed
• Fuel meets minimum requirement
• System not disabled from previous remote start event
• Vehicle security alarm not active
• Water In Fuel Indicator Light is not illuminated
• “Wait To Start” telltale is not illuminated
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 228
UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ...................14
WARNING AND INDICATOR LIGHTS .........19
▫ Yellow Telltale Indicator Lights ..............19
INSTRUMENT CLUSTER DISPLAY ............21
▫ Oil Life Reset ..........................23
▫ Fuel Filter Life Reset .....................24
▫ Diesel Particulate Filter (DPF) Messages .......25▫
Displays ..............................26
▫ Vehicle Information (Customer Information
Features) ..............................27
▫ Diesel Exhaust Fluid (DEF) Warning Messages . . .28
▫ Diesel Exhaust Fluid (DEF) Fault Warning
Messages .............................293
Page 16 of 228
INSTRUMENT CLUSTER
1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000). 2. Instrument Cluster Display
•When the appropriate conditions exist, this display
shows the Instrument Cluster Display messages. Refer
to “Instrument Cluster Display” in “Understanding
Your Instrument Panel” for further information.
Instrument Cluster
14 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 17 of 228

3. Speedometer•Indicates vehicle speed.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel filler door is located.
5. DEF Gauge •The DEF Gauge displays the actual level of Diesel
Exhaust Fluid in the DEF tank. Diesel Exhaust Fluid
(DEF) is required to maintain normal vehicle operation
and emissions compliance. If something is wrong with
the gauge, a DEF Warning Message or Malfunction
Indicator Light (MIL) will be displayed. More infor-
mation is available in the Instrument Cluster Display
section under the heading of Diesel Exhaust Fluid
(DEF) Warning Messages.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
(Continued)
WARNING! (Continued)
service if your vehicle overheats. If you decide to look
under the hood yourself, see “Maintaining Your Ve-
hicle.” Follow the warnings under the “Cooling Sys-
tem Pressure Cap” paragraph.
CAUTION!
Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.
NOTE:
• The gauge may take up to five seconds to update after
adding a gallon or more of Diesel Exhaust Fluid (DEF) to
the DEF tank. If you have a fault related to the DEF
system, the gauge may not update to the new level. See
your authorized dealer for service.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 15
Page 20 of 228

6. Instrument Cluster Display•When the appropriate conditions exist, this display
shows the Instrument Cluster Display messages. Refer
to “Instrument Cluster Display” in “Understanding
Your Instrument Panel” for further information.
7. DEF Gauge •The DEF Gauge displays the actual level of Diesel
Exhaust Fluid in the DEF tank. Diesel Exhaust Fluid
(DEF) is required to maintain normal vehicle operation
and emissions compliance. If something is wrong with
the gauge, a DEF Warning Message or Malfunction
Indicator Light (MIL) will be displayed. More infor-
mation is available in the Instrument Cluster Display
section under the heading of Diesel Exhaust Fluid
(DEF) Warning Messages.
NOTE:
• The DEF tank on these vehicles is designed with a large
amount of full reserve. So the level sensor will indicate a
full reading even before the tank is completely full. To
put it another way, there’s additional storage capacity in
the tank above the Full mark that’s not represented in
the gauge. You may not see any movement in the
reading – even after driving up to 2,000 miles in some
cases. •
The gauge may take up to five seconds to update after
adding a gallon or more of Diesel Exhaust Fluid (DEF) to
the DEF tank. If you have a fault related to the DEF
system, the gauge may not update to the new level. See
your authorized dealer for service.
• The DEF gauge may also not immediately update after a
refill if the temperature of the DEF fluid is below 12F
(-11C). The DEF line heater will possibly warm up the
DEF fluid and allow the gauge to update after a period
of run time. Under very cold conditions, it is possible
that the gauge may not reflect the new fill level for
several drives.
• Outside temperature can affect DEF consumption. In
cold conditions, 12° F (-11° C) and below, the DEF gauge
needle can stay on a fixed position and may not move
for extended periods of time. This is a normal function of
the system.
CAUTION!
Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
(Continued)
18 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 21 of 228

CAUTION!(Continued)
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.
WARNING AND INDICATOR LIGHTS
IMPORTANT:The warning / indicator lights switch on in
the instrument panel together with a dedicated message
and/or acoustic signal when applicable. These indications are indicative and precautionary and as such must not be
considered as exhaustive and/or alternative to the informa-
tion contained in the Owner ’s Manual, which you are
advised to read carefully in all cases. Always refer to the
information in this chapter in the event of a failure indica-
tion.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some tell-
tales are optional and may not appear.
Yellow Telltale Indicator Lights
Wait To Start Light — If Equipped
Yellow Telltale
Light What It Means
Wait To Start Light
The “Wait To Start” telltale will illuminate for approximately two seconds when the ignition is
turned to the RUN position. It’s duration may be longer based on colder operating conditions.
Vehicle will not initiate start until telltale is no longer displayed. Refer to “Starting Procedures”
in “Starting and Operating” for further information.
NOTE:
The “Wait To Start” telltale may not illuminate if the intake manifold temperature is
warm enough.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 19
Page 23 of 228
INSTRUMENT CLUSTER DISPLAY
The Instrument Cluster Display features a driver-
interactive display that is located in the instrument cluster.
This system allows the driver to select a variety of useful
information by pushing the switches mounted on the
steering wheel. The Instrument Cluster Display may con-
sist of the following:
•Digital Speedometer
• Vehicle Info
• Fuel Economy Info
• Trip A
Instrument Cluster Display — Base
Instrument Cluster Display — Premium
3
UNDERSTANDING YOUR INSTRUMENT PANEL 21
Page 25 of 228

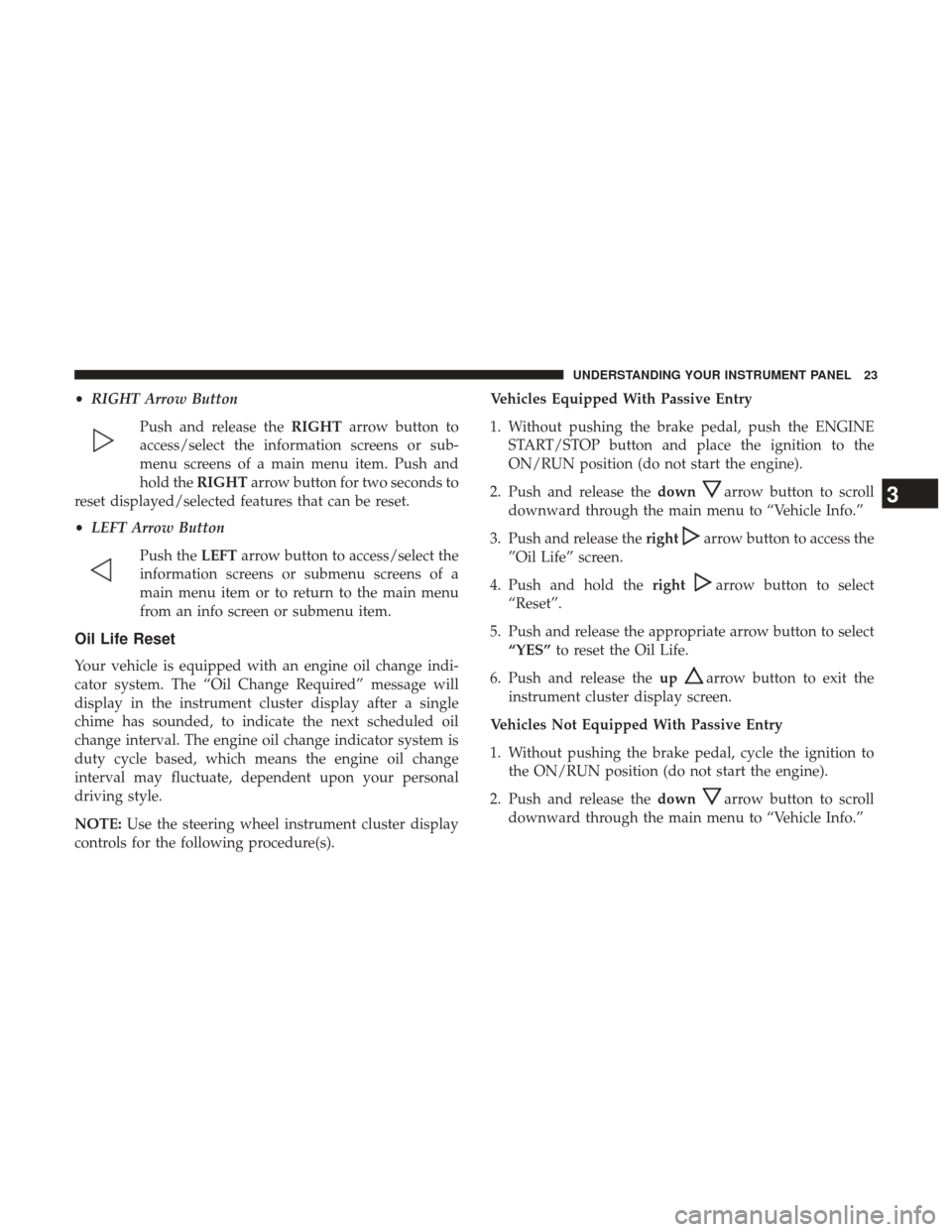

•RIGHT Arrow Button
Push and release the RIGHTarrow button to
access/select the information screens or sub-
menu screens of a main menu item. Push and
hold the RIGHTarrow button for two seconds to
reset displayed/selected features that can be reset.
• LEFT Arrow Button
Push the LEFTarrow button to access/select the
information screens or submenu screens of a
main menu item or to return to the main menu
from an info screen or submenu item.
Oil Life Reset
Your vehicle is equipped with an engine oil change indi-
cator system. The “Oil Change Required” message will
display in the instrument cluster display after a single
chime has sounded, to indicate the next scheduled oil
change interval. The engine oil change indicator system is
duty cycle based, which means the engine oil change
interval may fluctuate, dependent upon your personal
driving style.
NOTE: Use the steering wheel instrument cluster display
controls for the following procedure(s). Vehicles Equipped With Passive Entry
1. Without pushing the brake pedal, push the ENGINE
START/STOP button and place the ignition to the
ON/RUN position (do not start the engine).
2. Push and release the down
arrow button to scroll
downward through the main menu to “Vehicle Info.”
3. Push and release the right
arrow button to access the
”Oil Life” screen.
4. Push and hold the right
arrow button to select
“Reset”.
5. Push and release the appropriate arrow button to select “YES” to reset the Oil Life.
6. Push and release the up
arrow button to exit the
instrument cluster display screen.
Vehicles Not Equipped With Passive Entry
1. Without pushing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine).
2. Push and release the down
arrow button to scroll
downward through the main menu to “Vehicle Info.”
3
UNDERSTANDING YOUR INSTRUMENT PANEL 23
