CAUTION!(Continued)
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.
WARNING AND INDICATOR LIGHTS
IMPORTANT: The warning / indicator lights switch on in
the instrument panel together with a dedicated message
and/or acoustic signal when applicable. These indications are indicative and precautionary and as such must not be
considered as exhaustive and/or alternative to the infor-
mation contained in the Owner ’s Manual, which you are
advised to read carefully in all cases. Always refer to the
information in this chapter in the event of a failure indica-
tion.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some tell-
tales are optional and may not appear.
Yellow Telltale Indicator Lights
Wait To Start Light — If Equipped
Yellow Telltale
Light What It Means
Wait To Start Light
The “Wait To Start” telltale will illuminate for approximately two seconds when the ignition is
turned to the RUN position. It’s duration may be longer based on colder operating conditions.
Vehicle will not initiate start until telltale is no longer displayed. Refer to “Starting Procedures”
in “Starting and Operating” for further information.
NOTE:
The “Wait To Start” telltale may not illuminate if the intake manifold temperature is
warm enough.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 107

5. After engine start-up, check to see that there is oilpressure.
6. Allow the engine to idle about three minutes until the manifold heaters have completed the post-heat cycle.
7. Release the parking brake and drive.
NOTE:
• Engine idle speed will automatically increase to 1,000
RPM and engage the Variable Geometry Turbocharger at
low coolant temperatures to improve engine warm-up.
• The engine may not automatically crank after the engine
Wait To Start telltale goes off if a door or the hood is
ajar.
• If the engine stalls, or if the ignition switch is left ON for
more than two minutes after the “Wait To Start Light”
goes out, reset the grid heaters by turning the ignition
switch to the OFF position for at least five seconds and
then back ON. Repeat steps 1 through 7 of “Keyless
Enter-N-Go Starting Procedure – Engine Manifold Air
Temperature Below 66° F (19° C).”Extreme Cold Weather
The Cummins diesel engine is equipped with several
features designed to assist cold weather starting and op-
eration:
• The engine block heater is a resistance heater installed in
the water jacket of the engine just above and behind the
oil filter. It requires a 110–115 Volt AC electrical outlet
with a grounded, three-wire extension cord.
NOTE: The engine block heater cord is a factory installed
option. If your vehicle is not equipped, heater cords are
available from your authorized MOPAR dealer.
• A 12 Volt heater built into the fuel filter housings aid in
preventing fuel gelling. It is controlled by a built-in
thermostat.
• A heated intake air system both improves engine start-
ing and reduces the amount of white smoke generated
by a warming engine.
5
STARTING AND OPERATING 125

Normal Starting Procedure — Engine Manifold Air
Temperature Above 66° F (19° C)
Observe the instrument panel cluster lights when starting
the engine.
1. Always apply the parking brake.
2. Shift into PARK for an automatic transmission.For vehicles equipped with a manual transmission, fully
press and hold the clutch pedal and shift into NEU-
TRAL.
3. Turn the ignition switch to the ON position and watch the instrument panel cluster lights.
CAUTION!
If the “Water in Fuel Indicator Light” remains on, DO
NOT START the engine before you drain the water
from the fuel filters to avoid engine damage. Refer to
“Maintenance Procedures/Draining Fuel/Water Sepa-
rator Filter” in “Maintaining Your Vehicle” for further
information. 4. Turn the ignition switch to the START position and
crank the engine. Do not press the accelerator during
starting.
CAUTION!
Do not crank engine for more than 15 seconds at a time
or starter motor damage may result. Turn the ignition
switch to the OFF position and wait at least two
minutes for the starter to cool before repeating start
procedure.
5. When the engine starts, release the key fob.
6. Check that the oil pressure warning light has turned off.
7. Release the parking brake.
Starting Procedure — Engine Manifold Air
Temperature 0°F To 66°F (–18°C to 19°C)
NOTE: The temperature displayed in the instrument clus-
ter does not necessarily reflect the engine manifold air
temperature. Refer to “Instrument Cluster Display” in
“Understanding Your Instrument Panel” for further infor-
mation. When engine temperatures fall below 66°F (19°C)
the “Wait To Start Light” will remain on indicating the
intake manifold heater system is active.
126 STARTING AND OPERATING

Follow the steps in the “Normal Starting” procedure
except:
1. The “Wait To Start” telltale will remain on for a period oftime that varies depending on the engine temperature.
2. While the Wait To Start” telltale is on, the instrument
cluster will additionally display a gauge or bar whose
initial length represents the full Wait To Starttime
period. Its length will decrease until it disappears when
the Wait To Start time has elapsed.
CAUTION!
If the “Water in Fuel Indicator Light” remains on, DO
NOT START engine before you drain the water from
the fuel filters to avoid engine damage. Refer to
“Maintenance Procedures/Draining Fuel/Water Sepa-
rator Filter” in “Maintaining Your Vehicle” for further
information.
3. After the “Wait To Start” telltale goes off, turn the ignition switch to the START position. Do not press the
accelerator during starting.
CAUTION!
Do not crank engine for more than 15 seconds at a time
or starter motor damage may result. Turn the ignition
switch to the OFF position and wait at least two
minutes for the starter to cool before repeating start
procedure.
4. After engine start-up, check that the oil pressure warn- ing light has turned off.
5. Allow the engine to idle about three minutes until the manifold heaters have completed the post-heat cycle.
6. Release the parking brake and drive.
NOTE:
• Engine idle speed will automatically increase to
1,000 RPM and engage the Variable Geometry Turbo-
charger at low coolant temperatures to improve engine
warm-up.
• Automatic equipped vehicles with optional Keyless
Enter-N-Go – If the start button is pushed once while in
park with the ignition off and driver ’s foot on the brake
pedal, the vehicle will automatically crank and start
after the Wait to Start time has elapsed. If it is desired to
5
STARTING AND OPERATING 127

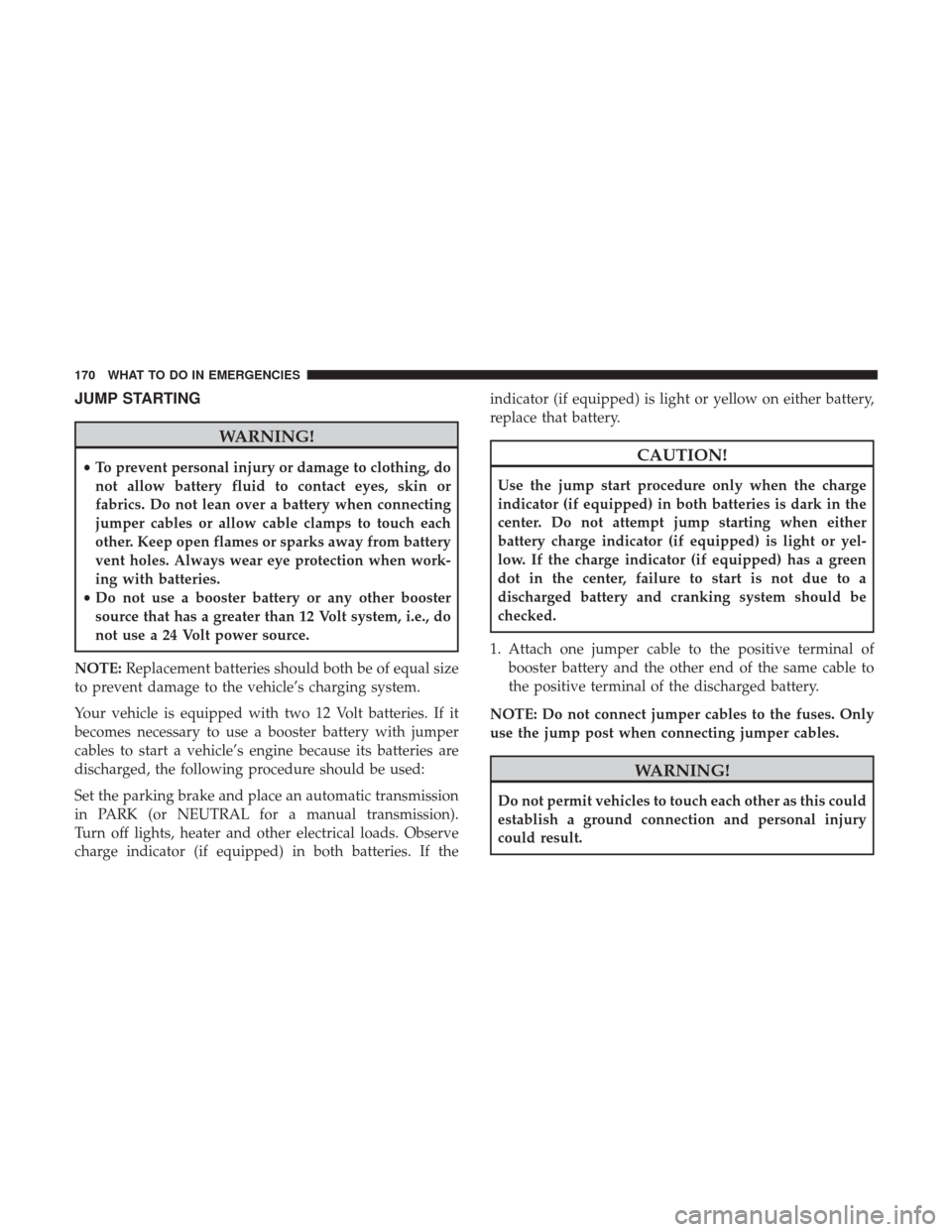

JUMP STARTING
WARNING!
•To prevent personal injury or damage to clothing, do
not allow battery fluid to contact eyes, skin or
fabrics. Do not lean over a battery when connecting
jumper cables or allow cable clamps to touch each
other. Keep open flames or sparks away from battery
vent holes. Always wear eye protection when work-
ing with batteries.
• Do not use a booster battery or any other booster
source that has a greater than 12 Volt system, i.e., do
not use a 24 Volt power source.
NOTE: Replacement batteries should both be of equal size
to prevent damage to the vehicle’s charging system.
Your vehicle is equipped with two 12 Volt batteries. If it
becomes necessary to use a booster battery with jumper
cables to start a vehicle’s engine because its batteries are
discharged, the following procedure should be used:
Set the parking brake and place an automatic transmission
in PARK (or NEUTRAL for a manual transmission).
Turn off lights, heater and other electrical loads. Observe
charge indicator (if equipped) in both batteries. If the indicator (if equipped) is light or yellow on either battery,
replace that battery.CAUTION!
Use the jump start procedure only when the charge
indicator (if equipped) in both batteries is dark in the
center. Do not attempt jump starting when either
battery charge indicator (if equipped) is light or yel-
low. If the charge indicator (if equipped) has a green
dot in the center, failure to start is not due to a
discharged battery and cranking system should be
checked.
1. Attach one jumper cable to the positive terminal of booster battery and the other end of the same cable to
the positive terminal of the discharged battery.
NOTE: Do not connect jumper cables to the fuses. Only
use the jump post when connecting jumper cables.
WARNING!
Do not permit vehicles to touch each other as this could
establish a ground connection and personal injury
could result.
170 WHAT TO DO IN EMERGENCIES

MS.90032) and distilled water for proper corrosion pro-
tection of your engine which contains aluminum com-
ponents.
• Make sure that the coolant expansion bottle overflow
hoses are not kinked or obstructed.
• Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean.
• Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install ONLY
the correct type thermostat. Other designs may result in
unsatisfactory engine coolant (antifreeze) performance,
poor gas mileage, and increased emissions.
Charge Air Cooler — Inter-Cooler
The charge air cooler is positioned below the radiator and
the air conditioner condenser. Air enters the engine
through the air cleaner and passes through the turbo-
charger, where it is pressurized. This pressurized air rap-
idly reaches high temperature. The air is then directed
through a hose to the charge air cooler and through another
hose to the intake manifold of the engine. The air entering the engine has been cooled by about 50° to 100°F (10° to
38°C). This cooling process enables more efficient burning
of fuel resulting in fewer emissions.
To guarantee optimum performance of the system, keep
the surfaces of the charge air cooler, condenser and radiator
clean and free of debris. Periodically check the hoses
leading to and from the charge air cooler for cracks or loose
clamps resulting in loss of pressure and reduced engine
performance.
Brake System
Brake Master Cylinder — Brake Fluid Level Check
The fluid level of the master cylinder should be checked
when performing under the hood service, or immediately
if the “Brake System Warning Light” indicates system
failure.
The brake master cylinder has a translucent plastic reser-
voir. On the outboard side of the reservoir, there is a
“MAX” mark and a “MIN” mark. The fluid level must be
kept within these two marks. Do not add fluid above the
full mark because leakage may occur at the cap.7
MAINTAINING YOUR VEHICLE 195

7. Remove the dipstick again and note the fluid level onboth sides. The fluid level reading is only valid if there
is a solid coating of oil on both sides of the dipstick.
Note that the holes in the dipstick will be full of fluid if
the actual level is at or above the hole. The fluid level
should be between the “HOT” (upper) reference holes
on the dipstick at normal operating temperature. If the
fluid level is low, add fluid through the dipstick tube to
bring it to the proper level. Do not overfill.Use ONLY
the specified fluid (see Fluids, Lubricants, and Genuine
Parts for fluid specifications). After adding any quan-
tity of oil through the dipstick tube, wait a minimum of
two minutes for the oil to fully drain into the transmis-
sion before rechecking the fluid level.
NOTE: If it is necessary to check the transmission below
the operating temperature, the fluid level should be be-
tween the two “COLD” (lower) holes on the dipstick with
the fluid at 60-70°F / 16-21°C for 68RFE transmission, or
68-86°F / 20-30°C for AS69RC transmission. Only use the
COLD region of the dipstick as a rough reference when
setting the fluid level after a transmission service or fluid
change. Re-check the fluid level, and adjust as required,
once the transmission reaches normal operating tempera-
ture.CAUTION!
If the fluid temperature is below 50°F (10°C) it may not
register on the dipstick. Do not add fluid until the
temperature is elevated enough to produce an accurate
reading. Run the engine at idle, in PARK, to warm the
fluid.
8. Reinsert the dipstick. Check for leaks. Release the park- ing brake.
NOTE: To prevent dirt and water from entering the
transmission after checking or replenishing fluid, make
sure that the dipstick cap is properly reseated. It is normal
for the dipstick cap to spring back slightly from its fully
seated position, as long as its seal remains engaged in the
dipstick tube.
Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper main-
tenance intervals.
In addition, change the fluid and filter(s) if the fluid
becomes contaminated (with water, etc.), or if the transmis-
sion is disassembled for any reason.
7
MAINTAINING YOUR VEHICLE 199
