2017 Ram 3500 key

▫Second Row In-Floor Storage Bin —
If Equipped .......................... .197
▫ Seatback Storage ...................... .198
▫ Storage (Regular Cab) ....................199
▫ Storage and Seats (Crew Cab/Quad Cab) ......199
▫ Plastic Grocery Bag Retainers
(Regular Cab Models) ...................200
 REAR WINDOW FEATURES ...............200
▫ Rear Window Defroster ..................200
▫ Power Sliding Rear Window —
If Equipped ......................... .201
▫ Manual Sliding Rear Window —
If Equipped ......................... .202
 FOLD FLAT LOAD FLOOR — IF EQUIPPED . . . .202
 PICKUP BOX .......................... .206
▫ Cargo Camera — If Equipped .............208
▫ Turning Cargo Camera On Or Off —
With Uconnect 8.4/8.4 NAV ...............208
RAMBOX — IF EQUIPPED .................209
▫ RamBox Integrated Box Side Storage Bins ......209
▫ Locking And Unlocking RamBox ............211
▫ RamBox Safety Warning ..................212
▫ Bed Extender — If Equipped ...............213
▫ Bed Rail Tie-Down System ................219
 SLIDE-IN CAMPERS .....................220
▫ Camper Applications ....................220
 EASY-OFF TAILGATE ....................220
▫ Disconnecting The Rear Camera Or
Remote Keyless Entry — If Equipped .........221
▫ Removing The Tailgate ...................222
▫ Locking Tailgate ....................... .223
 TRI-FOLD

TONNEAU COVER —
IF EQUIPPED .......................... .223
▫ Tri-Fold Tonneau Cover Removal ...........223
▫ Tri-Fold Tonneau Cover Installation ..........227
▫ Tri-Fold Tonneau Cover Cleaning ...........232
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

DRIVER MEMORY SEAT — IF EQUIPPED
This feature allows the driver to store up to two different
memory profiles for easy recall through a memory switch.
Each memory profile contains desired position settings for
the driver ’s seat, side mirrors, adjustable pedals (if
equipped) and a set of desired radio station presets. Your
remote keyless entry key fob can also be programmed to
recall the same positions when the unlock button is
pushed.
NOTE:Your vehicle is equipped with two key fobs, one
key fob can be linked to memory position 1 and the other
key fob can be linked to memory position 2.
The memory seat buttons are located on the outboard side
of the driver ’s seat cushion.
Memory Seat Buttons
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Programming The Memory Feature
To create a new memory profile, perform the following:
1. Cycle the vehicle’s ignition to the ON/RUN position (donot start the engine).
2. Adjust all memory profile settings to desired prefer- ences (seat, side mirrors, adjustable pedals and radio
station presets).
3. Push and release the S (Set) button on the memory switch.
4. Within five seconds, push and release either of the memory buttons (1) or (2). The instrument cluster dis-
play will show which memory position has been set.
NOTE:
• Memory profiles can be set without the vehicle in PARK,
but the vehicle must be in PARK to recall a memory
profile.
• To set a memory profile to your key fob, refer to
“Linking And Unlinking The Remote Keyless Entry Key
Fob To Memory” in this section.
Linking And Unlinking The Remote Keyless Entry
Key Fob To Memory
Your key fobs can be programmed to recall one of two
pre-programmed memory profiles by pushing the unlock
button on the key fob.
NOTE: Before programming your key fobs to memory the
feature has to be selected.
• If your vehicle is equipped with a touchscreen, you must
select the “Memory To Fob” feature through the
Uconnect system. Refer to “Uconnect Settings” in “Un-
derstanding Your Instrument Panel” for further informa-
tion.
• If your vehicle is not equipped with a touchscreen, you
must select the “Key Fob Linked To Memory” feature
through the instrument cluster display. Refer to “Instru-
ment Cluster Display” in “Understanding Your Instru-
ment Panel” for further information.
To program your key fobs, perform the following:
1. Cycle the vehicle’s ignition to the OFF position.
2. Select desired memory profile (1) or (2).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

NOTE:If a memory profile has not already been set, refer
to Programming The Memory Feature for instructions on
how to set a memory profile.
3. Once the profile has been recalled, push and release the SET (S) button on the memory switch, then push and
release button (1) or (2) accordingly. “Memory Profile
Set” (1 or 2) will display in the instrument cluster
display.
4. Push and release the lock button on the key fob within 10 seconds.
NOTE: Your key fobs can be unlinked to your memory
settings by pushing the SET (S) button, and within 10
seconds, followed by pushing the unlock button on the key
fob.Memory Position Recall
NOTE:
• For vehicles equipped with an automatic transmission,
the vehicle must be in PARK to recall memory positions.
If a recall is attempted when the vehicle is not in PARK,
a message will appear in the instrument cluster display.
• For vehicles equipped with a manual transmission, the
vehicle speed must be at 0 mph (0 km/h) to recall
memory positions. If a recall is attempted with the
vehicle speed above 0 mph (0 km/h), a message will
appear in the instrument cluster display.
Driver One Memory Position Recall
• To recall the memory settings for driver one using the
memory switch, push memory button number 1 on the
memory switch.
• To recall the memory settings for driver one using the
key fob, push the unlock button on the key fob linked to
memory position 1.
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Driver Two Memory Position Recall
•To recall the memory setting for driver two using the
memory switch, push memory button number 2 on the
memory switch.
• To recall the memory settings for driver two using the
key fob, push the unlock button on the key fob linked to
memory position 2.
A recall can be cancelled by pushing any of the memory
buttons during a recall (S, 1, or 2). When a recall is
cancelled, the driver’s seat and the power pedals (if
equipped) stop moving. A delay of one second will occur
before another recall can be selected.
Easy Entry/Exit Seat
This feature provides automatic driver ’s seat positioning to
enhance driver mobility when entering and exiting the
vehicle.
The distance the driver ’s seat moves depends on where
you have the driver ’s seat positioned when you remove the
key fob from the ignition (or change the ignition to OFF, for
vehicles equipped with Keyless Enter-N-Go). •
When you remove the key fob from the ignition (or
change the ignition to OFF, for vehicles equipped with
Keyless Enter-N-Go), the driver ’s seat will move about
2.4 inches (60 mm) rearward if the driver ’s seat position
is greater than or equal to 2.7 inches (67.7 mm) forward
of the rear stop. The seat will return to its previously set
position when you place the ignition into the ACC or
RUN position.
• When you remove the key fob from the ignition (or
change the ignition to OFF, for vehicles equipped with
Keyless Enter-N-Go), the driver ’s seat will move to a
position 0.3 inches (7.7 mm) forward of the rear stop if
the driver ’s seat position is between 0.9 inches and 2.7
inches (22.7 mm and 67.7 mm) forward of the rear stop.
The seat will return to its previously set position when
you place the ignition to the ACC or RUN position.
• The Easy Entry/Easy Exit feature is disabled when the
driver ’s seat position is less than 0.9 inches (22.7 mm)
forward of the rear stop. At this position, there is no
benefit to the driver by moving the seat for Easy Exit or
Easy Entry.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

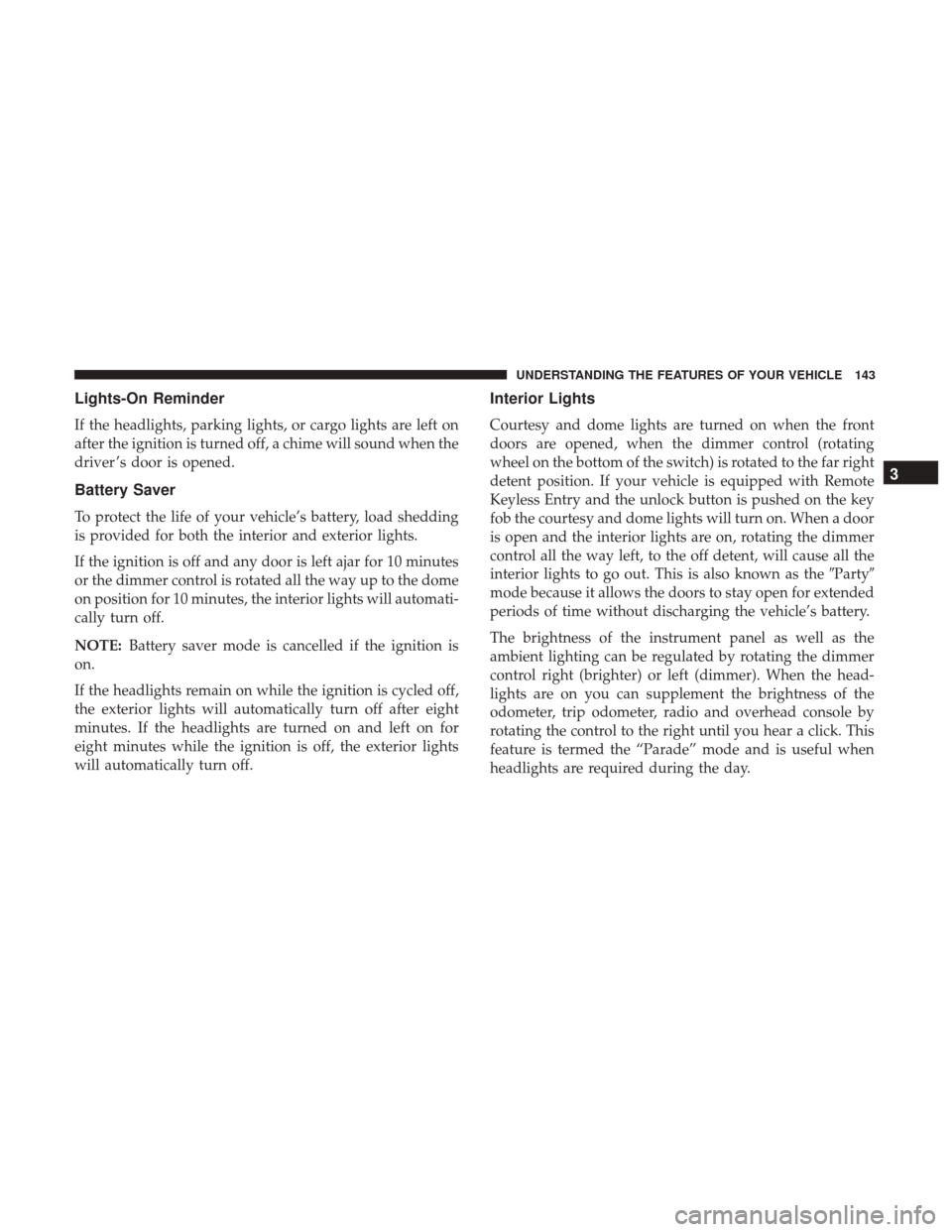

Lights-On Reminder
If the headlights, parking lights, or cargo lights are left on
after the ignition is turned off, a chime will sound when the
driver ’s door is opened.
Battery Saver
To protect the life of your vehicle’s battery, load shedding
is provided for both the interior and exterior lights.
If the ignition is off and any door is left ajar for 10 minutes
or the dimmer control is rotated all the way up to the dome
on position for 10 minutes, the interior lights will automati-
cally turn off.
NOTE:Battery saver mode is cancelled if the ignition is
on.
If the headlights remain on while the ignition is cycled off,
the exterior lights will automatically turn off after eight
minutes. If the headlights are turned on and left on for
eight minutes while the ignition is off, the exterior lights
will automatically turn off.
Interior Lights
Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control (rotating
wheel on the bottom of the switch) is rotated to the far right
detent position. If your vehicle is equipped with Remote
Keyless Entry and the unlock button is pushed on the key
fob the courtesy and dome lights will turn on. When a door
is open and the interior lights are on, rotating the dimmer
control all the way left, to the off detent, will cause all the
interior lights to go out. This is also known as the Party
mode because it allows the doors to stay open for extended
periods of time without discharging the vehicle’s battery.
The brightness of the instrument panel as well as the
ambient lighting can be regulated by rotating the dimmer
control right (brighter) or left (dimmer). When the head-
lights are on you can supplement the brightness of the
odometer, trip odometer, radio and overhead console by
rotating the control to the right until you hear a click. This
feature is termed the “Parade” mode and is useful when
headlights are required during the day.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143

NOTE:If your vehicle is equipped with a touchscreen, the
dimming of the touchscreen is programmable through the
Uconnect system. Refer to “Uconnect Settings ” in “Under-
standing Your Instrument Panel” for further details.Courtesy/Reading Lights
Both lights in the overhead console and rear passenger
compartment will illuminate as courtesy lights when a
door is opened, when the dimmer control is rotated to the
courtesy light position (full right position), or when the
unlock button is pushed on the Remote Keyless Entry key
fob, if equipped. These lights are also operated individu-
ally as reading lights by pushing on the corresponding
lens.
Dimmer Control
Front Courtesy/Reading Lights
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Cargo Light With Bed Lights — If Equipped
The cargo light and bed lights (if equipped) are turned on
by pushing on the cargo lights button.
The cargo light and bed lights (if equipped) will also turn
on for approximately 60 seconds when a key fob unlock
button is pushed, as part of the Illuminated Entry feature.
Multifunction Lever
The multifunction lever is located on the left side of the
steering column.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster display will flash to
show proper operation of the front and rear turn signal
lights.
NOTE:If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is defec-
tive.
Cargo Lights Button
Turn Signal Lever
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
