2017 Peugeot Partner Tepee fuse box

8
Partner2VP_en_Chap01_vue-ensemble_ed02-2016
ASR-ESC 119
Parking sensors 1 15-116
Electric mirrors

1
10
Headlamp beam height adjustment 60
Stop & Start
53-55
Cruise control

64-66
Speed limiter


67-69
Lighting


58-60
Foglamps

59
LED daytime running lamps

59
Automatic illumination of headlamps


59-60
INSTRUMENTS AND
CONTROLS
Dashboard, passenger
compartment fuses 187-189
Opening the bonnet

154
Parking brake


1
14Instrument panels, screens,
dials 28-29
Setting the time in the instrument panel
29
W
arning lamps, indicator
lamps
32-39
Indicators, fuel gauge

40, 47-48
Lighting dimmer

48
Gear shift indicator

50
Wipers
61-62
Automatic rain sensitive wipers
6
1
Screen wash
62, 158
T
rip computer
63
Steering wheel adjustment
49
Horn 114
Ignition switch

55
6-speed electronic

gearbox 51-52
Steering mounted controls: -
T
ouch screen
206
-

PEUGEOT
Connect Sound
(RD5) 267
Location

10
Partner2VP_en_Chap01_vue-ensemble_ed02-2016
INSTRUMENTS AND CONTROLS
Dashboard, passenger compartment fuses 187-189
Opening the bonnet

154
Front fittings


94-95
-

storage compartment.
-

glove box,
-

bottle holder
,
-
bag holder
,
-
centre console,
-

overhead storage,
-

sun visor
,
-
storage under seats.
Rear view mirror

1
11
Child surveillance mirror
1
11
Manual gearbox
49T

ouch screen
203-263PEUGEOT Connect Sound (RD5) 265-282
Reversing camera
1 17
Controls -

central locking


27
-


electric child lock


147
-


electric windows


1
12
-

hazard warning


lamps
114
"Grip control"

120-121
Heating, ventilation -


heating


70-71, 74
-


air conditioning

A/C

70-71, 74
Digital air


conditioning

72-73, 74
Demisting/defrosting

75-76
Courtesy lamps

103, 184
Screens, menus


28, 207, 268
Setting the time in the


screen

30-31
Location

12
Partner2VP_en_Chap01_vue-ensemble_ed02-2016
TECHNICAL DATA - M AINTENANCE
Identification markings, serial
number, paint code, tyres 201
Windscreen wash, level

158
Changing bulbs, lighting


181-186 Checks


159-160
-


battery
,
-

brake pads,
-


brake drums, discs.
-


parking brake,
-


carbon/passenger compartment filter,- oil filter,
- particle filter ,
-

gearbox,
Emissions control


41
Engine fuses


187, 190
Opening the bonnet, stay


154 Levels


157-158
-

engine oil dipstick,
-

brake fluid,
-

coolant.
-

power steering fluid,
-

Diesel additive,
Bleeding water
, Diesel filter
160
W

arning lamps

32-39
Under the bonnet-


Diesel

156
-


petrol

155
Fuel cut-of

f, Diesel priming
163
AdBlue® 164-169
Dimensions

193-196
Petrol engines / weights

197-198
Diesel engines /


weights

197, 199-200
Location

73
Partner2VP_en_Chap04_Ergonomie_ed02-2016Partner2VP_en_Chap04_Ergonomie_ed02-2016

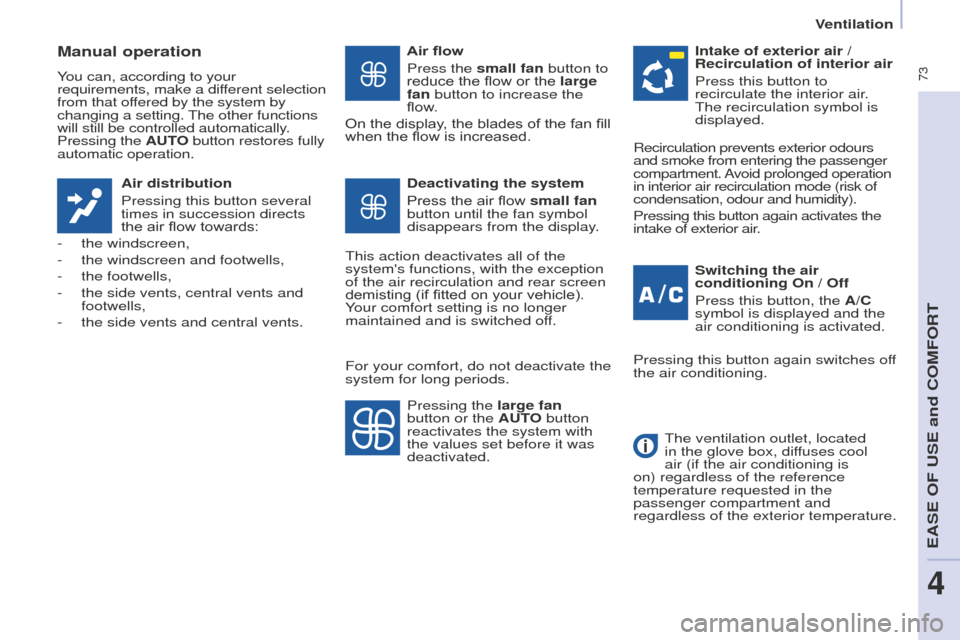

Manual operation
You can, according to your
requirements, make a different selection
from that offered by the system by
changing a setting. The other functions
will still be controlled automatically.
Pressing the AUTO button restores fully
automatic operation.Air distribution
Pressing this button several
times in succession directs
the air flow towards:
-

the windscreen,
-


the windscreen and footwells,
-


the footwells,
-


the side vents, central vents and
footwells,
-


the side vents and central vents. Air flow
Press the

small fan button to
reduce the flow or the large
fan button to increase the
flow.
On the display, the blades of the fan fill
when the flow is increased.
Switching the air
conditioning On
/ Off
Press this button, the A/C
symbol is displayed and the
air conditioning is activated.
Deactivating the system
Press the air flow small fan
button until the fan symbol
disappears from the display.
This action deactivates all of the
system's functions, with the exception
of the air recirculation and rear screen
demisting (if fitted on your vehicle).
Your comfort setting is no longer
maintained and is switched off. Intake of exterior air
/
Recirculation of interior air
Press this button to
recirculate the interior air.
The recirculation symbol is
displayed.
Pressing the large fan
button or the AUTO button
reactivates the system with
the values set before it was
deactivated. Recirculation prevents exterior odours
and smoke from entering the passenger
compartment. Avoid prolonged operation
in interior air recirculation mode (risk of
condensation, odour and humidity).
Pressing this button again activates the
intake of exterior air.
Pressing this button again switches off
the air conditioning.
The ventilation outlet, located
in the glove box, diffuses cool
air (if the air conditioning is
on) regardless of the reference
temperature requested in the
passenger compartment and
regardless of the exterior temperature.
For your comfort, do not deactivate the
system for long periods.
EASE OF USE and COMFORT
4
Ventilation

155
Partner2VP_en_Chap07_Verification_ed02-2016Partner2VP_en_Chap07_Verification_ed02-2016
PETROL ENGINE
1. Screenwash fluid reservoir .
2.
Fusebox.
3.


Engine coolant header tank.
Battery connections:
+


Positive terminal.
-


Negative point (earth).
T

ake care when working under the bonnet.
4. Brake and clutch fluid reservoir .
5.
Air filter
.
6.

Engine oil dipstick.7.

Engine oil filler cap.
8.
Power steering fluid reservoir
.
CHECKS
7
Under the bonnet

156
Partner2VP_en_Chap07_Verification_ed02-2016Partner2VP_en_Chap07_Verification_ed02-2016
DIESEL ENGINE
4. Brake and clutch fluid reservoir .
5.
Air filter
.
6.

Engine oil dipstick.
7.


Engine oil filler cap. 8.

Power steering fluid reservoir .
9.
Priming pump
(except BlueHDi engines).
1.

Screenwash fluid reservoir
.
2.

Fusebox.
3.


Engine coolant header tank.
Battery connections:
+


Positive terminal.
-


Negative point (earth).
T

ake care when working under the bonnet.
Under the bonnet

187
Partner2VP_en_Chap08_Aide-rapide_ed02-2016Partner2VP_en_Chap08_Aide-rapide_ed02-2016
CHANGING A FUSE
The fuseboxes are located:
-
in the lower dashboard on the left-
hand side (behind the cover),
-


under the bonnet (near the battery).
The information given concerns only
those fuses which can be changed by
the user using the tweezer

, located
behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a PEUGEOT
dealer or a qualified workshop.
Removing and fitting a fuse
Always replace a failed fuse with a
fuse of the same rating.
Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
Manual" diagrams via the dealer
network.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10

milliamperes. Before replacing a fuse, the cause of
the incident must be identified and
rectified.
●

Use the tweezer
.
QUICK HELP
8
Changing a fuse

190
Partner2VP_en_Chap08_Aide-rapide_ed02-2016Partner2VP_en_Chap08_Aide-rapide_ed02-2016
Fuses under the bonnet
After opening the bonnet, unclip and tilt
the corresponding box to gain access
to the fuses.Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 - Not used
5 15 Engine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25 Starter motor
9 10 Headlamp beam motor, fleet management unit
10 30 Engine components 11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp
Changing a fuse
