Seats
Never drive with the head
restraints removed; they must be
in place and correctly adjusted.
Armrest Front heated seats
control
Each individual front seat may be fitted
with a control located on the side of the
seat base.
With the 2+1 bench, the driver's seat
control also switches the bench outer
seat heated cushion on or off.
Press to switch on the cushion heating.
Press again to switch it off.PASSENGER
SEAT
Head restraint height
The backrest of the individual
passenger seat can be folded to allow
very long objects to be carried.
Folding the seat backrest
Pull the lever forwards then tilt the seat
backrest.
To put the armrest back in place, clip it
in the vertical position.
If the vehicle is fitted with the additional
console and an armrest, to fold the
passenger seat to the table position
remove the console or the armrest.
To raise the head restraint, slide it vertically
upwards.
To lower the head restraint, press the
button and slide the head restraint
vertically downwards.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, press the
button and pull the head restraint upwards.
To re-install, engage the head restraint
rods in the holes, making sure they are
aligned with the seat backrest.
To put the armrest into the vertical
position, raise the armrest until it locks.
Lower the armrest to put it back in the
position for use.
To remove the armrest, press the
release button from the vertical position
and move aside the armrest.
Returning the seat backrest to
its original position
Pull the lever forwards then raise the
seat backrest until it locks.
EASE OF USE and COMFORT
4

77
Partner-2-VU_en_Chap04_Ergonomie_ed02-2016
Seats
Foldaway position
Outer seatFully folded position
The backrest of the outer seat has a
metal shell. Pull the tab located on the upper edge
of the seat by the head restraint to tilt
and guide the entire seat.
It inserts itself into the floor in the
front seat position and so forms a
continuous flat floor with the load
space.
This position allows long loads to be
carried inside the vehicle, up to 3 m
(3.25 m in the case of the long versions)
with the doors closed.
In the fully folded position, the maximum
weight on the seat backrest is 50 kg.
To return the seat to the seat position,
raise the seat backrest until it locks on
the floor in the seat position. Raise the yellow lever located at the
base of the seat to release and raise
the entire seat to the foldaway position
(seat cushion raised against the seat
backrest) until it locks.
This position allows tall loads to be
carried in the cab part.
To return the seat to the seat position,
push the yellow lever located under the
seat cushion and lower the entire seat
until it is upright and locked on the floor
in the seat position.
EASE OF USE and COMFORT
4

80
Partner-2-VU_en_Chap04_Ergonomie_ed02-2016
Overhead storage unit
This is located above the sun visors
and can accommodate various objects
(a jumper, file, gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects stored in the overhead storage
unit.
The maximum weight permitted in the
overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.
Central storage console
This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.
Sun visor
To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver's sun
visor for storing toll cards, tickets, ...
Storage compartments under seats
Storage compartments may be
provided in the floor under the front
seats.
Move the seat forward for easier
access to the storage compartment.
The vehicle's tools are located here.
For more information on these


tools, refer to chapter
9, "Changing
a wheel" section.
Practical information

82
Partner-2-VU_en_Chap04_Ergonomie_ed02-2016

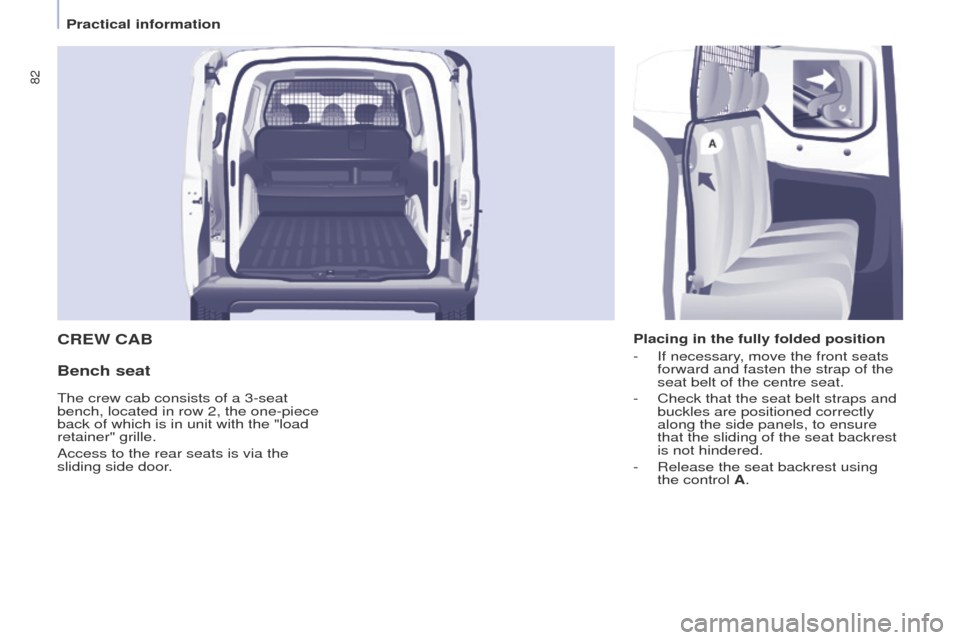

CREW CAB
Bench seat
Placing in the fully folded position
-
If necessary
, move the front seats
forward and fasten the strap of the
seat belt of the centre seat.
-

Check that the seat belt straps and
buckles are positioned correctly
along the side panels, to ensure
that the sliding of the seat backrest
is not hindered.
-


Release the seat backrest using
the control

A.
The crew cab consists of a 3-seat
bench, located in row 2, the one-piece
back of which is in unit with the "load
retainer" grille.
Access to the rear seats is via the
sliding side door.
Practical information

83
Partner-2-VU_en_Chap04_Ergonomie_ed02-2016
Returning to the seat position
-
In a single movement: take hold of
the red strap and pull the assembly
horizontally towards the rear

.
Guide the movement until the feet
of the bench seat lock on the floor

.
-

Raise the seat backrest.
The control

A locks in place
automatically.
-

Check that the bench is locked on
the floor correctly once it has been
returned to the seat position.
Do not let the assembly fall sharply

.
Good practice
There is no need to assist, guide or
support the tilting movement using
your free arm.
The rear seat belt casings are not
designed for securing the load
transported. Use the stowing rings on
the floor only.
The bench seat of the crew cab is not
suitable for the installation of a child
seat.
-

Using the same hand, fold the seat
backrest and the associated grille


onto the seat cushion.
-

T

ake hold of the red strap (like
a handle) and lift the assembly
vertically, guiding the movement to
the fully folded position.
The raised seat rests against the
backrests of the seats of row 1.
Head restraints and seat
belts
The three seats are equipped with
inertia reel seat belts. The seat belts
of the outer seats are secured to the
body, whereas the seat belt of the
centre seat is secured to the backrest
of the bench seat.
Each seat has a head restraint bolted
onto the load retaining grille and which
can be removed.
Do not store a head restraint inside
the vehicle unless it is properly
stowed or fixed to a support.
Do not drive with rear passengers
without first bolting the head restraints
in place.
EASE OF USE and COMFORT
