2017 Peugeot 3008 Hybrid 4 light

128
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
1. Front courtesy lamp
2. Front map reading lamps
Courtesy lamps
Front and rear courtesy lamps
Front and rear map reading
lamps
It switches off gradually:
- w hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed. In permanent lighting mode, the lighting time
varies according to the circumstances:
-

with the ignition off, approximately ten minutes,- in energy economy mode, approximately
thirty
seconds,
- with the engine running, unlimited.
Take care not to put anything in contact
with the courtesy lamps.
3.
R

ear courtesy lamp
4.
R

ear map reading lamps When the courtesy lamp is in the
"permanent lighting" position, the rear
courtesy lamp also comes on, except if
it is in the "permanently off " position.
To switch off the rear courtesy lamp, put
it in the "permanently off " position.
In this position, the courtesy
lamp comes on gradually:
-

w

hen the vehicle is unlocked,
-
w
hen the key is removed from the ignition,
-
o
n opening a door,
-

w

hen the remote control locking button is
used to locate your vehicle.
Permanently off.
Permanent lighting. F

W

ith the ignition on, press the
corresponding switch.
Ease of use and comfort

129
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

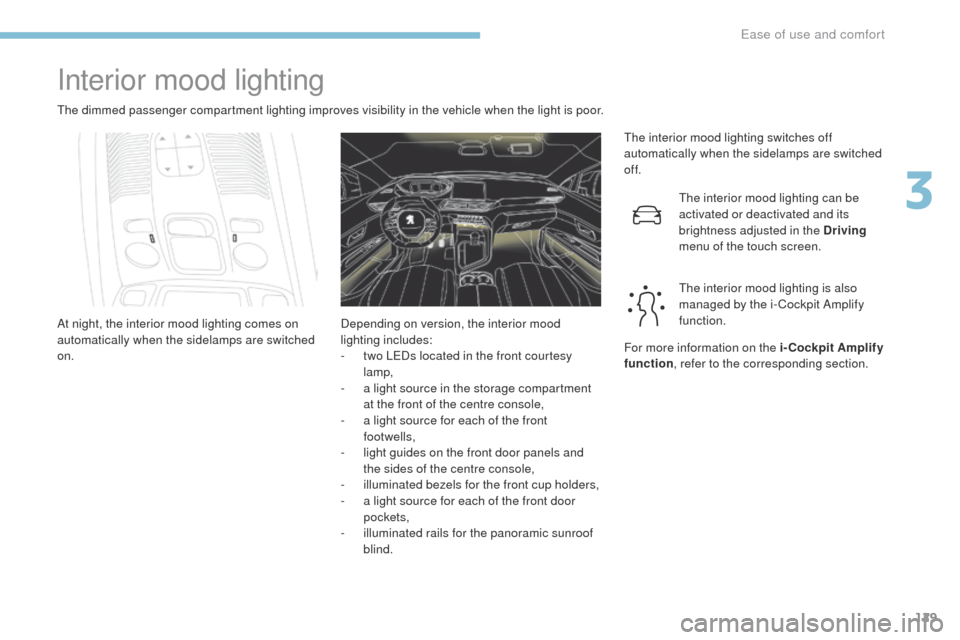

Interior mood lighting
The dimmed passenger compartment lighting improves visibility in the vehicle when the light is poor.The interior mood lighting switches off
automatically when the sidelamps are switched
of f.
At night, the interior mood lighting comes on
automatically when the sidelamps are switched
on. The interior mood lighting can be
activated or deactivated and its
brightness adjusted in the Driving

menu of the touch screen.
The interior mood lighting is also
managed by the i- Cockpit Amplify
function.
Depending on version, the interior mood
lighting includes:
-

t
wo LEDs located in the front courtesy
lamp,
-

a l
ight source in the storage compartment
at the front of the centre console,
-

a l
ight source for each of the front
footwells,
-

l
ight guides on the front door panels and
the sides of the centre console,
-

i
lluminated bezels for the front cup holders,
-

a l
ight source for each of the front door
pockets,
-

i
lluminated rails for the panoramic sunroof
blind. For more information on the i-Cockpit Amplify
function
, refer to the corresponding section.
3
Ease of use and comfort

131
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
The folding of the backrest is
accompanied by a slight lowering of the
corresponding cushion.
To obtain a flat sur face, it is necessary
to place the adjustable boot floor in the
high position.
When the backrest is released, the red
indicator is visible in the release grip.
Folding from the passenger compartment
F Press the backrest release grip 1.
F
G
uide the backrest 3 down to the horizontal
position.
Folding the backrests
Each section of the backrest has two release
controls:
-

a g
rip 1 on the outer edge of the backrest,
-

a l
ever 2 on the boot side trim. First:
F

l
ower the head restraints,
F
i
f necessary, move the front seats for ward,
F
f
old away the rear armrest,
F
c
heck that nothing or no person might
inter fere with the folding of the backrests
(clothing, luggage, ...),
F
c
heck that the outer seat belts are lying
correctly on the backrests.
Folding or unfolding the seat backrests
must only be done with the vehicle
stationary.
3
Ease of use and comfort

136
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Luggage cover
It is in two parts:
- a f ixed part with an open storage space,
-

a m
obile part which rises as the tailgate
opens, with an open storage space. To remove the luggage cover:
F
u nhook the two cords,
F

r
aise the moving part slightly, then unclip it
on each side,
F

u
nclip the fixed part on each side, then
remove the luggage cover.
The luggage cover can be stowed under the
boot floor.
Under sudden deceleration, objects
placed on the luggage cover may be
turned into projectiles.
12 V accessory socket
F To connect a 12 V accessory (max power: 120 W), remove the cap and connect an
appropriate adaptor.
F

S
witch on the ignition.
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
Ease of use and comfort

140
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Boot lamp
This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
The lighting time varies according to the
circumstances:
-
w
hen the ignition is off, approximately
ten


minutes,
-

i
n energy economy mode, approximately
thirty seconds,
-

w
hen the engine is running, no limit.
Ease of use and comfort

141
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Without AUTO lighting
With AUTO lighting
F Turn the ring A to place the desired symbol against the mark.
Exterior lighting control stalk
Lighting off (ignition off) /
Daytime running lamps (engine running).
Automatic illumination of headlamps.
Daytime running lamps / Dipped
beam / Main beam.
Sidelamps only.
Dipped or main beam headlamps.
Displays
Selection of main lighting mode
Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.
Headlamp dipping
F Pull the stalk B toward you to switch
between dipped and main beam
headlamps.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Main lighting
"Highway" function
On versions fitted with "Full LED"
technology headlamps, the range
of the dipped beam headlamps is
automatically increased once the
speed of the vehicle is above 68 mph
(110


km/h). A fault with a lamp is signalled by
the permanent illumination of this
warning lamp, accompanied by the
display of a message and an audible
signal.
4
Lighting and visibility

142
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
In good or rainy weather, by both
day and night, use of the front and
rear foglamps is prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, you should
switch on the foglamps and dipped
beam headlamps manually, as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the foglamps
when they are no longer necessary.
Foglamps
Rear foglamps
The sidelamps or dipped or main beam
headlamps must be on.
Front and rear foglamps
The main or dipped beam headlamps
must be on.
Rotate and release ring C :
F

fo

rward to switch on the rear foglamps.
F

b

ackward to switch them off. Rotate and release ring C
:
F

f
or ward a first time to switch on the front
foglamps,
F

f
or ward a second time to switch on the rear
foglamps,
F

b
ackward a first time to switch off the rear
foglamps,
F

b
ackward a second time to switch off the
front foglamps.
Lighting and visibility

143
3008-2_en_Chap04_eclairage-et-visibilite_ed01-2016
Switching on the lighting
after switching off the
ignition
To reactivate the lighting control stalk,
turn the ring A to position "0" - lighting
off, then to the position of your choice.
When the driver's door is opened, a
temporary audible signal warns you that
the vehicle's lighting is on.
They switch off automatically after a
period which depends on the state of
charge of the battery (entry to energy
economy mode).
Daytime running lamps /
Sidelamps
The light-emitting diodes (LEDs) in these
lamps, front and rear, come on automatically
when the engine is started.
They provide the following functions:
-

D
aytime running lamps (lighting control
stalk at position " 0" or " AUTO " with
adequate light level).
-

S
idelamps (lighting control stalk at
position


"AUTO " with a low ambient light
level or "Sidelamps only" or "Main or
dipped beam headlamps").
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a PEUGEOT dealer or a
qualified workshop.
Switching off the lighting
when switching off the ignition
When the ignition is switched off, all of the
lamps switch off immediately, except for the
dipped beam headlamps if automatic guide-
me-home lighting is activated.
4
Lighting and visibility
