Instruments and controls71Instruments and
controlsControls ....................................... 72
Steering wheel adjustment ........72
Steering wheel controls .............72
Heated steering wheel ...............72
Horn ........................................... 73
Windscreen wiper/washer .........73
Rear window wiper/washer .......75
Outside temperature ..................75
Clock ......................................... 76
Power outlets ............................. 77
Warning lights, gauges and indi‐
cators ........................................... 78
Speedometer ............................. 78
Odometer .................................. 78
Trip odometer ............................ 78
Tachometer ............................... 79
Fuel gauge ................................ 79
Fuel selector .............................. 79
Engine coolant temperature gauge ....................................... 80
Service display .......................... 80
Control indicators ......................81
Turn signal ................................. 84
Seat belt reminder .....................84Airbag and belt tensioners .........84
Airbag deactivation ....................84
Charging system .......................85
Malfunction indicator light ..........85
Service vehicle soon .................85
Brake and clutch system ...........85
Operate pedal ............................ 85
Antilock brake system (ABS) .....85
Upshift ....................................... 86
Descent control system .............86
Power steering .......................... 86
Lane departure warning ............86
Ultrasonic parking assist ...........86
Electronic Stability Control off ...86
Electronic Stability Control and Traction Control system ...........87
Traction Control system off .......87
Preheating ................................. 87
Diesel particle filter ....................87
Tyre pressure monitoring system ...................................... 87
Engine oil pressure ....................87
Low fuel ..................................... 88
Immobiliser ................................ 88
Exterior light .............................. 88
High beam ................................. 88
Adaptive forward lighting ...........88
Fog light ..................................... 89
Rear fog light ............................. 89
Cruise control ............................ 89Vehicle detected ahead .............89
Bonnet open .............................. 89
Door open .................................. 89
Information displays .....................89
Driver Information Centre ..........89
Graphic-Info-Display, Colour- Info-Display .............................. 93
Vehicle messages ........................94
Warning chimes .........................96
Battery voltage .......................... 96
Trip computer ............................... 97
Vehicle personalisation ..............100
OnStar ....................................... 103

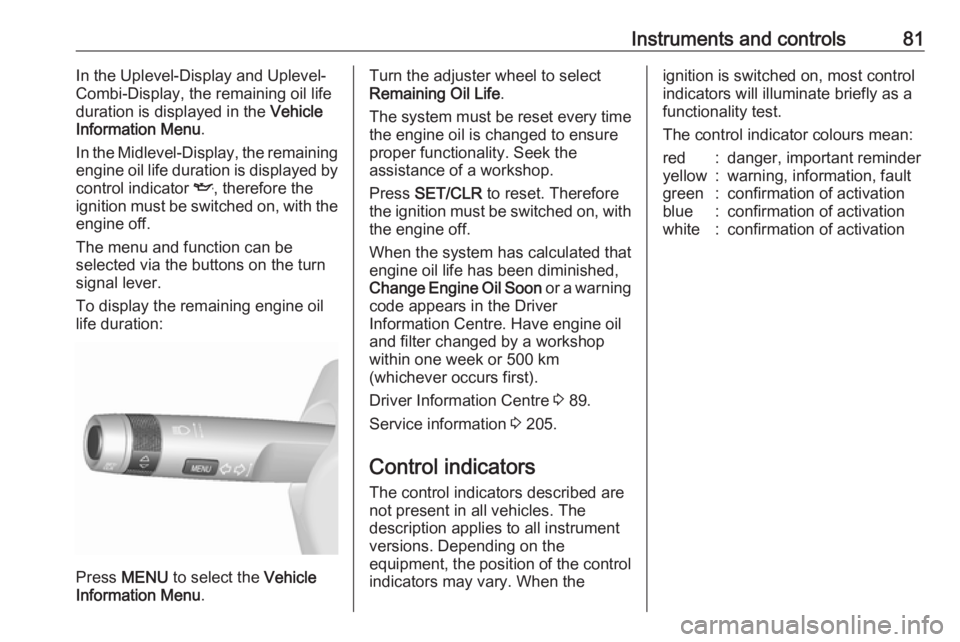

Instruments and controls81In the Uplevel-Display and Uplevel-
Combi-Display, the remaining oil life
duration is displayed in the Vehicle
Information Menu .
In the Midlevel-Display, the remaining
engine oil life duration is displayed by
control indicator I, therefore the
ignition must be switched on, with the
engine off.
The menu and function can be
selected via the buttons on the turn
signal lever.
To display the remaining engine oil
life duration:
Press MENU to select the Vehicle
Information Menu .
Turn the adjuster wheel to select
Remaining Oil Life .
The system must be reset every time
the engine oil is changed to ensure
proper functionality. Seek the
assistance of a workshop.
Press SET/CLR to reset. Therefore
the ignition must be switched on, with the engine off.
When the system has calculated that
engine oil life has been diminished,
Change Engine Oil Soon or a warning
code appears in the Driver
Information Centre. Have engine oil
and filter changed by a workshop
within one week or 500 km
(whichever occurs first).
Driver Information Centre 3 89.
Service information 3 205.
Control indicators The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control
indicators may vary. When theignition is switched on, most control
indicators will illuminate briefly as a functionality test.
The control indicator colours mean:red:danger, important reminderyellow:warning, information, faultgreen:confirmation of activationblue:confirmation of activationwhite:confirmation of activation

Instruments and controls83Control indicators in the centre
console
Overview
OTurn signal 3 84X /
k /Seat belt reminder 3 84vAirbag and belt tensioners
3 84V /
*Airbag deactivation 3 84pCharging system 3 85ZMalfunction indicator light
3 85gService vehicle soon 3 85RBrake and clutch system
3 85-Operate pedal 3 85uAntilock brake system (ABS)
3 85[Upshift 3 86uDescent control system
3 86cPower steering 3 86)Lane departure warning
3 86rUltrasonic parking assist
3 86nElectronic Stability Control off
3 86bElectronic Stability Control
and Traction Control system
3 87kTraction Control system off
3 87!Preheating 3 87%Diesel particle filter 3 87wTyre pressure monitoring
system 3 87IEngine oil pressure 3 87iLow fuel 3 88dImmobiliser 3 888Exterior light 3 88CHigh beam 3 88fAdaptive forward lighting
3 88>Fog light 3 89rRear fog light 3 89mCruise control 3 89AVehicle detected ahead
3 89

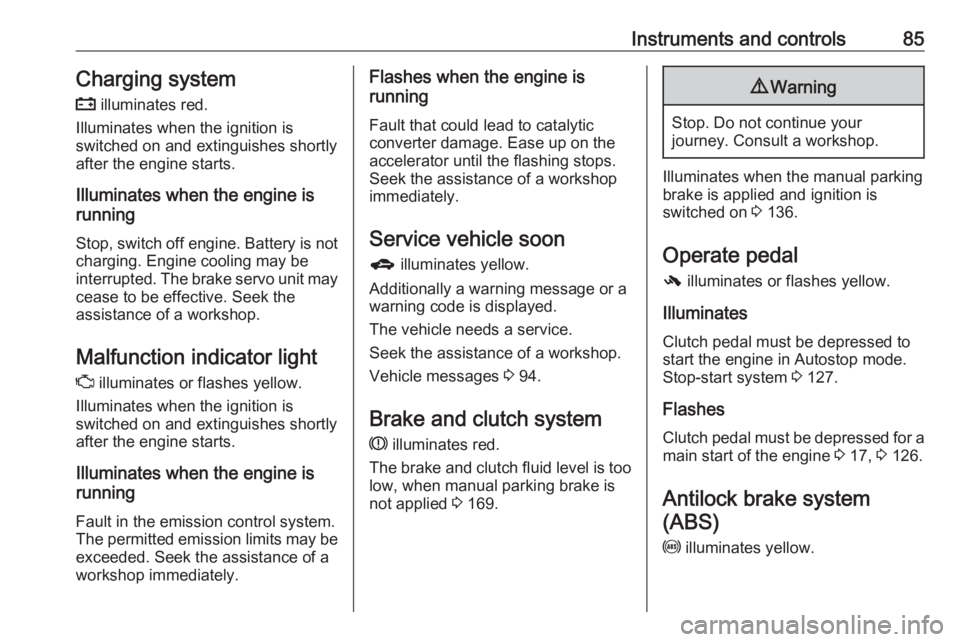

Instruments and controls85Charging system
p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Battery is not
charging. Engine cooling may be
interrupted. The brake servo unit may
cease to be effective. Seek the
assistance of a workshop.
Malfunction indicator light Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a
workshop immediately.Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Service vehicle soon
g illuminates yellow.
Additionally a warning message or a
warning code is displayed.
The vehicle needs a service.
Seek the assistance of a workshop.
Vehicle messages 3 94.
Brake and clutch system
R illuminates red.
The brake and clutch fluid level is too low, when manual parking brake is
not applied 3 169.9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Illuminates when the manual parking
brake is applied and ignition is
switched on 3 136.
Operate pedal - illuminates or flashes yellow.
Illuminates
Clutch pedal must be depressed to
start the engine in Autostop mode.
Stop-start system 3 127.
Flashes
Clutch pedal must be depressed for a main start of the engine 3 17, 3 126.
Antilock brake system
(ABS)
u illuminates yellow.

126Driving and operatingIgnition switch positions0:ignition off1:steering wheel lock released,
ignition off2:ignition on, for diesel engine:
preheating3:startingStarting the engine
Manual transmission: operate clutch.
Automatic transmission: operate
brake and move the selector lever to
P or N.
Do not operate the accelerator pedal. Diesel engine: turn the key to position2 for preheating until control
indicator ! extinguishes.
Turn the key briefly to position 3 and
release: an automatic procedure
operates the starter with a short delay
as long as the engine is running, see
'Automatic Starter Control'.
Before restarting or to switch off the engine, turn the key back to position
0 .
During an Autostop, the engine can
be started by depressing the clutch
pedal.
Key lock release Some vehicles with an automatic
transmission are equipped with an electronic key lock release system.
The key lock release is designed to
prevent ignition key removal unless
the selector lever is in P.
Starting the vehicle at low
temperatures
Starting the engine without additional
heaters is possible down to -25 °С for diesel engines and -30 °C for petrol
engines. Required is an engine oil
with the correct viscosity, the correct
fuel, performed services and a
sufficiently charged battery. With
temperatures below -30 °C the
automatic transmission requires a
warming phase of approx. 5 minutes.
The selector lever must be in position P .
