2017 OPEL MOKKA dimensions

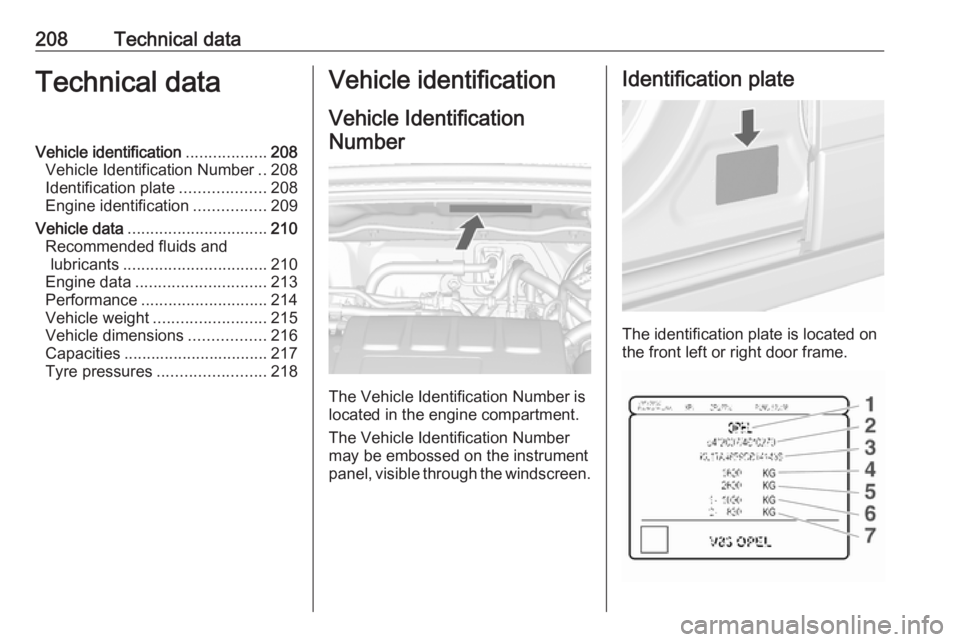

208Technical dataTechnical dataVehicle identification..................208
Vehicle Identification Number ..208
Identification plate ...................208
Engine identification ................209
Vehicle data ............................... 210
Recommended fluids and lubricants ................................ 210
Engine data ............................. 213
Performance ............................ 214
Vehicle weight ......................... 215
Vehicle dimensions .................216
Capacities ................................ 217
Tyre pressures ........................ 218Vehicle identification
Vehicle IdentificationNumber
The Vehicle Identification Number is
located in the engine compartment.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen.
Identification plate
The identification plate is located on
the front left or right door frame.

216Technical dataVehicle dimensionsLength [mm]4278Width without exterior mirrors [mm]1764Width with two exterior mirrors [mm]2038Height (without antenna) [mm]1658Length of load compartment floor [mm]729Length of load compartment with folded rear seats [mm]1428Load compartment width [mm]915Load compartment height [mm]757Wheelbase [mm]2555Turning circle diameter [m]11.5

229Rear fog light ....................... 89, 113
Rear view camera ...................... 146
Rear window wiper/washer .......... 75 Recommended fluids and lubricants ........................ 206, 210
Refuelling ................................... 155 Reversing lights .........................113
Ride control systems ..................137
Roof .............................................. 33
Roof load ...................................... 70
Roof rack ..................................... 69
S Seat adjustment ....................... 6, 37
Seat belt ........................................ 8
Seat belt reminder .......................84
Seat belts ..................................... 40
Seat heating ................................. 39
Seat position ................................ 36
Selector lever ............................. 132
Service ....................................... 123
Service display ............................ 80
Service information ....................205
Service vehicle soon .................... 85
Side airbag system ......................46
Side turn signal lights ................177
Software acknowledgement .......222
Spare wheel ............................... 196
Speed limiter............................... 141
Speedometer ............................... 78Starting and operating ................125
Starting off ................................... 17
Starting the engine ....................126
Steering ...................................... 125
Steering wheel adjustment ......9, 72
Steering wheel controls ...............72
Stop-start system........................ 127
Storage compartments .................55
Sunglasses storage .....................56
Sunroof ........................................ 33
Sunvisor lights ........................... 115
Sun visors .................................... 32
Symbols ......................................... 4
T
Tachometer ................................. 79
Tail lights ................................... 176
Three-point seat belt .................... 41
Tools .......................................... 184
Top-tether fastening eyes ............54
Tow bar....................................... 159
Towing ................................ 159, 200
Towing another vehicle .............201
Towing equipment .....................160
Towing the vehicle .....................200
Traction Control system ............. 137
Traction Control system off........... 87
Traffic sign assistant ...................148
Trailer towing ............................. 159
Transmission ............................... 17Transmission display .................131
Tread depth ............................... 189
Trip computer .............................. 97
Trip odometer .............................. 78
Turn and lane-change signals ...113
Turn signal ................................... 84
Tyre chains ................................ 190
Tyre designations ......................185
Tyre pressure ............................ 185
Tyre pressure monitoring system ............................... 87, 186
Tyre pressures ........................... 218
Tyre repair kit ............................. 191
U Ultrasonic parking assist ...... 86, 144
Underseat storage .......................57
Upholstery .................................. 204
Uplevel-Combi-Display .................89
Uplevel-Display............................. 89
Upshift .......................................... 86
Using this manual ..........................3
V Vehicle battery ........................... 169
Vehicle checks............................ 165
Vehicle data ................................ 210
Vehicle data recording and privacy ..................................... 224
Vehicle detected ahead ................89
Vehicle dimensions .................... 216
