2017 OPEL ASTRA J window

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............22
Seats, restraints ........................... 39
Storage ........................................ 61
Instruments and controls .............73
Lighting ...................................... 116
Climate control ........................... 129
Driving and operating .................139
Vehicle care ............................... 200
Service and maintenance ..........254
Technical data ........................... 257
Customer information ................280
Index .......................................... 288Contents

12In brief1Power windows .....................34
2 Exterior mirrors .....................31
3 Cruise control .....................159
Speed limiter ....................... 161
Adaptive cruise control .......162
Forward collision alert .........169
4 Side air vents ...................... 137
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................123
Exit lighting ......................... 127
Parking lights ...................... 124
Buttons for Driver
Information Centre ................93
6 Instruments .......................... 81
7 Steering wheel controls .......74
8 Driver Information Centre ...... 93
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear window
wiper, rear window washer
system ................................... 7510 Sport mode ........................ 156
Central locking system ..........24
Fuel selector ......................... 82
Hazard warning flashers ....123
Control indicator for airbag
deactivation .......................... 87
Control indicator for front
passenger seat belt .............87
Tour mode .......................... 156
11 Info-Display .......................... 97
12 Anti-theft alarm system
status LED ........................... 29
13 Centre air vents .................. 137
14 Glovebox .............................. 61
15 Traction Control system
(TC) ..................................... 154
Electronic Stability Control (ESC) .................................. 155
Parking assist systems .......175
Lane departure warning .....187Eco button for stop-start
system ................................. 142
Unlock button for boot lid ......27
16 Climate control system ........ 129
17 AUX input, USB input, SD
card slot ................................ 11
18 Power outlet .......................... 79
19 Selector lever, manual
transmission ....................... 151
Automatic transmission ......147
20 Electric parking brake .........152
21 Ignition switch with
steering wheel lock ............141
22 Horn ..................................... 75
Driver airbag ........................ 51
23 Bonnet release lever ..........202
24 Storage compartment,
fuse box ............................. 226
25 Steering wheel adjustment ..74
26 Light switch ........................ 116
Headlight range
adjustment ......................... 119
Front fog lights ...................124

In brief17Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 36.
Demisting and defrosting the
windows
Press V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control system 3 129.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 75, Wiper
blade replacement 3 208.

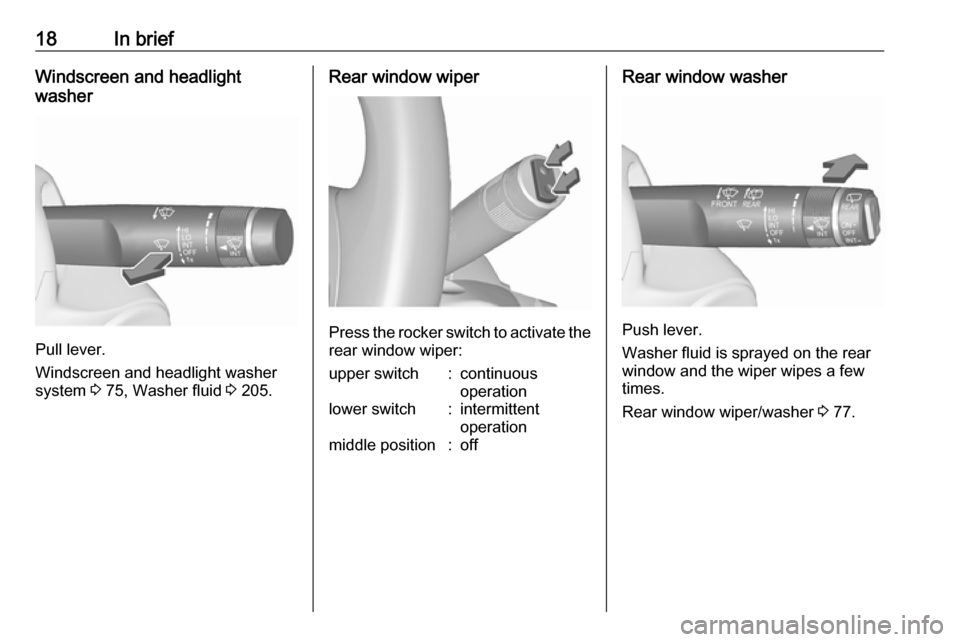

18In briefWindscreen and headlight
washer
Pull lever.
Windscreen and headlight washer
system 3 75, Washer fluid 3 205.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 77.

In brief19Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 151.
Automatic transmissionP:parkR:reverseN:neutralD:automatic modeM:manual mode: move selector
lever from D to the left.<:manual mode upshifting]:manual mode downshifting
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 147.
Starting off
Check before starting off ● Tyre pressure and condition 3 230, 3 271.
● Engine oil level and fluid levels 3 203.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 31, 3 41,
3 49.
● Brake function at low speed, particularly if the brakes are wet.

In brief21lever to position P before
removing the ignition key. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position P before removing the ignition
key. Turn the front wheels
towards the kerb.
● Close the windows and the sunroof.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
●
Lock the vehicle by pressing e on
the radio remote control.
Activate the anti-theft alarm
system 3 29.
● The engine cooling fans may run
after the engine has been
switched off 3 202.Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 22, Laying the vehicle
up for a long period of time 3 201.

22Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 22
Keys .......................................... 22
Car Pass .................................... 23
Radio remote control .................23
Memorised settings ...................24
Central locking system ..............24
Automatic locking ......................26
Child locks ................................. 26
Doors ........................................... 27
Load compartment ....................27
Vehicle security ............................ 29
Anti-theft locking system ...........29
Anti-theft alarm system ..............29
Immobiliser ................................ 31
Exterior mirrors ............................ 31
Convex shape ........................... 31
Electric adjustment ....................31
Folding mirrors .......................... 32
Heated mirrors ........................... 32
Interior mirrors ............................. 33
Manual anti-dazzle ....................33
Automatic anti-dazzle ................33Windows...................................... 33
Windscreen ............................... 33
Manual windows ........................34
Power windows ......................... 34
Heated rear window ..................36
Sun visors .................................. 36
Roof ............................................. 36
Sunroof ...................................... 36
Glass panel ............................... 38Keys, locks
KeysCaution
Do not attach heavy or bulky items to the ignition key.
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 250.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 239.

Keys, doors and windows23Key with foldaway key section
Press button to extend. To fold the
key, first press the button.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.
Radio remote control
Used to operate:
● central locking system
● anti-theft locking system
● anti-theft alarm system
● power windows
● sunroof
The radio remote control has a range of approx. 20 metres. It can be
restricted by external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:
● Range is exceeded.
● Battery voltage is too low.
● Frequent, repeated operation of the radio remote control while not
in range, which will require re-
synchronisation.
● Overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Unlocking 3 24.
Basic settings Some settings can be changed in the
Settings menu in the Info-Display.
Vehicle personalisation 3 105.
Radio remote control battery
replacement
Replace the battery as soon as the
range reduces.
