The power outlets are for powering electrical
accessories such as cellular telephones. The
outlets are rated at 12 volt, 120W (10A) maxi-
mum.
CAUTION
●The outlet and plug may be hot during
or immediately after use. ●
Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit a NISSAN dealer for addi-
tional information
● Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.
● Do not use double adapters or more
than one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned off.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
Instrument panel
LIC3609
Console (if so equipped)
LIC3610
POWER OUTLETS
Instruments and controls2-33

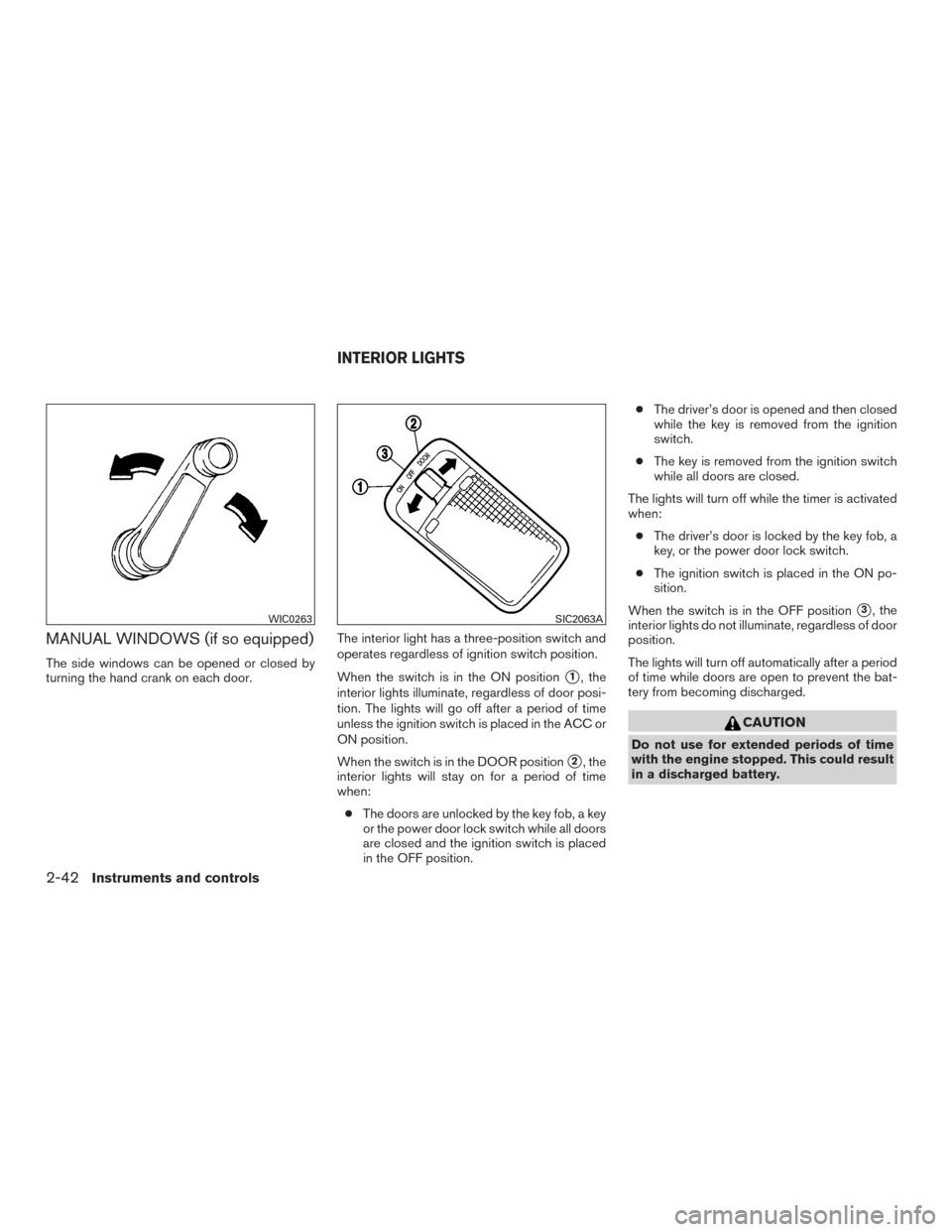

MANUAL WINDOWS (if so equipped)
The side windows can be opened or closed by
turning the hand crank on each door.The interior light has a three-position switch and
operates regardless of ignition switch position.
When the switch is in the ON position
1, the
interior lights illuminate, regardless of door posi-
tion. The lights will go off after a period of time
unless the ignition switch is placed in the ACC or
ON position.
When the switch is in the DOOR position
2, the
interior lights will stay on for a period of time
when:
● The doors are unlocked by the key fob, a key
or the power door lock switch while all doors
are closed and the ignition switch is placed
in the OFF position. ●
The driver’s door is opened and then closed
while the key is removed from the ignition
switch.
● The key is removed from the ignition switch
while all doors are closed.
The lights will turn off while the timer is activated
when: ● The driver’s door is locked by the key fob, a
key, or the power door lock switch.
● The ignition switch is placed in the ON po-
sition.
When the switch is in the OFF position
3, the
interior lights do not illuminate, regardless of door
position.
The lights will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
WIC0263SIC2063A
INTERIOR LIGHTS
2-42Instruments and controls

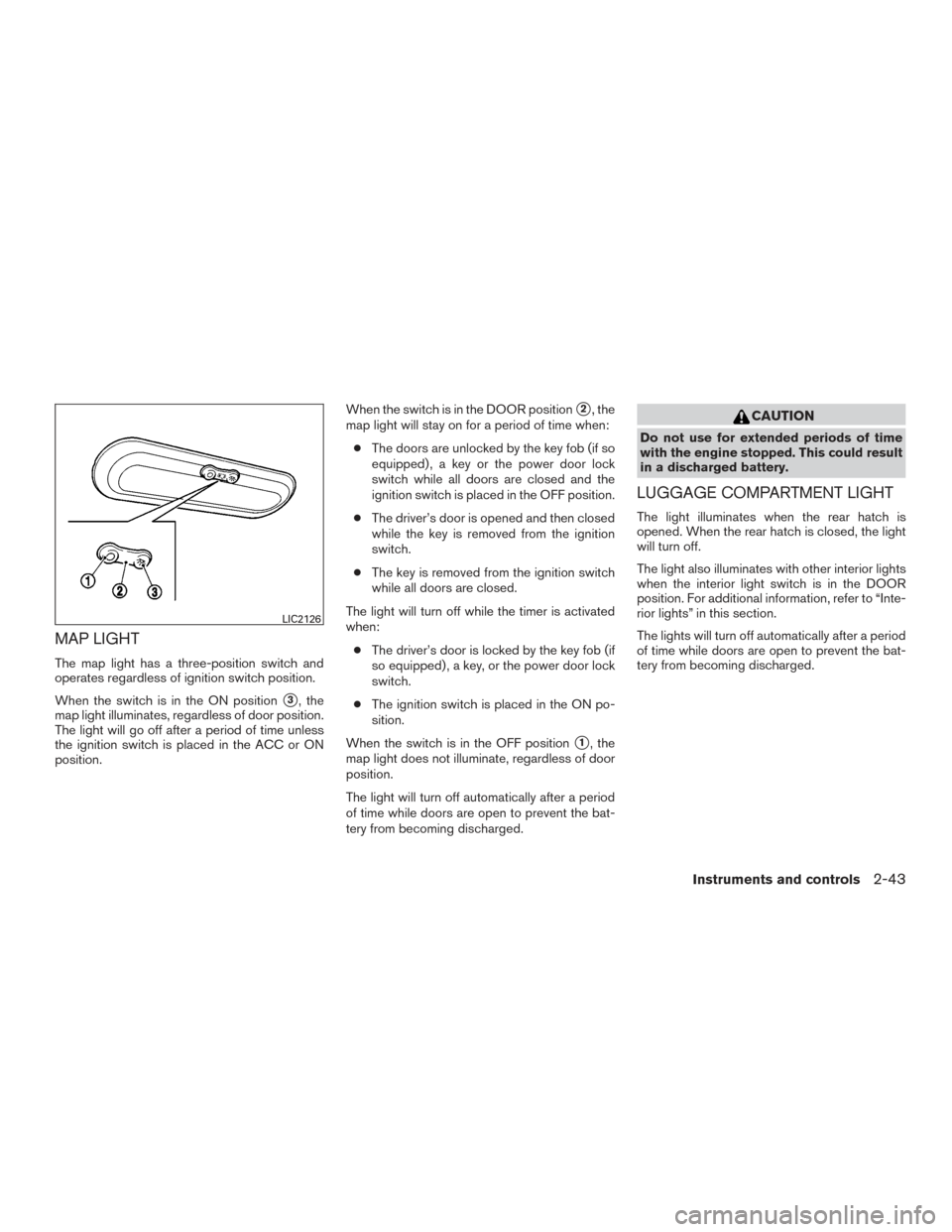

MAP LIGHT
The map light has a three-position switch and
operates regardless of ignition switch position.
When the switch is in the ON position
3, the
map light illuminates, regardless of door position.
The light will go off after a period of time unless
the ignition switch is placed in the ACC or ON
position. When the switch is in the DOOR position
2, the
map light will stay on for a period of time when:
● The doors are unlocked by the key fob (if so
equipped) , a key or the power door lock
switch while all doors are closed and the
ignition switch is placed in the OFF position.
● The driver’s door is opened and then closed
while the key is removed from the ignition
switch.
● The key is removed from the ignition switch
while all doors are closed.
The light will turn off while the timer is activated
when: ● The driver’s door is locked by the key fob (if
so equipped) , a key, or the power door lock
switch.
● The ignition switch is placed in the ON po-
sition.
When the switch is in the OFF position
1, the
map light does not illuminate, regardless of door
position.
The light will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
LUGGAGE COMPARTMENT LIGHT
The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will turn off.
The light also illuminates with other interior lights
when the interior light switch is in the DOOR
position. For additional information, refer to “Inte-
rior lights” in this section.
The lights will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.
LIC2126
Instruments and controls2-43

1P (Park) position selecting warning
light (if so equipped)
2NISSAN Intelligent Key® warning light
CAUTION
When the buzzer sounds and the warning
light illuminates, be sure to check both the
vehicle and the Intelligent Key.
WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelligent
Key or to help prevent the vehicle from being
stolen, a chime or buzzer sounds from inside and
outside the vehicle and a warning is displayed in
the instrument panel.
When a chime or beep sounds or a warning is
displayed, be sure to check the vehicle and the
Intelligent Key.
For additional information, refer to the “Trouble-
shooting guide” in this section and “Warning
lights, indicator lights and audible reminders” in
the “Instruments and controls” section of this
manual.
Audible reminder and warning when
locking the doors
When the chime or buzzer sounds from inside
and outside the vehicle, check for the following:● The ignition switch is placed in the LOCK
position.
● The Intelligent Key is not left inside the ve-
hicle.
● The shift lever is in the P (Park) or N (Neutral)
position with the parking brake fully applied.
Audible reminder and warning when
the engine stops
When the P (Park) position selecting warning
light (
) in the instrument panel illuminates
red:
● Make sure the shift lever is in the P (Park) or
N (Neutral) position with the parking brake
fully applied.
When the chime sounds intermittently:
● Make sure the shift lever is in the P (Park) or
N (Neutral) position with the parking brake
fully applied and the ignition switch is placed
in the LOCK position.
If the chime sounds continuously when the driv-
er’s door is opened, check the following: ● The shift lever is placed in the P (Park) or N
(Neutral) position with the parking brake fully
applied and the ignition switch is placed in
the LOCK position.
● The warning chime may stop when one of
the following is performed:
– Returning the ignition switch to the LOCK position.
– Closing the doors.
Type B (if so equipped)
LPD2219
3-20Pre-driving checks and adjustments

Alarm and warning when the engine
starts
When the Intelligent Key system warning light
(
) blinks red and the outside buzzer
sounds, make sure the Intelligent Key is inside the
vehicle.
Warning for low battery power
When the Intelligent Key battery is low, the Intel-
ligent Key system warning light (
) will blink
green for about 30 seconds after the ignition
switch is placed in the ON position. This warning
is to let you know that the battery of the Intelligent
Key will run down soon. Replace it with a new
one. For additional information, refer to “Battery
replacement” in the “Do-it-yourself” section of
this manual.
It is recommended that you visit a NISSAN dealer
for battery replacement.
Preventing the Intelligent Key from
being left in the vehicle
If you lock all doors using the power door lock
switch with the Intelligent Key in the vehicle, all of
the doors unlock immediately and the buzzer will
warn you when the door is closed.
Pre-driving checks and adjustments3-21

TROUBLESHOOTING GUIDE
SymptomPossible CauseRemedy
When pushing the ignition switch to stop
the engine The P (Park) warning light in the instrument
panel illuminates and the inside chime
sounds continuously. The shift lever is not in the P (Park) position
or N (Neutral) position with the parking
brake fully applied.Make sure that the shift lever is in the P
(Park) or N (Neutral) position with the park-
ing brake fully applied.
When opening the driver’s door A warning chime sounds continuously. The ignition switch is in the ACC position. Place the ignition switch in the OFF
position.
When pushing the door handle request
switch to lock the door The outside chime sounds for approximately
a few seconds. The Intelligent Key is inside the vehicle. Be sure to carry the Intelligent Key with you.
A door is not closed securely.
Close the door securely.
When closing the doors The key warning light in the instrument
panel blinks, the outside chime sounds
three times and the inside warning chime
sounds for approximately 3 seconds.
The ignition switch is in the ACC or ON
position.
Place the ignition switch in the OFF
position.
The P (Park) warning light in the instrument
panel illuminates and the outside chime
sounds continuously. The ignition switch is in the ACC or OFF
position and the shift lever is not in the P
(Park) or N (Neutral) position with the park-
ing brake fully applied.Make sure that the shift lever is in the P
(Park) or N (Neutral) position with the park-
ing brake fully applied and place the igni-
tion switch in the OFF position.
The outside chime sounds for approximately
3 seconds and all doors unlock. The Intelligent Key is in the vehicle. Be sure to carry the Intelligent Key with you.
When stopping the engine The P (Park) position warning light in the
instrument panel blinks in red. The shift lever is not in the P (Park) or N
(Neutral) position with the parking brake
fully applied.Make sure that the shift lever is in the P
(Park) or N (Neutral) position with the park-
ing brake fully applied and place the igni-
tion switch in the LOCK position.
When starting the engine The key warning light in the instrument
panel blinks in green. The battery charge is low.
Replace the battery with a new one. For
additional information, refer to “Battery re-
placement” in the “Do-it-yourself” section of
this manual.
When pushing the LOCK button on the
Intelligent Key to lock the door The vehicle will not flash (2 times) , there is
no chime sound and the doors will be
locked. A door is not closed securely.
Close the door securely.
3-22Pre-driving checks and adjustments

1. Pull the hood lock release handle1located
below the instrument panel until the hood
springs up slightly.
2. Locate the lever
2in between the hood and
grille and push the lever sideways with your
fingertips.
3. Raise the hood
3.
4. Remove the support rod
4and insert it into
the slot
5. Hold the coated parts
Awhen removing or
resetting the support rod. Avoid direct con-
tact with the metal parts, as they may be
hot immediately after the engine has been
stopped.
When closing the hood, return the support rod to
its original position, lower the hood to approxi-
mately 12 in (30 cm) above the latch and release
it. This allows proper engagement of the hood
latch.
WARNING
● Make sure the hood is completely
closed and latched before driving. Fail-
ure to do so could cause the hood to fly
open and result in an accident.
● If you see steam or smoke coming from
the engine compartment, to avoid injury
do not open the hood.
LPD2370
HOOD
Pre-driving checks and adjustments3-23

FUEL-FILLER CAP
WARNING
●Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled.
Always stop the engine and do not
smoke or allow open flames or sparks
near the vehicle when refueling.
● Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
● Use only an original equipment type
fuel-filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emis-
sion control system. An incorrect cap
can result in a serious malfunction and
possible injury. It could also cause
the
Malfunction Indicator Light
(MIL) to come on.
● Never pour fuel into the throttle body to
attempt to start your vehicle. ●
Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable fuel
containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are fill-
ing it.
– Use only approved portable fuel con- tainers for flammable liquid.
CAUTION
●Do not use E-15 or E-85 fuel in your
vehicle. For additional information, re-
fer to the “Fuel Recommendation” in
the “Technical and consumer informa-
tion” section of this manual. ●
The LOOSE FUEL CAP warning mes-
sage will be displayed/warning will ap-
pear if the fuel-filler cap is not properly
tightened. It may take a few driving trips
for the message to be displayed. Failure
to tighten the fuel-filler cap properly
after the LOOSE FUEL CAP warning
message is displayed/warning appears
may cause the
Malfunction Indi-
cator Light (MIL) to illuminate.
● Failure to tighten the fuel-filler cap
properly may cause the
Malfunc-
tion Indicator Light (MIL) to illuminate.
If the
light illuminates because
the fuel-filler cap is loose or missing,
tighten or install the cap and continue
to drive the vehicle. The
light
should turn off after a few driving trips.
If the
light does not turn off after a
few driving trips, have the vehicle in-
spected. It is recommended that you
visit a NISSAN dealer for this service.
● For additional information, refer to the
“Malfunction Indicator Light (MIL)” in
the “Instruments and controls” section
of this manual.
3-26Pre-driving checks and adjustments
