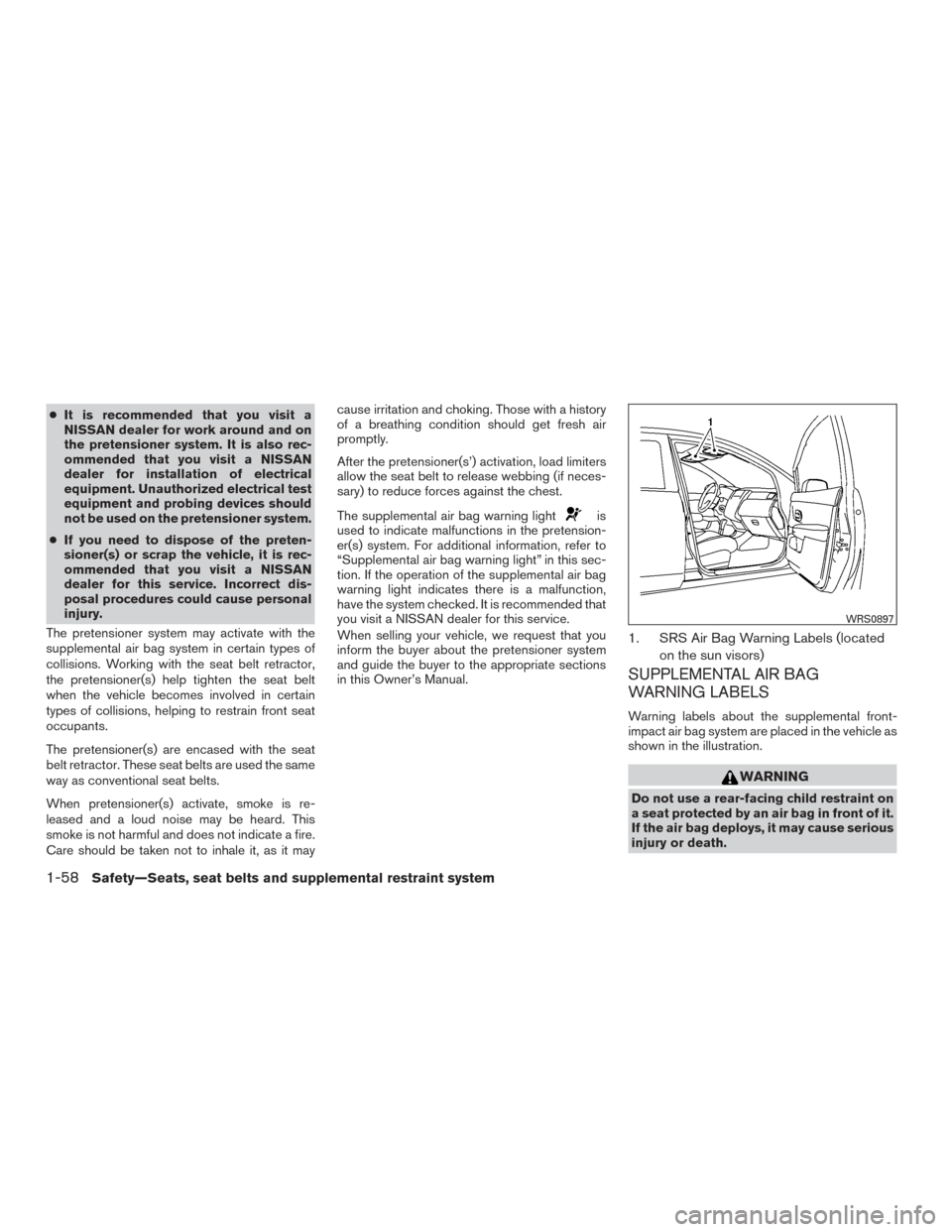

●It is recommended that you visit a
NISSAN dealer for work around and on
the pretensioner system. It is also rec-
ommended that you visit a NISSAN
dealer for installation of electrical
equipment. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner system.
● If you need to dispose of the preten-
sioner(s) or scrap the vehicle, it is rec-
ommended that you visit a NISSAN
dealer for this service. Incorrect dis-
posal procedures could cause personal
injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor,
the pretensioner(s) help tighten the seat belt
when the vehicle becomes involved in certain
types of collisions, helping to restrain front seat
occupants.
The pretensioner(s) are encased with the seat
belt retractor. These seat belts are used the same
way as conventional seat belts.
When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.
After the pretensioner(s’) activation, load limiters
allow the seat belt to release webbing (if neces-
sary) to reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretension-
er(s) system. For additional information, refer to
“Supplemental air bag warning light” in this sec-
tion. If the operation of the supplemental air bag
warning light indicates there is a malfunction,
have the system checked. It is recommended that
you visit a NISSAN dealer for this service.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
1. SRS Air Bag Warning Labels (located
on the sun visors)
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
WARNING
Do not use a rear-facing child restraint on
a seat protected by an air bag in front of it.
If the air bag deploys, it may cause serious
injury or death.
WRS0897
1-58Safety—Seats, seat belts and supplemental restraint system

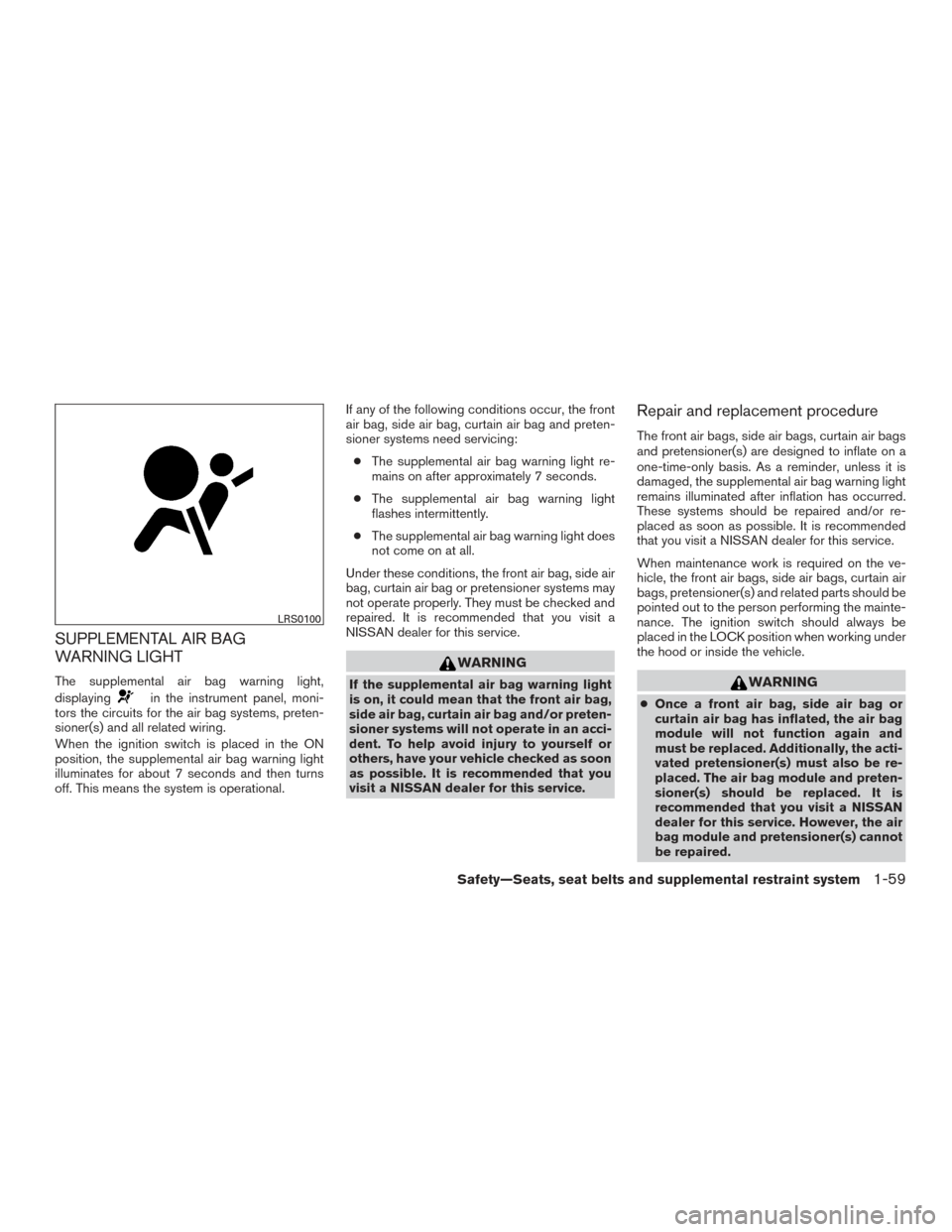

SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational. If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:
● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag or pretensioner systems may
not operate properly. They must be checked and
repaired. It is recommended that you visit a
NISSAN dealer for this service.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked as soon
as possible. It is recommended that you
visit a NISSAN dealer for this service.
Repair and replacement procedure
The front air bags, side air bags, curtain air bags
and pretensioner(s) are designed to inflate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
remains illuminated after inflation has occurred.
These systems should be repaired and/or re-
placed as soon as possible. It is recommended
that you visit a NISSAN dealer for this service.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags, pretensioner(s) and related parts should be
pointed out to the person performing the mainte-
nance. The ignition switch should always be
placed in the LOCK position when working under
the hood or inside the vehicle.
WARNING
● Once a front air bag, side air bag or
curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the acti-
vated pretensioner(s) must also be re-
placed. The air bag module and preten-
sioner(s) should be replaced. It is
recommended that you visit a NISSAN
dealer for this service. However, the air
bag module and pretensioner(s) cannot
be repaired.
LRS0100
Safety—Seats, seat belts and supplemental restraint system1-59

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-5
Tachometer ....................................2-8
Engine coolant temperature gauge ...............2-9
Fuel gauge ................................... 2-10
Trip computer ................................. 2-11
Service interval reminder (if so equipped) ........2-12
Warning lights, indicator lights and audible
reminders ........................................ 2-14
Checking lights ............................... 2-15
Warning lights ................................ 2-15
Indicator lights ................................ 2-20
Audible reminders ............................. 2-23
Security systems ................................. 2-23
NISSAN Vehicle Immobilizer System
(if so equipped) ............................... 2-23
Wiper and washer switch ......................... 2-25
Switch operation .............................. 2-25
Rear switch operation (if so equipped) ...........2-26
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-27
Headlight and turn signal switch ....................2-27
Headlight control switch ........................ 2-27Daytime running light system
(Canada only)
................................. 2-28
Instrument brightness control ...................2-29
Turn signal switch ............................. 2-29
Fog light switch (if so equipped) ................2-30
Horn ............................................ 2-30
Heated seat switches (if so equipped) ..............2-31
Vehicle Dynamic Control (VDC) off switch ...........2-32
Power outlets .................................... 2-33
Storage ......................................... 2-34
Front-door pockets ............................ 2-34
Seatback pocket .............................. 2-34
Storage tray .................................. 2-35
Upper glove box ............................... 2-35
Glove box .................................... 2-35
Cup holders .................................. 2-36
Divide-n-hide®

adjustable floor
(if so equipped) ............................... 2-37
Luggage hooks ................................ 2-38
Cargo cover (if so equipped) ....................2-39
Windows ........................................ 2-40
Power windows (if so equipped) ................2-40
Manual windows (if so equipped) ................2-42

1. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-27)
2. Driver’s supplemental air bag (P. 1-42) Horn (P. 2-30)
3. Meters and gauges (P. 2-3)
4. Wiper and washer switch (P. 2-25)
5. Vents (P. 4-27)
6. Rear window and outside mirror (if so
equipped) defroster switch (P. 2-27)
7. Hazard warning flasher switch (P. 6-2)
8. Front passenger air bag status light
(P. 1-42)
9. Climate control (P. 4-27)
10. Audio system (P. 4-35)
11. Upper glove box (P. 2-34)
12. Passenger’s supplemental air bag
(P. 1-42)
13. Lower glove box (P. 2-34)
14. Upper glove box release handle
(P. 2-34)
15. Power outlet (P. 2-33)
16. Cup holders (P. 2-34)
17. Shift lever (P. 5-15)
18. Cup holders (P. 2-34)
19. Push-button ignition switch
(if so equipped) (P. 5-10)
LII2521
INSTRUMENT PANEL
2-2Instruments and controls

LOOSE FUEL CAP warning message
Push the reset buttonAfor more than 1 second
to reset the LOOSE FUEL CAP warning mes-
sage after the fuel cap has been tightened. For
additional information, refer to “Fuel-filler cap” in
the “Pre-driving checks and adjustments” section
of this manual.
Check tire pressure warning message
(if so equipped)
The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light is illuminated and low tire pressure
is detected. Check and adjust the tire pressure to
the recommended COLD tire pressure shown on
the Tire and Loading Information label.
Type A: The CHECK TIRE PRES warning mes-
sage can be turned off using the reset button
A
on the meter, the low tire pressure warning light
will not be turned off.
Type A (if so equipped)
LPD2025
Type B (if so equipped)
LIC2836
Type A (if so equipped)
LPD2128
Instruments and controls2-7

Type B:The CHECK TIRE PRES warning mes-
sage is displayed when the low tire pressure
warning light is illuminated and low tire pressure
is detected. Check and adjust the tire pressure to
the recommended COLD tire pressure shown on
the tire and Loading Information label.
The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom-
mended COLD tire pressure. Type A Only: The CHECK TIRE PRES warn-
ing message is displayed each time the
ignition switch is placed in the ON position
as long as the low tire pressure warning
light remains illuminated.
For additional information, refer to “Low tire pres-
sure warning light” in this section, “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Wheels and tires” in the
“Do-it-yourself” section of this manual.TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) .
Do not rev the engine into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
Type B (if so equipped)
LIC3669
Type A (if so equipped)
LIC2151
2-8Instruments and controls

ENGINE COOLANT TEMPERATURE
GAUGE
NOTE:
The ignition switch must be placed in the
ON position for the gauge to give a reading.
Type A:The gauge indicates the engine coolant
temperature. The engine coolant temperature will
vary with the outside air temperature and driving
conditions. Type B:
Engine coolant temperature monitoring
is performed by the high temperature warning
light. For additional information, refer to “High
temperature warning light (red)” in this section.
CAUTION
If the gauge indicates a coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
the temperature. If the gauge is over the
normal range, stop the vehicle as soon as
safely possible. If the engine is over-
heated, continued operation of the vehicle
may seriously damage the engine. For ad-
ditional information, refer to “If your ve-
hicle overheats” in the “In case of emer-
gency” section of this manual.
Type B (if so equipped)
LIC2761
Type A (if so equipped)
LIC2501
Instruments and controls2-9

FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank when the ignition switch is placed in
the ON position.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The low fuel warning light will turn on when the
amount of fuel in the tank is getting low.
Refill the fuel tank before the gauge regis-
ters 0 (Empty) . The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
● If the vehicle runs out of fuel, thecheck engine light may come on. Refuel
as soon as possible. After a few driving
trips, the
light should turn off. If
the light remains on after a few driving
trips, have the vehicle inspected. It is
recommended that you visit a NISSAN
dealer for this service. ●
For additional information, refer to
“Malfunction Indicator Light (MIL)” in
this section.
Type A (if so equipped)
LIC3257
Type B (if so equipped)
LIC2762
2-10Instruments and controls
