2017 NISSAN TITAN XD engine

This diesel engine supplement includes informa-
tion needed to correctly operate and maintain all
Cummins diesel engine systems available on this
model. For additional information about vehicle
specific systems, refer to the Owner’s Manual
provided with your vehicle.
All information, specifications and illustrations in
this manual are those in effect at the time of printing.
NISSAN reserves the right to change specifica-
tions, performance, design, or component suppliers
without notice and without obligation. From time to
time, NISSAN may update or revise this manual to
provide Owners with the most accurate information
currently available. Please carefully read and retain
with this manual all revision updates sent to you by
NISSAN to ensure you have access to accurate
and up-to-date information regarding your vehicle.
Current versions of vehicle Owner’s Manuals and
any updates can also be found in the Owner section
of the NISSAN website at
https://owners.nissanusa.com/nowners/navigation/
manualsGuide.
If you have questions concerning any information
in your Owner’s Manual, it is recommended that
you contact NISSAN Consumer Affairs for this
service. For additional information, refer to the
NISSAN CUSTOMER CARE PROGRAM page
in your 2017 TITAN Owner’s Manual for contact
information.
IMPORTANT INFORMATION ABOUT
THIS MANUAL
You will see various symbols in this manual. They
are used in the following ways:

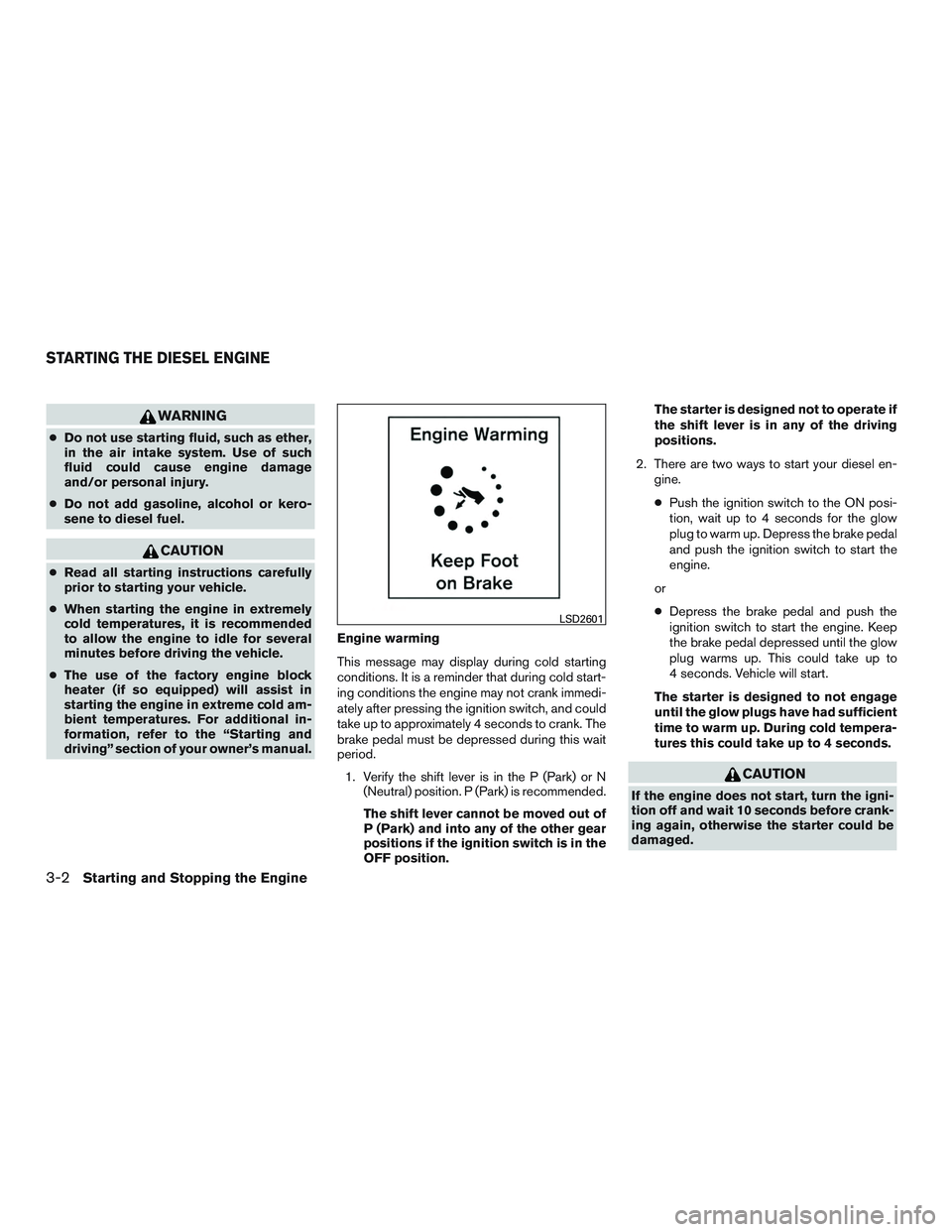

WARNING
●Do not use starting fluid, such as ether,
in the air intake system. Use of such
fluid could cause engine damage
and/or personal injury.
● Do not add gasoline, alcohol or kero-
sene to diesel fuel.

3. Allow the engine to idle for at least 30 sec-onds after starting. Do not race the engine
while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather.
In cold weather, keep the engine running for
a minimum of 2–3 minutes before shutting it
off. Starting and stopping the engine over a
short period of time may make the vehicle
more difficult to start.
SWITCHING ENGINE OFF
Push the ignition to the off position.
To prolong the engine life (especially after ex-
tended high speed, high ambient temperature, or
during heavy load operation, such as trailering) , it
is recommended that a hot engine be idled for
3–5 minutes before shutting down. This allows
the turbocharged engine to cool down.
ENGINE BREAK-IN
RECOMMENDATIONS
● Warm up the engine before operating it un-
der load.
● Do not operate the engine at idle for ex-
tended periods. ●
Prevent engine lugging by selecting the ap-
propriate transmission gear.
● Monitor the vehicle oil pressure and tem-
perature gauges.
● Check fluid levels frequently (oil and cool-
ant) .
● Vary the throttle position at highway speeds
when carrying weight or towing.
NOTE:
Extended light or no load operation will
extend the time before the engine reaches
its full efficiency. If the engine is operated
in this manner reduced fuel economy and
power may be observed.
The aforementioned procedure should be ob-
served for the first 6,000 miles. The engine run-in
is improved by operating the vehicle under load.
REMOTE START (if so equipped)

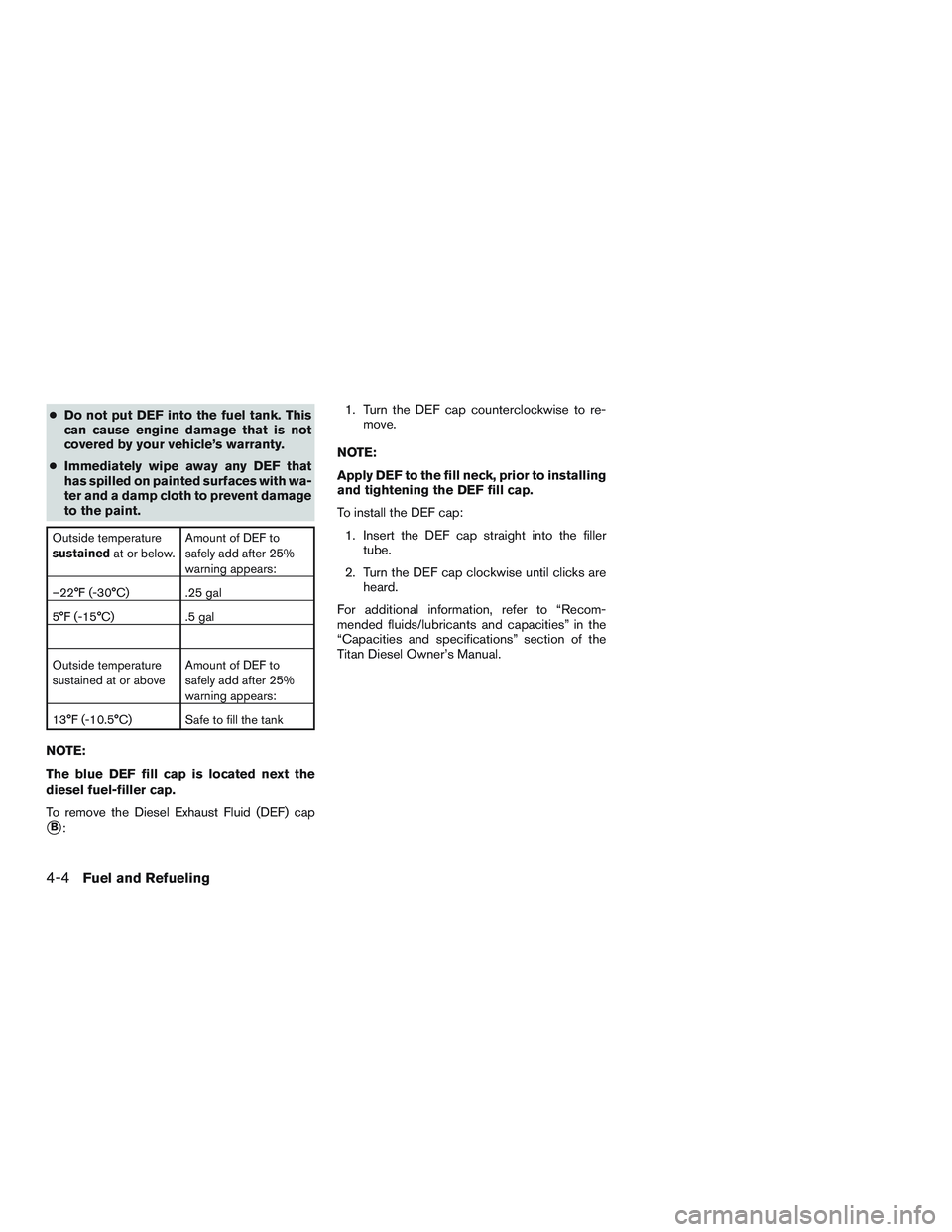

●Do not put DEF into the fuel tank. This
can cause engine damage that is not
covered by your vehicle’s warranty.
● Immediately wipe away any DEF that
has spilled on painted surfaces with wa-
ter and a damp cloth to prevent damage
to the paint.

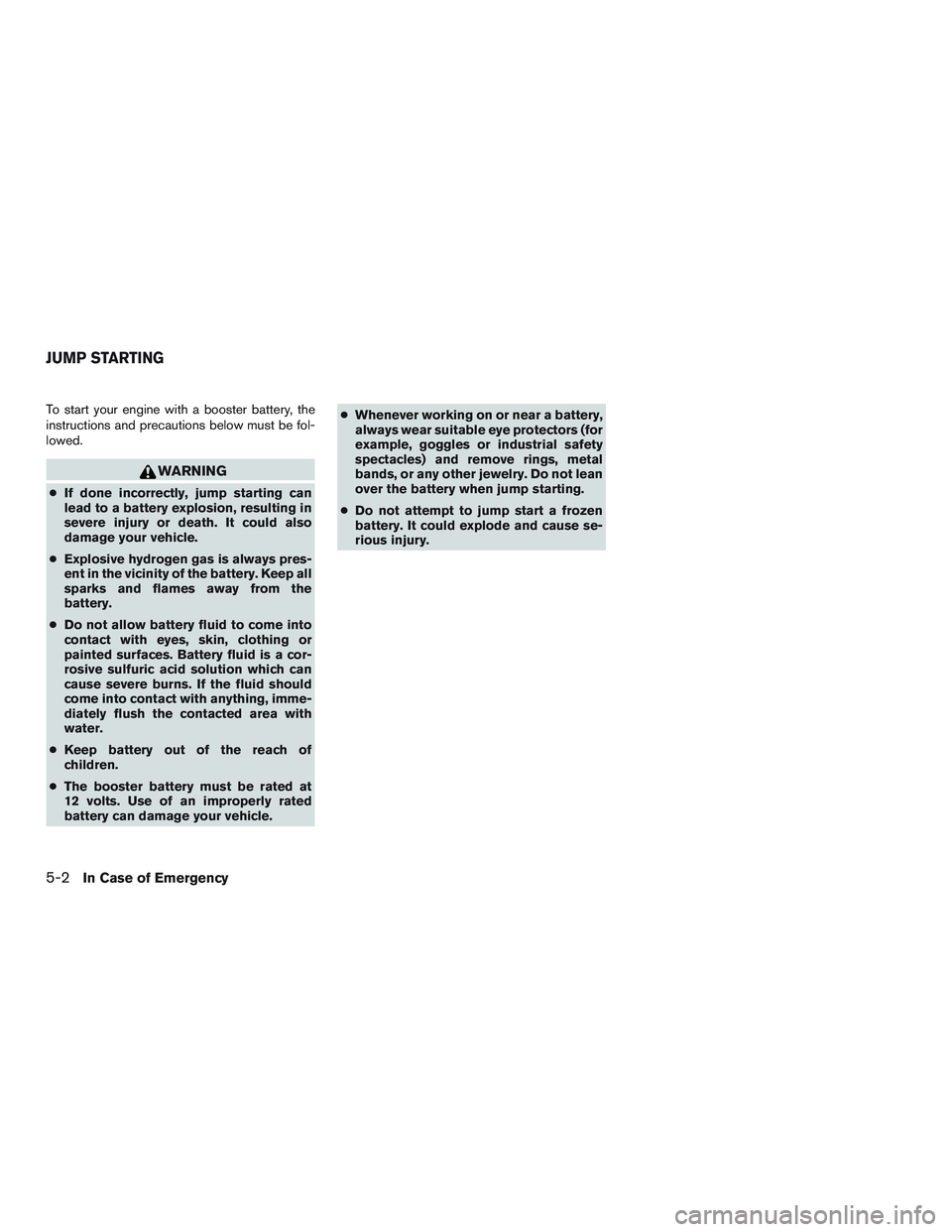

To start your engine with a booster battery, the
instructions and precautions below must be fol-
lowed.

The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round antifreeze and
coolant protection. The antifreeze solution con-
tains rust and corrosion inhibitors. Additional en-
gine cooling system additives are not necessary.

CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir when
the engine is cold. If the coolant level is below
the MIN level
B, add coolant to the MAX level
A. If the reservoir is empty, check the coolant
level in the radiator when the engine is cold. If
there is insufficient coolant in the radiator, fill the
radiator with coolant up to the filler opening and
also add it to the reservoir up to the MAX level
A.
This vehicle contains Genuine NISSAN Long Life
Antifreeze/Coolant (blue) . The life expectancy of
the factory-fill coolant is 45,000 miles
(78,000 km) or 3 years. Mixing any other type of coolant or the use of non-distilled water may
reduce the life expectancy of the factory-fill cool-
ant. For additional information, refer to the “Titan
Owners’s Manual”.

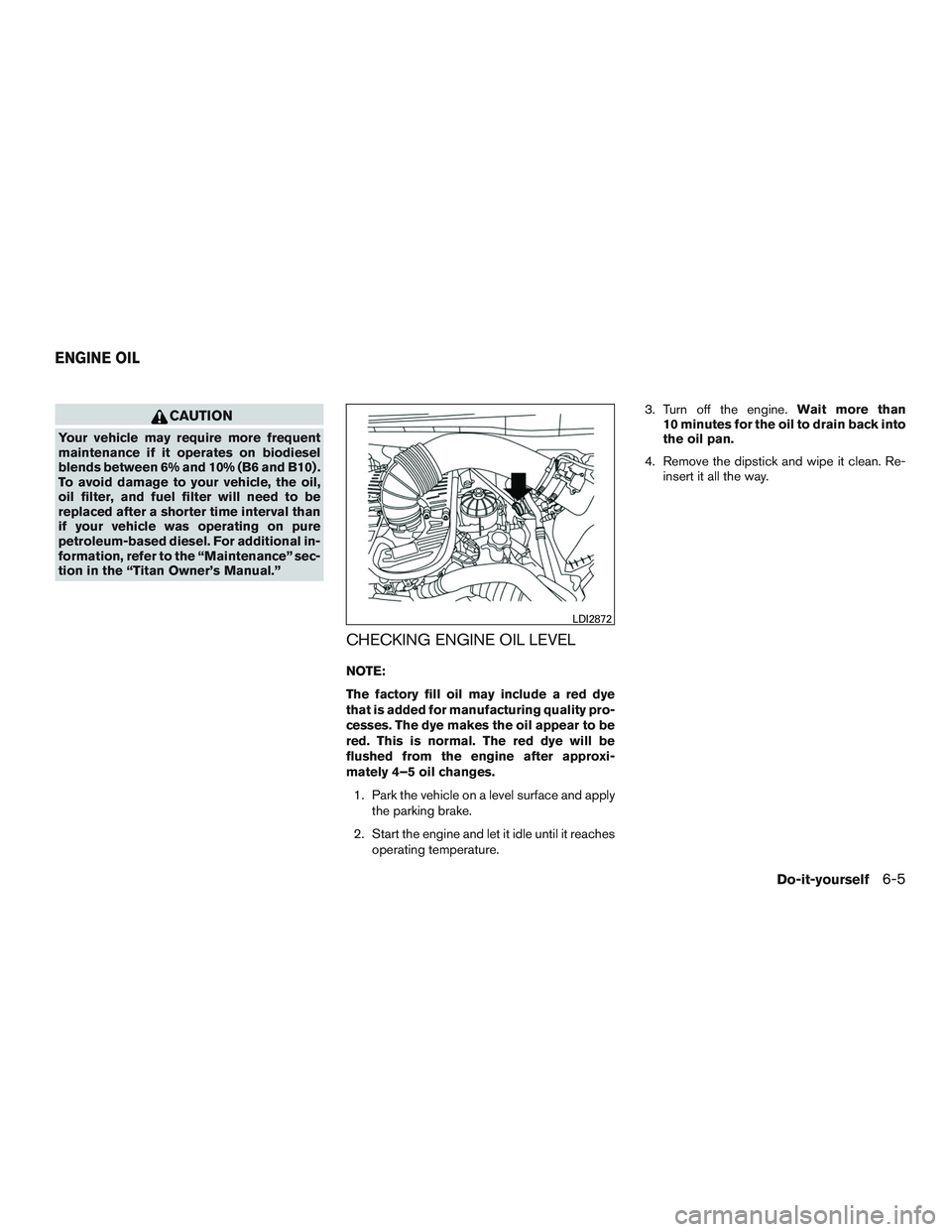

CAUTION
Your vehicle may require more frequent
maintenance if it operates on biodiesel
blends between 6% and 10% (B6 and B10) .
To avoid damage to your vehicle, the oil,
oil filter, and fuel filter will need to be
replaced after a shorter time interval than
if your vehicle was operating on pure
petroleum-based diesel. For additional in-
formation, refer to the “Maintenance” sec-
tion in the “Titan Owner’s Manual.”
CHECKING ENGINE OIL LEVEL
NOTE:
The factory fill oil may include a red dye
that is added for manufacturing quality pro-
cesses. The dye makes the oil appear to be
red. This is normal. The red dye will be
flushed from the engine after approxi-
mately 4–5 oil changes.1. Park the vehicle on a level surface and apply the parking brake.
2. Start the engine and let it idle until it reaches operating temperature. 3. Turn off the engine.
Wait more than
10 minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick and wipe it clean. Re- insert it all the way.
