2017 NISSAN TITAN XD ECO mode

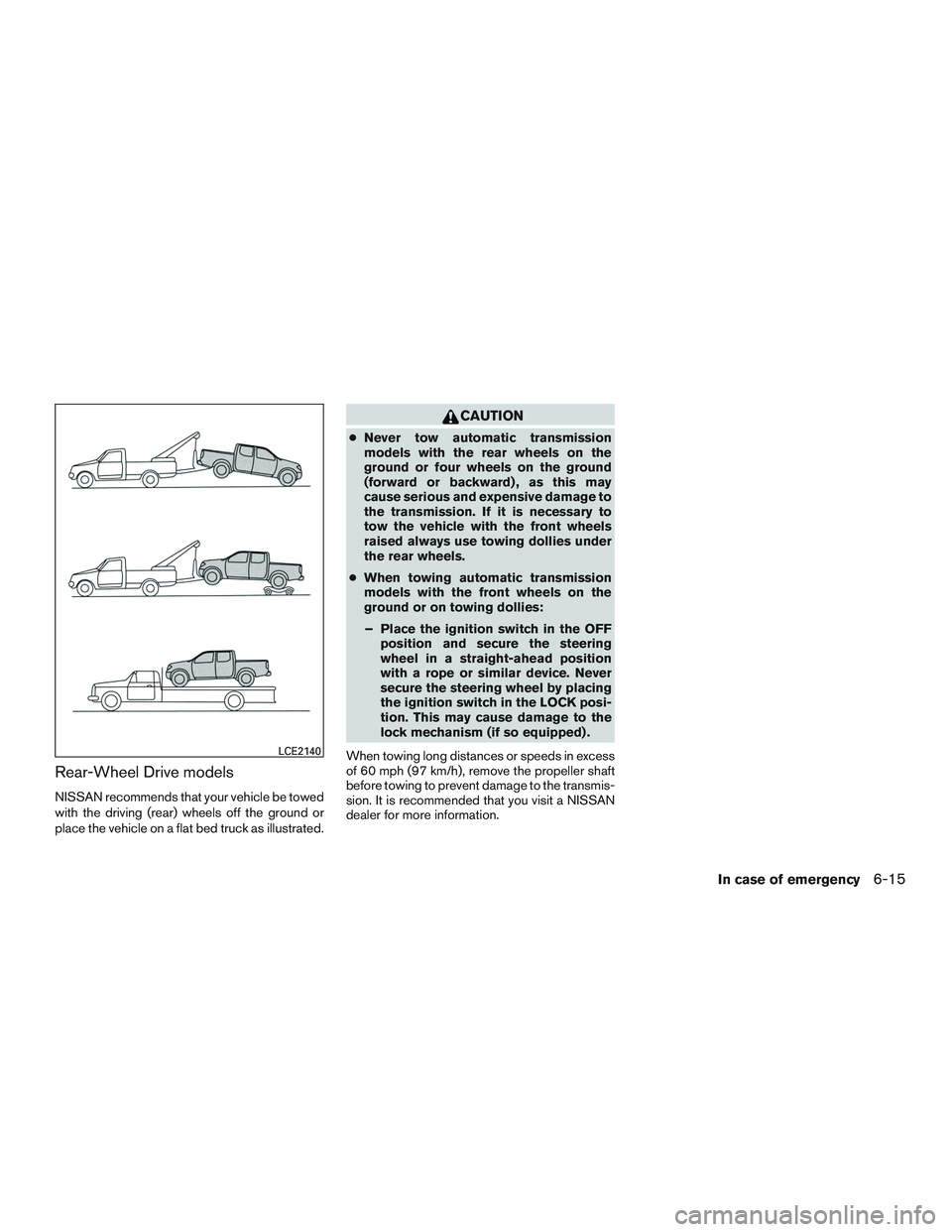

Rear-Wheel Drive models
NISSAN recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illustrated.

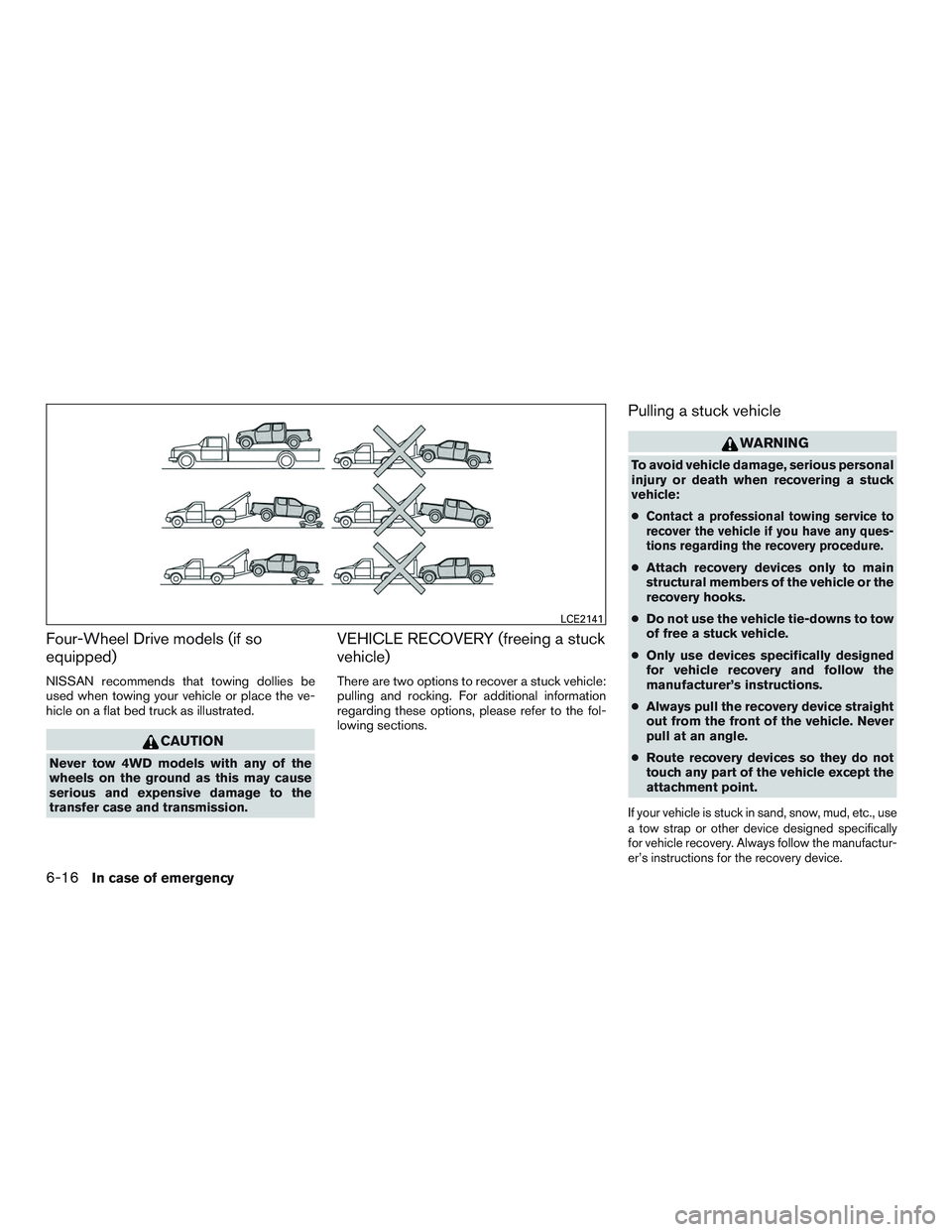

Four-Wheel Drive models (if so
equipped)
NISSAN recommends that towing dollies be
used when towing your vehicle or place the ve-
hicle on a flat bed truck as illustrated.

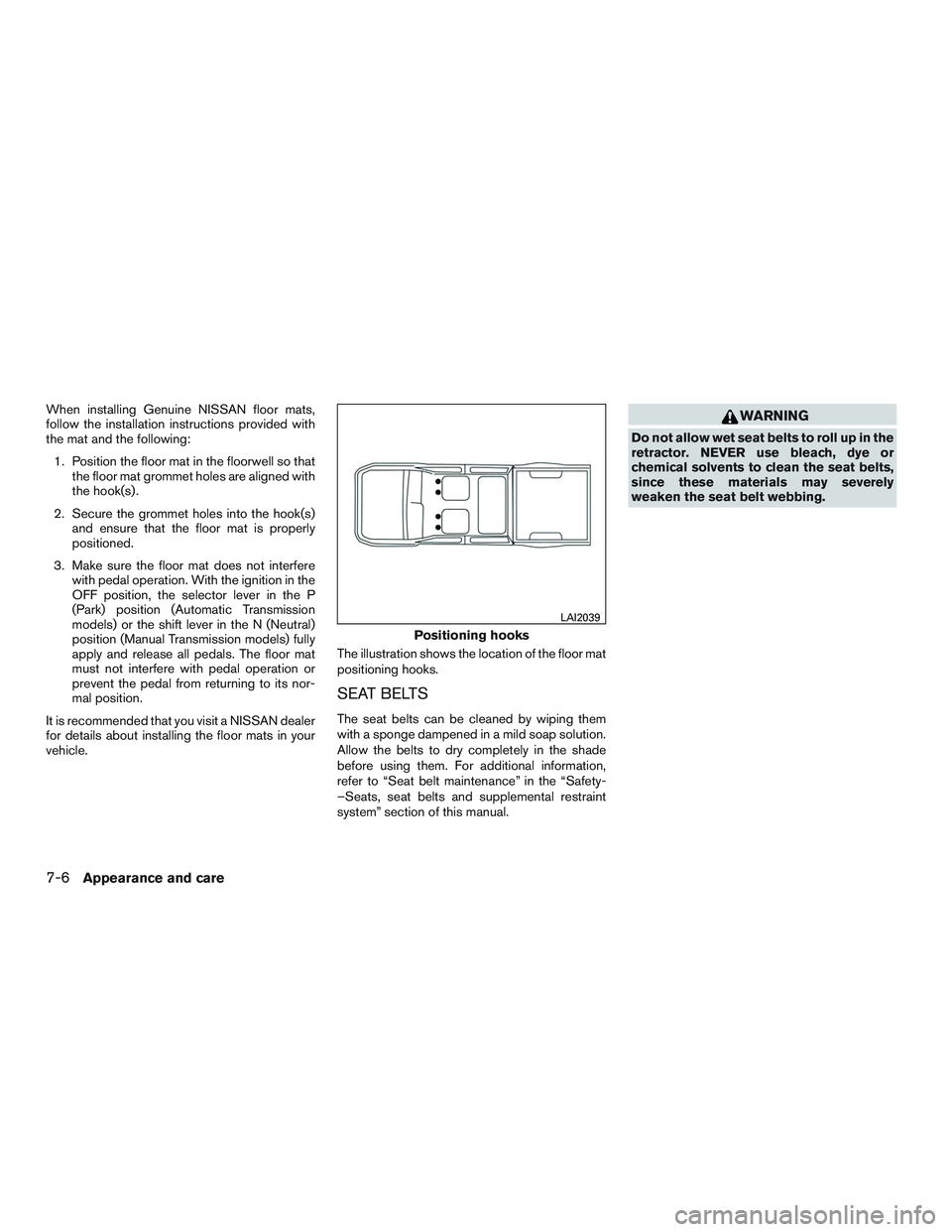

When installing Genuine NISSAN floor mats,
follow the installation instructions provided with
the mat and the following:1. Position the floor mat in the floorwell so that the floor mat grommet holes are aligned with
the hook(s) .
2. Secure the grommet holes into the hook(s) and ensure that the floor mat is properly
positioned.
3. Make sure the floor mat does not interfere with pedal operation. With the ignition in the
OFF position, the selector lever in the P
(Park) position (Automatic Transmission
models) or the shift lever in the N (Neutral)
position (Manual Transmission models) fully
apply and release all pedals. The floor mat
must not interfere with pedal operation or
prevent the pedal from returning to its nor-
mal position.
It is recommended that you visit a NISSAN dealer
for details about installing the floor mats in your
vehicle. The illustration shows the location of the floor mat
positioning hooks.
SEAT BELTS
The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely in the shade
before using them. For additional information,
refer to “Seat belt maintenance” in the “Safety-
–Seats, seat belts and supplemental restraint
system” section of this manual.

For additional information, refer to “Warn-
ing lights, indicator lights and audible re-
minders” in the “Instruments and controls”
section, “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “Starting and driving”
section, and “Flat tire” in the “In case of
emergency” section of this manual.

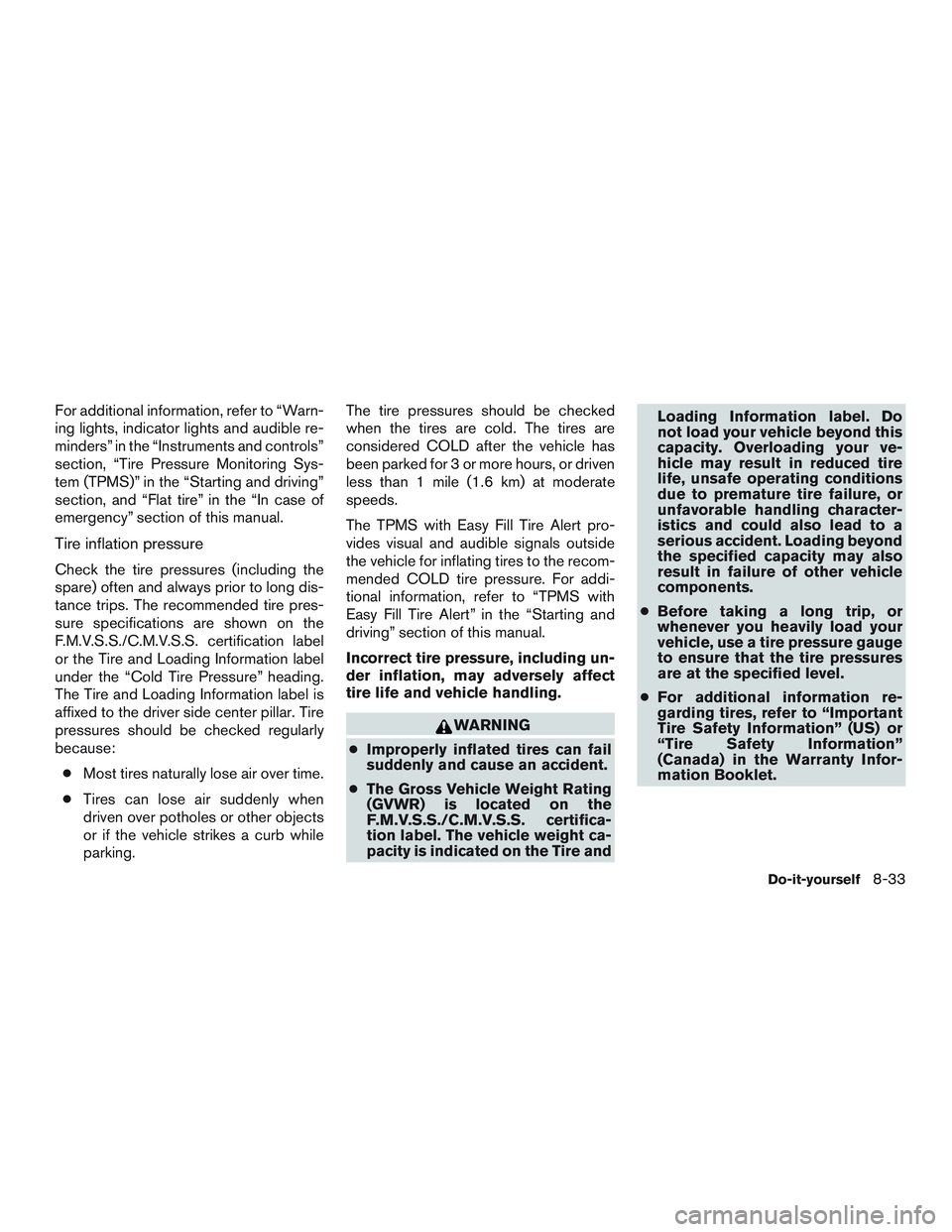

Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long dis-
tance trips. The recommended tire pres-
sure specifications are shown on the
F.M.V.S.S./C.M.V.S.S. certification label
or the Tire and Loading Information label
under the “Cold Tire Pressure” heading.
The Tire and Loading Information label is
affixed to the driver side center pillar. Tire
pressures should be checked regularly
because:● Most tires naturally lose air over time.
● Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking. The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
The TPMS with Easy Fill Tire Alert pro-
vides visual and audible signals outside
the vehicle for inflating tires to the recom-
mended COLD tire pressure. For addi-
tional information, refer to “TPMS with
Easy Fill Tire Alert” in the “Starting and
driving” section of this manual.
Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.

●Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed. ●
When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:

Brake system...................5-54
Break-in schedule ................5-42
Brightness/contrastbutton............4-9
Brightness control Instrument panel ...............2-56
Bulb check/instrument panel ..........2-22
Bulb replacement ................8-29
C
Capacities and recommended
fuel/lubricants ..................10-2
Cargolightswitch................2-58
Cargo (See vehicle loading information) . . .10-20
Car phone or CB radio .............4-113
CD care and cleaning ..............4-81
CD player (See audio system) . .4-56, 4-62, 4-69
Check tire pressure ...............2-42
Child restraints .......1-24,1-24,1-26,1-28
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-28
Precautions on child
restraints.....1-26,1-33,1-39,1-43,1-48
Top tether strap anchor point locations . .1-31
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-31
Cleaningexteriorandinterior........7-2,7-4
Climatecontrolseatswitch...........2-58
Clock setting
(models with Navigation System) ........4-7
Clock setting (models without Navigation
System) ..................4-55,4-59
C.M.V.S.S. certification label .........10-16
Cold weather driving ...............5-65
Compact disc (CD) player ....4-56,4-62,4-69Compass
.....................2-18
Connect phone .................4-84
Console light ...................2-88
Control panel buttons ...............4-4
Back button ..................4-7
Brightness/contrast button ..........4-9
Enterbutton..................4-4
With navigation system ............4-4
Controls Audio controls (steering wheel) .......4-82
Heater and air conditioner controls .....4-43
Heater and air conditioner controls
(manual) ...................4-33
Coolant Capacities and recommended
fuel/lubricants ................10-2
Changingenginecoolant...........8-6
Checking engine coolant level ........8-6
Engine coolant temperature gauge .....2-9
Corrosion protection ...............7-7
Cruisecontrol ...........5-40,5-40,5-41
Cupholders...................2-80
Curtainside-impactandrolloverairbag....1-74
D
Daytime Running Light System .....2-56,8-28
Diesel Particulate Filter (DPF) ..........8-11
Digital video disc DVD ..............4-88
Dimensionsandweights............10-11
Dimmer switch for instrument panel ......2-56
Display......................2-32
Display controls (see control panel buttons) . .4-4
Door locks .....................3-5
Door open warning light .............2-25 Doors
........................3-5
Drive belt .....................8-17
Drive positioner, Automatic ........3-37,3-39
Driving Cold weather driving .............5-65
Driving with automatic transmission ....5-17
Precautions when starting and
driving ...................5-2,5-8
Driving the vehicle ................5-16
E
Eco Drive Report .................5-52
Economy-fuel..................5-44
Electronic
locking rear differential (E-Lock)
system ......................5-51
Electronic locking rear differential (E-Lock)
system switch ..................2-65
Emergency engine shutoff .........5-13,6-2
Emission control information label ......10-17
Emission control system warranty .......10-59
Engine Before starting the engine ..........5-14
Blockheater.................5-66
Capacities and recommended
fuel/lubricants ................10-2
Changing engine coolant ...........8-6
Changingengineoil..............8-8
Changing engine oil filter ...........8-9
Checking engine coolant level ........8-6
Checking engine oil level ...........8-7
Engine compartment check locations ....8-3
Engine coolant temperature gauge .....2-9
Engine cooling system ............8-5
Engineoil ...................8-7
11-2

Headlight control switch..........2-53
Hill descent control switch .........2-64
Instrument brightness control ........2-56
Power door lock switch .........3-6,3-7
Power inverter switch ............2-67
Rear sonar system off switch ........2-67
Tow mode switch ..............2-69
Turnsignalswitch..............2-57
Vehicle dynamic control (VDC) off
switch.....................2-63
T
Tachometer ....................2-9
Tailgate ..................3-33,3-33
Temperature gauge Engine coolant temperature gauge .....2-9
Theft (NISSAN Vehicle Immobilizer System) ,
engine start ................2-48,5-14
Three-way catalyst ................5-2
Tie down hooks .................3-37
Tire Flat tire .....................6-3
Spare tire .................6-4,6-6
TireandLoadingInformationlabel ....10-18
Tire chains ..................8-39
Tirepressure.................8-32
Tire rotation..................8-40
Tires of 4-wheel drive ............8-42
Types of tires .................8-38
Uniform tire quality grading ........10-58
Wheels and tires ..........8-32,10-10
Wheel/tire size ...............10-10
Tirepressure...................8-32 Low tire pressure warning light .......2-25Tire Pressure Monitoring System
(TPMS)
....................5-3,6-3
Towing 2-wheel drive models ............6-15
4-wheel drive models ............6-16
Flattowing.............10-56,10-57
Towing load/specification .........10-37
Trailer towing ................10-34
Towing a trailer .................10-34
Towingyourvehicle...............6-14
Tow mode switch ................2-69
Trailer Brake Controller Unit (TBCU) ......2-69
Transceiver
HomeLink® Universal Transceiver. .2-89, 2-90,
2-91, 2-92, 2-92, 2-93
Transfer case ...................5-45
Transmission Driving with automatic transmission ....5-17
Travel (See registering a vehicle in another
country) .....................10-15
Trip computer ..................2-13
Trip odometer ...................2-8
Troubleshooting guide
(NISSAN voice recognition system) .....4-139
Truckbox .................3-33,3-33
Truck - camper loading ............10-32
Turn signal switch ................2-57
U
Under seat storage bin ..........2-76,2-79
Uniform tire quality grading ..........10-58
USB interface ..................4-72
Audio file operation ..........4-71,4-73
Using four wheel drive (4WD) .........5-44 V
Vanity mirror ...................3-27
Variable voltage control system .........8-16
Vehicle dimensions and weights .......10-11
Vehicle dynamic control (VDC) off switch . . .2-63
Vehicle dynamic control (VDC) system .....5-56
Vehicle Dynamic Control (VDC) system . . . .5-56
Vehicle identification ..............10-15
Vehicle identification number (VIN) ......10-15
Vehicle identification number (VIN)
(Chassis number) ...............10-15
Vehicle identification number (VIN) plate . . .10-15
Vehicle immobilizer system ........2-48,5-14
Vehicle Information Display ...........2-32
Vehicle loading information ..........10-20
Vehicle recovery .................6-16
Vehicle security system .............2-47
Vehicle security system (NISSAN Vehicle
Immobilizer System) , engine start ....2-48,5-14
Vents.......................4-32
Visors.......................3-27
Voice Prompt Interrupt ....4-116, 4-117, 4-128
Voice recognition system ...........4-135
Voltmeter.....................2-12
W
Warning 4WD warning light ..............2-22
Airbagwarninglight.........1-78,2-28
Anti-lock brake warning light ........2-22
Battery charge warning light ........2-24
11-7

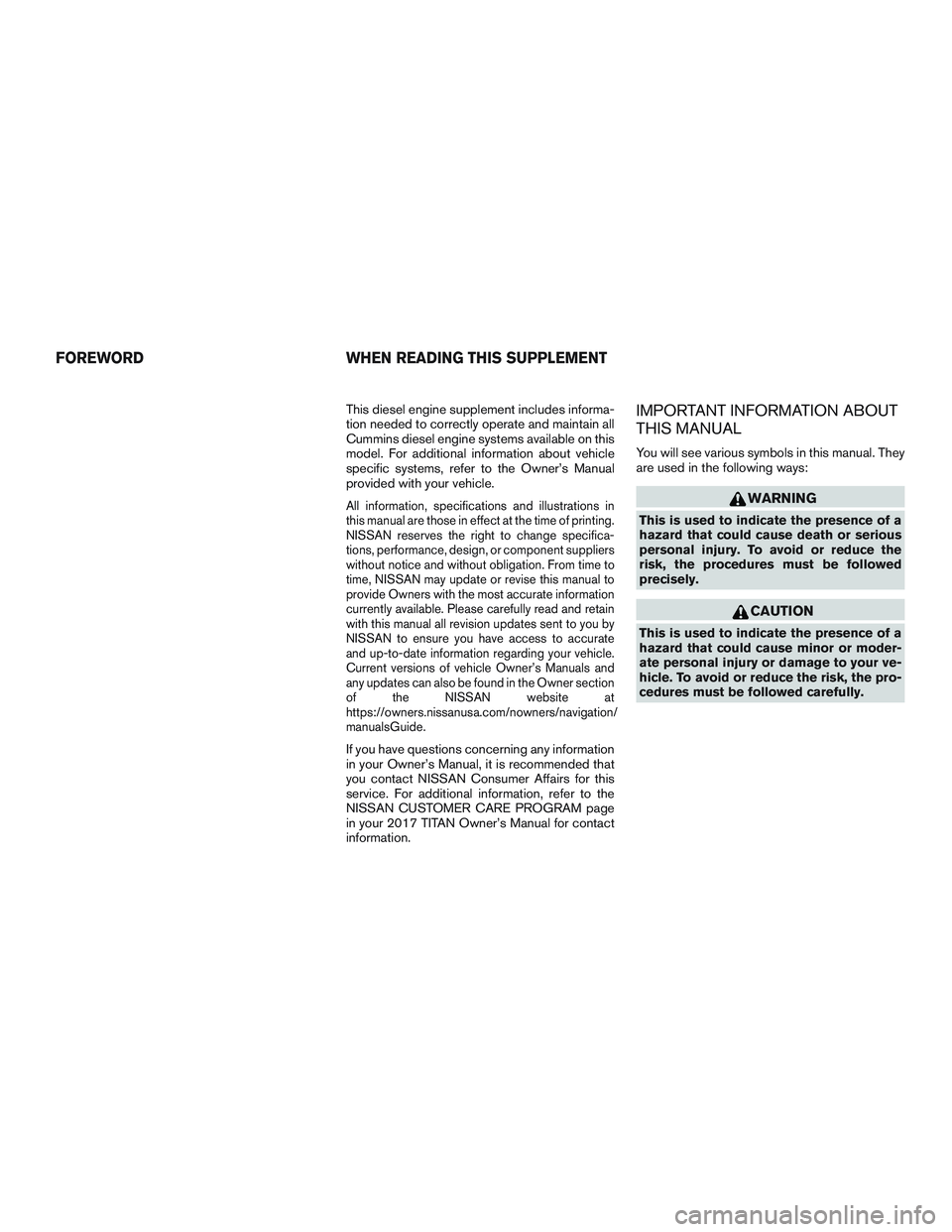

This diesel engine supplement includes informa-
tion needed to correctly operate and maintain all
Cummins diesel engine systems available on this
model. For additional information about vehicle
specific systems, refer to the Owner’s Manual
provided with your vehicle.
All information, specifications and illustrations in
this manual are those in effect at the time of printing.
NISSAN reserves the right to change specifica-
tions, performance, design, or component suppliers
without notice and without obligation. From time to
time, NISSAN may update or revise this manual to
provide Owners with the most accurate information
currently available. Please carefully read and retain
with this manual all revision updates sent to you by
NISSAN to ensure you have access to accurate
and up-to-date information regarding your vehicle.
Current versions of vehicle Owner’s Manuals and
any updates can also be found in the Owner section
of the NISSAN website at
https://owners.nissanusa.com/nowners/navigation/
manualsGuide.
If you have questions concerning any information
in your Owner’s Manual, it is recommended that
you contact NISSAN Consumer Affairs for this
service. For additional information, refer to the
NISSAN CUSTOMER CARE PROGRAM page
in your 2017 TITAN Owner’s Manual for contact
information.
IMPORTANT INFORMATION ABOUT
THIS MANUAL
You will see various symbols in this manual. They
are used in the following ways:
