2017 NISSAN SENTRA fog light bulb

1. Engine hood (P. 3-24)
2. Wiper and washer switch (P. 2-39)
3. Windshield (P. 8-18)
4. Power windows (P. 2-55)
5. Door locks (P. 3-5)Key fob (if so equipped) (P. 3-7)
NISSAN Intelligent Key®
(if so equipped) (P. 3-10)
Keys (P. 3-2)
6. Mirrors (P. 3-30)
7. Tire pressure (P. 8-33) Flat tire (P. 6-3)
Tire chains (P. 8-33)
8. Headlight and turn signal switch
(P. 2-41)
Replacing bulbs (P. 8-28)
Daytime running lights system
(if so equipped) (P. 2-41)
9. Fog light switch (if so equipped)
(P. 2-41)
Daytime running lights system
(if so equipped) (P. 2-41)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2427
EXTERIOR FRONT
Illustrated table of contents0-3

TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels automatically.
Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed. Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.
Choose the appropriate method to signal a lane
change based on road and traffic conditions.
NOTE:
If the turn signal light bulb malfunctions,
the turn signal indicator will flash at a
higher frequency when the turn signal is
activated.
FOG LIGHT SWITCH (if so equipped)
To turn the fog lights on, turn the headlight switch
to the
position, then turn the fog light
switch to the
position.
To turn the fog lights on with the headlight switch
in the AUTO position, the headlights must be on,
then turn the fog light switch to the
posi-
tion.
To turn the fog lights off, turn the fog light switch
to the OFF position.
The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high beam
headlights are selected.
LIC3252LIC3256
Instruments and controls2-45

8 Do-it-yourself
Maintenance precautions...........................8-2
Engine compartment check locations ................8-3
Engine cooling system .............................8-5
Checking engine coolant level ...................8-6
Changing engine coolant ........................8-6
Engine oil .........................................8-7
Checking engine oil level ........................8-7
Changing engine oil ............................8-8
Changing engine oil filter ........................8-9
Continuously Variable Transmission (CVT) fluid
(if so equipped) .................................. 8-11
Brake and clutch (if so equipped) fluid ..............8-11
Brake fluid .................................... 8-11
Clutch fluid (if so equipped) ....................8-12
Windshield-washer fluid ........................... 8-12
Windshield-washer fluid reservoir ...............8-12
Battery .......................................... 8-13
Jump starting ................................. 8-14
Variable voltage control system .....................8-15
Drive belt ........................................ 8-15
Spark plugs ...................................... 8-16
Replacing spark plugs ......................... 8-16
Air cleaner ....................................... 8-17In-cabin microfilter
............................. 8-17
Windshield wiper blades .......................... 8-18
Cleaning ..................................... 8-18
Replacing .................................... 8-18
Brakes .......................................... 8-20
Fuses ........................................... 8-20
Engine compartment ........................... 8-21
Passenger compartment .......................8-23
Battery replacement .............................. 8-24
Key fob (if so equipped) ........................ 8-25
NISSAN Intelligent Key® (if so equipped) ........8-26
Lights ........................................... 8-28
Headlights .................................... 8-28
Turn signal bulb ............................... 8-29
Fog lights (if so equipped) ......................8-29
Exterior

and interior lights ....................... 8-31
Wheels and tires ................................. 8-33
Tire pressure .................................. 8-33
Tire labeling ................................... 8-37
Types of tires .................................. 8-39
Tire chains .................................... 8-40
Changing wheels and tires .....................8-40

1. Rotate the (high beam) coverAcounter-
clockwise to access the (high beam) bulb
socket
C. Rotate the bulb socketCcoun-
terclockwise and remove bulb.
2. Rotate the (low beam) cover
B(if so
equipped) counterclockwise to access the
(low beam) bulb socket
D(if so equipped) .
Rotate the bulb socket
D(if so equipped)
counterclockwise and remove bulb.
3. Rotate the side marker bulb socket
Ecoun-
terclockwise and remove bulb.
4. Rotate the turn signal bulb socket
Fcoun-
terclockwise and remove bulb
G. Reverse instructions to install bulbs and replace
fender protector.
WARNING
Do not touch bulb by hand while it is lit or
right after being turned off. Burning may
result.
CAUTION
• Do not touch glass surface of the bulb
with bare hands or allow oil or grease to
get on it to prevent damage to bulb.
• Do not leave the bulb out of the lamp
reflector for a long time because dust,
moisture, smoke, etc. may affect the per-
formance of the lamp.
• Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the
lens, it is recommended that you visit a
NISSAN dealer for servicing.
Replacing the LED headlight bulb (if
so equipped)
If LED headlight bulb replacement is required, it is
recommended that you visit a NISSAN dealer for
this service.
TURN SIGNAL BULB
To replace the turn signal bulb follow the instruc-
tions listed in the “Replacing the halogen head-
light bulb” found in this section.
FOG LIGHTS (if so equipped)
For additional information on fog light bulb re-
placement, refer to the instructions outlined in
this section.
Type B (if so equipped)
LDI2981
Do-it-yourself8-29

Replacing the fog light bulb
CAUTION
●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the bulb, do not touch
the glass envelope.
●
Use the same number and wattage as
originally installed as shown in the chart.
● Do not leave the bulb out of the fog light
for a long period of time as dust, mois-
ture and smoke may enter the fog light
body and affect the performance of the
fog light.
1. Disconnect the negative battery cable.
2. Access to the fog light is in front of and behind the front tire and the fascia.
3. Remove the fasteners
A; carefully pull back
the front fender protector.
4. Rotate the bulb
Bcounterclockwise and
pull out to remove.
5.
Remove by pulling straight off the fog light. Do
not shake or rotate the bulb when removing it.
6. Install the new bulb in the reverse order of removal.
LDI2179
8-30Do-it-yourself

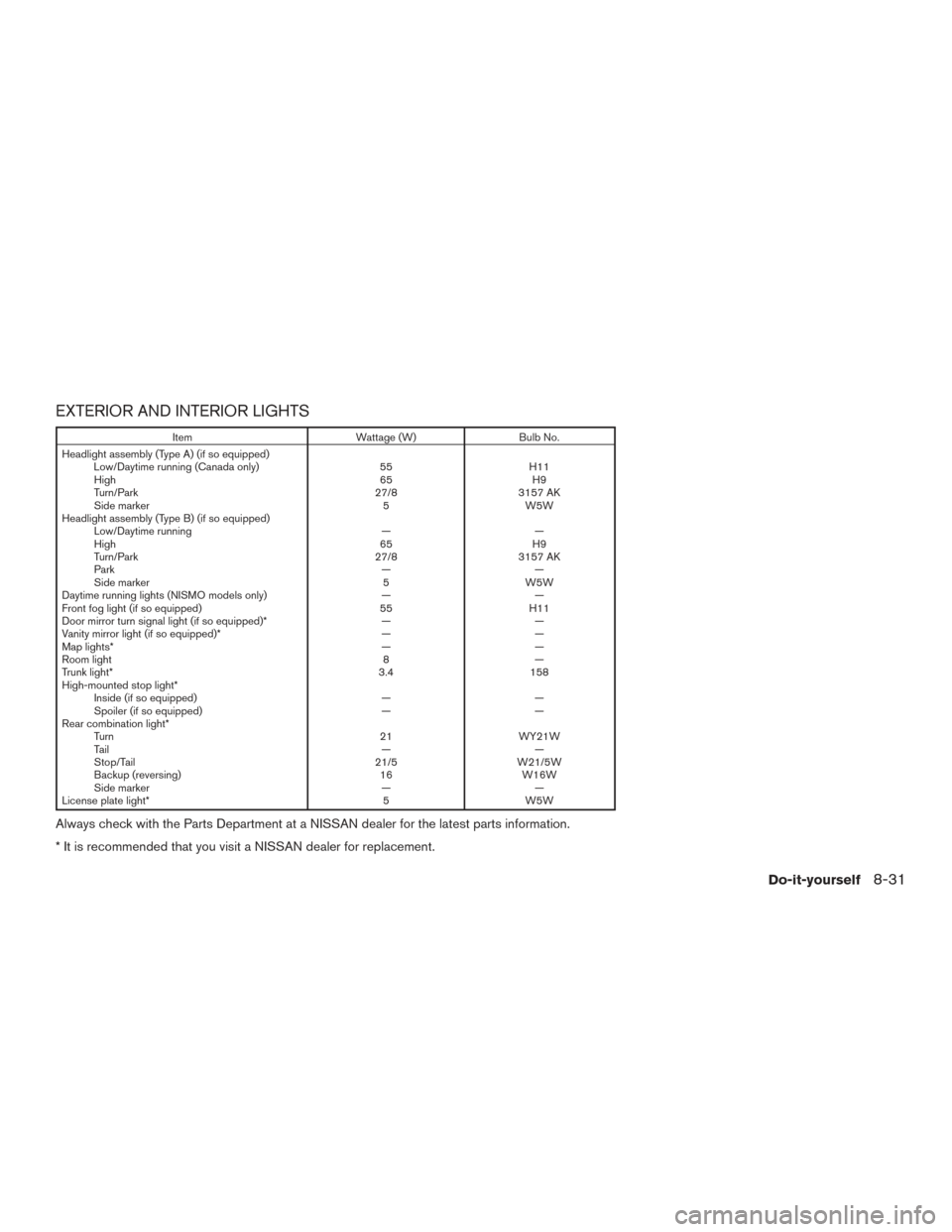

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly (Type A) (if so equipped) Low/Daytime running (Canada only) 55H11
High 65H9
Turn/Park 27/83157 AK
Side marker 5W5W
Headlight assembly (Type B) (if so equipped) Low/Daytime running ——
High 65H9
Turn/Park 27/83157 AK
Park ——
Side marker 5W5W
Daytime running lights (NISMO models only) ——
Front fog light (if so equipped) 55H11
Door mirror turn signal light (if so equipped)* ——
Vanity mirror light (if so equipped)* ——
Map lights* ——
Room light 8—
Trunk light* 3.4158
High-mounted stop light* Inside (if so equipped) ——
Spoiler (if so equipped) ——
Rear combination light* Turn 21WY21W
Ta i l ——
Stop/Tail 21/5W21/5W
Backup (reversing) 16W16W
Side marker ——
License plate light* 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* It is recommended that you visit a NISSAN dealer for replacement.
Do-it-yourself8-31

1. Map light
2. Room light
3. Door mirror turn signal light (if soequipped)
4. Headlight assembly
5. Fog light (if so equipped)/ Daytime run-
ning light (NISMO models only)
6. High-mount stop light
7. Trunk light
8. License plate light
9. Rear combination light
Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installationLDI2936
WDI0263
8-32Do-it-yourself

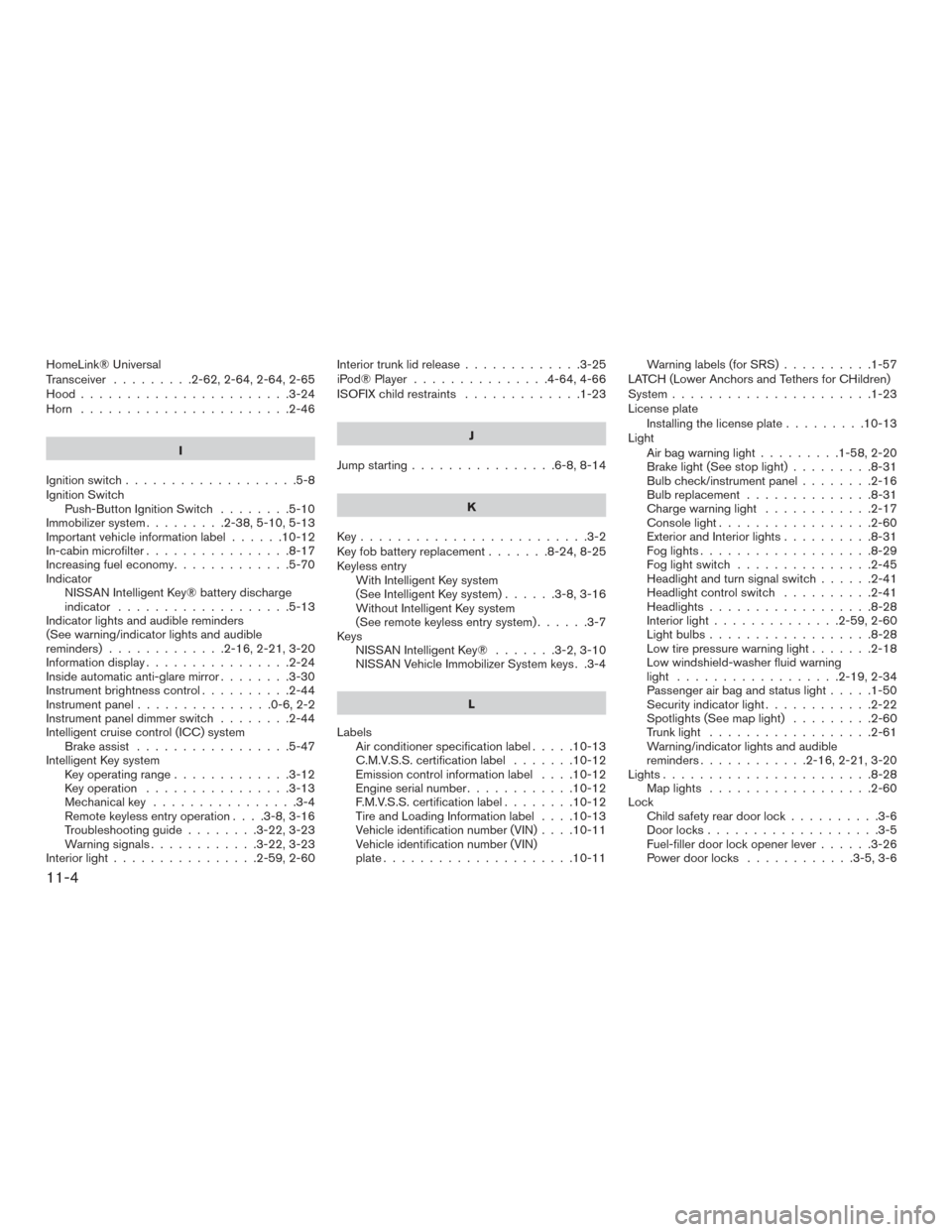

HomeLink® Universal
Transceiver .........2-62,2-64,2-64,2-65
Hood.......................3-24
Horn .......................2-46
I
Ignition switch ...................5-8
Ignition Switch Push-Button Ignition Switch ........5-10
Immobilizer system .........2-38,5-10,5-13
Important vehicle information label ......10-12
In-cabin microfilter ................8-17
Increasing fuel economy .............5-70
Indicator NISSAN Intelligent Key® battery discharge
indicator ...................5-13
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).............2-16,2-21,3-20
Informationdisplay................2-24
Inside automatic anti-glare mirror ........3-30
Instrument brightness control ..........2-44
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-44
Intelligent cruise control (ICC) system Brake assist .................5-47
Intelligent Key system Key operating range .............3-12
Key operation ................3-13
Mechanicalkey ................3-4
Remote keyless entry operation ....3-8,3-16
Troubleshooting guide ........3-22,3-23
Warning signals ............3-22,3-23
Interiorlight................2-59,2-60 Interiortrunklidrelease.............3-25
iPod® Player
...............4-64,4-66
ISOFIX child restraints .............1-23
J
Jump starting ................6-8,8-14
K
Key.........................3-2
Keyfobbatteryreplacement.......8-24,8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) ......3-8,3-16
Without Intelligent Key system
(See remote keyless entry system) ......3-7
Keys NISSAN Intelligent Key® .......3-2,3-10
NISSAN Vehicle Immobilizer System keys . .3-4
L
Labels Air conditioner specification label .....10-13
C.M.V.S.S. certification label .......10-12
Emission control information label ....10-12
Engine serial number ............10-12
F.M.V.S.S. certification label ........10-12
Tire and Loading Information label ....10-13
Vehicle identification number (VIN) ....10-11
Vehicle identification number (VIN)
plate.....................10-11 Warning labels (for SRS)
..........1-57
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-23
License plate Installing the license plate .........10-13
Light Air bag warning light .........1-58,2-20
Brake light (See stop light) .........8-31
Bulb check/instrument panel ........2-16
Bulbreplacement..............8-31
Charge warning light ............2-17
Console light .................2-60
Exterior and Interior lights ..........8-31
Foglights...................8-29
Fog light switch ...............2-45
Headlightandturnsignalswitch......2-41
Headlight
control switch ..........2-41
Headlights..................8-28
Interiorlight..............2-59,2-60
Lightbulbs..................8-28
Low tire pressure warning light .......2-18
Low windshield-washer fluid warning
light ..................2-19,2-34
Passenger air bag and status light .....1-50
Security indicator light ............2-22
Spotlights(Seemaplight) .........2-60
Trunklight ..................2-61
Warning/indicator lights and audible
reminders ............2 -16, 2-21, 3-20
Lights.......................8-28 Maplights ..................2-60
Lock Child safety rear door lock ..........3-6
Door locks ...................3-5
Fuel-filler door lock opener lever ......3-26
Power door locks ............3-5,3-6
11-4
