6
BLIND SPOT WARNING (BSW) (if so equipped)
The BSW system helps to alert the driver
when another vehicle moves into the
vehicle’s blind spot area.
An indicator light located near the outside
mirrors
1 will illuminate if the radar sensors
detect a vehicle in the blind spot area.
The indicator light 3 on the switch will
illuminate af ter the ignition switch is in the
ON position and the BSW system is enabled.
This indicates that the BSW system
is operational.
Push the w arning systems switch 2 to temporarily turn the system off. When
the system is off, the indicator light
3 on the switch is off.
The indic
ator light 3 on the switch will also be off if all of the warning systems
are deactivated using the Settings menu.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
For more information, refer to the “Instruments and controls (section 2)” and the “Starting and driving
(section 5)” of your Owner’s Manual.

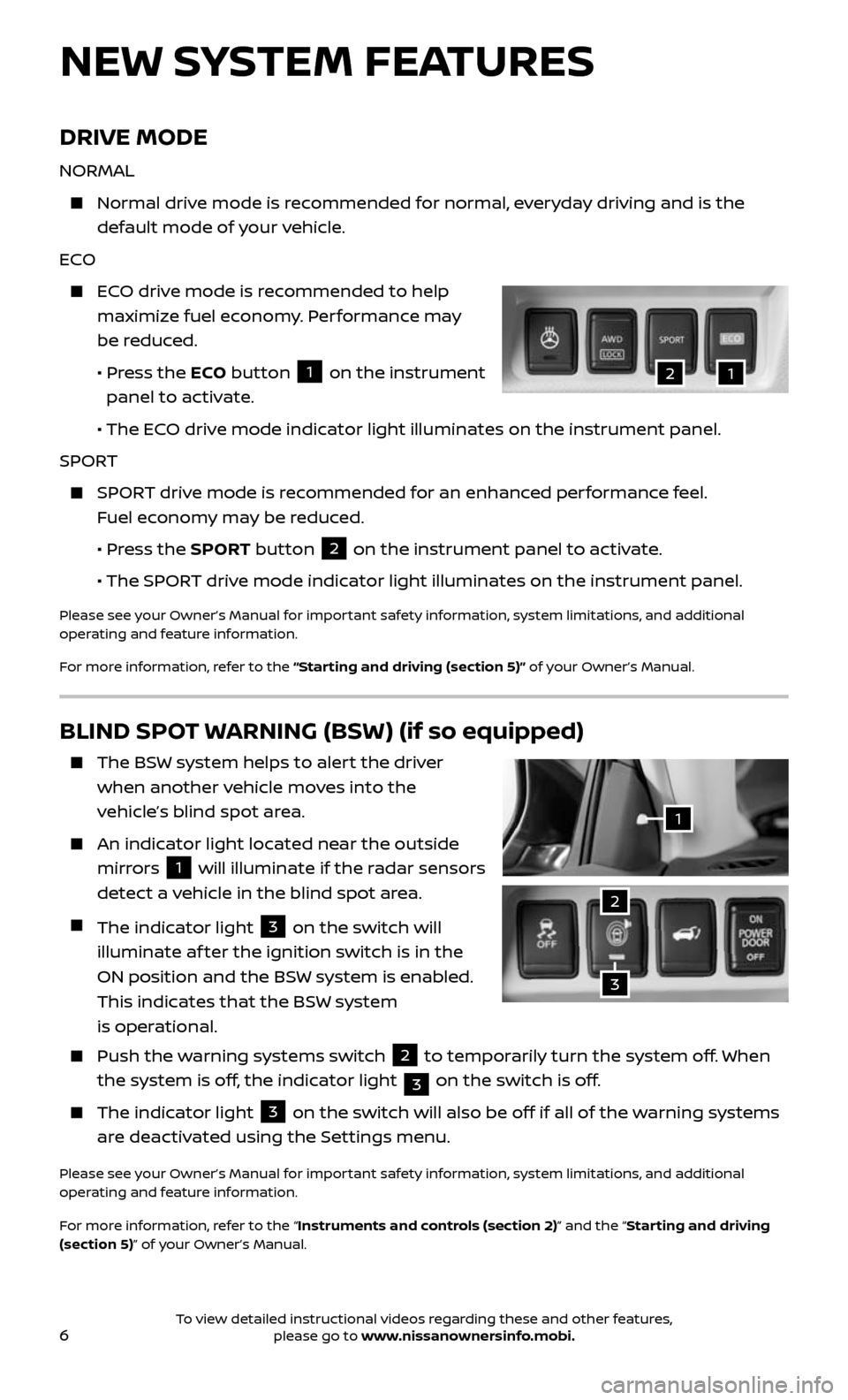

NEW SYSTEM FEATURES
2
DRIVE MODE
NORMAL
Normal driv e mode is recommended for normal, everyday driving and is the
default mode of your vehicle.
ECO
ECO drive mode is recommended to help
maximize fuel economy. Performance may
be reduced.
• Press the ECO button 1 on the instrument
panel to activate.
• The EC O drive mode indicator light illuminates on the instrument panel.
SPORT
SPORT drive mode is recommended for an enhanced performance feel.
Fuel economy may be reduced.
• Press the SPORT button 2 on the instrument panel to activate.
• The SPOR T drive mode indicator light illuminates on the instrument panel.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
1
3
12
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
19
1
3
25
9
4
8
6
10
7

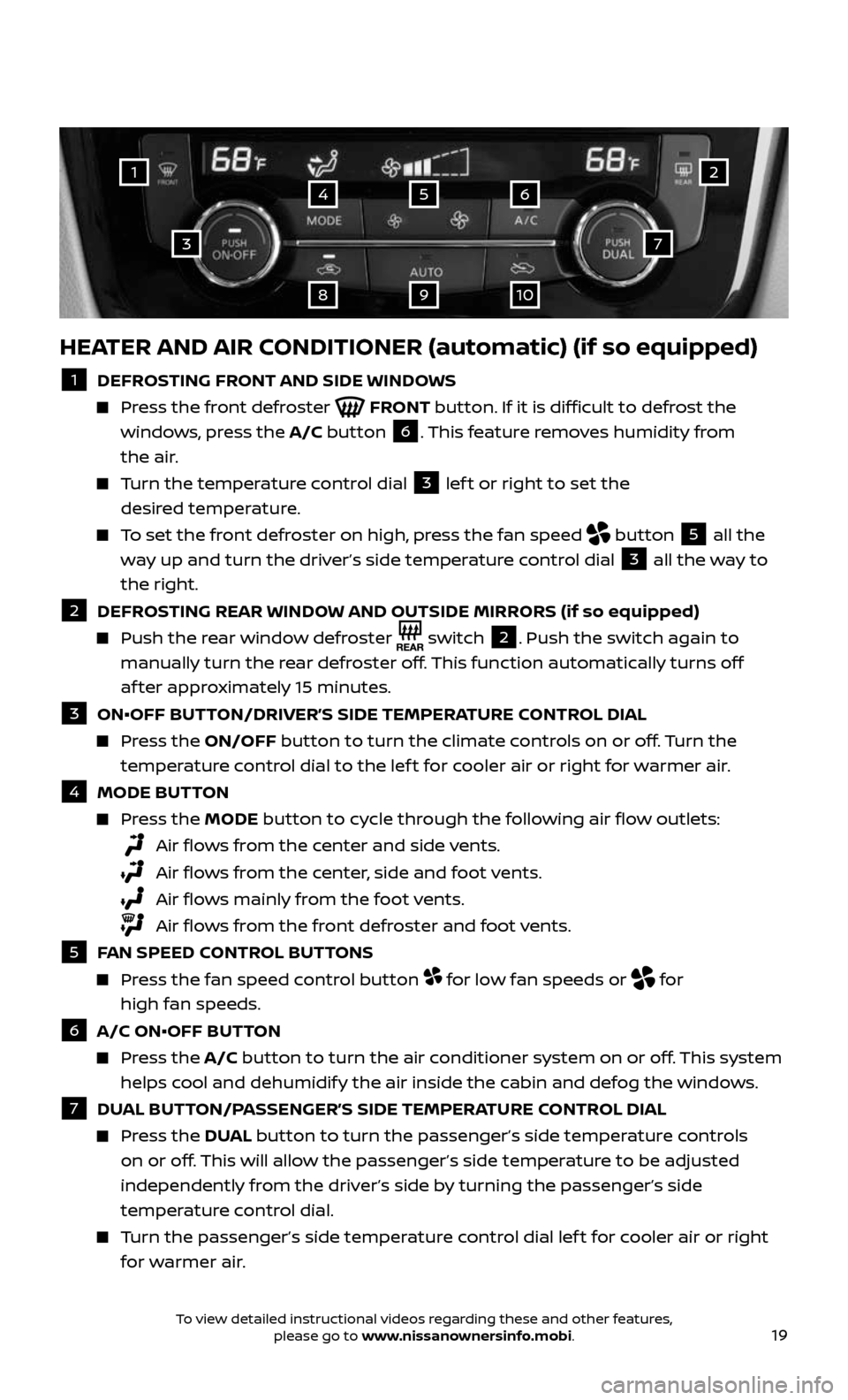

HEATER AND AIR CONDITIONER (automatic) (if so equipped)
1 DEFROSTING FRONT AND SIDE WINDOWS
Press the front defroster FRONT button. If it is difficult to defrost the
windows, press the A/C button
6. This feature removes humidity from
the air.
Turn the temperature control dial 3 lef t or right to set the
desired temperature.
To set the front defroster on high, press the fan speed button 5 all the
way up and turn the driver’s side temperature control dial
3 all the way to
the right.
2 DEFROSTING REAR WINDOW AND OUTSIDE MIRRORS (if so equipped)
Push the r ear window defroster switch
2. Push the switch again to
manually turn the rear defroster off. This function automatically turns off
af ter approximately 15 minutes.
3 ON•OFF BUTTON/DRIVER’S SIDE TEMPERATURE CONTROL DIAL
Press the ON/OFF button to turn the climate controls on or off. Turn the
temperature control dial to the lef t for cooler air or right for warmer air.
4 MODE BUT TON
Press the MODE button to cycle through the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side and foot vents.
Air flows mainly from the foot vents.
Air flows from the front defroster and foot vents.
5 FAN SPEED CONTROL BUTTONS
Press the fan speed control button for low fan speeds or for
high fan speeds.
6 A/C ON•OFF BUTTON
Press the A/C button to turn the air conditioner system on or off. This system
helps cool and dehumidify the air inside the cabin and defog the windows.
7 DUAL BUTTON/PASSENGER’S SIDE TEMPERATURE CONTROL DIAL
Press the DUAL button to turn the passenger’s side temperature controls
on or off. This will allow the passenger’s side temperature to be adjusted
independently from the driver’s side by turning the passenger’s side
temperature control dial.
Turn the passenger’s side temperature control dial lef t for cooler air or right
for warmer air.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
