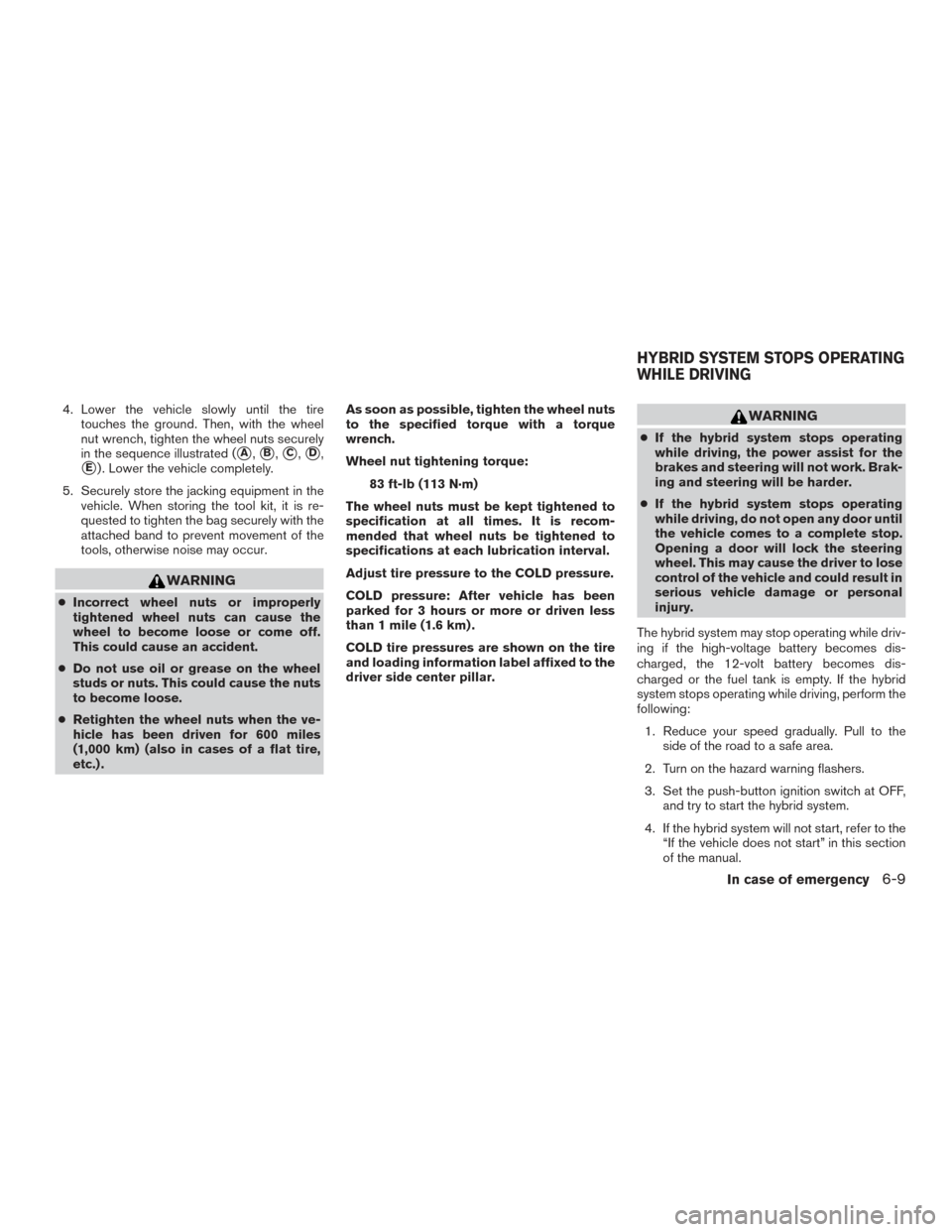

4. Lower the vehicle slowly until the tiretouches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence illustrated (
A,B,C,D,
E) . Lower the vehicle completely.
5. Securely store the jacking equipment in the vehicle. When storing the tool kit, it is re-
quested to tighten the bag securely with the
attached band to prevent movement of the
tools, otherwise noise may occur.
WARNING
●Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.
● Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
● Retighten the wheel nuts when the ve-
hicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.) . As soon as possible, tighten the wheel nuts
to the specified torque with a torque
wrench.
Wheel nut tightening torque:
83 ft-lb (113 N·m)
The wheel nuts must be kept tightened to
specification at all times. It is recom-
mended that wheel nuts be tightened to
specifications at each lubrication interval.
Adjust tire pressure to the COLD pressure.
COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km) .
COLD tire pressures are shown on the tire
and loading information label affixed to the
driver side center pillar.
WARNING
● If the hybrid system stops operating
while driving, the power assist for the
brakes and steering will not work. Brak-
ing and steering will be harder.
● If the hybrid system stops operating
while driving, do not open any door until
the vehicle comes to a complete stop.
Opening a door will lock the steering
wheel. This may cause the driver to lose
control of the vehicle and could result in
serious vehicle damage or personal
injury.
The hybrid system may stop operating while driv-
ing if the high-voltage battery becomes dis-
charged, the 12-volt battery becomes dis-
charged or the fuel tank is empty. If the hybrid
system stops operating while driving, perform the
following: 1. Reduce your speed gradually. Pull to the side of the road to a safe area.
2. Turn on the hazard warning flashers.
3. Set the push-button ignition switch at OFF, and try to start the hybrid system.
4. If the hybrid system will not start, refer to the “If the vehicle does not start” in this section
of the manual.
HYBRID SYSTEM STOPS OPERATING
WHILE DRIVING
In case of emergency6-9

CAUTION
●CVT models cannot be push-started or
tow-started. Attempting to do so may
cause transmission damage.
● Do not push start this vehicle. The
three-way catalyst may be damaged.
WARNING
●Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
● To avoid the danger of being scalded,
never remove the radiator or coolant
reservoir cap while the engine is still
hot. When the radiator or coolant reser-
voir cap is removed, pressurized hot
water will spurt out, possibly causing
serious injury.
● Do not open the hood if steam is com-
ing out.
If your vehicle is overheating (indicated by a
warning message in the vehicle information dis-
play) , or if you feel a lack of engine power, detect
abnormal noise, etc. take the following steps. 1. Move the vehicle safely off the road, apply the parking brake and move the shift lever to
P (Park) .
Do not turn the NISSAN PURE DRIVE
Hybrid System off.
2. Turn off the air conditioner. Open all the windows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed. 3. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. (If steam or cool-
ant is escaping, turn off the engine.) Do not
open the hood further until no steam or
coolant can be seen.
4. Open the engine hood.
WARNING
If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.
5. Also check if the cooling fan is running. The radiator hoses and radiator should not leak
water. If the coolant is leaking or the cooling
fan does not run, stop the hybrid system.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the en-
gine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-13

The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
log shown in theMaintenance and schedules
section of this manual.
To remove the air cleaner filter:
1. Push the retaining clips
Aand pull air
cleaner duct
Bstraight up to remove. 2. Unlatch the retaining clips
Cand move air
cleaner cover
Dforward.
3. Remove air cleaner filter.
Follow the removal instruction in reverse order to
install air cleaner filter, air cleaner cover and air
cleaner duct.
NOTE:
After installing a new air cleaner, make
sure the air cleaner cover and air cleaner
duct are seated correctly and all the retain-
ing clips are latched.
WARNING
● Operating the engine with the air
cleaner removed can cause you or oth-
ers to be burned. The air cleaner not
only cleans the air, it stops the flame if
the engine backfires. If it isn’t there, and
the engine backfires, you could be
burned. Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or
attempt to start the hybrid system with
the air cleaner removed. Doing so could
result in serious injury.
IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry of air-
borne dust and pollen particles and reduces
some objectionable outside odors. The filter is
located behind the glove box. For additional in-
formation, refer to the “Maintenance and sched-
ules” section of this manual for change intervals.
If replacement is required, it is recommended that
you visit a NISSAN dealer for this service.
LDI2818LDI2819
AIR CLEANER
Do-it-yourself8-15

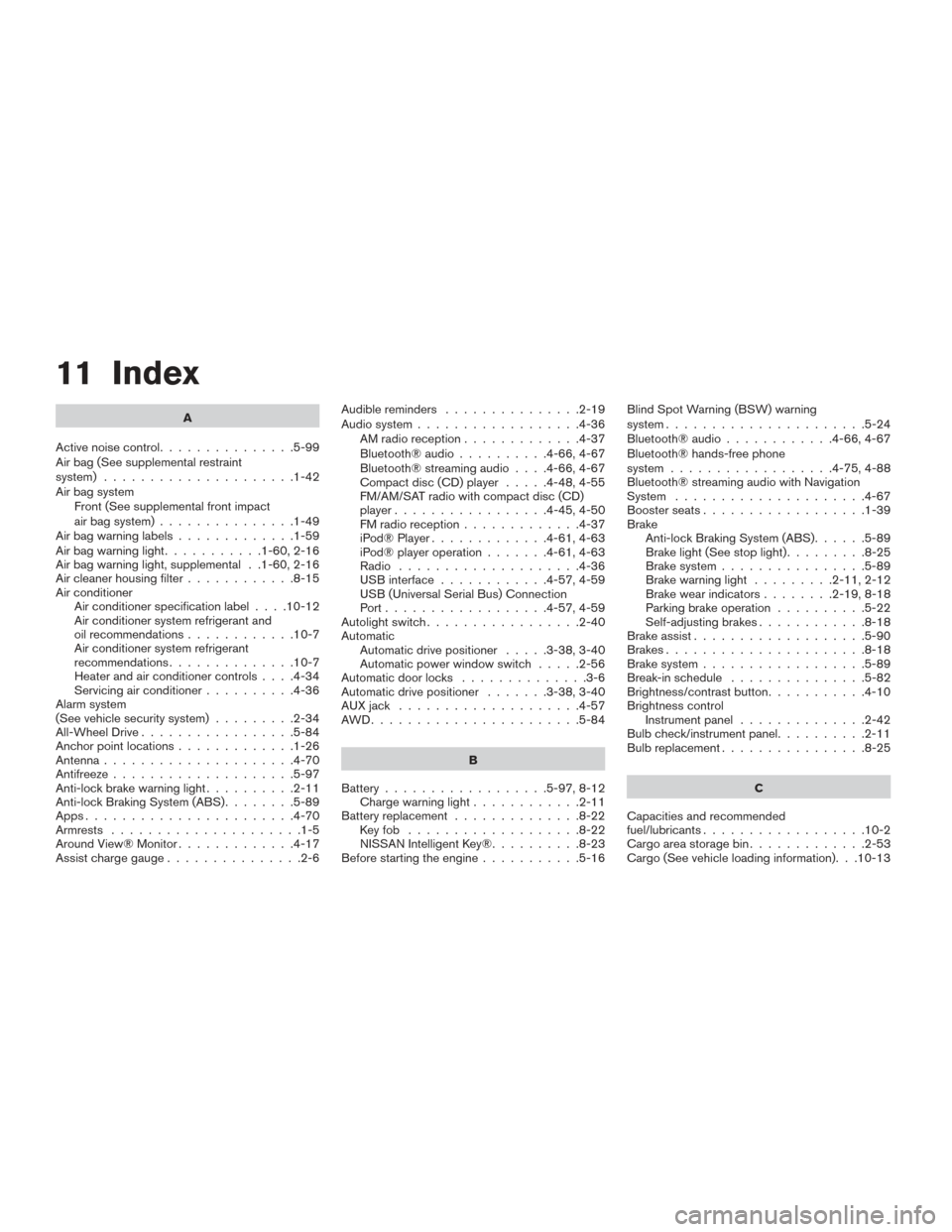

11 Index
A
Active noise control ...............5-99
Air bag (See supplemental restraint
system) .....................1-42
Air bag system Front (See supplemental front impact
air bag system) ...............1-49
Airbagwarninglabels.............1-59
Airbagwarninglight...........1-60,2-16
Air bag warning light, supplemental . .1-60, 2-16
Air cleaner housing filter ............8-15
Air conditioner Air conditioner specification label ....10-12
Air conditioner system refrigerant and
oil recommendations ............10-7
Air conditioner system refrigerant
recommendations ..............10-7
Heater and air conditioner controls ....4-34
Servicing air conditioner ..........4-36
Alarm system
(See vehicle security system) .........2-34
All-Wheel Drive .................5-84
Anchor point locations .............1-26
Antenna .....................4-70
Antifreeze ....................5-97
Anti-lock brake warning light ..........2-11
Anti-lock Braking System (ABS) ........5-89
Apps .......................4-70
Armrests .....................1-5
Around View® Monitor .............4-17
Assist charge gauge ...............2-6 Audible reminders
...............2-19
Audio system ..................4-36
AMradioreception.............4-37
Bluetooth®audio..........4-66,4-67
Bluetooth® streaming audio ....4-66,4-67
Compact disc (CD) player .....4-48,4-55
FM/AM/SAT radio with compact disc (CD)
player.................4-45,4-50
FMradioreception.............4-37
iPod® Player .............4-61,4-63
iPod® player operation .......4-61,4-63
Radio ....................4-36
USB interface ............4-57,4-59
USB (Universal Serial Bus) Connection
Port..................4-57,4-59
Autolight switch .................2-40
Automatic Automatic drive positioner .....3-38,3-40
Automatic power window switch .....2-56
Automatic door locks ..............3-6
Automatic drive positioner .......3-38,3-40
AUXjack ....................4-57
AWD.......................5-84
B
Battery ..................5-97,8-12
Chargewarninglight............2-11
Battery replacement ..............8-22
Keyfob ...................8-22
NISSAN Intelligent Key® ..........8-23
Before starting the engine ...........5-16 Blind Spot Warning (BSW) warning
system......................5-24
Bluetooth® audio
............4-66,4-67
Bluetooth® hands-free phone
system..................4-75,4-88
Bluetooth® streaming audio with Navigation
System .....................4-67
Boosterseats..................1-39
Brake Anti-lock Braking System (ABS) ......5-89
Brakelight(Seestoplight).........8-25
Brake system ................5-89
Brakewarninglight .........2-11,2-12
Brakewearindicators........2-19,8-18
Parking brake operation ..........5-22
Self-adjusting brakes ............8-18
Brake assist ...................5-90
Brakes ......................8-18
Brake system ..................5-89
Break-inschedule ...............5-82
Brightness/contrast button ...........4-10
Brightness control Instrument panel ..............
2
-42
Bulb check/instrument panel ..........2-11
Bulbreplacement................8-25
C
Capacities and recommended
fuel/lubricants ..................10-2
Cargoareastoragebin.............2-53
Cargo (See vehicle loading information). . .10-13

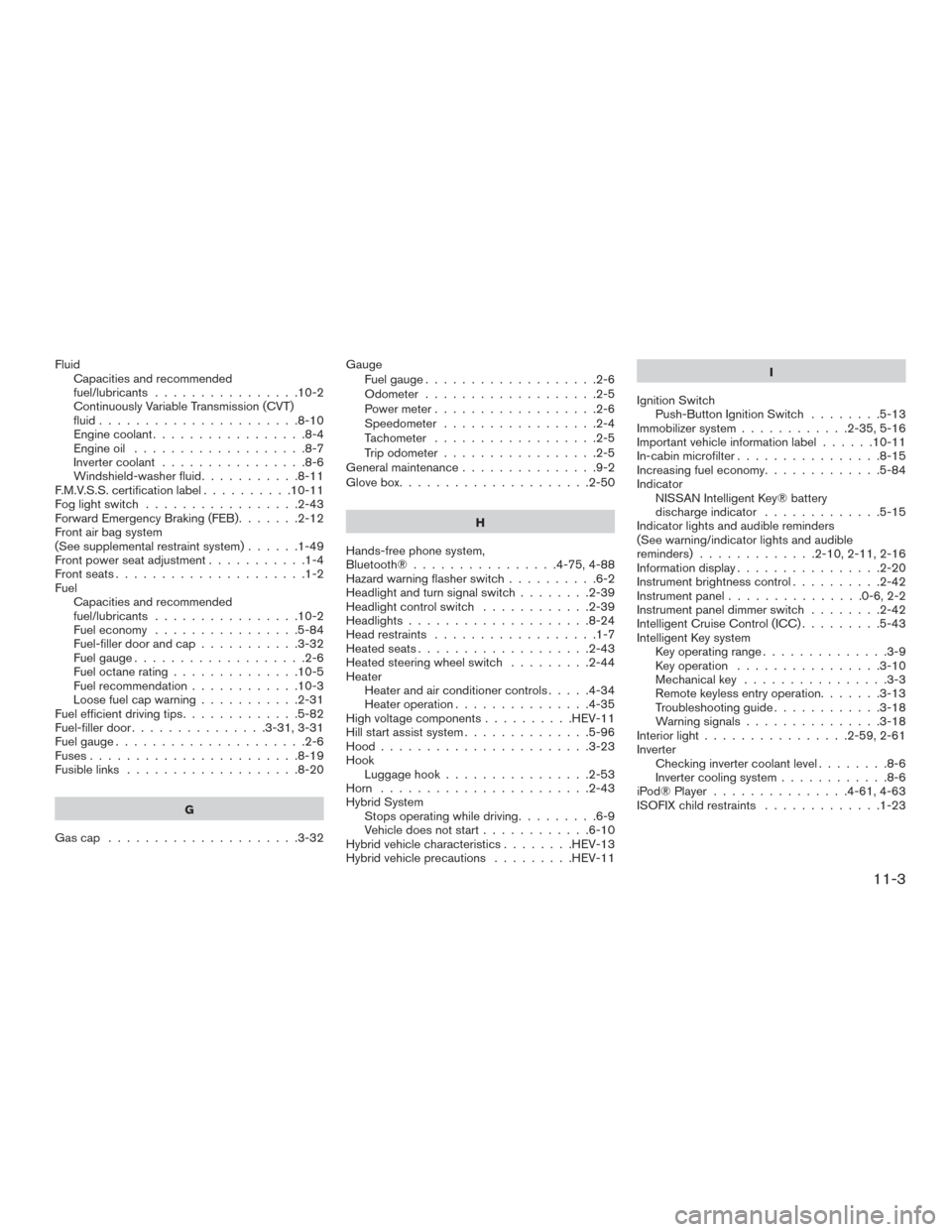

FluidCapacities and recommended
fuel/lubricants ................10-2
Continuously Variable Transmission (CVT)
fluid......................8-10
Engine coolant .................8-4
Engine oil ...................8-7
Invertercoolant ................8-6
Windshield-washerfluid...........8-11
F.M.V.S.S. certification label ..........10-11
Foglightswitch .................2-43
Forward Emergency Braking (FEB) .......2-12
Front air bag system
(See supplemental restraint system) ......1-49
Front power seat adjustment ...........1-4
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants ................10-2
Fuel economy ................5-84
Fuel-filler door and cap ...........3-32
Fuel gauge ...................2-6
Fuel octane rating ..............10-5
Fuel recommendation ............10-3
Loose fuel cap warning ...........2-31
Fuel efficient driving tips .............5-82
Fuel-filler door ...............3-31,3-31
Fuel gauge .....................2-6
Fuses.......................8-19
Fusible links ...................8-20
G
Gascap .....................3-32 Gauge
Fuel gauge ...................2-6
Odometer ...................2-5
Power meter ..................2-6
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-5
General maintenance ...............9-2
Glovebox.....................2-50
H
Hands-free phone system,
Bluetooth®................4-75,4-88
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-39
Headlight control switch ............2-39
Headlights ....................8-24
Head restraints ..................1-7
Heated seats ...................2-43
Heated steering wheel switch .........2-44
Heater Heater and air conditioner controls .....4-34
Heater operation ...............4-35
High voltage components ..........HEV-11
Hill start assist system ..............5-96
Hood .......................3-23
Hook Luggage hook ................2-53
Horn .......................2-43
Hybrid System Stops operating while driving .........6-9
Vehicle does not start ............6-10
Hybrid vehicle characteristics ........HEV-13
Hybrid vehicle precautions .........HEV-11 I
Ignition Switch Push-Button Ignition Switch ........
5
-13
Immobilizer system ............2-35,5-16
Important vehicle information label ......10-11
In-cabin microfilter ................8-15
Increasing fuel economy .............5-84
Indicator NISSAN Intelligent Key® battery
discharge indicator .............5-15
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).............2-10,2-11,2-16
Information display ................2-20
Instrument brightness control ..........2-42
Instrumentpanel...............0-6,2-2
Instrument panel dimmer switch ........2-42
Intelligent Cruise Control (ICC) .........5-43
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-18
Warning signals ...............3-18
Interior light ................2-59,2-61
Inverter Checking inverter coolant level ........8-6
Inverter cooling system ............8-6
iPod®Player ............... 4-61, 4-63
ISOFIX child restraints .............1-23
11-3

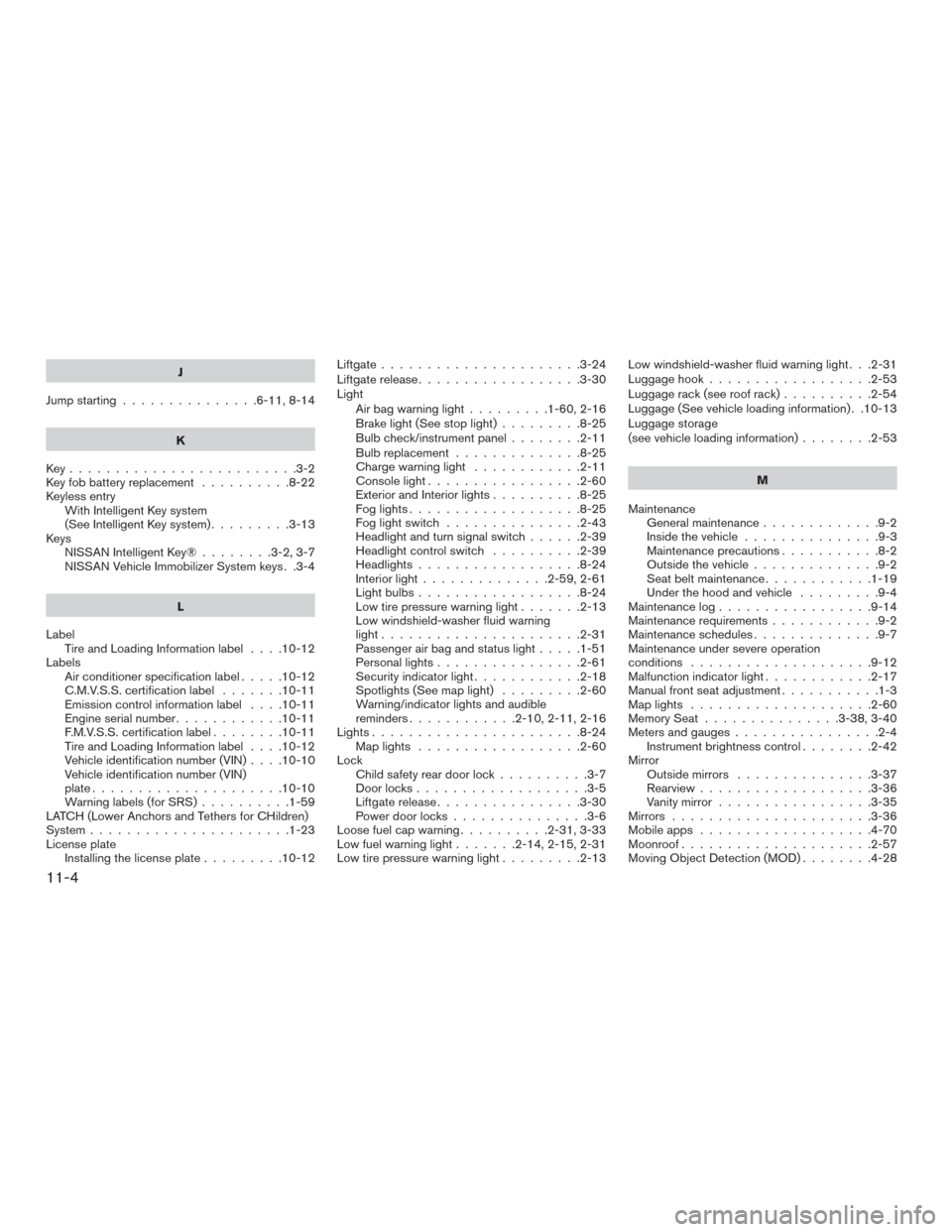

J
Jump starting ...............6-11,8-14
K
Key.........................3-2
Key fob battery replacement ..........8-22
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys NISSAN Intelligent Key® ........3-2,3-7
NISSAN Vehicle Immobilizer System keys . .3-4
L
Label Tire and Loading Information label ....10-12
Labels Air conditioner specification label .....10-12
C.M.V.S.S. certification label .......10-11
Emissioncontrolinformationlabel ....10-11
Engine serial number ............10-11
F.M.V.S.S. certification label ........10-11
Tire and Loading Information label ....10-12
Vehicle identification number (VIN) ....10-10
Vehicle identification number (VIN)
plate .....................10-10
Warning labels (for SRS) ..........1-59
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-23
License plate Installing the license plate .........10-12Liftgate
......................3-24
Liftgate release ..................3-30
Light Air bag warning light .........1-60,2-16
Brake light (See stop light) .........8-25
Bulb check/instrument panel ........2-11
Bulbreplacement..............8-25
Charge warning light ............2-11
Consolelight.................2-60
Exterior and Interior lights ..........8-25
Foglights...................8-25
Foglightswitch ...............2-43
Headlight and turn signal switch ......2-39
Headlight control switch ..........2-39
Headlights..................8-24
Interiorlight..............2-59,2-61
Lightbulbs..................8-24
Low tire pressure warning light .......2-13
Low windshield-washer fluid warning
light......................2-31
Passenger air bag and status light .....1-51
Personal lights ................2-61
Security indicator light ............2-18
Spotlights(Seemaplight) .........2-60
Warning/indicator lights and audible
reminders ............2-10,2-11,2-16
Lights.......................8-24 Maplights ..................2-60
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Liftgate release ................3-30
Power door locks ...............3-6
Loose fuel cap warning ..........2-31,3-33
Lowfuelwarninglight.......2-14,2-15,2-31
Low tire pressure warning light .........2-13Low windshield-washer fluid warning light . . .2-31
Luggage hook
..................2-53
Luggage rack (see roof rack) ..........2-54
Luggage (See vehicle loading information) . .10-13
Luggage storage
(see vehicle loading information) ........2-53
M
Maintenance General maintenance .............9-2
Insidethevehicle...............9-3
Maintenance precautions ...........8-2
Outside the vehicle ..............9-2
Seat belt maintenance ............
1
-19
Under the hood and vehicle .........9-4
Maintenancelog.................9-14
Maintenance requirements ............9-2
Maintenance schedules ..............9-7
Maintenance under severe operation
conditions ....................9-12
Malfunction indicator light ............2-17
Manual front seat adjustment ...........1-3
Maplights ....................2-60
Memory Seat ...............3-38,3-40
Meters and gauges ................2-4
Instrument brightness control ........2-42
Mirror Outside mirrors ...............3-37
Rearview ...................3-36
Vanity mirror .................3-35
Mirrors ......................3-36
Mobileapps ...................4-70
Moonroof .....................2-57
Moving Object Detection (MOD) ........4-28
11-4

Precautionsonseatbeltusage.......1-11
Pregnant women...............1-14
Seat belt extenders .............1-18
Seat belt maintenance ............1-19
Seat belts ................1-11,7-6
Shoulder belt height adjustment ......1-17
Three-point type with retractor .......1-14
Seat belt extenders ...............1-18
Seatbeltwarninglight..........1-14,2-15
Seats Adjustment ...................1-2
Armrests....................1-5
Automatic drive positioner ......3-38,3-40
Frontseats...................1-2
Heatedseats.................2-43
Manual front seat adjustment .........1-3
Security indicator light ..............2-18
Security system (NISSAN Vehicle Immobilizer
System) , engine start ...........2-35,5-16
Security systems Vehicle security system ...........2-34
Self-adjusting brakes ..............8-18
Service manual order form ...........10-21
Servicing air conditioner .............4-36
Setting button ...................4-7
Shoulder belt height adjustment ........1-17
Siri® Eyes-Free .................4-72
Smartphone connectivity ............4-70
Spark plug replacement .............8-14
Spark plugs ...................8-14
Specifications ..................10-8
Speedometer ...................2-4
Speedometer and odometer ...........2-4
SPORT mode switch ..............5-23
Spotlights(Seemaplight) ...........2-60
SRS warning label ................1-59 Standard maintenance
..............9-8
Starting Before starting the engine ..........5-16
Jump starting .............6-11,8-14
Precautions when starting and
driving ..................5-4,5-11
Push starting .................6-13
Starting the engine .............5-16
Starting the engine ...............5-16
Steering Power steering system ...........5-88
Steeringwheel..................3-34
Stoplight.....................8-25
Storage......................2-49
Storagebin....................2-53
Sunglassescase.................2-50
Sunglassesholder................2-50
Sunroof......................2-57
Sunroof(seeMoonroof).............2-57
Sun visors ....................3-35
Supplemental air bag warning labels ......1-59
Supplemental air bag warning light . . .1-60, 2-16
Supplemental front impact air bag system . . .1-49
Supplemental restraint system Information and warning labels .......1-59
Precautions on supplemental restraint
system ....................1-42
Supplemental restraint system
(Supplemental air bag system) .........1-42
Switch Autolightswitch...............2-40
Automatic power window switch ......2-56
Foglightswitch ...............2-43
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-39
Headlight control switch ..........2-39 Instrument brightness control
........2-42
Power door lock switch ............3-6
Rear window and outside mirror defroster
switch .....................2-39
Rear window wiper and washer
switches ...................
2

-38
Turnsignalswitch..............2-42
Vehicle dynamic control (VDC) off
switch .....................2-45
T
Tachometer ....................2-5
Theft (NISSAN Vehicle Immobilizer System) ,
engine start ................2-35,5-16
Three-way catalyst ................5-4
Tire Flat tire .....................6-3
Spare tire ................6-4,8-40
Tire and Loading Information label ....10-12
Tire chains ..................8-36
Tire pressure .................8-28
Tire rotation..................8-37
Types of tires .................8-34
Uniform tire quality grading ........10-18
Wheels and tires ...............8-28
Wheel/tire size ................10-9
Tire pressure Low tire pressure warning light .......2-13
Tire Pressure Monitoring System (TPMS) ....5-5
Top tether strap child restraint .........1-26
Towing Flattowing.................10-17
Towtrucktowing...............6-14
Trailer towing ................10-17
11-6
