1-1.2 Interior
Interior
components referenced in this manual are as follows:
1. Assist charge gauge 2. Energy flow display *1 3. READY indicator (green)
4. Liftgate switch 5. Hood release handle 6. Ignition switch and ON indicator
lamp (orange)
7. Energy flow display *1
*1: This screen may not be displayed due to customer settings. Only one of these screens will display
energy flow depending on vehicle optional equipment. 1
4 5 6 72 3
AAZIA0767ZZ
FRG–7

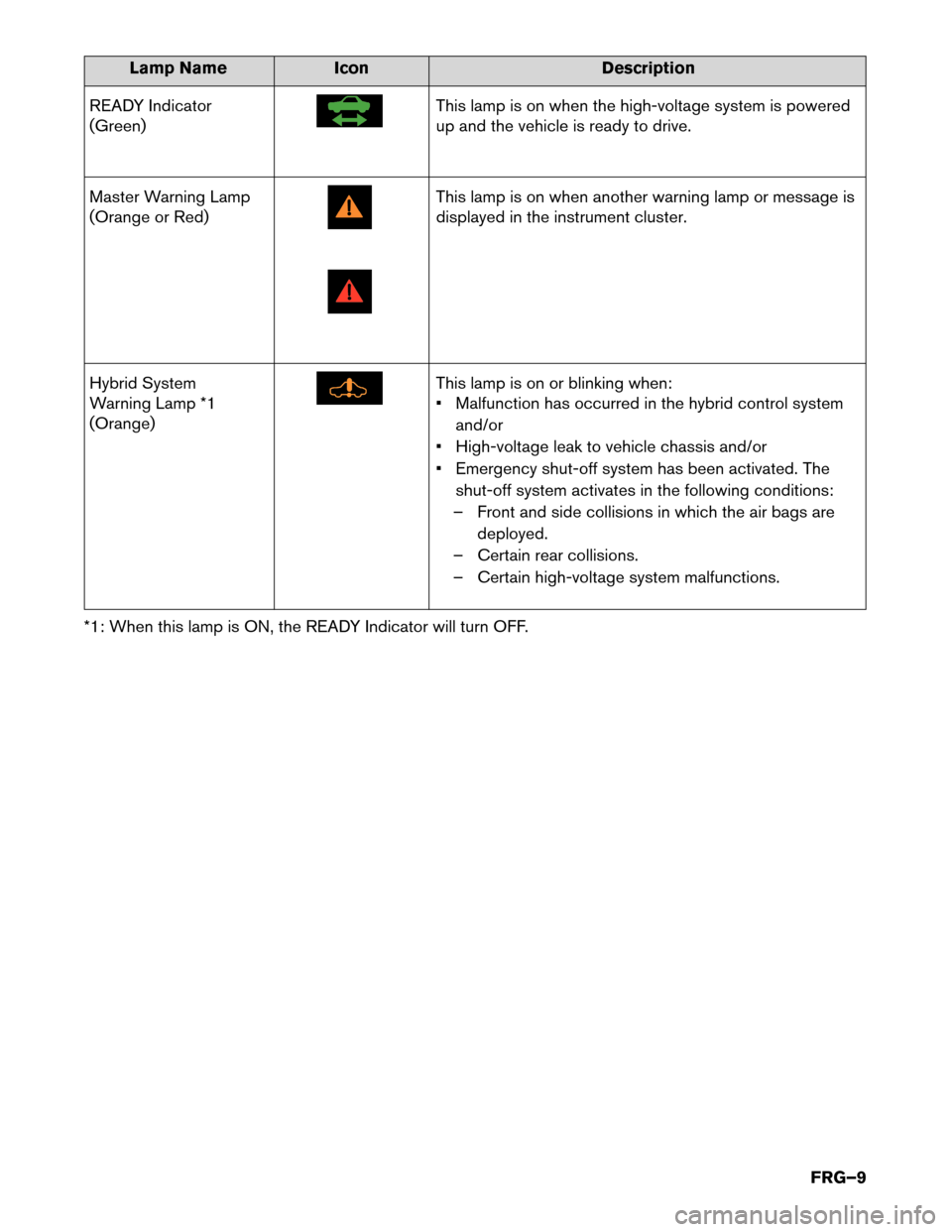

Lamp Name
Icon Description
READ Y Indicator
(Green) This lamp is on when the high-voltage system is powered
up
and the vehicle is ready to drive.
Master Warning Lamp
(Orange or Red) This lamp is on when another warning lamp or message is
displayed
in the instrument cluster.
Hybrid System
Warning Lamp *1
(Orange) This lamp is on or blinking when:
•
Malfunction has occurred in the hybrid control system
and/or
• High-voltage leak to vehicle chassis and/or
• Emergency shut-off system has been activated. The shut-off system activates in the following conditions:
– Front and side collisions in which the air bags are deployed.
– Certain rear collisions.
– Certain high-voltage system malfunctions.
*1: When this lamp is ON, the READY Indicator will turn OFF.
