3-1.2 Daily Inspection
This
inspection is performed before and after use. The responder who will be using the items should
perform the inspection and check for deterioration and damage. • Insulated rubber gloves should be inspected for scratches, holes and tears. (Visual check and airleakage test)
• Insulated safety boots should be inspected for holes, damage, nails, metal pieces, wear or other problems on the soles. (Visual check)
• Insulated rubber sheet should be inspected for tears. (Visual check)
3-1.3 Insulated Tools
When performing work at locations where high-voltage is applied (such as terminals) , use insulated tools
meeting 1,000V/300A specifications.

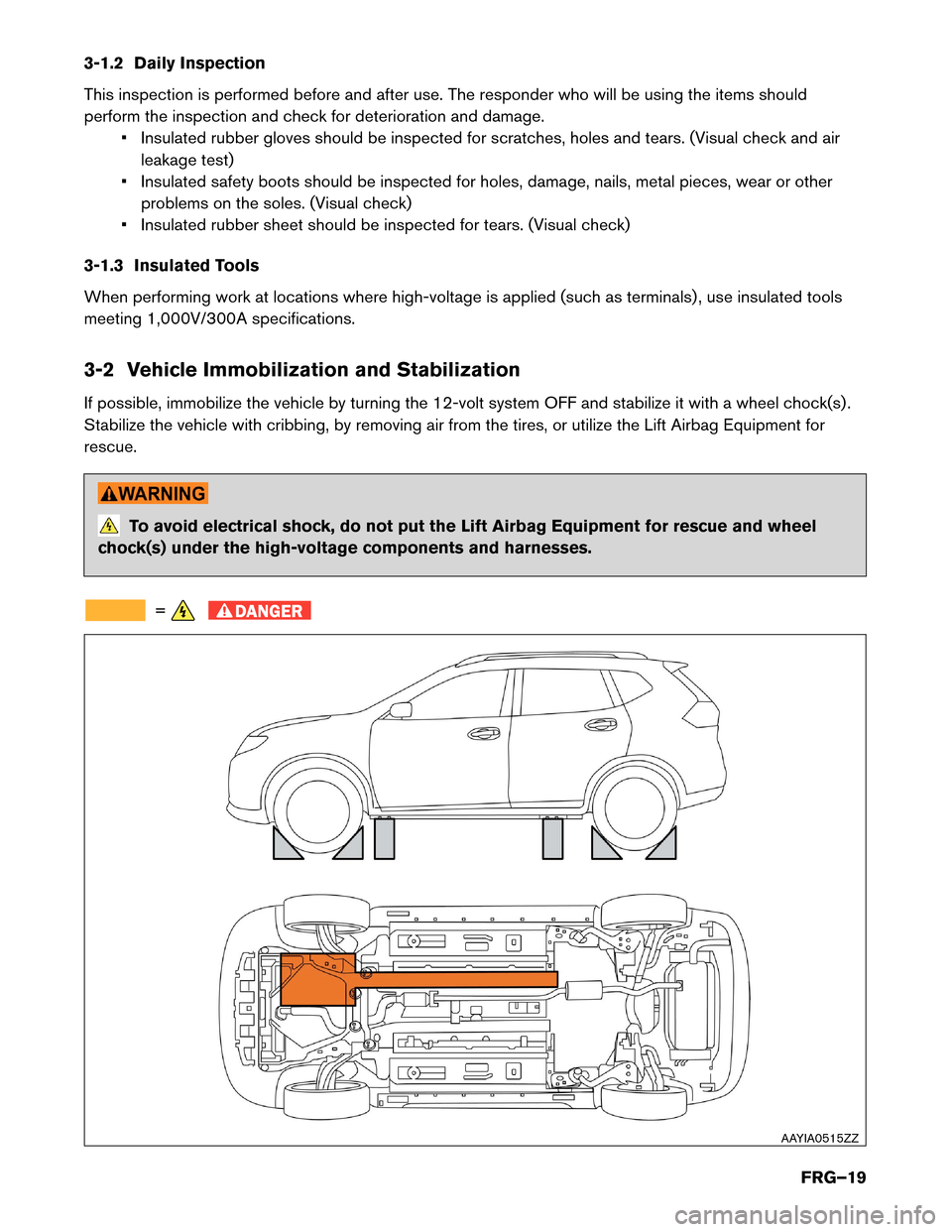

3-2 Vehicle Immobilization and Stabilization
If possible, immobilize the vehicle by turning the 12-volt system OFF and stabilize it with a wheel chock(s) .
Stabilize the vehicle with cribbing, by removing air from the tires, or utilize the Lift Airbag Equipment for
rescue. To avoid electrical shock, do not put the Lift Airbag Equipment for rescue and wheel
chock(s)
under the high-voltage components and harnesses. =
DANGER
AAYIA0515ZZ
FRG–19
