2017 NISSAN QASHQAI fuse box

JVC1090X
1. Side ventilator (P.4-29)
2. Meters and gauges (P.2-5)/Clock (P.2-36)
3. Center ventilator (P.4-29)
4. Audio system* (P.4-38) or Navigation system**
— RearView Monitor* (P.4-8)
— Around View
ŠMonitor* (P.4-14)— Bluetooth
ŠHands-Free Phone System*
(P.4-82, P.4-92)
5. Front passenger supplemental air bag (P.1-39)
6. Fuse box cover (P.8-20)
7. Fuel-filler door release handle (P.3-27)
8. Hood release handle (P.3-24)
9. Steering wheel lock lever (P.3-29)10. Driver’s front-impact air bag (P.1-39)/Horn
(P.2-49)
11. Heater/air conditioner control (P.4-30)
12. Auxiliary input jack (P.4-62) and USB connec-
tion port (P.4-59, P.4-67)
13. Power outlet (P.2-53)
14. Defroster switch (P.2-42)
15. Glove box (P.2-56)
*: if so equipped
**: See the separate Navigation System Owner’s
Manual (if so equipped) .
Illustrated table of contents0-7
INSTRUMENT PANEL

JVC1070X
MR20DD ENGINE MODEL
1. Engine coolant reservoir (P.8-5)
2. Engine oil filler cap (P.8-6)
3. Brake and clutch* fluid reservoir (P.8-9)
4. Air cleaner (P.8-14)
5. Window washer fluid reservoir (P.8-10)
6. Drive belt (P.8-13)7. Engine oil dipstick (P.8-6)
8. Battery (P.8-11)
9. Fuse/fusible link box (P.8-18)
*: For Manual Transmission (MT) Model
Illustrated table of contents0-9
ENGINE COMPARTMENT

2-4Instruments and controls
JVC1090X
1. Side ventilator
2. Meters and gauges/Clock
3. Center ventilator
4. Audio system* or Navigation system**
— RearView Monitor*
— Around View
ŠMonitor*
— BluetoothŠHands-Free Phone System*5. Front passenger supplemental air bag
6. Fuse box cover
7. Fuel-filler door release handle
8. Hood release handle
9. Steering wheel lock lever
10. Driver’s front-impact air bag/Horn
11. Heater/air conditioner control12. Auxiliary input jack and USB connection port
13. Power outlet
14. Defroster switch
15. Glove box
*: if so equipped
**: See the separate Navigation System Owner’s
Manual (if so equipped) .
INSTRUMENT PANEL

8-4Do-it-yourself
JVC1070X

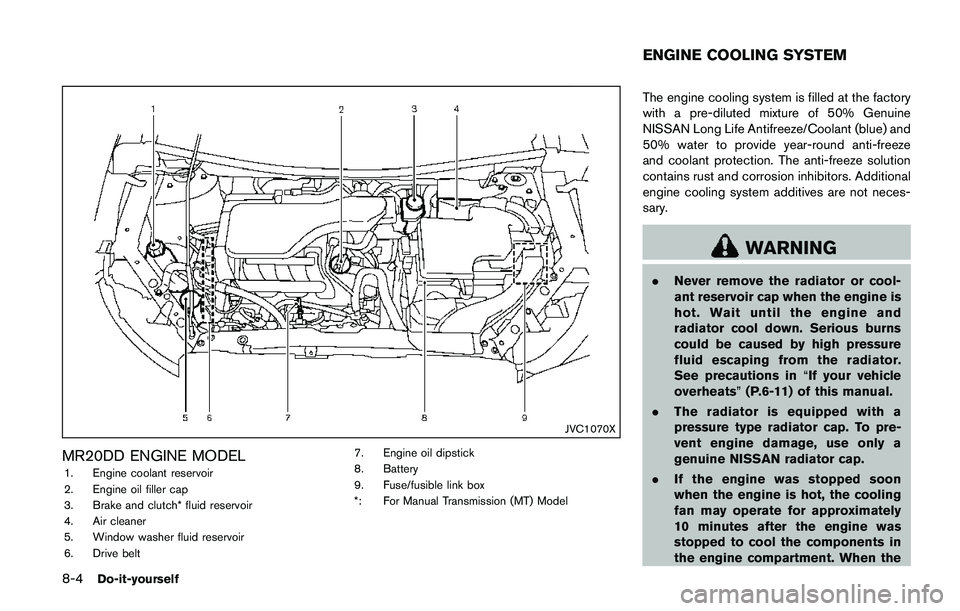

MR20DD ENGINE MODEL
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake and clutch* fluid reservoir
4. Air cleaner
5. Window washer fluid reservoir
6. Drive belt7. Engine oil dipstick
8. Battery
9. Fuse/fusible link box
*: For Manual Transmission (MT) Model
The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze
and coolant protection. The anti-freeze solution
contains rust and corrosion inhibitors. Additional
engine cooling system additives are not neces-
sary.
WARNING
.Never remove the radiator or cool-
ant reservoir cap when the engine is
hot. Wait until the engine and
radiator cool down. Serious burns
could be caused by high pressure
fluid escaping from the radiator.
See precautions in“If your vehicle
overheats”(P.6-11) of this manual.
.The radiator is equipped with a
pressure type radiator cap. To pre-
vent engine damage, use only a
genuine NISSAN radiator cap.
.If the engine was stopped soon
when the engine is hot, the cooling
fan may operate for approximately
10 minutes after the engine was
stopped to cool the components in
the engine compartment. When the
ENGINE COOLING SYSTEM

8-18Do-it-yourself
JVM0386X

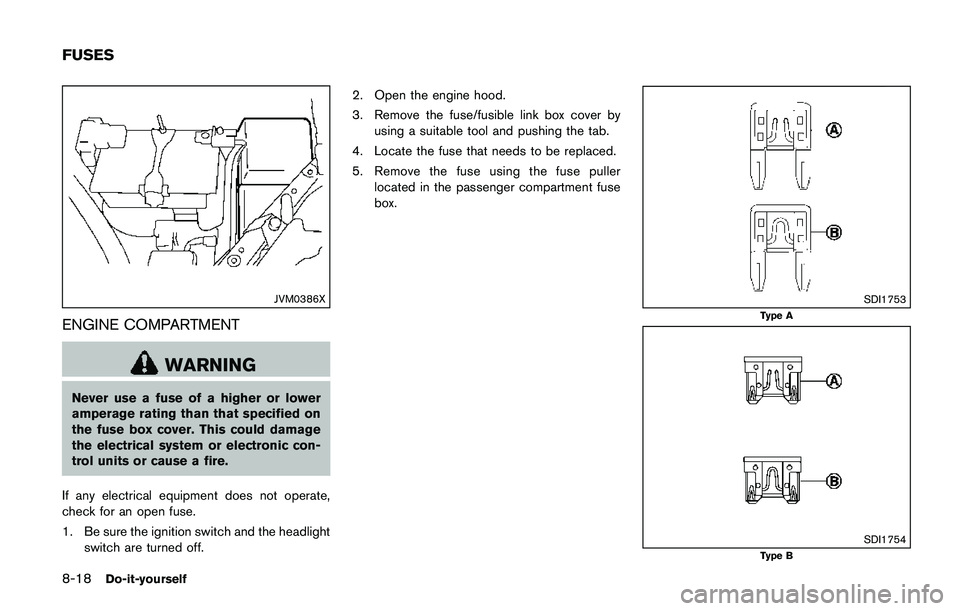

ENGINE COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight
switch are turned off.2. Open the engine hood.
3. Remove the fuse/fusible link box cover by
using a suitable tool and pushing the tab.
4. Locate the fuse that needs to be replaced.
5. Remove the fuse using the fuse puller
located in the passenger compartment fuse
box.
SDI1753
Type A
SDI1754Type B
FUSES

8-20Do-it-yourself
JVM0387X
PASSENGER COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight
switch are turned off.2. Remove the fuse box cover.
3. Remove the fuse with the fuse puller
*A.
SDI1754
4. If the fuse is open*A, replace it with a new
fuse
*B.
5. If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.

JVM0415X

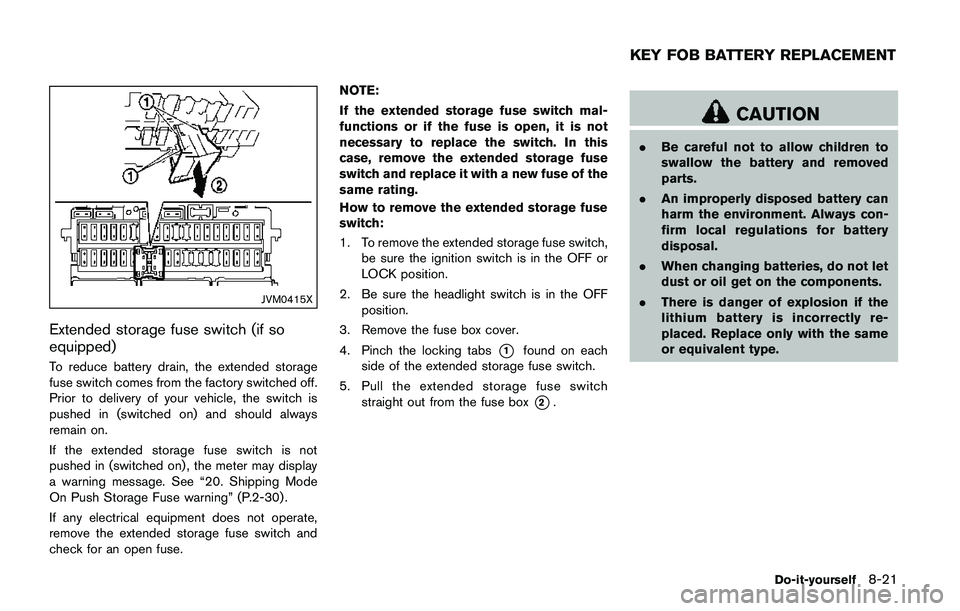

Extended storage fuse switch (if so
equipped)
To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on) , the meter may display
a warning message. See “20. Shipping Mode
On Push Storage Fuse warning” (P.2-30) .
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.NOTE:
If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
1. To remove the extended storage fuse switch,
be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF
position.
3. Remove the fuse box cover.
4. Pinch the locking tabs*1found on each
side of the extended storage fuse switch.
5. Pull the extended storage fuse switch
straight out from the fuse box
*2.
CAUTION
.Be careful not to allow children to
swallow the battery and removed
parts.
.An improperly disposed battery can
harm the environment. Always con-
firm local regulations for battery
disposal.
.When changing batteries, do not let
dust or oil get on the components.
.There is danger of explosion if the
lithium battery is incorrectly re-
placed. Replace only with the same
or equivalent type.
Do-it-yourself8-21
KEY FOB BATTERY REPLACEMENT

Fuel
Capacities and
recommended fluids/lubricants ........................ 10-2
Fuel economy ....................................................... 5-96
Fuel information .................................................... 10-3
Fuel octane rating ............................................... 10-3
Fuel-filler cap ........................................................ 3-27
Fuel-filler door ...................................................... 3-27
Gauge ........................................................................ 2-8
Fuel Efficient Driving Tips ........................................ 5-95
Fuses ............................................................................. 8-18
Fusible links ................................................................. 8-19
G
Gas cap ........................................................................ 3-27
Gauge .............................................................................. 2-5
Engine coolant temperature gauge ................... 2-7
Fuel gauge ............................................................... 2-8
Odometer ................................................................. 2-6
Speedometer ........................................................... 2-6
Tachometer ............................................................... 2-7
General maintenance .................................................. 9-2
Giving voice commands ........................................ 4-100
Glove box ..................................................................... 2-56
H
Hazard warning flasher switch .................................. 6-2
Head restraints/headrests .......................................... 1-6
Headlights
Bulb replacement ................................................ 8-25
Headlight switch .................................................. 2-43
Heated seats ............................................................... 2-50
Heated steering wheel .............................................. 2-49
Heater
Heater and air conditioner operation ............. 4-30High beam assist ........................................................ 2-45
Hill start assist system ........................................... 5-109
Hood release ............................................................... 3-24
Hook
Luggage hook ...................................................... 2-58
Horn ............................................................................... 2-49
I
Ignition switch ............................................................. 5-14
Ignition switch (model without Intelligent
Key system) ................................................................. 5-12
Ignition switch positions ........................................... 5-15
Immobilizer system ..................................................... 2-38
Indicator
Vehicle information display ................................ 2-18
Indicator lights ............................................................. 2-16
Inside mirror ................................................................. 3-31
Inspection/maintenance (I/M) test ....................... 10-18
Instrument brightness control .................................... 2-9
Instrument panel ........................................................... 2-4
Intelligent Cruise Control (ICC) .............................. 5-60
Intelligent Cruise Control (ICC) indicator ............ 2-30
Intelligent Key system ................................................ 3-11
Key operating range ........................................... 3-13
Key operation ........................................................ 3-14
Remote keyless operation ................................. 3-18
Interior light replacement .......................................... 8-27
Interior light switch ..................................................... 2-66
Interior lights ................................................................ 2-65
ISOFIX child restraint ................................................ 1-21
J
Jump starting ................................................................. 6-9
K
Key
Ignition switch (model without Intelligent
Key system) .......................................................... 5-12
Ignition switch positions .................................... 5-15
Key positions ............................................................... 5-14
Keyless entry
(See remote keyless entry system) ................... 3-8
With Intelligent Key system (See Intelligent
Key system) .......................................................... 3-18
Keys ................................................................................. 3-2
For Intelligent Key system ................................. 3-11
L
Labels
Air bag warning labels ....................................... 1-55
Air conditioner specification label ................. 10-10
Emission control information label ................ 10-10
Engine serial number .......................................... 10-9
F.M.V.S.S./C.M.V.S.S. certification label ........ 10-9
Tire and Loading information label .... 8-30, 10-10
Vehicle identification number (VIN) ................ 10-8
Lane Departure Prevention (LDP) .......................... 5-36
Lane Departure Warning (LDW) ............................ 5-31
LATCH system ............................................................ 1-21
License plate, Installing front license plate ....... 10-11
Liftgate
Liftgate release lever .......................................... 3-26
Operating manual liftgate .................................. 3-25
Light
Air bag warning light .......................................... 1-56
Bulb replacement ................................................ 8-25
Fog light switch ................................................... 2-48
Headlight switch .................................................. 2-43
Headlights bulb replacement ........................... 8-25
11-3
