2017 NISSAN PATHFINDER window

1. Front view camera (if so equipped)(P. 4-28)
2. Engine hood (P. 3-20)
3. Wiper and washer switch (P. 2-33)
4. Windshield-washer fluid (P. 8-11)
5. Power windows (P. 2-58)
6. Door locks (P. 3-5) NISSAN Intelligent Key® (P. 3-7)
Keys (P. 3-2)
7. Mirrors (P. 3-33) Side view camera (if so equipped)
(P. 4-28)
8. Tire pressure (P. 8-25) Flat tire (P. 6-3)
Tire chains (P. 8-25)
9. Fog light switch (if so equipped)
(P. 2-36)
10. Replacing bulbs (P. 8-22) Headlight and turn signal switch
(P. 2-36)
Daytime running lights (P. 2-36)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2456
EXTERIOR FRONT
Illustrated table of contents0-3

1. Antenna (P. 4-70)
2. Rear window wiper and washer switch(P. 2-33)
3. Liftgate release (P. 3-21) Rearview camera (P. 4-21, 4-28)
4. Rear sonar sensors (if so equipped)
(P. 5-73)
5. Replacing bulbs (P. 8-22)
6. Fuel-filler cap (P. 3-28) Fuel recommendation (P. 10-2)
Fuel-filler door (P. 3-28)
7. Child safety rear door lock (P. 3-5)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2474
EXTERIOR REAR
0-4Illustrated table of contents

1. Vents (P. 4-46)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-36)
3. Instrument brightness control (P. 2-36)
4. Driver supplemental air bag (P.1-49) Horn (P. 2-40)
5. Meters and gauges (P. 2-3) Warning and indicator lights (P. 2-10)
Vehicle information display (P. 2-18)
6. Twin trip odometer reset switch (P. 2-4)
7. Wiper and washer switch (P. 2-33) Rear window wiper and washer switch
(P. 2-33)
8. Control panel (P. 4-5)
9. Center display (P. 4-5) Navigation system* (if so equipped)
10. Front passenger air bag status light
(P. 1-49)
11. Front passenger supplemental air bag
(P. 1-49)
12. Glove box (P. 2-51)
13. Automatic heater and air conditioning
controls (P. 4-47)
14. Audio system controls (P. 4-55)
15. Hazard warning flasher switch (P. 6-2)
16. Push-button ignition switch (P. 5-10)
LII2409
INSTRUMENT PANEL
0-6Illustrated table of contents

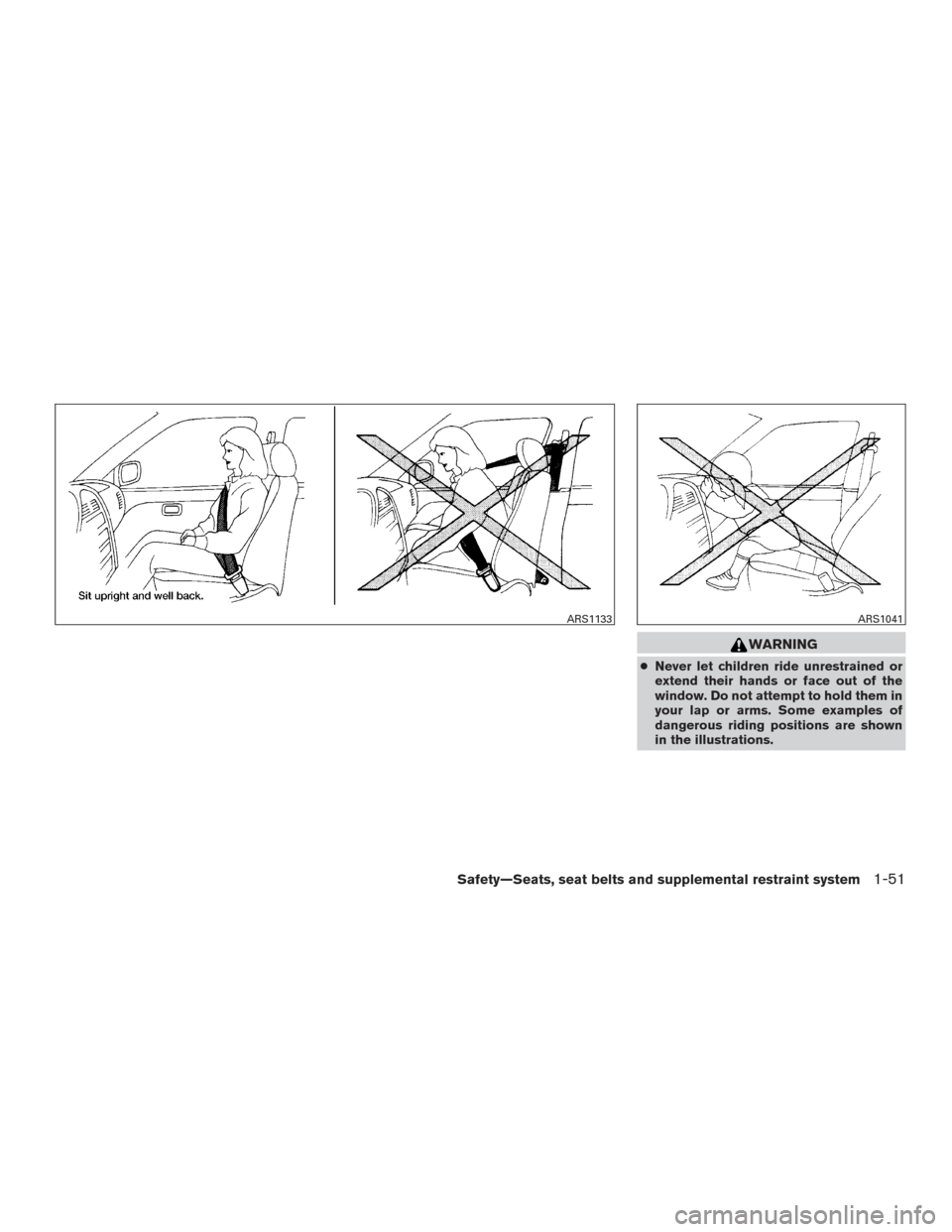

WARNING
●Never let children ride unrestrained or
extend their hands or face out of the
window. Do not attempt to hold them in
your lap or arms. Some examples of
dangerous riding positions are shown
in the illustrations.
ARS1133ARS1041
Safety—Seats, seat belts and supplemental restraint system1-51

WARNING
●The seat belts, the side air bags and
curtain air bags are most effective when
you are sitting well back and upright in
the seat with both feet on the floor. The
side air bag and curtain air bag inflate
with great force. Do not allow anyone to
place their hand, leg or face near the
side air bag on the side of the seatback
of the front seat or near the side roof
rails. Do not allow anyone sitting in the
front seats or rear outboard seats to
extend their hand out of the window or
lean against the door. Some examples
of dangerous riding positions are
shown in the previous illustrations.
WARNING
●When sitting in the rear seat, do not
hold onto the seatback of the front seat.
If the side air bag inflates, you may be
seriously injured. Be especially careful
with children, who should always be
properly restrained. Some examples of
dangerous riding positions are shown
in the illustrations.
● Do not use seat covers on the front
seatbacks. They may interfere with side
air bag inflation.
WRS0032SSS0162
1-54Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-5
Fuel gauge ....................................2-6
Compass (if so equipped) ..........................2-7
Compass display ...............................2-7
Warning lights, indicator lights and audible
reminders ........................................ 2-10
Checking lights ............................... 2-10
Warning lights ................................ 2-11
Indicator lights ................................ 2-15
Audible reminders ............................. 2-17
Vehicle Information Display ........................2-18
How to use the vehicle information display .......2-19
Startup display ................................ 2-19
Resetting the trip computer .....................2-19
Settings ...................................... 2-19
Vehicle information display warnings and
indicators ..................................... 2-26
Security systems ................................. 2-30
Vehicle security system ......................... 2-30NISSAN vehicle immobilizer system
.............2-31
Wiper and washer switch ......................... 2-33
Switch operation .............................. 2-33
Rear switch operation .......................... 2-34
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-35
Headlight and turn signal switch ....................2-36
Headlight control switch ........................ 2-36
LED Daytime Running Lights (DRL) ..............2-38
Instrument brightness control ...................2-39
Turn signal switch ............................. 2-39
Fog light switch (if so equipped) ................2-40
Horn ............................................ 2-40
Climate controlled seat switches (if so equipped) ....2-40
Heated seat switches (if so equipped) ..............2-41
Heated 2nd row seat switches (if so equipped) ......2-42
Heated steering

wheel switch (if so equipped) .......2-44
Vehicle Dynamic Control (VDC) off switch ...........2-44
Hill descent control (HDC) switch (if so equipped) . . . 2-45
Warning systems switch (if so equipped) ............2-46
Tow mode switch ................................. 2-46
E-call (SOS) switch (if so equipped) ................2-47
Power inverter switch (if so equipped) ..............2-47

Power outlets.................................... 2-48
12v outlets ................................... 2-48
120v outlet (if so equipped) ....................2-49
Extended storage switch .......................... 2-50
Storage ......................................... 2-51
Seatback pockets ............................. 2-51
Storage trays ................................. 2-51
Glove box .................................... 2-52
Console box .................................. 2-52
Overhead sunglasses storage ...................2-53
Cup holders .................................. 2-54
Cargo area storage bin ......................... 2-56
Luggage hooks ................................ 2-56
Roof rack (if so equipped) ......................2-57
Windows ........................................ 2-58
Power windows ............................... 2-58
Dual panel moonroof (if so equipped) ...............2-61Power moonroof
............................... 2-61
Interior lights ..................................... 2-63
Console light .................................. 2-63
Map lights .................................... 2-64
Personal lights ................................ 2-64
Cargo light ................................... 2-64
Homelink® Universal Transceiver (if so equipped) ....2-65
Programming HomeLink® ......................2-66
Programming HomeLink® for Canadian
customers and gate openers ....................2-67
Operating the HomeLink® Universal
Transceiver ................................... 2-68
Programming trouble-diagnosis .................2-68
Clearing the programmed information ............2-68
Reprogramming a single HomeLink® button ......2-68
If your vehicle is stolen ......................... 2-69

1. Vents (P. 4-46)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-36)
3. Instrument brightness control (P. 2-36)
4. Driver supplemental air bag (P.1-49) Horn (P. 2-40)
5. Meters and gauges (P. 2-3) Warning and indicator lights (P. 2-10)
Vehicle information display (P. 2-18)
6. Twin trip odometer reset switch (P. 2-4)
7. Wiper and washer switch (P. 2-33) Rear window wiper and washer switch
(P. 2-33)
8. Control panel (P. 4-5)
9. Center display (P. 4-5) Navigation system* (if so equipped)
10. Front passenger air bag status light
(P. 1-49)
11. Front passenger supplemental air bag
(P. 1-49)
12. Glove box (P. 2-51)
13. Automatic heater and air conditioning
controls (P. 4-47)
14. Audio system controls (P. 4-55)
15. Hazard warning flasher switch (P. 6-2)
16. Push-button ignition switch (P. 5-10)
LII2409
INSTRUMENT PANEL
2-2Instruments and controls
