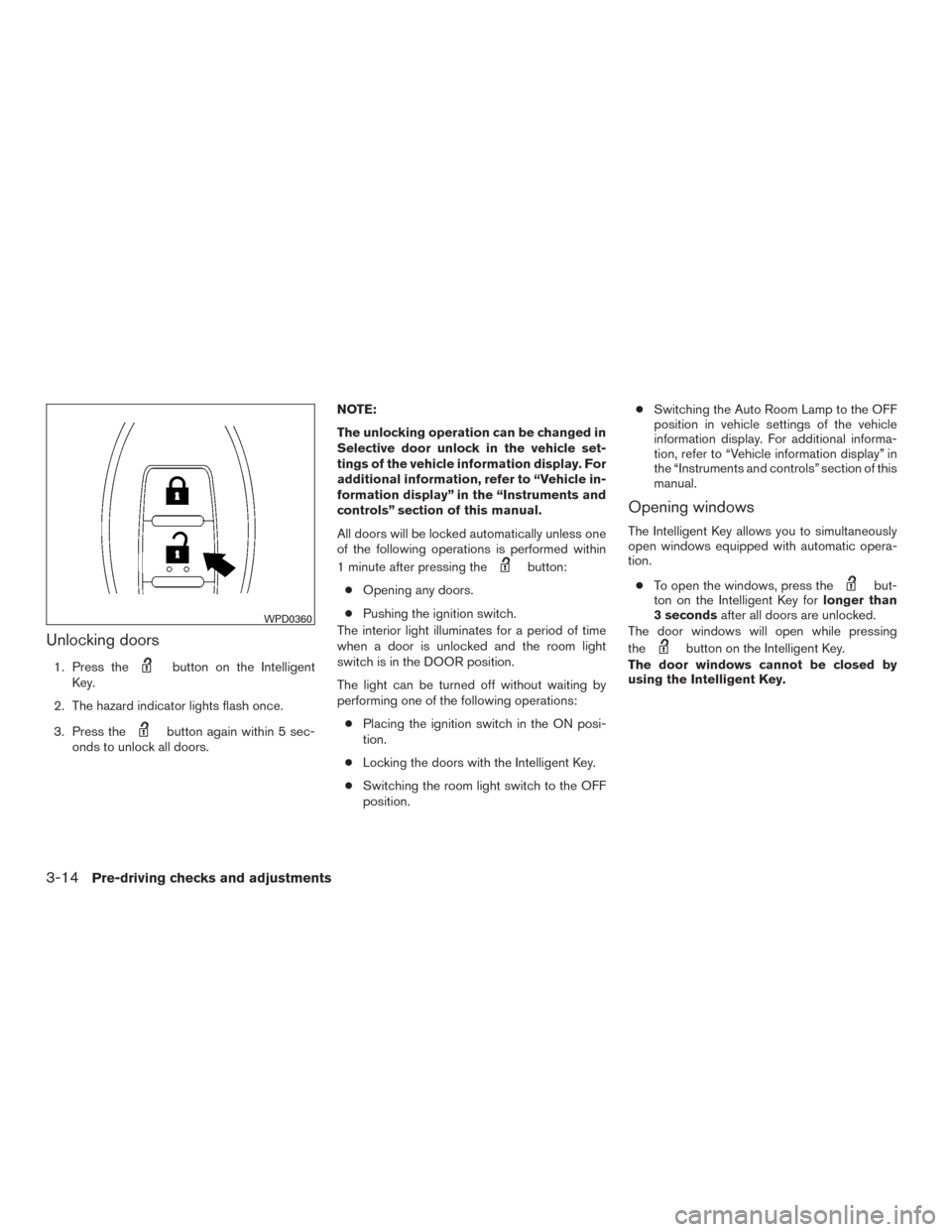

Unlocking doors
1. Press thebutton on the Intelligent
Key.
2. The hazard indicator lights flash once.
3. Press the
button again within 5 sec-
onds to unlock all doors. NOTE:
The unlocking operation can be changed in
Selective door unlock in the vehicle set-
tings of the vehicle information display. For
additional information, refer to “Vehicle in-
formation display” in the “Instruments and
controls” section of this manual.
All doors will be locked automatically unless one
of the following operations is performed within
1 minute after pressing the
button:
● Opening any doors.
● Pushing the ignition switch.
The interior light illuminates for a period of time
when a door is unlocked and the room light
switch is in the DOOR position.
The light can be turned off without waiting by
performing one of the following operations:
● Placing the ignition switch in the ON posi-
tion.
● Locking the doors with the Intelligent Key.
● Switching the room light switch to the OFF
position. ●
Switching the Auto Room Lamp to the OFF
position in vehicle settings of the vehicle
information display. For additional informa-
tion, refer to “Vehicle information display” in
the “Instruments and controls” section of this
manual.
Opening windows
The Intelligent Key allows you to simultaneously
open windows equipped with automatic opera-
tion.
● To open the windows, press the
but-
ton on the Intelligent Key for longer than
3 seconds after all doors are unlocked.
The door windows will open while pressing
the
button on the Intelligent Key.
The door windows cannot be closed by
using the Intelligent Key.
WPD0360
3-14Pre-driving checks and adjustments

Answer back horn feature
If desired, the answer back horn feature can be
deactivated using the Intelligent Key. When it is
deactivated and the LOCK
button is
pressed, the hazard indicator lights flash twice.
When the UNLOCK
button is pressed,
neither the hazard indicator lights nor the horn
operates. NOTE:
If you change the answer back horn and
light flash feature with the Intelligent Key,
the vehicle information display screen will
show the current mode after the ignition
switch has been cycled from the OFF to the
ON position. The vehicle information dis-
play screen can also be used to change the
answer back horn mode.
To deactivate:
Press and hold the
andbuttonsfor at least 2 seconds.
The hazard indicator lights will flash three times to
confirm that the answer back horn feature has
been deactivated.
To activate: Press and hold the
andbuttonsfor at least 2 seconds once
more.
The hazard indicator lights will flash once and the
horn will sound once to confirm that the horn
beep feature has been reactivated.
Deactivating the horn beep feature does not si-
lence the horn if the alarm is triggered.
WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelligent
Key or to help prevent the vehicle from being
stolen, a chime or buzzer sounds from inside and
outside the vehicle and a warning is displayed in
the instrument panel.
When a chime or beep sounds or a warning is
displayed, be sure to check the vehicle and the
Intelligent Key.
For additional information, refer to the “Trouble-
shooting guide” in this section and “Vehicle infor-
mation display” in the “Instruments and controls”
section of this manual.
TROUBLESHOOTING GUIDE
Verify the location of all Intelligent Keys that are
programmed for the vehicle. If another Intelligent
Key is in range or inside the vehicle, the vehicle
system may respond differently than expected.
WPD0362
3-16Pre-driving checks and adjustments

NOTE:
If a NEW memory position is stored in the
linked memory switch, then the key fob will
link the NEW position and overwrites the
previous position.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and automatic operation steering column will au-
tomatically move when the shift lever is in the P
(Park) position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering column will move up:● When the driver’s door is opened with the
ignition switch placed in the OFF position.
● When the ignition switch is changed from
ACC to OFF with the driver’s door open.
The driver’s seat and steering wheel will return to
the previous position: ● When the ignition switch is changed from
ACC or ON while the shift lever is in the P
(Park) position.
The entry/exit function can be adjusted or can-
celed through the vehicle settings in the vehicle
information display by performing the following: ● Switch the Exit Seat Slide from ON to OFF. ●
Switch the Exit Steering UP from ON to
OFF.
Restarting the entry/exit function
If the battery cable is disconnected, or if the fuse
opens, the stored memory positions will be lost
and some of the functions will be restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch in the OFF
position.
The entry/exit function should now work properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memorized
settings can be available for each Intelligent Key. ● Climate control system
● Navigation system (if so equipped)
● Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s pre-
ferred settings. Lock the doors with the Intelligent
Key. Each Intelligent Key may be set with the
driver’s individual preferences. When a new In- telligent Key is used, “Connection with the key
has been done” will be displayed on the screen
and the memorized settings are available.
To engage the memorized settings, perform the
following:
1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
UNLOCK
button on the Intelligent
Key.
3. Place the ignition switch in the “ON” posi- tion. The settings linked to the Intelligent Key
will start.
For additional information, refer to “Heater and air
conditioner (automatic)” in the “Monitor, climate,
audio, phone and voice recognition systems”
section of this manual.
For additional information on using the Naviga-
tion System, refer to the separate Navigation
System Owner’s Manual.
For additional information on using the Audio
system, refer to “Audio system” in the “Monitor,
climate, audio, phone and voice recognition sys-
tems” section of this manual.
3-38Pre-driving checks and adjustments

Clock Settings
This changes the clock settings.
StepMenu item Action
1. Push the SETTINGbutton.
2. Touch Clock. On-Screen Clock
Sets the clock display on/off. When this item is on, the
clock display appears.
Daylight Savings Time Toggles the setting for daylight saving time between ON or
OFF.
Clock Format (24h) Toggles the clock format between 12–hour and 24–hour
times. When the indicator light illuminates, the clock is set
to the 24–hour format.
Time Zone Selects an appropriate time zone from the list. When se-
lecting AUTO, the system selects the time zone
automatically.
Offset Adjustment Adjusts the offset value (hour and minutes) .
5GH0283X
Monitor, climate, audio, phone and voice recognition systems4-17

SONAR SYSTEM OPERATION
The system gives the tone for rear objects when
the shift lever is in the “R” (Reverse) position.
When the camera image is shown on the center
display, the system shows the sonar indicator
regardless of the shift lever position.
The system is deactivated at speeds above
6 mph (10 km/h). It is reactivated at lower
speeds.
The colors of the sonar indicators and the dis-
tance guide lines in the front and rear views
indicate different distances to the object.
When the objects are detected, the indicator
(green) appears and blinks and the tone sounds
intermittently. When the vehicle moves closer to
the object, the color of the indicator turns yellow
and the rate of the blinking and the rate of the
tone increase. When the vehicle is very close to
the object, the indicator stops blinking and turns
red, and the tone sounds continuously.
The intermittent tone will stop after 3 seconds
when an object is detected by only the corner
sonar and the distance does not change.
The tone will stop when the object is no longer
near the vehicle.
TURNING ON AND OFF THE
SONAR FUNCTION
When the Sonar key is selected, the indicatorB
will turn off and the sonar will be turned off
temporarily. The Moving Object Detection
(MOD) system will also be turned off at the same
time. For additional information, refer to “Moving
Object Detection (MOD) in this section. When
the Sonar key is selected again, the indicator will
turn on and the sonar will turn back on.
In the below cases, the sonar will be turned back
on automatically:● When the shift lever is placed in the “R”
(Reverse) position. ●
When the CAMERA button is pressed and a
screen other than the camera view is shown
on the display.
● When vehicle speed decreases below ap-
proximately 6 mph (10 km/h).
● When the ignition switch is placed in the
“OFF” position and turned back to the “ON”
position again. To prevent the sonar system
from activating altogether, use the “Camera”
menu. For additional information, refer to
“Sonar function settings” in this section.
LHA4246LHA4247
4-40Monitor, climate, audio, phone and voice recognition systems

The air conditioner system in your NISSAN ve-
hicle is charged with a refrigerant designed with
the environment in mind.
This refrigerant does not harm the earth’s
ozone layer.
Special charging equipment and lubricant is re-
quired when servicing your NISSAN air condi-
tioner. Using improper refrigerants or lubricants
will cause severe damage to your air conditioner
system. For additional information, refer to “Air
conditioner system refrigerant and oil recommen-
dations” in the “Technical and consumer informa-
tion” section of this manual.
It is recommended that you visit a NISSAN dealer
to service your “environmentally friendly” air con-
ditioner system.
WARNING
The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment.
AUDIO OPERATION PRECAUTIONS
WARNING
●The driver must not attempt to operate
the audio system while the vehicle is in
motion, so that full attention may be
given to the vehicle operation.
● Park the vehicle in a safe location and
apply the parking brake before operat-
ing the audio system and playing mov-
ies (where fitted) .
CAUTION
●Operate the audio system only when
the vehicle engine is running. Operating
the audio system for extended periods
of time with the engine turned off can
discharge the vehicle battery.
● Do not allow these systems to get wet.
Excessive moisture such as spilled liq-
uids may cause the system to
malfunction.
Radio
Place the ignition switch in the ACC or ON position
before turning on the radio. If you listen to the radio
when the engine is not running, the ignition switch
should be pushed to ACC position.
Radio reception is affected by station signal
strength, distance from the radio transmitter,
buildings, bridges, mountains, and other external
influences. Intermittent changes in reception
quality are normally caused by these external
influences.
Using a cellular phone in or near the vehicle
may influence radio reception quality.
Radio reception
Your radio system is equipped with state-of-the-
art electronic circuits to enhance radio reception.
These circuits are designed to extend reception
range, and to enhance the quality of that recep-
tion.
However there are some general characteristics
of both FM and AM radio signals that can effect
radio reception quality in a moving vehicle, even
when the best quality equipment is used. These
characteristics are completely normal in a given
reception area, and do not indicate any malfunc-
tion in your radio system.
Reception conditions will constantly change be-
cause of vehicle movement. Buildings, terrain,
signal distance and interference from other ve-
hicles can adversely affect ideal reception. De-
scribed below are some of the factors that can
affect radio reception.
SERVICING AIR CONDITIONER AUDIO SYSTEM
Monitor, climate, audio, phone and voice recognition systems4-55

Bluetooth® Audio player
The Bluetooth® word mark and logos are regis-
tered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by DENSO
CORPORATION is under license. Other trade-
marks and trade names are those of their respec-
tive owners.● Some Bluetooth® streaming audio devices
may not be recognized by the in-vehicle
audio system.
● It is necessary to set up the wireless con-
nection between a compatible Bluetooth®
streaming audio device and the in-vehicle
Bluetooth® module before using the
Bluetooth® streaming audio.
● The Bluetooth® streaming audio may be
stopped under the following conditions:
– When receiving a hands-free call
– When checking the connection to the hand-free phone
– When connecting the hands-free phone or audio device – When downloading a phonebook
memory from a connected cellular phone
● Do not place a Bluetooth® streaming
audio device in an area surrounded by
metal or far away from the in-vehicle
Bluetooth® module to prevent tone qual-
ity degradation and wireless connection
disruption.
● While an audio device is connected
through Bluetooth® wireless connection,
the battery of the device may discharge
quicker than usual.
● This system supports the Bluetooth® Ad-
vanced Audio Distribution Profile (A2DP)
and Audio/Video Remote Control Profile
(AVRCP) .
● Wireless LAN (Wi-Fi) and the
Bluetooth® functions share the same fre-
quency band (2.4 GHz) . Using the
Bluetooth® and the wireless LAN func-
tions at the same time may slow down or
disconnect the communication and
cause undesired noise. It is recom-
mended that you turn off the wireless LAN
(Wi-Fi) when using the Bluetooth® func-
tions. Regulatory Information
La operación de este equipo está sujeta a las
siguientes dos condiciones: (1) es posible que
este equipo o dispositivo no cause interferencia
perjudicial y (2) este equipo o dispositivo debe
aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada.
FCC Regulatory Information
FCC ID: HYQDNNS086
NOTE:
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
FCC WARNING: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
CAUTION: Radio Frequency Radiation Exposure
4-64Monitor, climate, audio, phone and voice recognition systems

NAMES AND FUNCTIONS OF
AUDIO CONTROL BUTTONSMain audio buttons
1button
Push to eject a disc.
2Disc slot: Insert a disc with the label side facing up.
3Radio memory buttons
Up to six preferred stations can be regis-
tered in the preset list for each band.
4VOL/ON•OFF button
Push to turn the audio system on/off.
Turn to adjust the volume.
5RADIO button
Push to switch to the radio mode. The radio
band will switch between AM, FM and SXM
(SiriusXM) each time the button is pushed.
6SCAN button
Scans at each broadcasting station/channel
for 5 seconds. Pushing the button again will
stop SCAN tuning and the radio will remain
tuned to that station/channel.
7RPT RDM button
Changes the play mode.
8DISC button
Plays the CD or DVD.
9SEEK•CAT button
Functions to seek radio stations or to skip
and fast-forward /rewind through tracks.
LHA4356
4-68Monitor, climate, audio, phone and voice recognition systems
