2017 NISSAN MICRA odometer

NISSAN CARES...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your NISSAN
dealer cannot assist you with or you would like to
provide NISSAN directly with comments or
questions, please contact the NISSAN Con-
sumer Affairs Department using our toll-free
number:
1-800-387-0122The Consumer Affairs Department will ask for the
following information:
– Your name, address and telephone number
– Vehicle identification number (attached to the
top of the instrument panel on the driver’s
side)
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR You can write to NISSAN with the information at:
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
[email protected]
If you prefer, visit us at:
www.nissan.ca
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.
NISSAN CUSTOMER CARE PROGRAM

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Fuel gauge ....................................2-5
Trip computer ..................................2-6
Warning lights, indicator lights and audible
reminders .........................................2-7
Checking lights ................................2-7
Warning lights .................................2-8
Indicator lights ................................ 2-10
Audible reminders ............................. 2-13
Security systems ................................. 2-13
NISSAN vehicle immobilizer system .............2-13
Wiper and washer switch ......................... 2-15
Switch operation .............................. 2-15
Rear switch operation .......................... 2-16
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-17
Headlight and turn signal switch ....................2-17Headlight control switch
........................ 2-17
Daytime running light system ....................2-18
Instrument brightness control ...................2-19
Turn signal switch ............................. 2-19
Front fog lights (if so equipped) .................2-20
Horn ............................................ 2-20
Vehicle Dynamic Control (VDC) off switch ...........2-21
Power outlet ..................................... 2-21
Storage ......................................... 2-22
Front-door pockets ............................ 2-22
Storage trays (if so equipped) ...................2-22
Glove box .................................... 2-23
Cup holders .................................. 2-23
Cargo cover (if so equipped) ....................2-24
Windows ........................................ 2-26
Power windows (if so equipped) ................2-26
Manual windows (if so equipped) ................2-28
Interior light ...................................... 2-28
Luggage compartment light ........................2-29

21. Audio control switches (if so equipped)(P.4-45)
Bluetooth® hands-free phone system
controls (if so equipped) (P. 4-47)
22. Fuel-filler door release lever (P. 3-10) Hood release lever (P. 3-8)
23. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-21)
24. Electronic outside rearview mirror con-
trol switch (if so equipped) (P. 3-15)
Refer to the page number indicated in pa-
rentheses for operating details.
1. Tachometer
2. Speedometer
3. OdometerTrip computer
4. Instrument brightness control knob
5. Change/reset button
LIC3356
METERS AND GAUGES
Instruments and controls2-3

SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located in the
center of the meter cluster. The odometer is
located within the trip computer.
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
2records the total distance the
vehicle has been driven.
The twin trip odometer
3records the distance of
individual trips. Changing the display
Press the change button
1to change the dis-
play as follows:
Odo →Trip A →Trip B →Ins fuel consumption →
Average fuel consumption →Cruising range or
(DTE) →Odo
For trip computer information, refer to “Trip com-
puter” in this section.
Resetting the trip odometer
Press the change/reset button
1for more than
1 second to reset the currently displayed trip
odometer to zero.
LIC3419LIC3420
2-4Instruments and controls

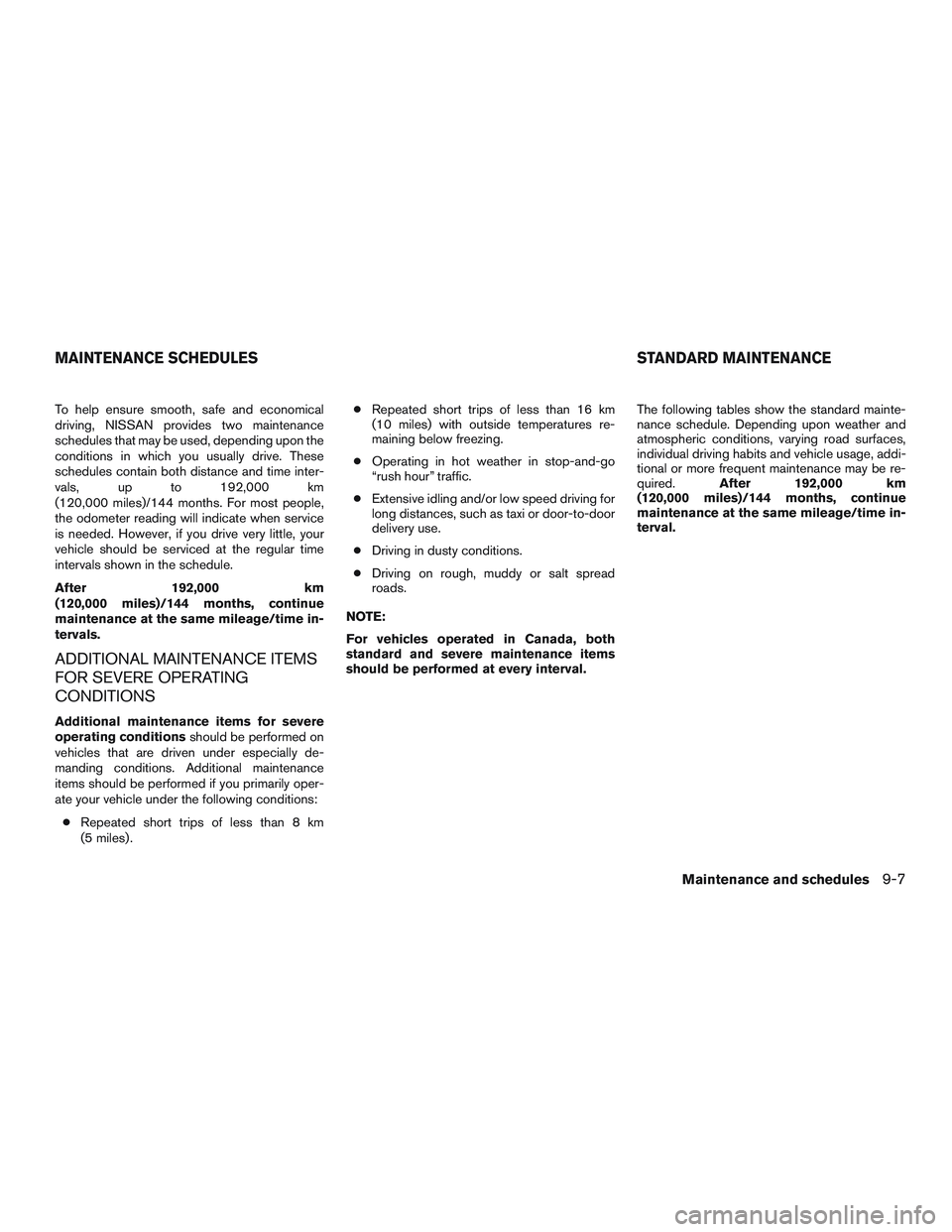

To help ensure smooth, safe and economical
driving, NISSAN provides two maintenance
schedules that may be used, depending upon the
conditions in which you usually drive. These
schedules contain both distance and time inter-
vals, up to 192,000 km
(120,000 miles)/144 months. For most people,
the odometer reading will indicate when service
is needed. However, if you drive very little, your
vehicle should be serviced at the regular time
intervals shown in the schedule.
After 192,000 km
(120,000 miles)/144 months, continue
maintenance at the same mileage/time in-
tervals.
ADDITIONAL MAINTENANCE ITEMS
FOR SEVERE OPERATING
CONDITIONS
Additional maintenance items for severe
operating conditionsshould be performed on
vehicles that are driven under especially de-
manding conditions. Additional maintenance
items should be performed if you primarily oper-
ate your vehicle under the following conditions:
● Repeated short trips of less than 8 km
(5 miles) . ●
Repeated short trips of less than 16 km
(10 miles) with outside temperatures re-
maining below freezing.
● Operating in hot weather in stop-and-go
“rush hour” traffic.
● Extensive idling and/or low speed driving for
long distances, such as taxi or door-to-door
delivery use.
● Driving in dusty conditions.
● Driving on rough, muddy or salt spread
roads.
NOTE:
For vehicles operated in Canada, both
standard and severe maintenance items
should be performed at every interval. The following tables show the standard mainte-
nance schedule. Depending upon weather and
atmospheric conditions, varying road surfaces,
individual driving habits and vehicle usage, addi-
tional or more frequent maintenance may be re-
quired.
After 192,000 km
(120,000 miles)/144 months, continue
maintenance at the same mileage/time in-
terval.
MAINTENANCE SCHEDULES STANDARD MAINTENANCE
Maintenance and schedules9-7

Fuel recommendation............10-4
Loose fuel cap warning ............2-5
Fuel efficient driving tips .............5-17
Fuel-filler door ..................3-10
Fuel gauge .....................2-5
Fuses.......................8-17
Fusible links ...................8-17
G
Gascap .....................3-10
Gauge Fuel gauge ...................2-5
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip computer .................2-6
Trip odometer .................2-4
General maintenance ...............9-2
Glovebox.....................2-23
H
Hands-free phone system, Bluetooth® ....4-47
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-17
Headlightcontrolswitch ............2-17
Headlights....................8-21
Head restraints ..................1-6
Heater Heater and air conditioner controls . .4-8, 4-16
Heater operation ...........4-10,4-18
Hood ........................3-8
Horn .......................2-20 I
Ignition switch ...................5-5
Immobilizer system .............2-13,5-7
Important vehicle information label ......10-11
In-cabin microfilter ................8-14
Increasing fuel economy .............5-18
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-10
Instrument brightness control ..........2-19
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-19
Interiorlight....................2-28
iPod® Player ...................4-43
ISOFIX child restraints .............1-23
J
Jump starting ...............6-10,8-12
K
Key.........................3-2
Key fob battery replacement .......8-20,8-20
Keyless entry Without Intelligent Key system
(See remote keyless entry system) . . .3-5, 3-6
Keys NISSAN Vehicle Immobilizer System keys . .3-2 L
Labels Air conditioner specification label .....10-12
C.M.V.S.S. certification label .......10-11
Emission control information label ....10-11
Engine serial number ............10-11
Tire and Loading Information label ....10-12
Vehicle identification number (VIN) ....10-10
Vehicle identification number (VIN)
plate .....................10-10
Warning labels (for SRS) ..........1-58
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-23
License plate Installing the license plate .........10-12
Light A

irbagwarninglight.........1-58,2-10
Brake light (See stop light) .........8-26
Bulb check/instrument panel .........2-7
Bulb replacement ..............8-26
Charge warning light .............2-8
Exterior and Interior lights ..........8-26
Foglights...................8-25
Headlightandturnsignalswitch......2-17
Headlight control switch ..........2-17
Headlights..................8-21
Interior light ..................2-28
Lightbulbs..................8-21
Low windshield-washer fluid warning
light.......................2-9
Passenger air bag and status light .....1-50
Security indicator light ............2-12
Warning/indicator lights and audible
reminders ...................2-10
11-3

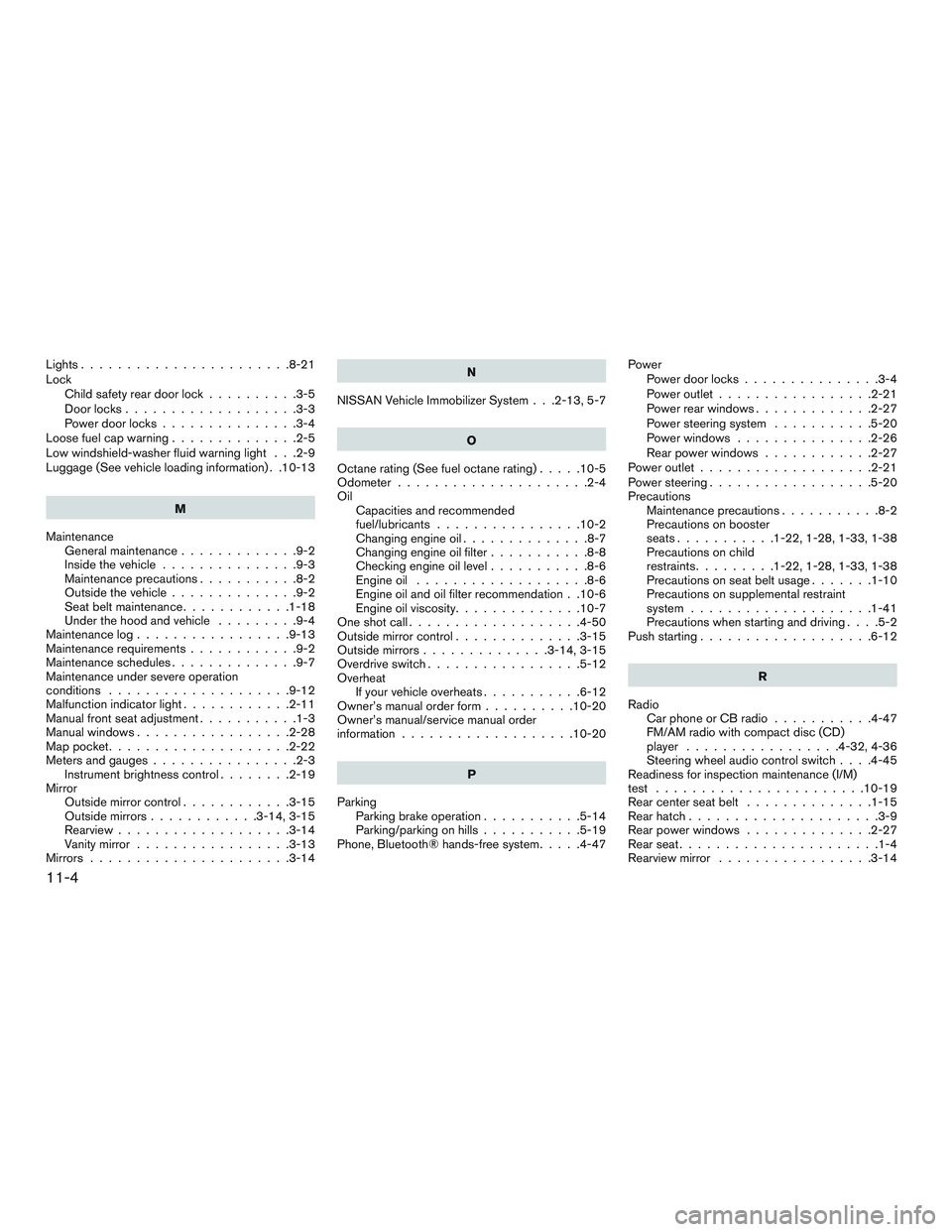

Lights.......................8-21
LockChild safety rear door lock ..........3-5
Door locks ...................3-3
Power door locks ...............3-4
Loose fuel cap warning ..............2-5
Low windshield-washer fluid warning light . . .2-9
Luggage (See vehicle loading information) . .10-13
M
Maintenance Generalmaintenance.............9-2
Insidethevehicle...............9-3
Maintenanceprecautions...........8-2
Outsidethevehicle..............9-2
Seat belt maintenance ............1-18
Under the hood and vehicle .........9-4
Maintenance log .................9-13
Maintenance requirements ............9-2
Maintenance schedules ..............9-7
Maintenance under severe operation
conditions ....................9-12
Malfunctionindicatorlight............2-11
Manual front seat adjustment ...........1-3
Manual windows .................2-28
Map pocket ....................2-22
Meters and gauges ................2-3
Instrument brightness control ........2-19
Mirror Outside mirror control ............3-15
Outside mirrors ............3-14,3-15
Rearview ...................3-14
Vanity mirror .................3-13
Mirrors ......................3-14 N
NISSAN Vehicle Immobilizer System . . .2-13, 5-7
O
Octane rating (See fuel octane rating) .....10-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants ................10-2
Changingengineoil..............8-7
Changing engine oil filter ...........8-8
Checking engine oil level ...........8-6
Engineoil ...................8-6
Engine oil and oil filter recommendation . .10-6
Engine oil viscosity ..............10-7
Oneshotcall...................4-50
Outside mirror control ..............3-15
Outside mirrors ..............3-14,3-15
Overdrive switch .................5-12
Overheat If your vehicle overheats ...........6-12
Owner’s manual order form ..........10-20
Owner’s manual/service manual order
information ...................10-20
P
Parking Parking brake operation ...........5-14
Parking/parking on hills ...........5-19
Phone, Bluetooth® hands-free system .....4-47Power
Power door locks ...............3-4
Poweroutlet.................2-21
Power rear windows .............2-27
Power steering system ...........5-20
Power windows ...............2-26
Rear power windows ............2-27
Poweroutlet...................2-21
Power steering ..................5-20
Precautions Maintenance precautions ...........8-2
Precautions on booster
seats...........1-22,1-28,1-33,1-38
Precautions on child
restraints .........1-22,1-28,1-33,1-38
Precautionsonseatbeltusage.......1-10
Precautions
on supplemental restraint
system ....................1-41
Precautions when starting and driving ....5-2
Push starting ...................6-12
R
Radio CarphoneorCBradio ...........4-47
FM/AM radio with compact disc (CD)
player .................4-32,4-36
Steering wheel audio control switch ....4-45
Readiness for inspection maintenance (I/M)
test .......................10-19
Rearcenterseatbelt ..............1-15
Rear hatch .....................3-9
Rear power windows ..............2-27
Rearseat......................1-4
Rearview mirror .................3-14
11-4

RearViewMonitor.................4-2
Rear window and outside mirror defroster
switch.......................2-17
Rear window wiper and washer switches . . .2-16
Recommended Fluids..............10-2
Recorders EventData .................10-20
Refrigerant recommendation ..........10-7
Registering a vehicle in another country . . .10-10
Remote keyless entry system ........3-5,3-6
Reporting safety defects (US only) ......10-19
S
Safety Child safety rear door lock ..........3-5
Childseatbelts.....1-22,1-28,1-33,1-38
Reporting safety defects (US only) ....10-19
Seat adjustment Front manual seat adjustment ........1-3
Rear seat adjustment .............1-4
Seat belt Child safety ..................1-19
Infantsandsmallchildren..........1-20
InjuredPerson................1-13
Largerchildren................1-20
Precautionsonseatbeltusage.......1-10
Pregnant women ...............1-13
Rear center seat belt ............1-15
Seat belt extenders .............1-18
Seat belt maintenance ............1-18
Seat belts ................1-10,7-6
Shoulder belt height adjustment ......1-18
Three-point type with retractor .......1-13
Seat belt extenders ...............1-18 Seat belt warning light
..........1-12,2-10
Seats Adjustment...................1-2
Front seats ...................1-2
Manual front seat adjustment .........1-3
Rear seat ....................1-4
Security indicator light ..............2-12
Security system (NISSAN Vehicle Immobilizer
System) , engine start ...........2-13,5-7
Security systems Vehicle security system ...........2-13
Self-adjusting brakes ..............8-16
Service manual order form ...........10-20
Servicing air conditioner .............4-24
Shifting Automatic transmission ...........5-10
Manual transmission .............5-13
Shift lock release .................5-11
Shoulder belt height adjustment ........1-18
Side air bag system (See supplemental
side air bag and curtain side-impact air bag
system) ......................1-55
Spark plug replacement .............8-13
Sparkplugs ...................8-13
Specifications ..................10-8
Speedometer ...................2-4
Speedometer and odometer ...........2-4
SRS warning label ................1-58
Stability control .................5-23
Standard maintenance ..............9-7
Starting Before starting the engine ..........5-7
Jump starting .............6-10,8-12
Precautions when starting and driving ....5-2
Push starting .................6-12
Starting the engine ..............5-7 Starting the engine
................5-7
Steering P
ower steering system ...........5-20
Tilting steering wheel ............3-12
Steeringwheel..................3-12
Steeringwheelaudiocontrolswitch......4-45
Stoplight.....................8-26
Storage......................2-22
Storage tray ...................2-22
Sun visors ....................3-12
Supplemental air bag warning labels ......1-58
Supplemental air bag warning light . . .1-58, 2-10
Supplemental front impact air bag system . . .1-48
Supplemental restraint system Information and warning labels .......1-58
Precautions on supplemental restraint
system ....................1-41
Supplemental restraint system
(Supplemental air bag system) .........1-41
Supplemental side and curtain side-impact
air bag system ..................1-55
Switch Automatic power window switch ......2-27
Hazard warning flasher switch ........6-2
Headlightandturnsignalswitch......2-17
Headlight control switch ..........2-17
Ignition switch .................5-5
Instrument brightness control ........2-19
Overdrive switch ...............5-12
Powerdoorlockswitch............3-4
Rear window and outside mirror defroster
switch.....................2-17
Rear window wiper and washer switches. .2-16
Turnsignalswitch..............2-19
Vehicle dynamic control (VDC) off
switch.....................2-21
11-5
