2017 NISSAN MAXIMA Owners Manual

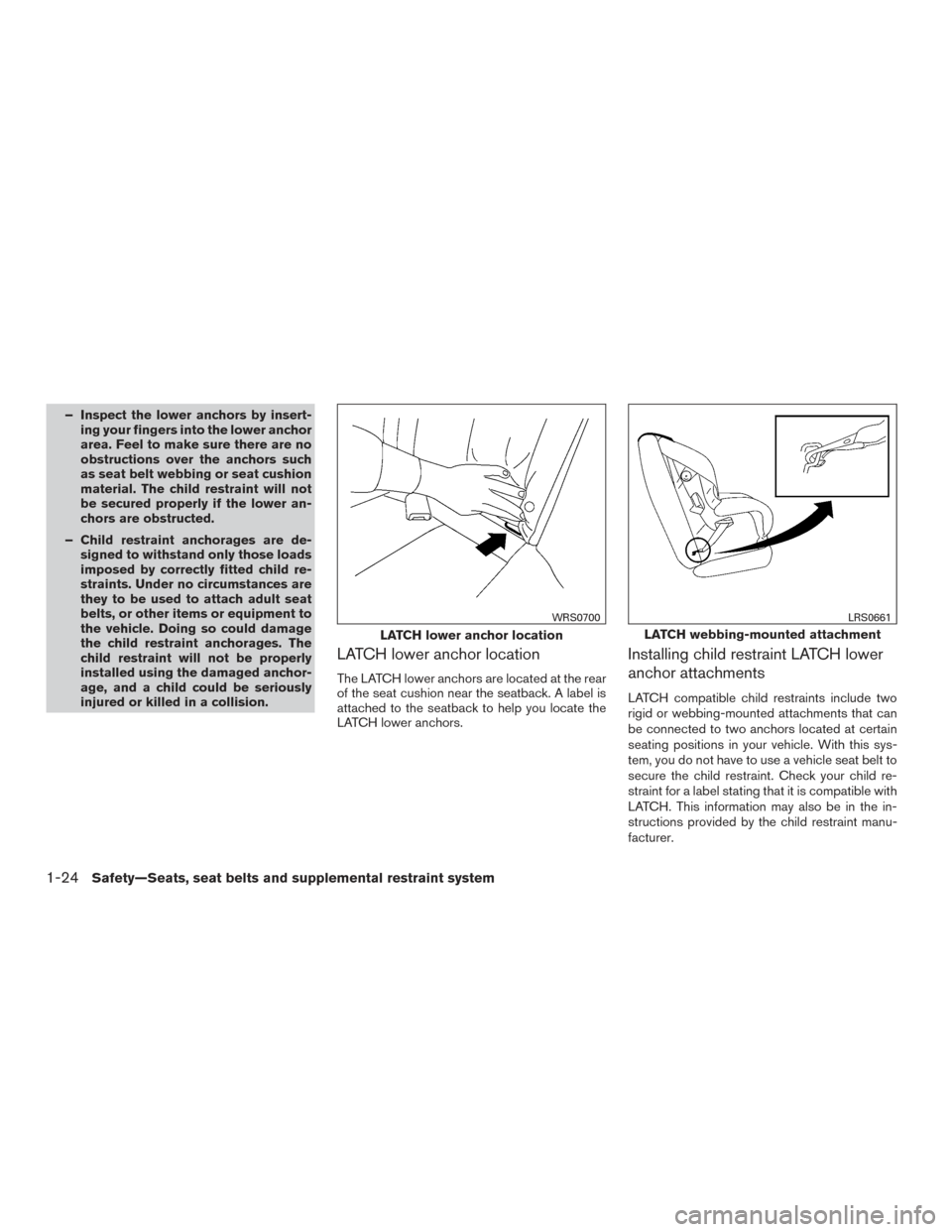

Page 41 of 406

NISSAN MAXIMA 2017 A36 / 8.G Owners Manual – Inspect the lower anchors by insert-ing your fingers into the lower anchor
area. Feel to make sure there are no
obstructions over the anchors such
as seat belt webbing or seat cushion
material. Th

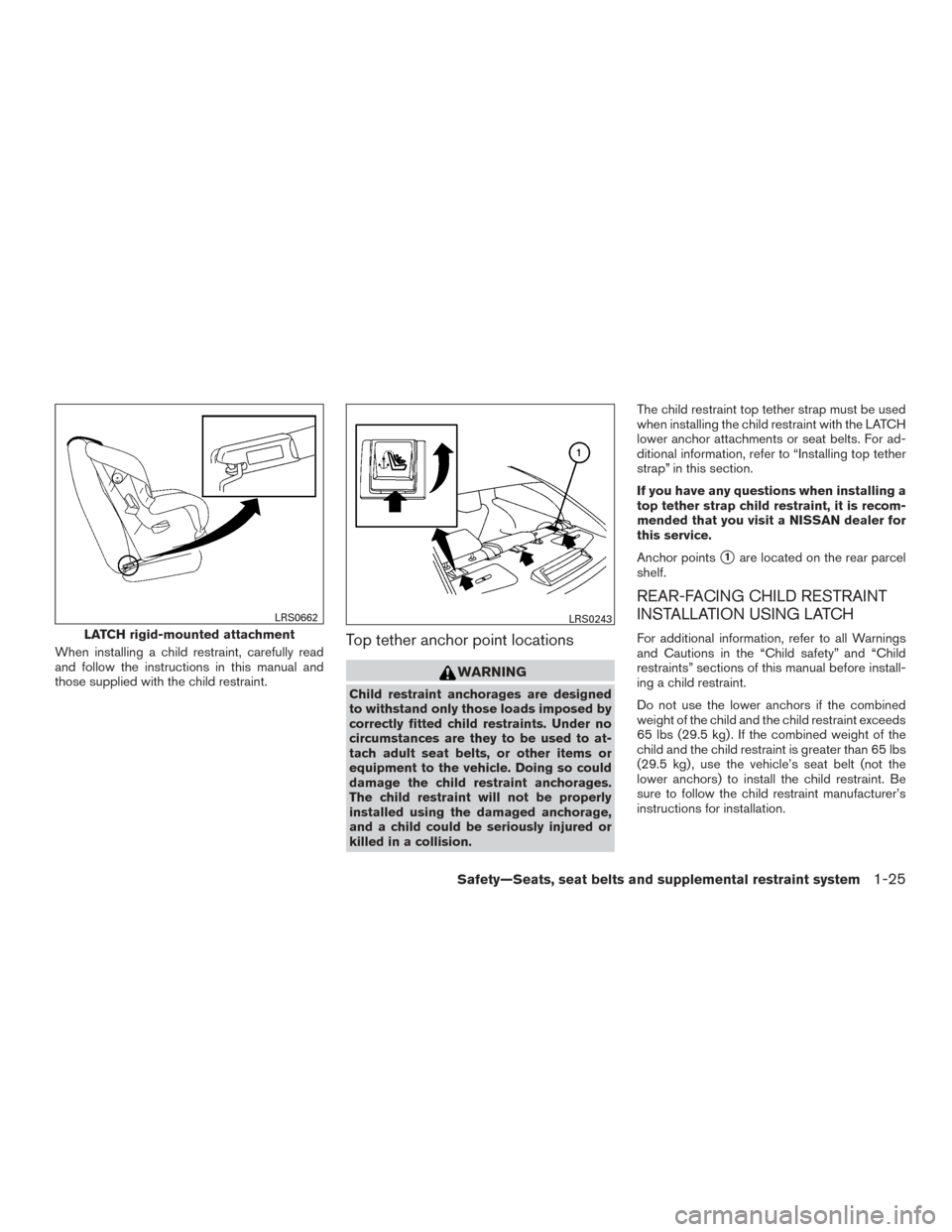

Page 42 of 406

NISSAN MAXIMA 2017 A36 / 8.G Owners Manual When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.Top tether anchor point locations
WARNING
Child restraint ancho

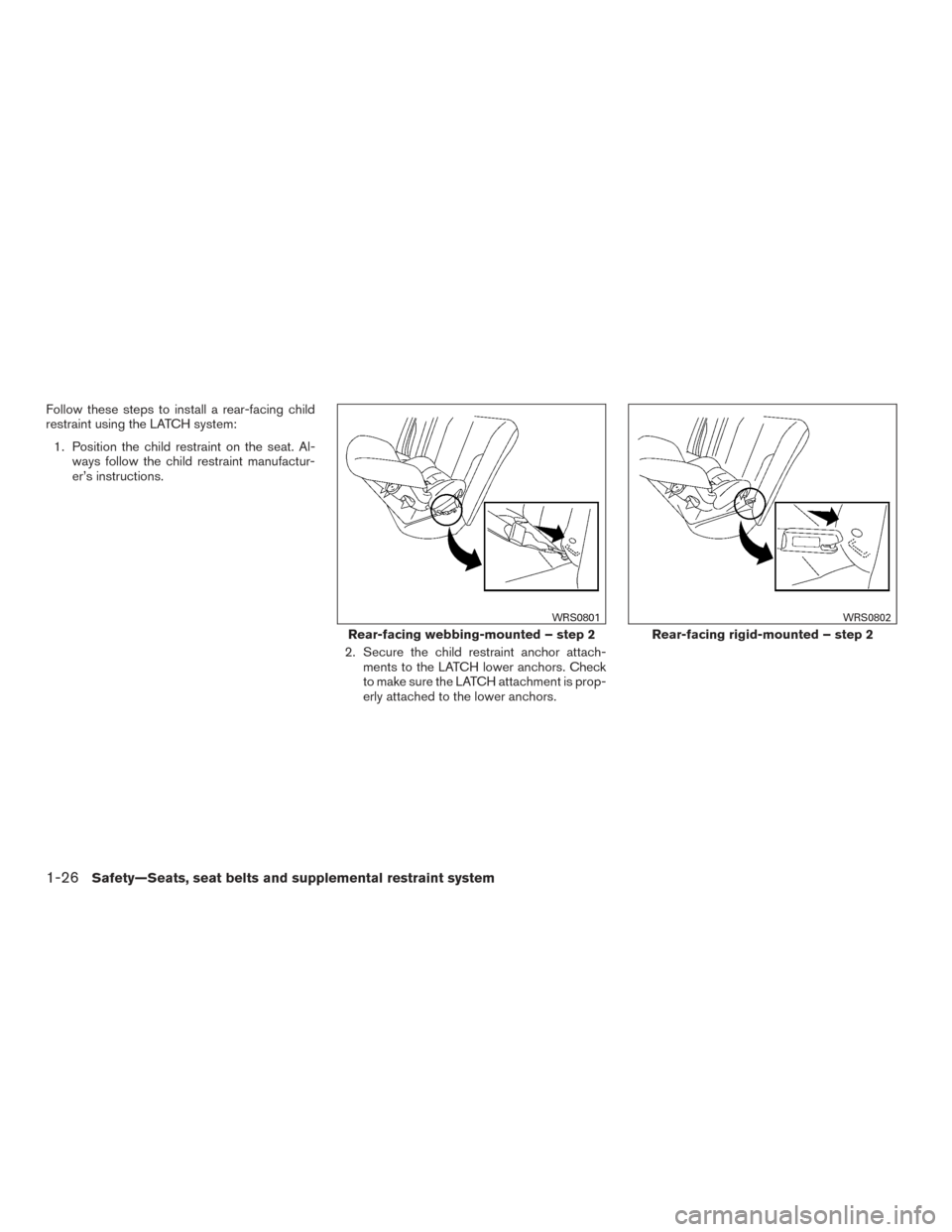

Page 43 of 406

NISSAN MAXIMA 2017 A36 / 8.G Owners Manual Follow these steps to install a rear-facing child
restraint using the LATCH system:1. Position the child restraint on the seat. Al- ways follow the child restraint manufactur-
er’s instructions.
2.

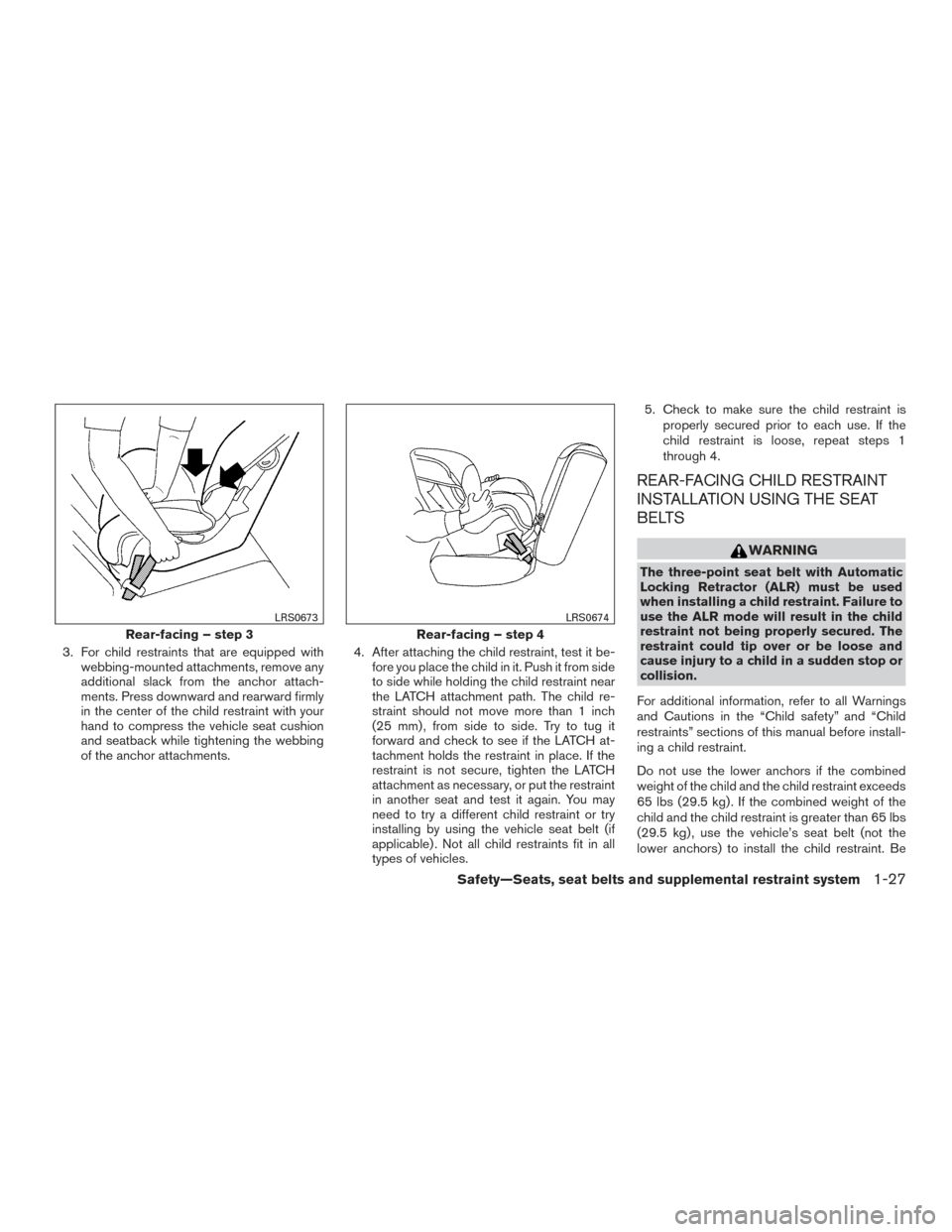

Page 44 of 406

NISSAN MAXIMA 2017 A36 / 8.G Owners Manual 3. For child restraints that are equipped withwebbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child rest

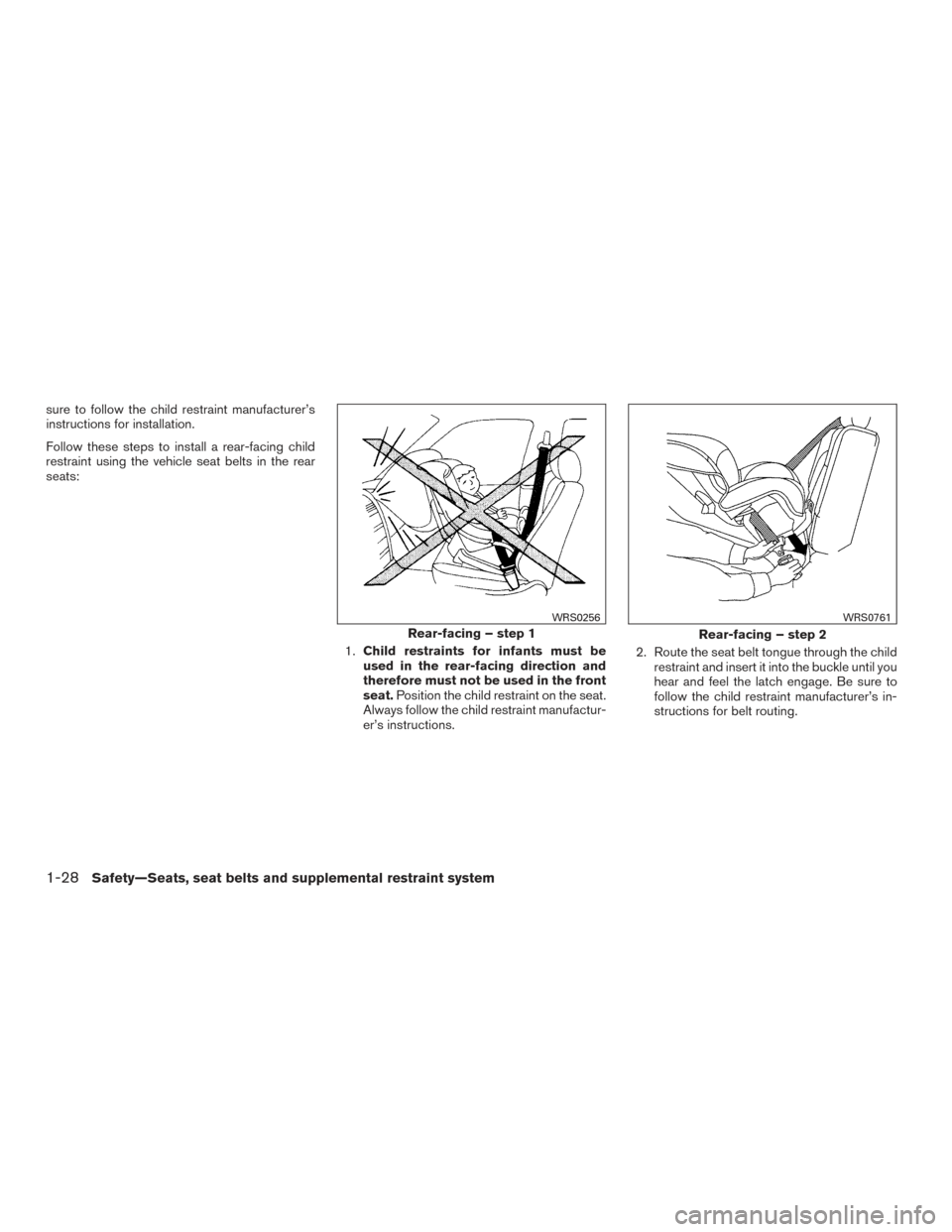

Page 45 of 406

NISSAN MAXIMA 2017 A36 / 8.G Owners Manual sure to follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a rear-facing child
restraint using the vehicle seat belts in the rear
seats:1.Child re

Page 46 of 406

NISSAN MAXIMA 2017 A36 / 8.G Owners Manual 3. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt retractor
is in the ALR mode (child restraint mode) . It
reverts to the ELR mode when the seat belt
is fully retr

Page 47 of 406

NISSAN MAXIMA 2017 A36 / 8.G Owners Manual 6. After attaching the child restraint, test it be-fore you place the child in it. Push it from side
to side while holding the child restraint near
the seat belt path. The child restraint should
not m

Page 48 of 406

NISSAN MAXIMA 2017 A36 / 8.G Owners Manual 3. The back of the child restraint should besecured against the vehicle seatback.
If necessary, adjust or remove the head
restraint/headrest to obtain the correct child
restraint fit. If the head rest
