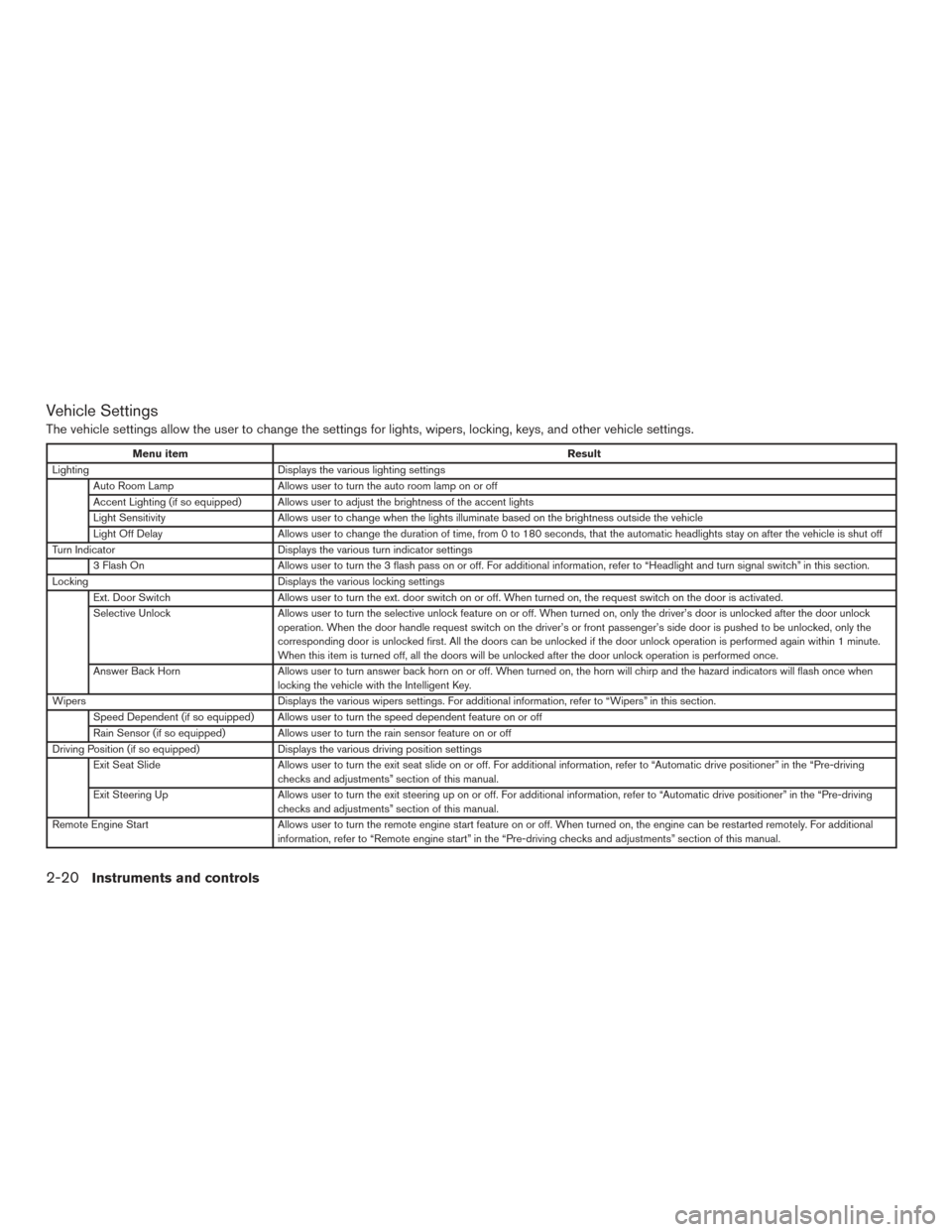

Vehicle Settings
The vehicle settings allow the user to change the settings for lights, wipers, locking, keys, and other vehicle settings.
Menu itemResult
Lighting Displays the various lighting settings
Auto Room Lamp Allows user to turn the auto room lamp on or off
Accent Lighting (if so equipped) Allows user to adjust the brightness of the accent lights
Light Sensitivity Allows user to change when the lights illuminate based on the brightness outside the vehicle
Light Off Delay Allows user to change the duration of time, from 0 to 180 seconds, that the automatic headlights stay on after the vehicle is shut off
Turn Indicator Displays the various turn indicator settings
3 Flash On Allows user to turn the 3 flash pass on or off. For additional information, refer to “Headlight and turn signal switch” in this section.
Locking Displays the various locking settings
Ext. Door Switch Allows user to turn the ext. door switch on or off. When turned on, the request switch on the door is activated.
Selective Unlock Allows user to turn the selective unlock feature on or off. When turned on, only the driver’s door is unlocked after the door unlock
operation. When the door handle request switch on the driver’s or front passenger’s side door is pushed to be unlocked, only the
corresponding door is unlocked first. All the doors can be unlocked if the door unlock operation is performed again within 1 minute.
When this item is turned off, all the doors will be unlocked after the door unlock operation is performed once.
Answer Back Horn Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators will flash once when
locking the vehicle with the Intelligent Key.
Wipers Displays the various wipers settings. For additional information, refer to “Wipers” in this section.
Speed Dependent (if so equipped) Allows user to turn the speed dependent feature on or off
Rain Sensor (if so equipped) Allows user to turn the rain sensor feature on or off
Driving Position (if so equipped) Displays the various driving position settings
Exit Seat Slide Allows user to turn the exit seat slide on or off. For additional information, refer to “Automatic drive positioner” in the “Pre-drivin g
checks and adjustments” section of this manual.
Exit Steering Up Allows user to turn the exit steering up on or off. For additional information, refer to “Automatic drive positioner” in the “Pre-driving
checks and adjustments” section of this manual.
Remote Engine Start Allows user to turn the remote engine start feature on or off. When turned on, the engine can be restarted remotely. For additional
information, refer to “Remote engine start” in the “Pre-driving checks and adjustments” section of this manual.
2-20Instruments and controls

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4. I-Key System Error: See Owner’s Manual
5. Shift to Park
6. Push brake and start switch to drive
7. Engine start operation for Intelligent Key sys-tem (if I-Key battery level is low)
8. Release Parking Brake
9. Low Fuel
10. Low Washer Fluid
11. Tire Pressure Low – Add Air
12. Door/Trunk Open
13. Alarm - Time for a break? (if so equipped)
14. Power will turn off to save the battery
15. Power turned off to save the battery
16. Reminder: Turn OFF Headlights
17. Headlight System Error: See Owner’s Manual (if so equipped) 18. Sensor (if so equipped)
19. Park Sensor (if so equipped)
20. Parking Sensor Error: See Owner’s Manual
(if so equipped)
21. Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) indicator (if so
equipped)
22. Malfunction: See Owner’s Manual (if so equipped)
23. Chassis Control System Error: See Owner’s Manual (if so equipped)
24. Cruise control indicator (if so equipped)
25. Intelligent Cruise Control (ICC) indicator (if so equipped)
26. Driver Attention Alert - Take a Break? (if so equipped)
27. Driver Attention Alert Malfunction (if so equipped)
28. Shipping Mode On Push Storage Fuse
29. CVT Error: See Owner’s Manual
30. SPORT
31. Illumination indicator
32. Transmission Shift Position indicator 33. Outside Temperature Display
34. Low Outside Temperature Alert
35. Oil and Filter
36. Tire
37. Other
38. Loose Fuel Cap
39. Unavailable: Front Radar Obstruction
No Key Detected
This warning appears when the Intelligent Key is
left outside the vehicle with the ignition switch in
the ON position. Make sure the Intelligent Key is
inside the vehicle.
For additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks and
adjustments” section of this manual.
Key ID Incorrect
This warning appears when the ignition switch is
placed from the OFF position and the Intelligent
Key is not recognized by the system. You cannot
start the engine with an unregistered key.
For additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks and
adjustments” section of this manual.
Instruments and controls2-25

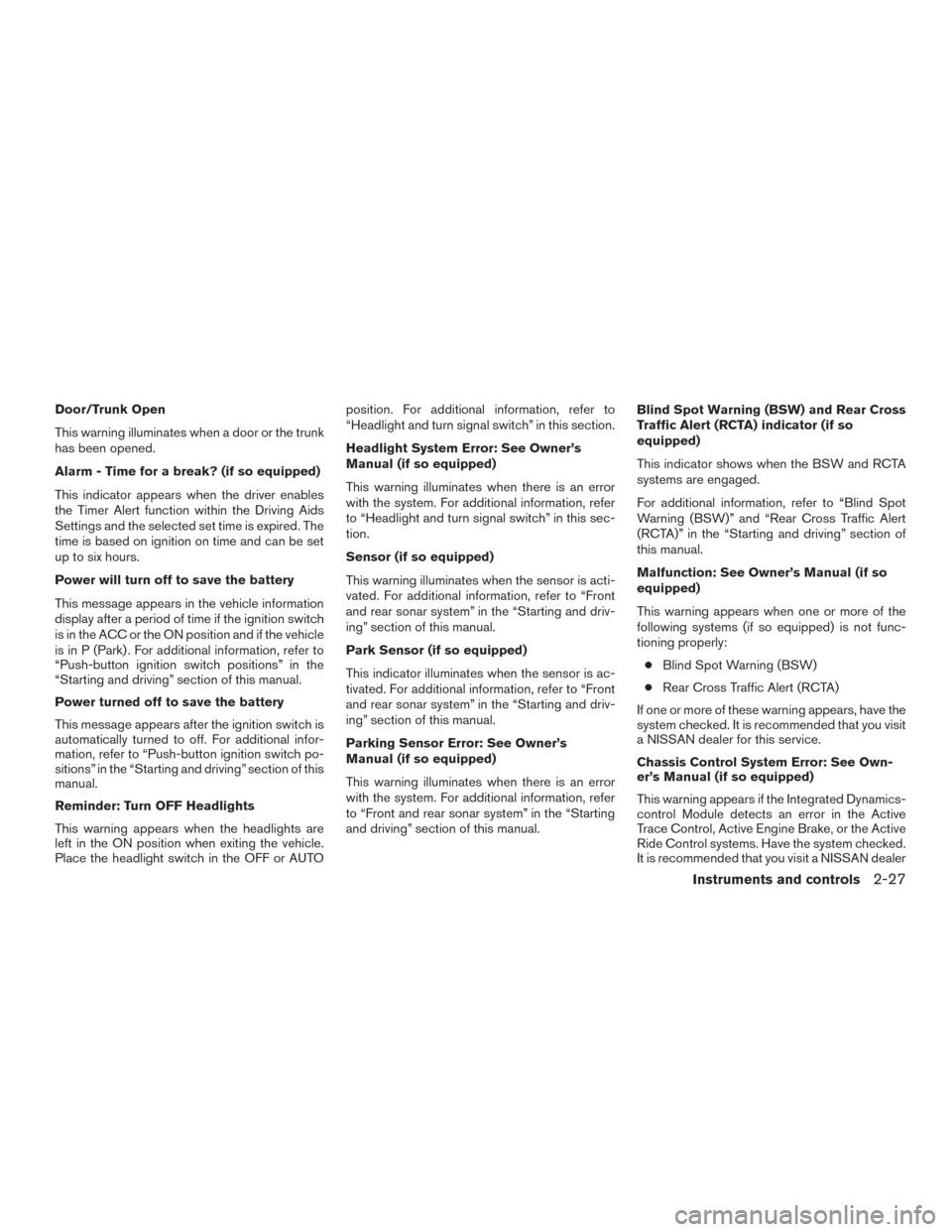

Door/Trunk Open
This warning illuminates when a door or the trunk
has been opened.
Alarm - Time for a break? (if so equipped)
This indicator appears when the driver enables
the Timer Alert function within the Driving Aids
Settings and the selected set time is expired. The
time is based on ignition on time and can be set
up to six hours.
Power will turn off to save the battery
This message appears in the vehicle information
display after a period of time if the ignition switch
is in the ACC or the ON position and if the vehicle
is in P (Park) . For additional information, refer to
“Push-button ignition switch positions” in the
“Starting and driving” section of this manual.
Power turned off to save the battery
This message appears after the ignition switch is
automatically turned to off. For additional infor-
mation, refer to “Push-button ignition switch po-
sitions” in the “Starting and driving” section of this
manual.
Reminder: Turn OFF Headlights
This warning appears when the headlights are
left in the ON position when exiting the vehicle.
Place the headlight switch in the OFF or AUTOposition. For additional information, refer to
“Headlight and turn signal switch” in this section.
Headlight System Error: See Owner’s
Manual (if so equipped)
This warning illuminates when there is an error
with the system. For additional information, refer
to “Headlight and turn signal switch” in this sec-
tion.
Sensor (if so equipped)
This warning illuminates when the sensor is acti-
vated. For additional information, refer to “Front
and rear sonar system” in the “Starting and driv-
ing” section of this manual.
Park Sensor (if so equipped)
This indicator illuminates when the sensor is ac-
tivated. For additional information, refer to “Front
and rear sonar system” in the “Starting and driv-
ing” section of this manual.
Parking Sensor Error: See Owner’s
Manual (if so equipped)
This warning illuminates when there is an error
with the system. For additional information, refer
to “Front and rear sonar system” in the “Starting
and driving” section of this manual.
Blind Spot Warning (BSW) and Rear Cross
Traffic Alert (RCTA) indicator (if so
equipped)
This indicator shows when the BSW and RCTA
systems are engaged.
For additional information, refer to “Blind Spot
Warning (BSW)” and “Rear Cross Traffic Alert
(RCTA)” in the “Starting and driving” section of
this manual.
Malfunction: See Owner’s Manual (if so
equipped)
This warning appears when one or more of the
following systems (if so equipped) is not func-
tioning properly:
● Blind Spot Warning (BSW)
● Rear Cross Traffic Alert (RCTA)
If one or more of these warning appears, have the
system checked. It is recommended that you visit
a NISSAN dealer for this service.
Chassis Control System Error: See Own-
er’s Manual (if so equipped)
This warning appears if the Integrated Dynamics-
control Module detects an error in the Active
Trace Control, Active Engine Brake, or the Active
Ride Control systems. Have the system checked.
It is recommended that you visit a NISSAN dealer
Instruments and controls2-27

CAUTION
●Do not operate the washer continuously
for more than 30 seconds.
● Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
● Do not fill the windshield-washer fluid
reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-
washer fluid concentrates may perma-
nently stain the grille if spilled while
filling the windshield-washer fluid
reservoir.
● Pre-mix windshield-washer fluid con-
centrates with water to the manufactur-
er’s recommended levels before pour-
ing the fluid into the windshield-washer
fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water. NOTE:
If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately
1 minute, turn the switch on again to oper-
ate the wiper.
RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)
The rain-sensing auto wiper system can auto-
matically turn on the wipers and adjust the wiper
speed depending on the rainfall and the vehicle
speed by using the rain sensor located on the
upper part of the windshield.
To set the rain-sensing auto wiper system, push
the lever down to the AUTO position
1. The
wiper will sweep once while the ignition switch is
in the ON position.
The rain sensor sensitivity level can be adjusted
by turning the knob toward the front
2(High) or
toward the rear
3(Low) .
LIC3233
2-40Instruments and controls

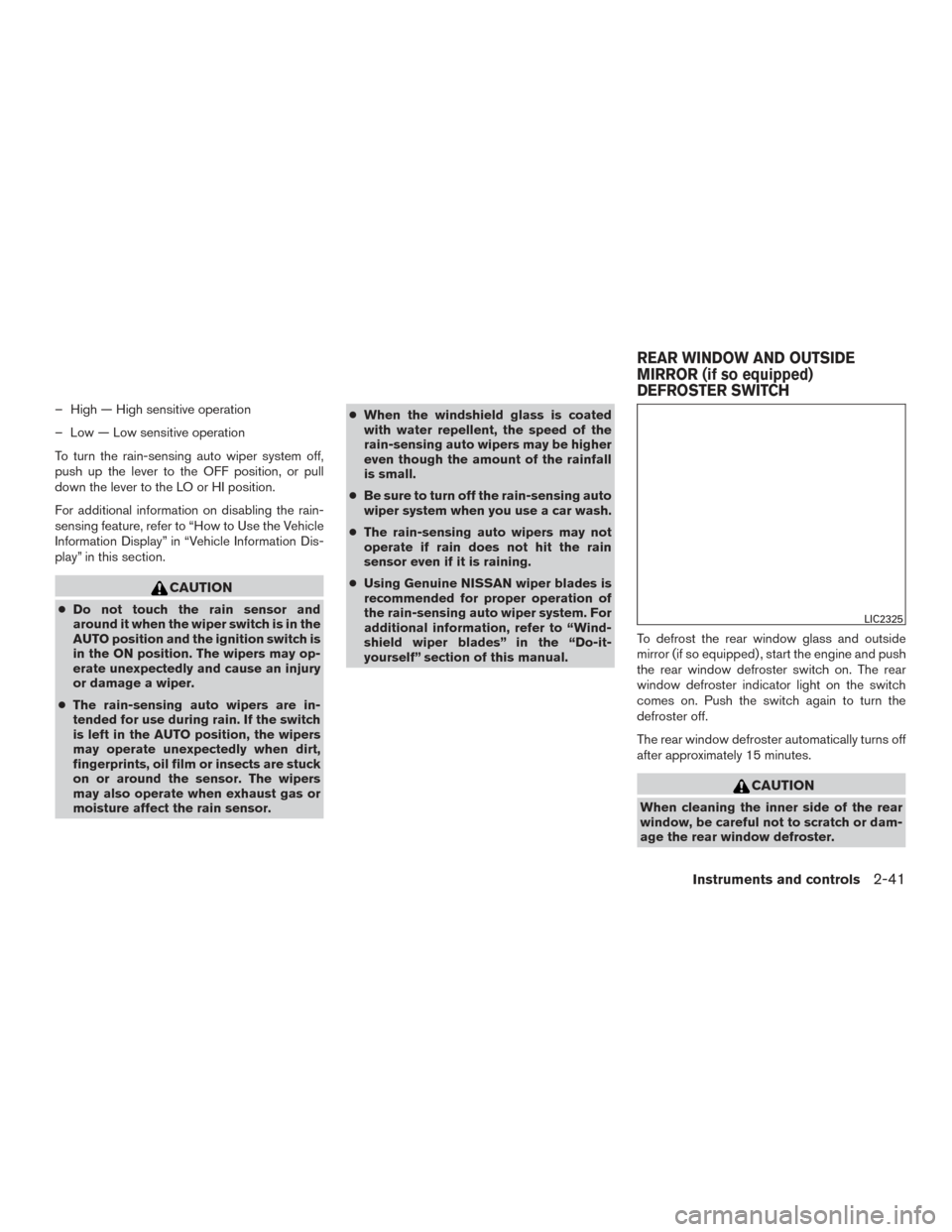

– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system off,
push up the lever to the OFF position, or pull
down the lever to the LO or HI position.
For additional information on disabling the rain-
sensing feature, refer to “How to Use the Vehicle
Information Display” in “Vehicle Information Dis-
play” in this section.
CAUTION
●Do not touch the rain sensor and
around it when the wiper switch is in the
AUTO position and the ignition switch is
in the ON position. The wipers may op-
erate unexpectedly and cause an injury
or damage a wiper.
● The rain-sensing auto wipers are in-
tended for use during rain. If the switch
is left in the AUTO position, the wipers
may operate unexpectedly when dirt,
fingerprints, oil film or insects are stuck
on or around the sensor. The wipers
may also operate when exhaust gas or
moisture affect the rain sensor. ●
When the windshield glass is coated
with water repellent, the speed of the
rain-sensing auto wipers may be higher
even though the amount of the rainfall
is small.
● Be sure to turn off the rain-sensing auto
wiper system when you use a car wash.
● The rain-sensing auto wipers may not
operate if rain does not hit the rain
sensor even if it is raining.
● Using Genuine NISSAN wiper blades is
recommended for proper operation of
the rain-sensing auto wiper system. For
additional information, refer to “Wind-
shield wiper blades” in the “Do-it-
yourself” section of this manual. To defrost the rear window glass and outside
mirror (if so equipped) , start the engine and push
the rear window defroster switch on. The rear
window defroster indicator light on the switch
comes on. Push the switch again to turn the
defroster off.
The rear window defroster automatically turns off
after approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.
LIC2325
REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH
Instruments and controls2-41

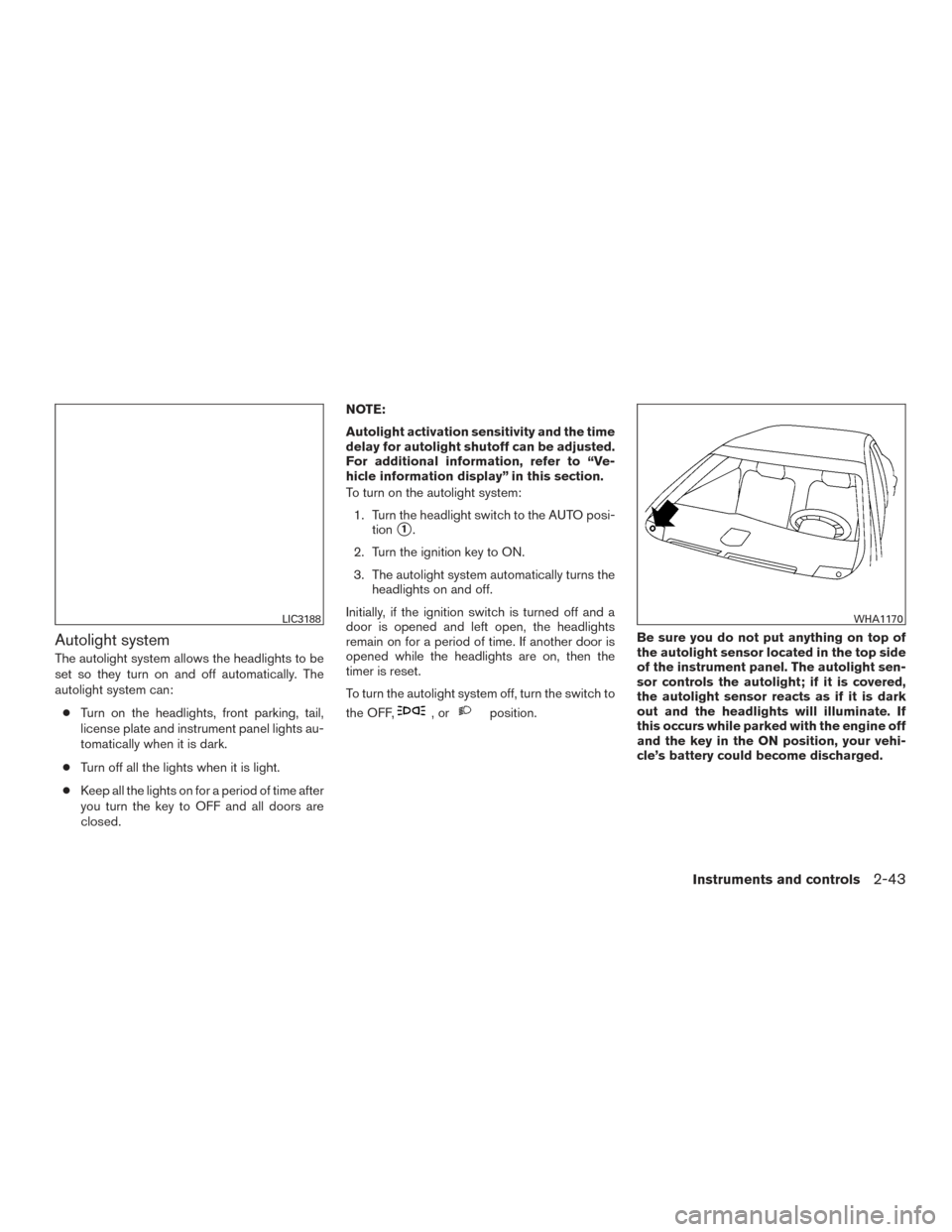

Autolight system
The autolight system allows the headlights to be
set so they turn on and off automatically. The
autolight system can:● Turn on the headlights, front parking, tail,
license plate and instrument panel lights au-
tomatically when it is dark.
● Turn off all the lights when it is light.
● Keep all the lights on for a period of time after
you turn the key to OFF and all doors are
closed. NOTE:
Autolight activation sensitivity and the time
delay for autolight shutoff can be adjusted.
For additional information, refer to “Ve-
hicle information display” in this section.
To turn on the autolight system:
1. Turn the headlight switch to the AUTO posi- tion
1.
2. Turn the ignition key to ON.
3. The autolight system automatically turns the headlights on and off.
Initially, if the ignition switch is turned off and a
door is opened and left open, the headlights
remain on for a period of time. If another door is
opened while the headlights are on, then the
timer is reset.
To turn the autolight system off, turn the switch to
the OFF,
,orposition. Be sure you do not put anything on top of
the autolight sensor located in the top side
of the instrument panel. The autolight sen-
sor controls the autolight; if it is covered,
the autolight sensor reacts as if it is dark
out and the headlights will illuminate. If
this occurs while parked with the engine off
and the key in the ON position, your vehi-
cle’s battery could become discharged.
LIC3188WHA1170
Instruments and controls2-43

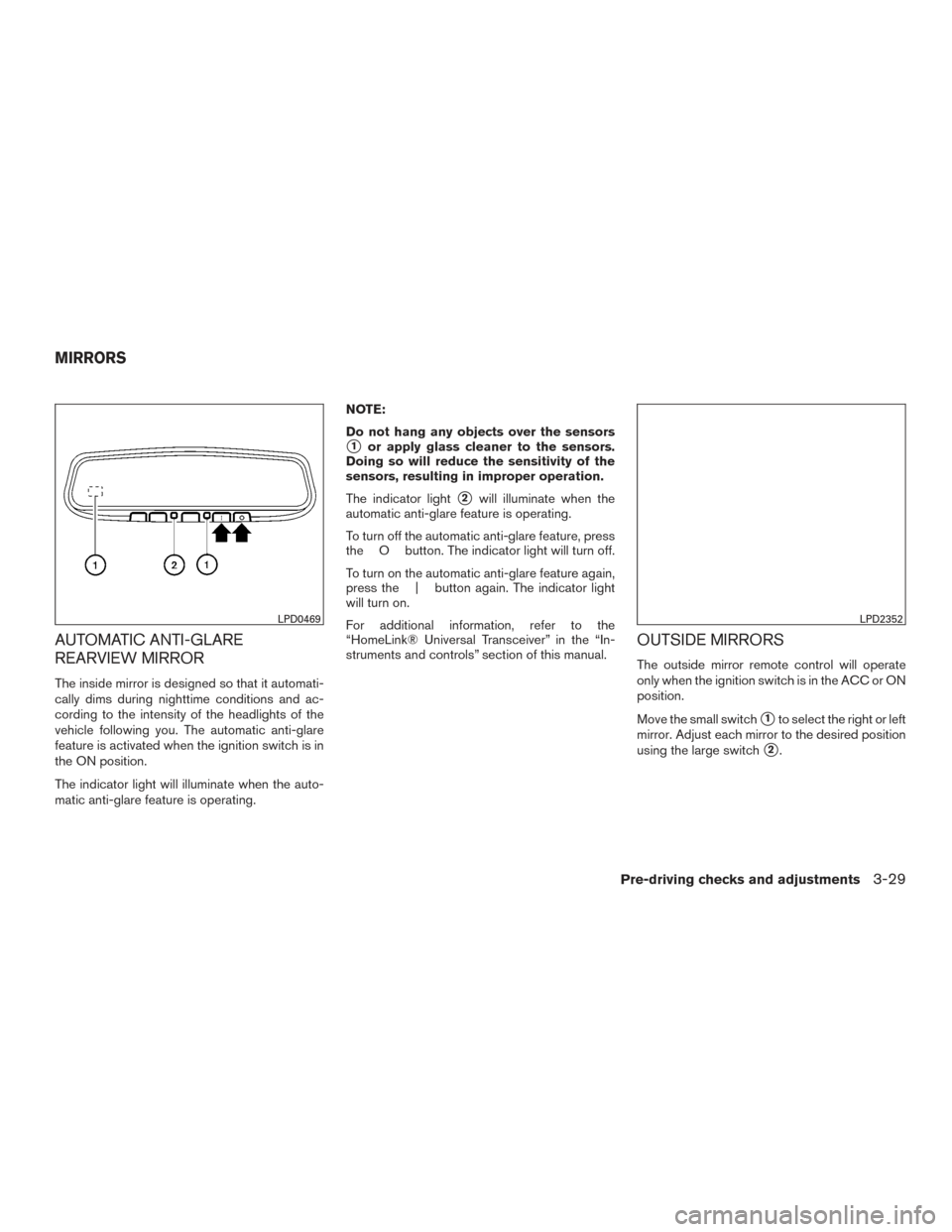

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR
The inside mirror is designed so that it automati-
cally dims during nighttime conditions and ac-
cording to the intensity of the headlights of the
vehicle following you. The automatic anti-glare
feature is activated when the ignition switch is in
the ON position.
The indicator light will illuminate when the auto-
matic anti-glare feature is operating.NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature, press
the O button. The indicator light will turn off.
To turn on the automatic anti-glare feature again,
press the | button again. The indicator light
will turn on.
For additional information, refer to the
“HomeLink® Universal Transceiver” in the “In-
struments and controls” section of this manual.
OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the right or left
mirror. Adjust each mirror to the desired position
using the large switch
2.
LPD0469LPD2352
MIRRORS
Pre-driving checks and adjustments3-29

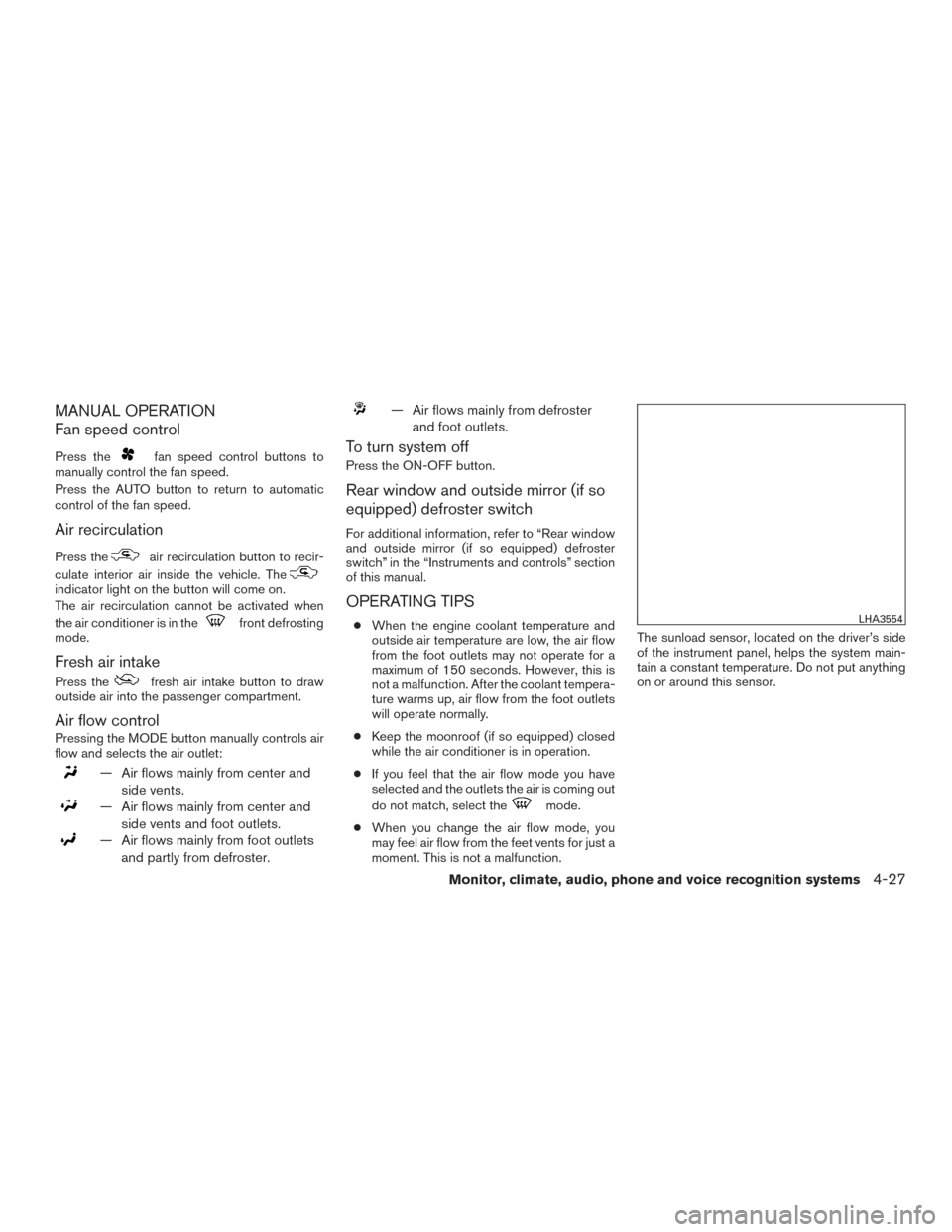

MANUAL OPERATION
Fan speed control
Press thefan speed control buttons to
manually control the fan speed.
Press the AUTO button to return to automatic
control of the fan speed.
Air recirculation
Press theair recirculation button to recir-
culate interior air inside the vehicle. The
indicator light on the button will come on.
The air recirculation cannot be activated when
the air conditioner is in the
front defrosting
mode.
Fresh air intake
Press thefresh air intake button to draw
outside air into the passenger compartment.
Air flow control
Pressing the MODE button manually controls air
flow and selects the air outlet:
— Air flows mainly from center and
side vents.
— Air flows mainly from center andside vents and foot outlets.
— Air flows mainly from foot outletsand partly from defroster.
— Air flows mainly from defrosterand foot outlets.
To turn system off
Press the ON-OFF button.
Rear window and outside mirror (if so
equipped) defroster switch
For additional information, refer to “Rear window
and outside mirror (if so equipped) defroster
switch” in the “Instruments and controls” section
of this manual.
OPERATING TIPS
●When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate for a
maximum of 150 seconds. However, this is
not a malfunction. After the coolant tempera-
ture warms up, air flow from the foot outlets
will operate normally.
● Keep the moonroof (if so equipped) closed
while the air conditioner is in operation.
● If you feel that the air flow mode you have
selected and the outlets the air is coming out
do not match, select the
mode.
● When you change the air flow mode, you
may feel air flow from the feet vents for just a
moment. This is not a malfunction. The sunload sensor, located on the driver’s side
of the instrument panel, helps the system main-
tain a constant temperature. Do not put anything
on or around this sensor.
LHA3554
Monitor, climate, audio, phone and voice recognition systems4-27
