2017 NISSAN LEAF buttons

Table of Contents
0Introduction
How to use this manual .......... 0-2
Safety information ..................... 0-3
Trademarks ................................. 0-4
Regulatory information ............ 0-6
ITSystem overview
System features ........................ IT-2
1Getting started
Control buttons and touch
screen display ........................... 1-2
Starting system ......................... 1-6
Basic operation ......................... 1-7
System settings ...................... 1-15
2Unique EV functions
Zero Emission menu screen ... 2-2
Displaying estimated
driving range and charging
station information .................... 2-3
Energy information display ..... 2-8
Timer function operation ....... 2-10
Unique EV
function settings ..................... 2-15
3Navigation
Safety information ..................... 3-3
Map operation ........................... 3-3
Setting destination ................. 3-16
Route guidance ....................... 3-30
Viewing traffic information .... 3-48
Storing a location/route ........ 3-51
Navigation settings ................. 3-59
4Audio system
Audio
operation precautions .............. 4-2
Names and functions of
audio control buttons ............ 4-10
Audio operations .................... 4-11
Audio settings ......................... 4-32
5NissanConnectSMEV
Telematics overview ................. 5-2
NissanConnectSM
EV overview ................................ 5-4
NissanConnectSMEV menu ... 5-7
NissanConnectSM
EV settings ............................... 5-11
Error message
on communication .................. 5-15

1 Getting started
Control buttons and touch screen display .......................... 1-2Control panel ........................................................................\
1-2
Steering wheel switches ................................................... 1-5
USB (Universal Serial Bus) Connection Port and
AUX (auxiliary) input jack ................................................... 1-5
Starting system ........................................................................\
.. 1-6 Start-up screen .................................................................... 1-6
Basic operation ........................................................................\
.. 1-7 Selecting menu from Launch Bar .................................... 1-7
Displaying Zero Emission menu screen ......................... 1-8
Displaying status screen .................................................... 1-9
Touch panel operation ........................................................ 1-9
Main screen operations .................................................. 1-10 Adjusting settings .......................................................... 1-11
How to input letters and numbers ............................. 1-11
How to view and operate HOME MENU screen ..... 1-11
Functions disabled while driving ................................ 1-14
System settings ..................................................................... 1-15 Setting menu ................................................................... 1-15
Display settings .............................................................. 1-16
Volume and Beeps settings ......................................... 1-16
Language and unit settings ......................................... 1-17
Clock settings ................................................................. 1-17
Comfort & Convenience settings ............................... 1-17
Connecting Bluetooth
Šdevice ................................... 1-19

CONTROL BUTTONS AND
TOUCH SCREEN DISPLAY
CONTROL PANEL*1:
Push to switch between the FM the AM
radio bands.
“4. Audio system”
*2:
Push to switch to an SiriusXM satellite radio
band.
“4. Audio system”
*3:
Push to switch between USB memory/
iPod
Šplayer/BluetoothŠstreaming audio/
AUX/CD screens.
“4. Audio system”
*4:
Push to adjust the volume.
*5<>:
Push to turn the audio system on or off.
*6Touch screen display:
Various information and operation menus
are displayed on the liquid crystal display.
Touch keys and icons on the screen for
operation.
“Touch panel operation” (page 1-9)
*7

guidance.“Map operation” (page 3-3)
*8

STEERING WHEEL SWITCHES
*1:
Push to change the audio source to the
available mode.
“Selecting audio source” (page 4-12)
*2<>/<>,:
During voice recognition operation, tilt up/
down to highlight different items, and push
to select the highlighted item.
Audio operations are also possible by tilting
the switch up and down.
“Steering wheel mounted audio con-
trol buttons” (page 4-11)
*3<>:
Push to display the hands-free phone operation screen.
When you receive a phone call, push this
button to answer the call.
“7. Hands-Free Phone”
*4<-+>:
Push + or - to adjust the volume.
*5<> (TALK):
Push to use the voice recognition system.
Push and hold to end the voice recognition
session.
“Giving voice commands” (page 8-2)
*6<>:
When operating the voice recognition
system, push to return to the previous
screen. Push and hold to cancel the voice
command.
“8. Voice recognition”
USB (Universal Serial Bus) CONNEC-
TION PORT AND AUX (auxiliary) IN-
PUT JACK
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and cause an accident or serious injury.
CAUTION
.
Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.
. Do not grab the USB port cover (if so
equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a place
where it can be pulled unintention-
ally. Pulling the cable may damage
the port.
The vehicle is equipped with a USB connection
port and an AUX input jack. When connected,
the in-vehicle audio system can play audio
contents from the compatible device.
1-5
1. Getting started

.If other buttons such as

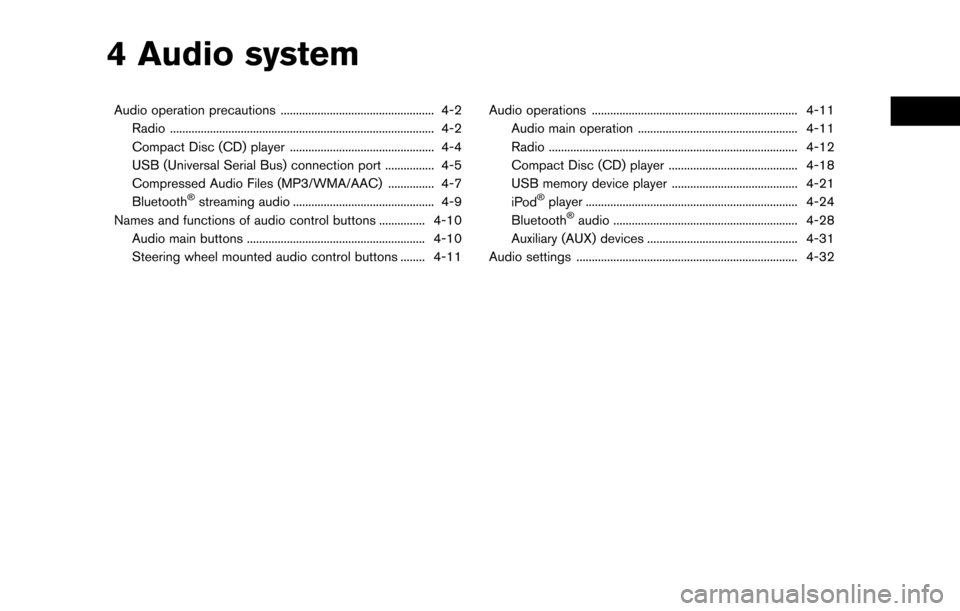

4 Audio system
Audio operation precautions .................................................. 4-2Radio ........................................................................\
.............. 4-2
Compact Disc (CD) player ............................................... 4-4
USB (Universal Serial Bus) connection port ................ 4-5
Compressed Audio Files (MP3/WMA/AAC) ............... 4-7
Bluetooth
Šstreaming audio .............................................. 4-9
Names and functions of audio control buttons ............... 4-10
Audio main buttons .......................................................... 4-10
Steering wheel mounted audio control buttons ........ 4-11 Audio operations ................................................................... 4-11
Audio main operation .................................................... 4-11
Radio ........................................................................\
......... 4-12
Compact Disc (CD) player .......................................... 4-18
USB memory device player ......................................... 4-21
iPodŠplayer ..................................................................... 4-24
BluetoothŠaudio ............................................................ 4-28
Auxiliary (AUX) devices ................................................. 4-31
Audio settings ........................................................................\
4-32

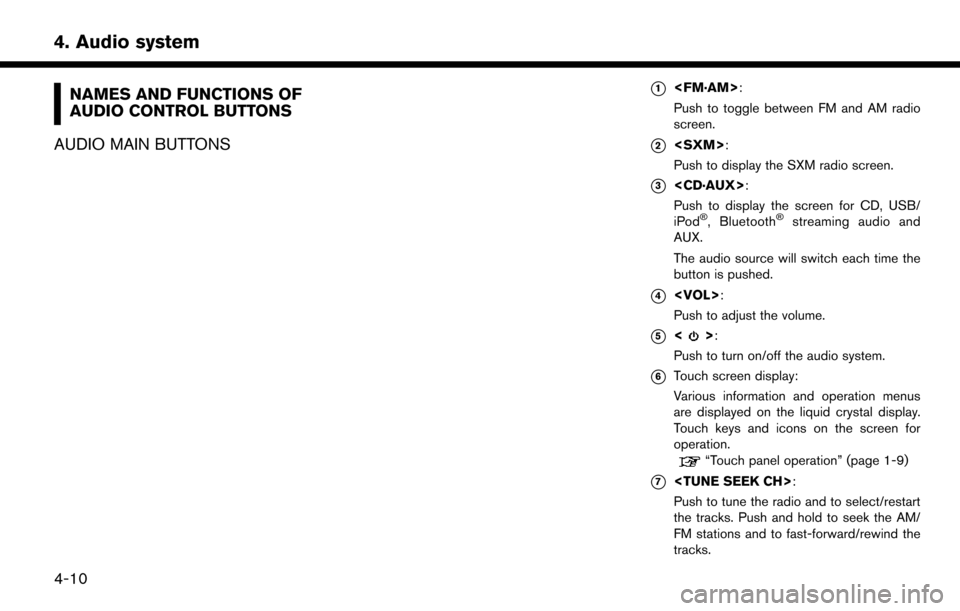

NAMES AND FUNCTIONS OF
AUDIO CONTROL BUTTONS
AUDIO MAIN BUTTONS*1:
Push to toggle between FM and AM radio
screen.
*2:
Push to display the SXM radio screen.
*3:
Push to display the screen for CD, USB/
iPod
Š, BluetoothŠstreaming audio and
AUX.
The audio source will switch each time the
button is pushed.
*4:
Push to adjust the volume.
*5<>:
Push to turn on/off the audio system.
*6Touch screen display:
Various information and operation menus
are displayed on the liquid crystal display.
Touch keys and icons on the screen for
operation.
“Touch panel operation” (page 1-9)
*7:
Push to tune the radio and to select/restart
the tracks. Push and hold to seek the AM/
FM stations and to fast-forward/rewind the
tracks.
4-10
4. Audio system
