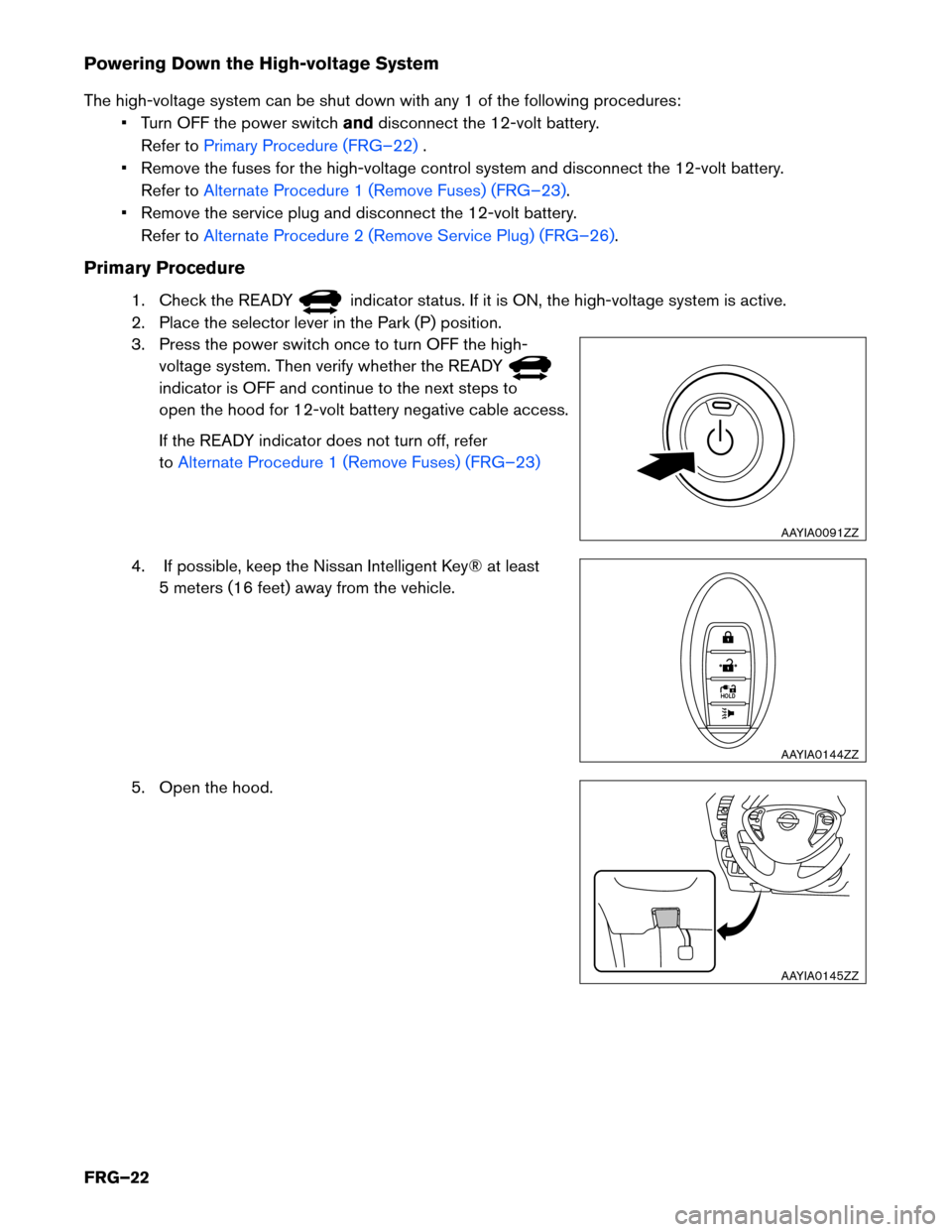

Powering Down the High-voltage System
The
high-voltage system can be shut down with any 1 of the following procedures:• Turn OFF the power switch anddisconnect the 12-volt battery.
Refer to Primary Procedure (FRG–22) .
•
Remove the fuses for the high-voltage control system and disconnect the 12-volt battery.
Refer to Alternate Procedure 1 (Remove Fuses) (FRG–23).
•
Remove the service plug and disconnect the 12-volt battery.
Refer to Alternate Procedure 2 (Remove Service Plug) (FRG–26).
Primary
Procedure
1. Check the READY indicator status. If it is ON, the high-voltage system is active.
2.
Place the selector lever in the Park (P) position.
3. Press the power switch once to turn OFF the high- voltage system. Then verify whether the READY indicator is OFF and continue to the next steps to
open
the hood for 12-volt battery negative cable access.
If the READY indicator does not turn off, refer
to Alternate Procedure 1 (Remove Fuses) (FRG–23)
4. If possible, keep the Nissan Intelligent Key® at least 5
meters (16 feet) away from the vehicle.
5. Open the hood. AAYIA0091ZZ
HOLD
AAYIA0144ZZ
AAYIA0145ZZ
FRG–22
