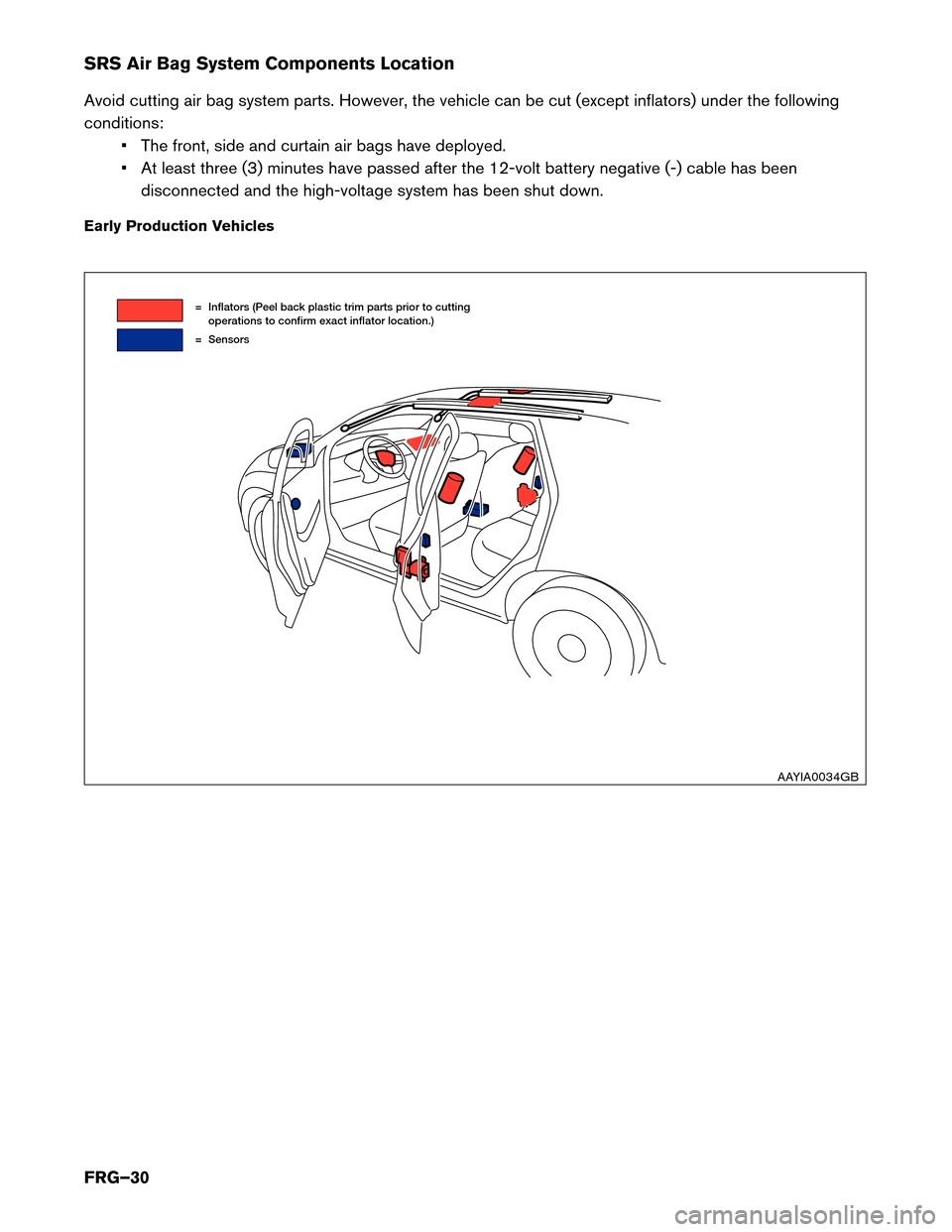

SRS Air Bag System Components Location
Avoid
cutting air bag system parts. However, the vehicle can be cut (except inflators) under the following
conditions: • The front, side and curtain air bags have deployed.
• At least three (3) minutes have passed after the 12-volt battery negative (-) cable has beendisconnected and the high-voltage system has been shut down.
Early Production Vehicles = Inflators (Peel back plastic trim parts prior to cutting


operations to confirm exact inflator location.)
= Sensors
AAYIA0034GB
FRG–30

1. Crash zone sensor
2. Supplemental front-impact air
bag modules3. Front seat-mounted side-impact
supplemental air bag modules
4. Roof-mounted curtain
side-impact supplemental air bag
inflators 5. Roof-mounted curtain
side-impact supplemental air bag
modules6. Front door satellite sensors
7. Lap outer pretensioner (driver
side only) 8. Seat belt with pretensioner 9. Rear satellite sensors (located
in lower B-pillar)
10. Air bag control unit (ACU) 11 2 3 4 5
6 7 8 9 10

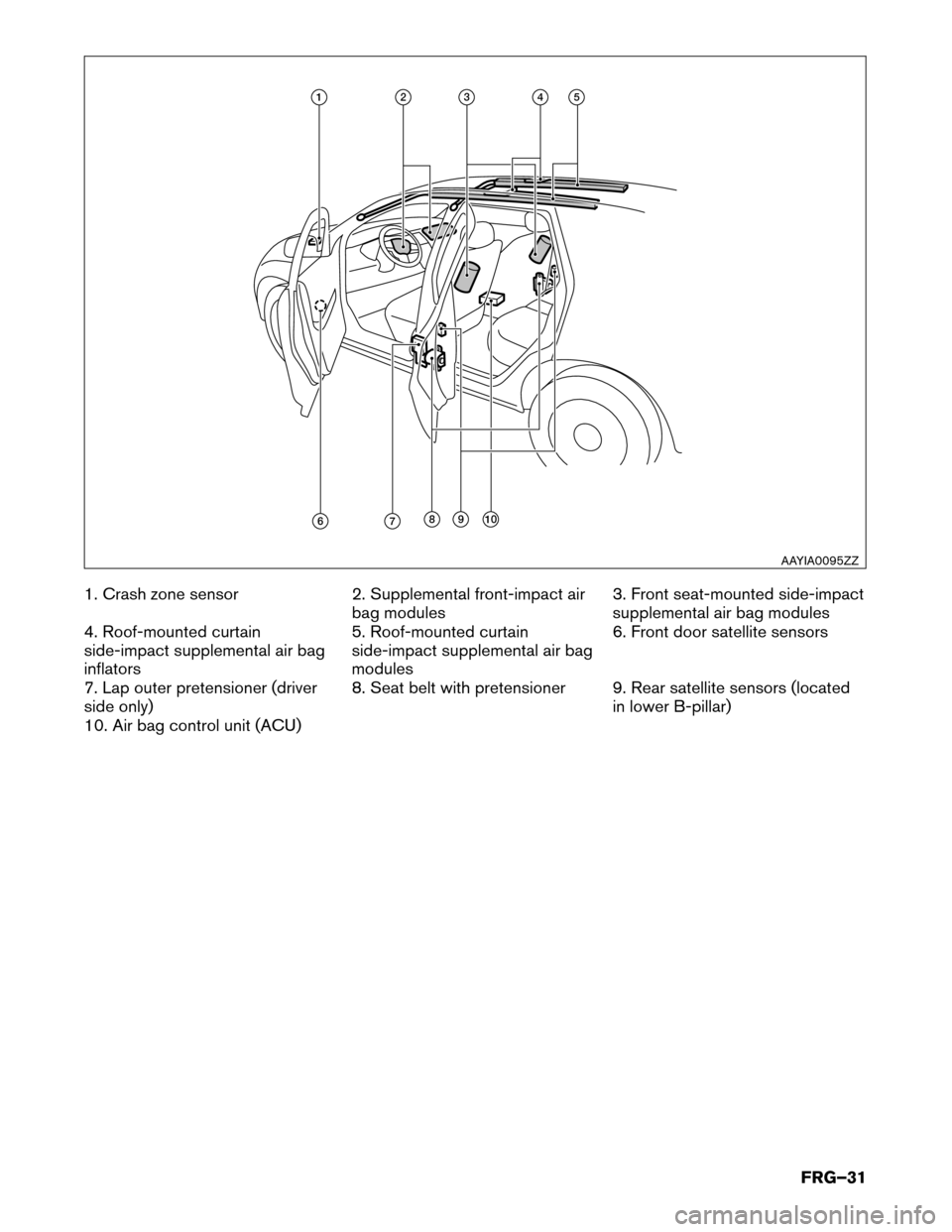

AAYIA0095ZZ
FRG–31

1. Crash zone sensor
2. Supplemental front-impact air
bag modules3. Front seat-mounted side-impact
supplemental air bag modules
4. Roof-mounted curtain
side-impact supplemental air bag
modules 5. Roof-mounted curtain
side-impact supplemental air bag
inflators6. Front door satellite sensors
7. Lap outer pretensioner (driver
side only) 8. Seat belt with pretensioner 9. Rear satellite sensors (located
in lower B-pillar)

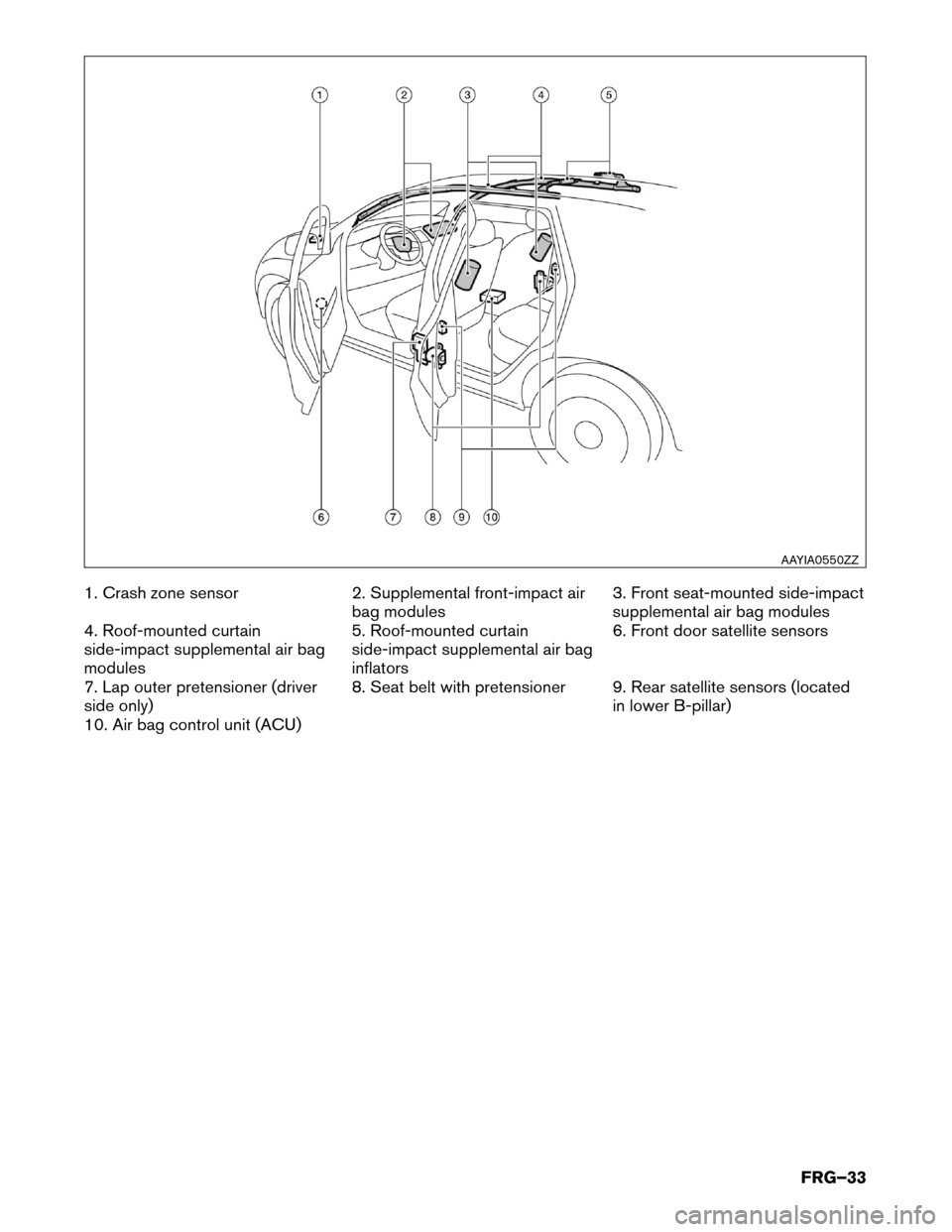

10. Air bag control unit (ACU) AAYIA0550ZZ
FRG–33
