GTR-12GT-R Overview
GUID-60468494-972D-42CF-BC68-F9F6487E35B6The information and specifications in this
section apply only when engaging in
performance driving.
The following information applies only if you
engage in performance driving such as driving
your GT-R for extended periods under the
following conditions.
.Higher-RPM (approaching redline) opera-
tion
. Frequent high pedal force braking from
moderate and higher speeds
. Frequent throttle activation
. Fast revving throughout the RPM range
In such cases, the following additional main-
tenance guidelines apply.
However, you should also carefully read
your 2017 NISSAN GT-R Warranty Informa-
tion Booklet for important information
concerning warranty coverage, limitations
and exclusions.
We recommend that all GT-R maintenance be
performed at a GT-R certified NISSAN dealer.
NISSAN will only pay for GT-R Performance
Optimization Services performed at a GT-R
certified NISSAN dealer.PRECAUTIONS ON PERFORMANCE
DRIVING
GUID-7DBB6523-C5E9-4BBD-8F8A-9C93D55CF703The information and specifications in this
section apply only when engaging in
performance driving.
Checking the temperature of the
coolant and oils on the touch screen
display
GUID-640404D6-C0C4-41B2-903F-7D5E41AC45D1When the temperatures of the engine coolant
and oil, and the oil pressure exceed the normal
range, the color of the multi function meter on
the touch screen display changes to red to warn
the driver. When engaging in high performance
driving, switch the display to the multi function
meter to display the temperature of the engine
coolant and oil, and the oil pressure. When the
color of the meter display changes to red,
perform cool down driving. When the values of
the temperature and pressure return to the
normal range, the color of the multi function
meter will turn back to white.
Warning temperature:
. Engine coolant temperature is 2308F
(1108C) or higher:
If the engine coolant temperature increases
above 2308F (1108C) , the color of the multi
function meter on the touch screen display changes to red to warn of a possible
overheat condition and engine output is
reduced.
. Engine oil temperature is 2758F (1358C) or
higher:
If the engine oil temperature is higher than
2758F (1358C), the meter display changes
to red, maximum engine speed is automati-
cally limited to 4,000 rpm, and the transmis-
sion automatically changes from the&M
position to the&Aposition.
. Transmission oil temperature is 2848F
(1408C) or higher:
If the transmission oil temperature increases
to over 2848F (1408C) , the color of the
meter display changes to red. However, the
vehicle can continue to be driven until the
temperature reaches 2958F (1468C) . If the
oil temperature exceeds 2848F (1408C)
while driving (the color of the meter dis-
played in red) , change both the transmission
oil and the differential oil after driving
because these fluids have deteriorated
because of the heat.
Cool downGUID-F2CE90E5-E743-4E6E-9A1E-040505B03B2AThe information and specifications in this
section apply only when engaging in
performance driving.
ADDITIONAL MAINTENANCE ITEMS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
Cool down the vehicle to help extend the life of
the vehicle if coolant temperatures are extremely
high. Drive the vehicle at 37 to 50 MPH (60 to
80 km/h) , in 5th or 6th gear for 2 to 3 miles (3 to
5 km) and then stop the engine.
Refueling precautionsGUID-6FAF478E-E778-45E1-88B2-3821289F5A5F
WARNING
Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire. The fuel tank
is full at the first automatic shutoff.
To maximize vehicle performance, the fuel tank is
located as low as possible to lower the vehicle
center of gravity. The tank is also divided into
two parts. This fuel tank design causes higher
pressures inside the tank than other vehicles so
fuel spillage is possible by trying to top off the
fuel tank after automatic shutoff.
The fuel tank pressure is higher when the vehicle
is hot, especially if the tank is more than half full.
If the cap is opened when the vehicle is hot, it
may cause fuel spray and there may be a hissing
noise. Open the cap slowly, releasing the pressure from the tank gradually. Also, if the
vehicle is refueled when the vehicle is hot, the
fuel pump may automatically shut off before the
tank is full. This does not indicate that there is a
malfunction. Refuel slowly or refuel after the
vehicle has cooled.
INSPECTION AND ADJUSTMENTS
BEFORE DRIVING
GUID-649E6E1E-47A8-4D0D-B650-32A80495D4B7The information and specifications in this
section apply only when engaging in
performance driving.
FluidsGUID-7F5C84E9-2A88-45E4-9098-14BC6613E6B5.
Check the engine, transmission, differential
and under vehicle surfaces for oil and
coolant leaks.
. Check the fluid levels and adjust as neces-
sary using the specified fluid as described
under the conditions listed in this section.
(
ªRecommended fluids and mainte-
nance intervalº page GTR-19 ) If you do
not drive under the conditions listed, refer to
the 2017 NISSAN Service and Maintenance
Guide.
SSI0665
. NISSAN recommends to adjust the engine
oil level
*1to be 0.39 in (10 mm) (1/8 gal
(0.5 liters))
*2below the H mark on the
engine oil dipstick. (
*3range is 1.18 in (30
mm) .) Before checking the oil level, run the
engine until it reaches operating tempera-
ture and wait at least 5 minutes after turning
off the engine. Make sure the oil level always
remains above the L mark.
When the vehicle is delivered, the engine oil
is set to ªH- 0.39 in (10 mm)º for optimal
high performance driving.
. Some amount of oil is consumed by your
engine under normal operating conditions,
and oil consumption by itself does not
GT-R OverviewGTR-13


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
performance driving.
.Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Inspect the areas surrounding of the cata-
lytic converter for heat deterioration.
. Always perform the transmission setting.
After that, adjust the clutch clearance so
that the clearance is less than the clearance
used for daily driving. Your GT-R certified
NISSAN dealer has the necessary informa-
tion and equipment to set the clutch
clearance to the correct specification. The
clearance used for daily driving increases
clutch heat generated during Performance
Driving. This leads to an increase in tem-
perature of the transmission oil. In addition, a
more direct shifting feel can be obtained by
reducing the clutch clearance for Perfor-
mance Driving. The clutch clearance should
be reset to the daily driving specification
after Performance Driving. It is recom-
mended you see a GT-R certified NISSAN
dealer for information.NOTICE
Failure to have the clutch properly
adjusted before performance driving
may cause the transmission oil tem-
perature to increase which may cause
transmission damage.
. Inspect and confirm the clearance between
the exhaust finisher and rear bumper is more
than 0.24 in (6 mm) (up/down) and more
than 0.20 in (5 mm) (left/right) .
. Inspect the dust boot of the drive shaft
universal joint for cracks or damage.
Suspension and wheel alignmentGUID-54A24DDC-5371-47E4-A29D-23C634F0898DThe information and specifications in this
section apply only when engaging in
performance driving.
.Check the steering and suspension system
and other links for loose and/or damaged
parts.
. Measure and adjust the wheel alignment.
(
ªWheel alignmentº page GTR-9) It is
recommended you contact a GT-R certified
NISSAN dealer to adjust the wheel align-
ment to the recommended setting for high
performance driving. Preventing toe-out:
Toe-out can cause uneven tire wear or
damage to areas inside the tires due to
high heat. Be sure to have the wheel
alignment toe-in setting checked and ad-
justed by your GT-R certified NISSAN
dealer before any performance driving on
closed circuit tracks. Obey all traffic laws
when on public roads.
Toe-in specification
Front \024
0.059 in (1.5 mm)
Rear \024
0.079 in (2.0 mm)
GT-R OverviewGTR-15


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
SSI0578
.Make sure the tire has not slipped on the
wheel causing the assembly to be out of
balance. The reference marks on the tire and
wheel should be aligned. If the reference
marks are not aligned, the tire has slipped on
the wheel. Have the wheels/tires reba-
lanced. Make sure the old reference marks
are erased and new reference marks are
applied to the wheel and tire. When instal-
ling new tires on the wheels, make sure new
reference marks are applied to the wheels
and tires.
. Avoid the driving conditions listed under
ªAdditional maintenance itemsº in this sec-
tion for 48 hours after tires are installed on the wheels. The tire may slip on the wheel if
the vehicle is driven in these conditions
before 48 hours have passed. If the tire slips
on the wheel, the wheel/tire assembly will be
out of balance and will require rebalancing.
BrakesGUID-A8930855-67C4-4640-83D9-8730F21D114EThe information and specifications in this
section apply only when engaging in
performance driving.
.
Check for the heat deterioration of the
brakes and parts around the brakes.
. It is recommended that you remove air from
the brake system after any of the following:
Ð When engaging in high performance
driving for the first time after purchasing
a new vehicle.
Ð After replacing the brake fluid.
Ð When engaging in high performance driving for a sustained period of time. It
is recommended that bleeding the brake
be performed when the brake calipers
are hot (about 2128F (1008C)) .
Brake pad break-in procedure:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9NISSAN recommends that a special brake pad
break-in procedure be performed before enga-
ging in performance driving. It is recommended
you contact a GT-R certified NISSAN dealer for details.
INSPECTION AND ADJUSTMENTS
AFTER DRIVING
GUID-D4ED7991-5C9C-48FF-9139-8588365507B3The information and specifications in this
section apply only when engaging in
performance driving.
NOTICE
At the completion of performance driv-
ing, all fluid and other adjustments
should be returned to the normal fluid
specifications as shown in the ªMain-
tenance and do-it-yourselfº section of
this manual.
FluidsGUID-B6252B1E-9473-4807-99EF-F0B6534BBC6CThe information and specifications in this
section apply only when engaging in
performance driving.
.
Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Check the fluid levels and adjust as neces-
sary using the specified fluid as described
under the conditions listed in this section.
(
ªRecommended fluids and mainte-
GT-R OverviewGTR-17


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

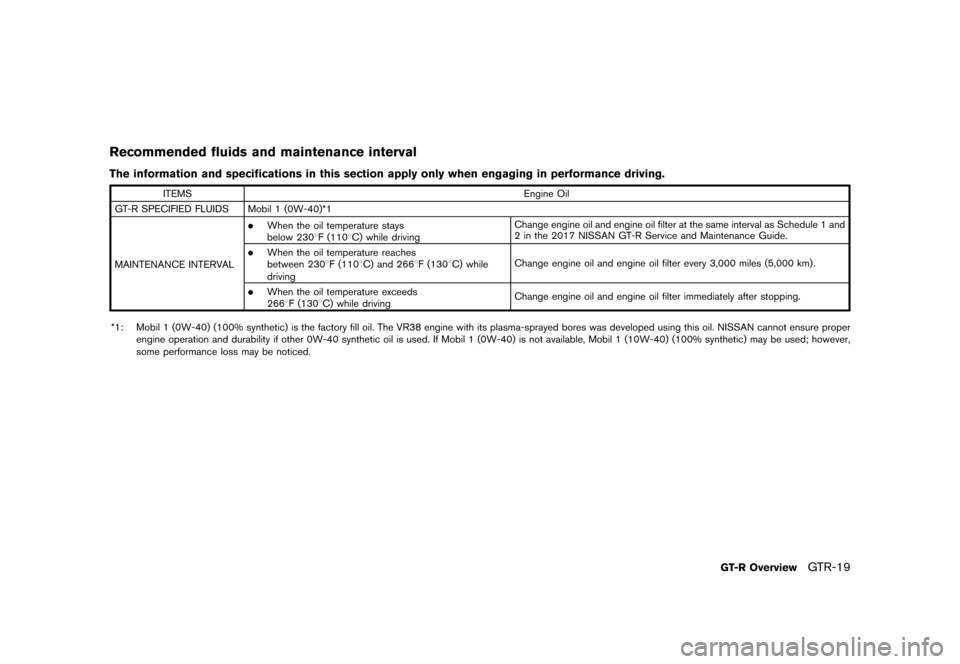

Recommended fluids and maintenance intervalGUID-77C76DE0-E458-4069-8A8D-7AD194241610The information and specifications in this section apply only when engaging in performance driving.
ITEMSEngine Oil
GT-R SPECIFIED FLUIDS Mobil 1 (0W-40)*1
MAINTENANCE INTERVAL
.When the oil temperature stays
below 2308F (1108C) while driving Change engine oil and engine oil filter at the same interval as Schedule 1 and
2 in the 2017 NISSAN GT-R Service and Maintenance Guide.
.When the oil temperature reaches
between 2308F (1108C) and 2668F (1308C) while
drivingChange engine oil and engine oil filter every 3,000 miles (5,000 km) .
.When the oil temperature exceeds
2668F (1308C) while driving
Change engine oil and engine oil filter immediately after stopping.
*1: Mobil 1 (0W-40) (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed bores was developed using this oil. NISSAN cannot ensure proper engine operation and durability if other 0W-40 synthetic oil is used. If Mobil 1 (0W-40) is not available, Mobil 1 (10W-40) (100% synthetic) may be used; however,
some performance loss may be noticed.
GT-R OverviewGTR-19


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-22GT-R Overview
Suspension and wheel alignmentGUID-717B8FCC-38D9-49B8-900D-CE3AC60083CD.Check the steering and suspension system
and other links for loose and/or damaged
parts.
. Measure and adjust the wheel alignment. It
is recommended you contact a GT-R
certified NISSAN dealer to adjust the wheel
alignment to the recommended setting for
normal driving.
Wheels and tiresGUID-DF739C54-232F-4D22-8411-3447FCC6AF9E.Check tire wear and cracking.
. Inspect the tire side wall for damage.
. Check the tire pressure and adjust the
pressure as necessary when the tires are
cold. (
ªWheels and tiresº page GTR-
16) If you do not drive under the conditions
listed in this section, see
ªWheels and
tiresº page 8-32.
. Check that the wheel nuts are not stripped.
Check if there is no deformation on the
contact surface of the wheel nuts.
. Make sure the wheel nuts are tight.
(
ªWheels and tiresº page 8-32)
. Make sure the drive shaft nuts are tight.
. Check wheel hub run out and that the wheel
rotates smoothly without any friction. Check these with the tires removed whenever an
inspection is performed with the vehicle
jacked up.
. Make sure the tire has not slipped on the
wheel causing the assembly to be out of
balance. The reference marks on the tire and
wheel should be aligned. If the reference
marks are not aligned, the tire has slipped on
the wheel. Have the wheels/tires reba-
lanced. Make sure the old reference marks
are erased and new reference marks are
applied to the wheel and tire. When instal-
ling new tires on the wheels, make sure new
reference marks are applied to the wheels
and tires. (
ªWheels and tiresº page
GTR-16)
. Make sure that the TPMS sensor installation
nuts and the sensor valve are tight and there
is no nitrogen leak.
BrakesGUID-9F9BF18B-725B-4D67-9B77-FE9C5E2B01AC.Check for the heat deterioration of the
brakes and parts around the brakes.
. Check the condition of the brake pads and
disc rotors and replace them as necessary.
Engine and powertrainGUID-6D6A93B6-167E-482B-B7DB-6E5B685097F5.Check the engine, transmission, differential
and under the vehicle for oil and coolant
leaks.
. Inspect the area surrounding the catalytic
converter for heat deterioration.
. Inspect and confirm the clearance between
the exhaust finisher and rear bumper is more
than 0.24 in (6 mm) (up/down) and more
than 0.20 in (5 mm) (left/right) .
. The clutch clearance and shift fork position
may need to be adjusted.
. Inspect the dust boot of the drive shaft
universal joint for cracks or damage.
. Check that there is no abnormal noise,
vibrations or warning lights illuminated when
making tight turns at slow speed (for tight
corner braking phenomenon) .


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-DD281636-A3DD-49D2-B488-7B6953612CC1
REFUELING PRECAUTIONSGUID-B30F7182-F54D-4636-B6F0-BE4454974C1A
WARNING
Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire. The fuel tank
is full at the first automatic shutoff.
To maximize vehicle performance, the fuel tank is
located as low as possible to lower the vehicle
center of gravity. The tank is also divided into
two parts. This fuel tank design causes higher
pressures inside the tank than other vehicles so
fuel spillage is possible by trying to top off the
fuel tank after automatic shutoff.
The fuel tank pressure is higher when the vehicle
is hot, especially if the tank is more than half full.
If the cap is opened when the vehicle is hot, it
may cause fuel spray and there may be a hissing
noise. Open the cap slowly, releasing the
pressure from the tank gradually. Also, if the
vehicle is refueled when the vehicle is hot, the
fuel pump may automatically shut off before the
tank is full. This does not indicate that there is a
malfunction. Refuel slowly or refuel after the vehicle has cooled.
GASOLINE SMELLGUID-C4342B46-9E75-40FD-9A7E-8B889C6F3C49The fuel temperature is higher when the vehicle
is hot. This may cause a gasoline smell from the
vehicle. This does not indicate that there is a
malfunction. The smell will go away when the
fuel temperature has cooled.
OUTSIDE TEMPERATURE DISPLAY
INDICATES HIGHER TEMPERATURE
GUID-F95A7E17-06A2-4ED7-B463-A156390578EBHeat from the engine compartment, radiator and
intercoolers can affect the outside temperature
display. The outside temperature display may
indicate a higher than actual temperature while
driving or stopped. This is normal.
IDLE SPEED IS NOT STEADYGUID-7097ABDE-3830-4D7D-A455-813F21F63D62The idle speed may not be steady when the
engine compartment is extremely hot. This is
normal. The engine speed will be steady when
the engine cools down.
In this case, the Malfunction Indicator Light (MIL)
may come on. After a few driving trips, the MIL
should turn off. If the light remains on after a few
driving trips, it is recommended you have the
vehicle inspected by a GT-R certified NISSAN
dealer.
ENGINE SPEED IS RESTRICTEDGUID-587FD63C-797C-46FE-8FC5-922D6B690C2FTo help protect the engine, the maximum engine
speed is automatically controlled in the following
conditions:
.
Revving the engine with the shift lever in the
&Por&Nposition: The maximum engine
speed is 4,300 RPM
. Revving the engine when the engine oil is at
a low (below 328F (08C)) or extremely high
(over 2758F (1358C)) temperature: The
maximum engine speed is 4,000 RPM (The
&Mposition will automatically change to the
&Aposition.)
ENGINE OUTPUTGUID-C14E0C84-C7F0-4B8A-8FEF-2A734F415F94
High altitudeGUID-445B3E98-7529-4F53-8B24-429570722800To protect the engine, engine output is con-
trolled so that it does not increase at altitude of
approximately 3,281 ft (1,000 m) or higher.
Engine output according to the
coolant temperature
GUID-3F169CBB-5E6D-4B26-8539-DAAEBB0E590EThe engine output is controlled at a low level
when the engine coolant temperature is lower
than approximately 1588F (708C) or higher than
2308F (1108C). This is not a malfunction.
If the temperature is lower than approximately
GT-R OverviewGTR-23
GT-R SPECIFIC VEHICLE
CHARACTERISTICS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GTR-24GT-R Overview

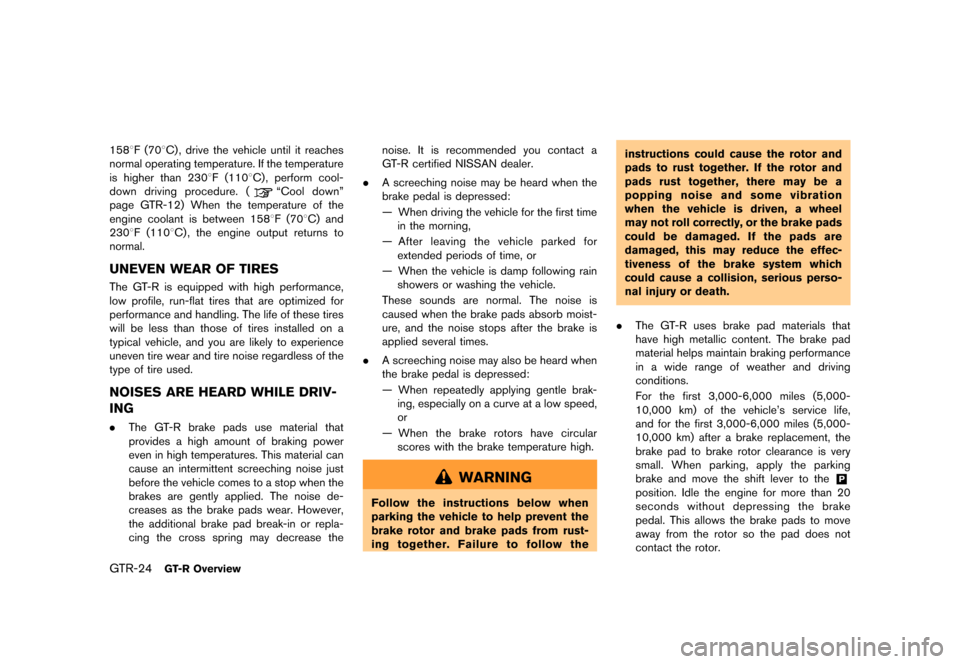

1588F (708C) , drive the vehicle until it reaches
normal operating temperature. If the temperature
is higher than 2308F (1108C), perform cool-
down driving procedure. (
ªCool downº
page GTR-12) When the temperature of the
engine coolant is between 1588F (708C) and
2308F (1108C) , the engine output returns to
normal.
UNEVEN WEAR OF TIRESGUID-59A07A50-5E03-47E7-8FC7-CEFC9932C699The GT-R is equipped with high performance,
low profile, run-flat tires that are optimized for
performance and handling. The life of these tires
will be less than those of tires installed on a
typical vehicle, and you are likely to experience
uneven tire wear and tire noise regardless of the
type of tire used.
NOISES ARE HEARD WHILE DRIV-
ING
GUID-0FCF3045-9BA4-4C8F-B6C6-7E56184A22F9. The GT-R brake pads use material that
provides a high amount of braking power
even in high temperatures. This material can
cause an intermittent screeching noise just
before the vehicle comes to a stop when the
brakes are gently applied. The noise de-
creases as the brake pads wear. However,
the additional brake pad break-in or repla-
cing the cross spring may decrease the noise. It is recommended you contact a
GT-R certified NISSAN dealer.
. A screeching noise may be heard when the
brake pedal is depressed:
Ð When driving the vehicle for the first time
in the morning,
Ð After leaving the vehicle parked for extended periods of time, or
Ð When the vehicle is damp following rain showers or washing the vehicle.
These sounds are normal. The noise is
caused when the brake pads absorb moist-
ure, and the noise stops after the brake is
applied several times.
. A screeching noise may also be heard when
the brake pedal is depressed:
Ð When repeatedly applying gentle brak-
ing, especially on a curve at a low speed,
or
Ð When the brake rotors have circular scores with the brake temperature high.
WARNING
Follow the instructions below when
parking the vehicle to help prevent the
brake rotor and brake pads from rust-
ing together. Failure to follow the instructions could cause the rotor and
pads to rust together. If the rotor and
pads rust together, there may be a
popping noise and some vibration
when the vehicle is driven, a wheel
may not roll correctly, or the brake pads
could be damaged. If the pads are
damaged, this may reduce the effec-
tiveness of the brake system which
could cause a collision, serious perso-
nal injury or death.
. The GT-R uses brake pad materials that
have high metallic content. The brake pad
material helps maintain braking performance
in a wide range of weather and driving
conditions.
For the first 3,000-6,000 miles (5,000-
10,000 km) of the vehicle's service life,
and for the first 3,000-6,000 miles (5,000-
10,000 km) after a brake replacement, the
brake pad to brake rotor clearance is very
small. When parking, apply the parking
brake and move the shift lever to the
&P
position. Idle the engine for more than 20
seconds without depressing the brake
pedal. This allows the brake pads to move
away from the rotor so the pad does not
contact the rotor.
