2017 NISSAN GT-R display

7. Voice recognition
1st Command 2nd Command 3rd Command ActionCD Turns on the CD, selecting the last played mode.
USB Turns on the USB, selecting the last played mode.
iPod Turns on the iPod
Š, selecting the last played mode.
Bluetooth Audio Turns on the Bluetooth
ŠAudio, selecting the last played mode.
AUX Turns on the AUX audio, selecting the last played mode.
AM Turns to the AM band, selecting the station of the preferred frequency.
AM Preset <1-6> Plays the spoken AM preset station.
FM Turns to the FM band, selecting the station of the preferred frequency.
FM Preset <1-12> Plays the spoken FM preset station.
SXM Turns to the SiriusXM Satellite Radio band, selecting the channel number.
SXM Turns to the SiriusXM Satellite Radio band, selecting the channel name.
SXM Preset <1-18> Plays the spoken SXM preset channel.
USB Show Folders Displays folders in the USB memory device.
USB Play Folder Plays songs in the selected folder in the USB memory device.
USB Play File Plays songs in the selected file in the USB memory device.
iPod Play Artist Turns on the iPod
Š, selecting the artist.
iPod Play Album Turns on the iPod
Š, selecting the album.
iPod Play Song Turns on the iPod
Š, selecting the track. You can speak the commands
successively.
iPod Play Playlist Turns on the iPod
Š, playing the playlist that you spoke.
7-14

1st Command 2nd Command 3rd Command ActioniPod Show Artists Displays a list of Artist names stored in the iPodŠ.
iPod Show Albums Displays a list of Albums in the iPod
Š.
iPod Show Songs Displays a list of tracks in the iPod
Š.
iPod Play Artist name> <1-5>
Turns on the iPod
Š, selecting the artist.
iPod Play Album name> <1-5>
Turns on the iPod
Š, selecting the album.
iPod Play Song name> <1-5>
Turns on the iPod
Š, selecting the track. You can speak the commands
successively.
iPod Play Playlist list name> <1-5>
Turns on the iPod
Š, playing the playlist that you spoke.
iPod Play All Songs Plays all tracks in the iPod
Š.
Play Artist
Plays the tracks of the corresponding song list in the iPod
Š.
Play Album
Play Song
Play Playlist
INFO:
A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
“SiriusXM Travel Link” (page 5-20)
Operating tips for audio command operation:
. An audio device connected via Bluetooth
Šcannot be operated with the Voice Recognition system. Source change is only available for BluetoothŠ
streaming Audio.
7. Voice recognition
7-15

7. Voice recognition
.If two USB devices are connected at the same time, voice operation will only be available for use with one registered and selected device. When
selecting “YES” in the pop-up screen that displays after a new USB audio device is connected, the USB audio device is registered in the voice
recognition system and is selected automatically. One iPod
Šand one USB device can be registered in the system. If a USB audio device is newly
registered, old data is overwritten. It may take a few moments to register an audio device. If you want to enable voice operation for music stored in a
previously registered audio device, select the device you want to use in advance. Even when a device has been previously registered, simply connecting
the device will not result in it being selected automatically.
“Voice recognition settings” (page 7-18)
. The Voice Recognition system may not function when the song information is too long (artist names, album titles, song titles and play lists, etc.) .
. The SiriusXM function will not operate without a subscription to SiriusXM Satellite Radio.
. When playing USB files with the voice recognition system, do not pronounce the extension attached to the file name (such as “.mp3”) .
. Song titles registered in ID3 tags cannot be pronounced for voice recognition operation.
Information Command
1st Command 2nd Command Action
Information Where am I?
Displays information of the current position.
SXM Weather Map Displays the SiriusXM Weather map.
SXM Current Weather Displays the nearby weather (current weather).
SXM Weather Forecast Displays the weather forecast.
SXM Fuel Prices Displays fuel prices.
SXM Movie Listings Displays SiriusXM Movie Listings.
SXM Stocks Displays SiriusXM stock information.
SXM Sports Scores Displays sports scores.
SXM Traffic Turns the traffic information system on or off.
Favorite Feeds (if so equipped) Plays Favorite Feeds.
7-16

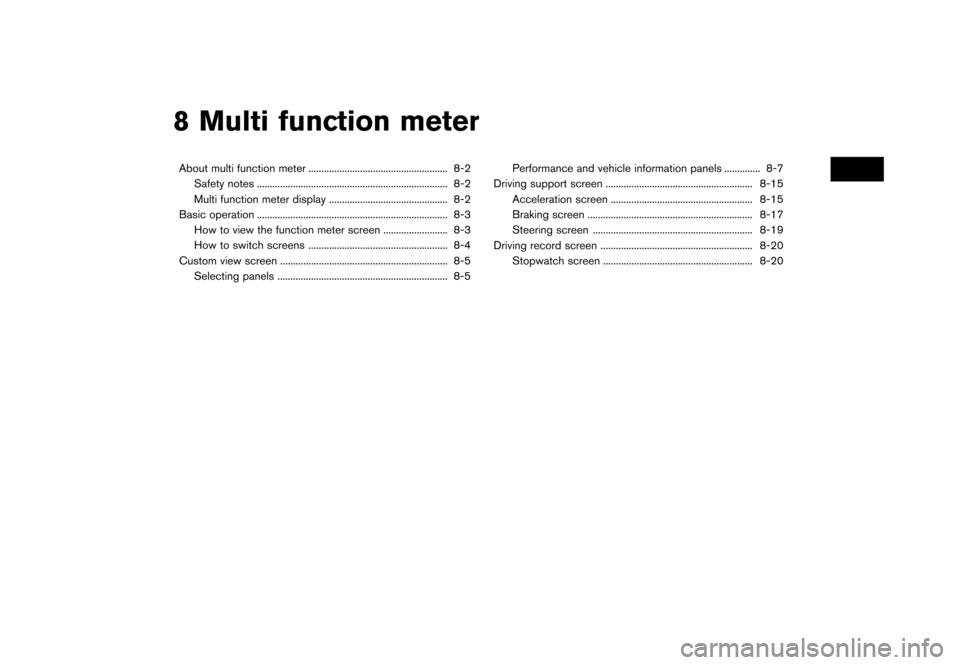

8 Multi function meter
About multi function meter ...................................................... 8-2Safety notes ........................................................................\
.. 8-2
Multi function meter display .............................................. 8-2
Basic operation ........................................................................\
.. 8-3 How to view the function meter screen ......................... 8-3
How to switch screens ...................................................... 8-4
Custom view screen ................................................................. 8-5
Selecting panels .................................................................. 8-5 Performance and vehicle information panels .............. 8-7
Driving support screen ......................................................... 8-15
Acceleration screen ....................................................... 8-15
Braking screen ................................................................ 8-17
Steering screen .............................................................. 8-19
Driving record screen ........................................................... 8-20 Stopwatch screen .......................................................... 8-20

8. Multi function meter

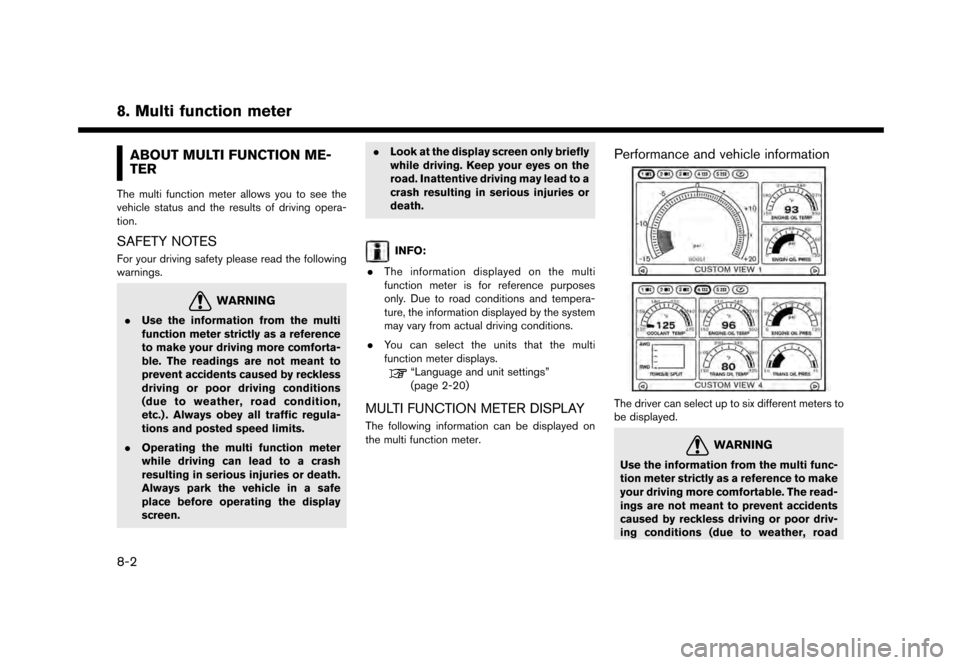

ABOUT MULTI FUNCTION ME-
TER
The multi function meter allows you to see the
vehicle status and the results of driving opera-
tion.
SAFETY NOTES
For your driving safety please read the following
warnings.
WARNING
.Use the information from the multi
function meter strictly as a reference
to make your driving more comforta-
ble. The readings are not meant to
prevent accidents caused by reckless
driving or poor driving conditions
(due to weather, road condition,
etc.) . Always obey all traffic regula-
tions and posted speed limits.
. Operating the multi function meter
while driving can lead to a crash
resulting in serious injuries or death.
Always park the vehicle in a safe
place before operating the display
screen. .
Look at the display screen only briefly
while driving. Keep your eyes on the
road. Inattentive driving may lead to a
crash resulting in serious injuries or
death.
INFO:
. The information displayed on the multi
function meter is for reference purposes
only. Due to road conditions and tempera-
ture, the information displayed by the system
may vary from actual driving conditions.
. You can select the units that the multi
function meter displays.
“Language and unit settings”
(page 2-20)
MULTI FUNCTION METER DISPLAY
The following information can be displayed on
the multi function meter.
Performance and vehicle information
The driver can select up to six different meters to
be displayed.
WARNING
Use the information from the multi func-
tion meter strictly as a reference to make
your driving more comfortable. The read-
ings are not meant to prevent accidents
caused by reckless driving or poor driv-
ing conditions (due to weather, road
8-2

condition, etc.) . Always obey all traffic
regulations and posted speed limits.

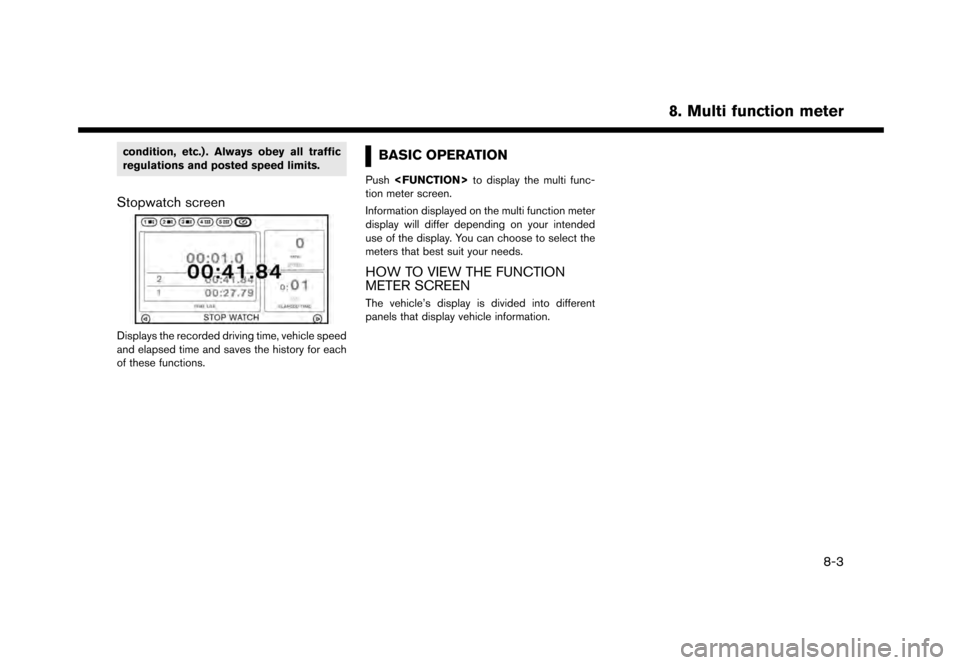

Stopwatch screen
Displays the recorded driving time, vehicle speed
and elapsed time and saves the history for each
of these functions.
BASIC OPERATION
Push to display the multi func-
tion meter screen.
Information displayed on the multi function meter
display will differ depending on your intended
use of the display. You can choose to select the
meters that best suit your needs.
HOW TO VIEW THE FUNCTION
METER SCREEN
The vehicle’s display is divided into different
panels that display vehicle information.
8. Multi function meter
8-3

8. Multi function meter
Screen information
*1Large panel:
Displays the vehicle information meter dis-
play, digital display and gauge display. This
feature is only available in the 3-panel
display mode. Touch the panel to select
another meter to display.
“Performance and vehicle information
panels” (page 8-7)
*2Small panel:
This display is simpler than the large display.
Touch the panel to select another meter todisplay.
“Performance and vehicle information
panels” (page 8-7)
*3Screen number/icon:
This number or letter identifies the screen
that you are currently viewing. Touch the
screen number/icon to display the corre-
sponding screen.
“Panel selection operation” (page 8-5)
*4Screen switching:
Scrolls through the screens. Touch [
]to
return to the previous screen. Touch []to
proceed to the next screen.
“Panel selection operation” (page 8-5)
*5Screen title:
Displays the title of the screen currently
displayed.
HOW TO SWITCH SCREENS
Five custom view screens and one stopwatch
screen are available.
Display a preferred view by selecting the
corresponding number/icon on the top of the
multi function meter screen.
By touching numbers/icons:
Touch the number/icon that corresponds to the
screen you wish to display. The selected screen
will appear.
8-4

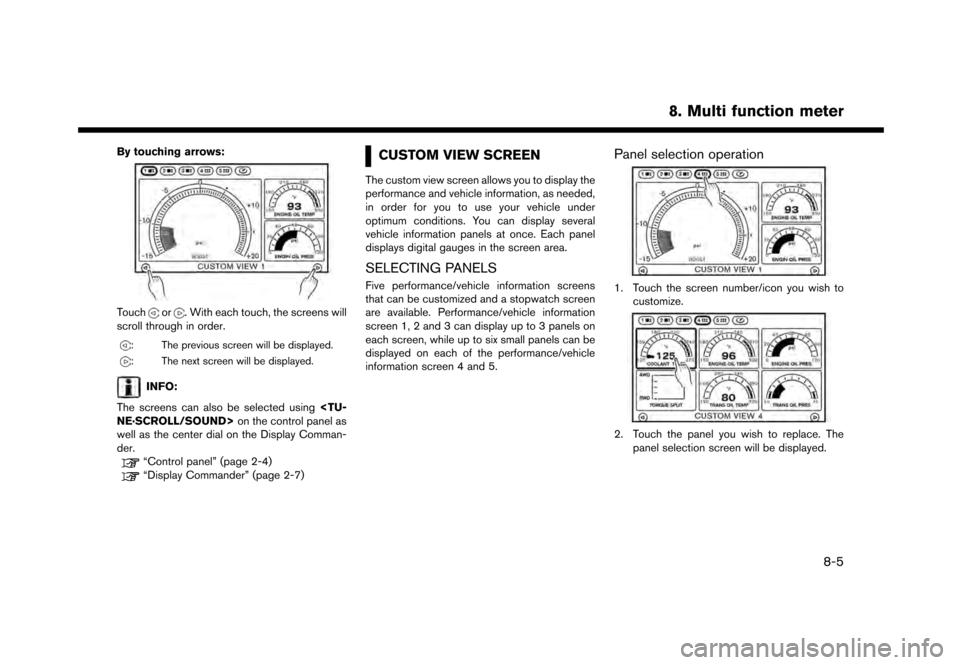

By touching arrows:
Touchor. With each touch, the screens will
scroll through in order.
: The previous screen will be displayed.
: The next screen will be displayed.
INFO:
The screens can also be selected using NE·SCROLL/SOUND> on the control panel as
well as the center dial on the Display Comman-
der.
“Control panel” (page 2-4)“Display Commander” (page 2-7)
CUSTOM VIEW SCREEN
The custom view screen allows you to display the
performance and vehicle information, as needed,
in order for you to use your vehicle under
optimum conditions. You can display several
vehicle information panels at once. Each panel
displays digital gauges in the screen area.
SELECTING PANELS
Five performance/vehicle information screens
that can be customized and a stopwatch screen
are available. Performance/vehicle information
screen 1, 2 and 3 can display up to 3 panels on
each screen, while up to six small panels can be
displayed on each of the performance/vehicle
information screen 4 and 5.
Panel selection operation
1. Touch the screen number/icon you wish to customize.
2. Touch the panel you wish to replace. The
panel selection screen will be displayed.
8. Multi function meter
8-5
