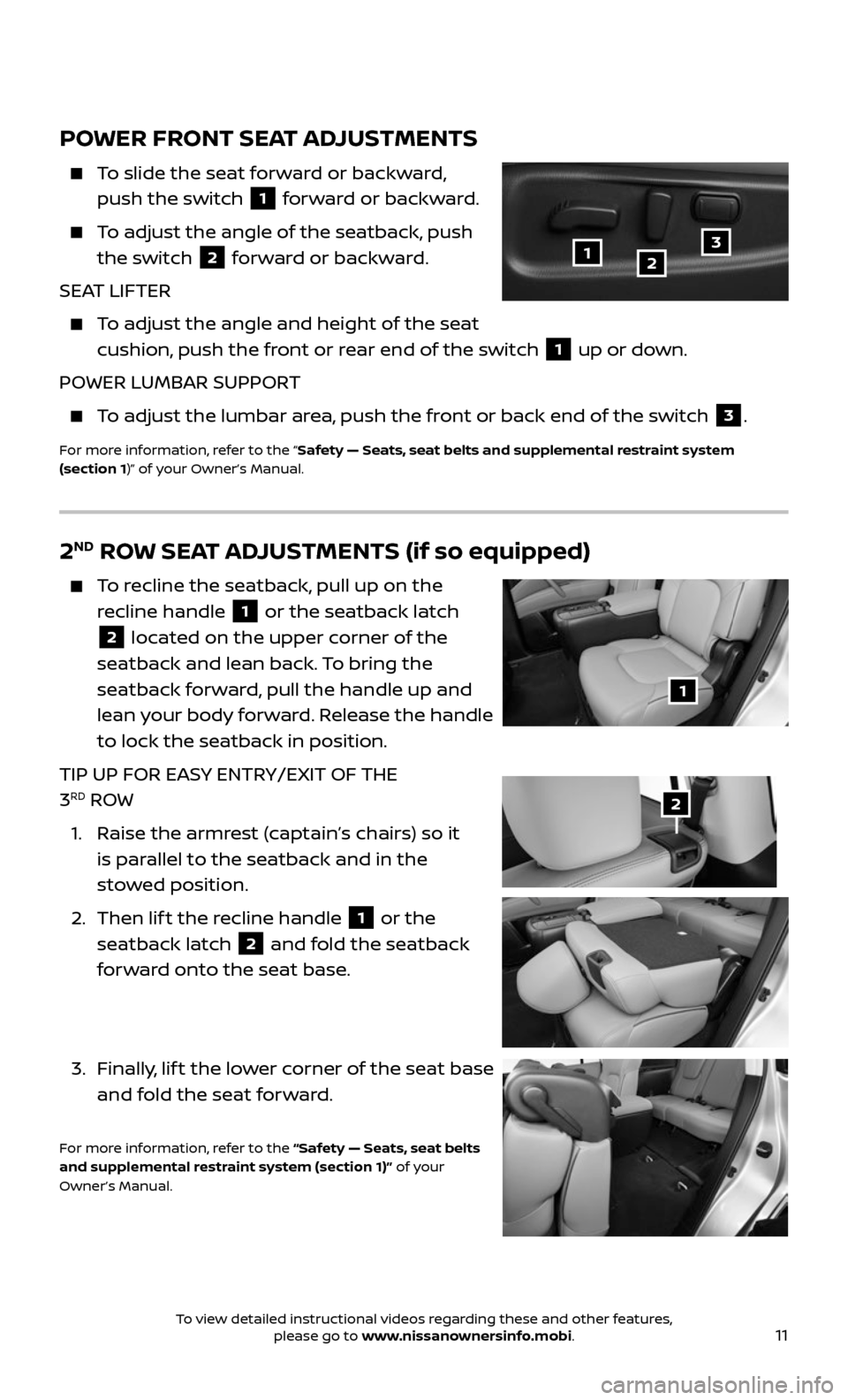

POWER FRONT SEAT ADJUSTMENTS
To slide the seat forward or backward,
push the switch 1 forward or backward.
To adjust the angle of the seatback, push
the switch 2 forward or backward.
SEAT LIFTER
To adjust the angle and height of the seat
cushion, push the front or rear end of the switch 1 up or down.
POWER LUMBAR SUPPORT
To adjust the lumbar area, push the front or back end of the switch 3.
For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system
(section 1)” of your Owner’s Manual.
123
2ND ROW SEAT ADJUSTMENTS (if so equipped)
To recline the seatback, pull up on the
recline handle
1 or the seatback latch
2 located on the upper corner of the
seatback and lean back. To bring the
seatback forward, pull the handle up and
lean your body forward. Release the handle
to lock the seatback in position.
TIP UP FOR EASY ENTRY/EXIT OF THE
3
RD ROW
1. Raise the armr est (captain’s chairs) so it
is parallel to the seatback and in the
stowed position.
2. Then lif t the recline handle 1 or the
seatback latch 2 and fold the seatback
forward onto the seat base.
3. Finally, lif t the lower corner of the seat base
and fold the seat forward.
For more information, refer to the “Safety — Seats, seat belts
and supplemental restraint system (section 1)” of your
Owner’s Manual.
1
2
