GUID-6373540C-797E-4B47-87E4-88F6AF54FEEBBRAKING PRECAUTIONSGUID-95B7D6B0-FDAC-4A6A-BBCA-DD89B79E13C0The brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.
Vacuum assisted brakesGUID-FC43F897-2FAD-4704-897C-9EF9D48E3D4BThe brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.
Wet brakesGUID-58298AFE-6583-467D-9876-FECC549FC3B7When the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly tapping the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.
PARKING BRAKE BREAK-INGUID-8F6869D0-CE22-48C7-ADFD-29370C1A35EABreak in the parking brake shoes whenever the
stopping effect of the parking brake is weakened
or whenever the parking brake shoes and/or
drums/rotors are replaced, in order to assure the
best braking performance.This procedure is described in the vehicle
service manual. It is recommended you visit a
NISSAN dealer for this service.
Using the brakesGUID-9A3B140F-D270-46ED-AA75-C22A22822B1CAvoid resting your foot on the brake pedal while
driving. This will cause overheating of the
brakes, wearing out the brake and pads faster
and reduce gas mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.
WARNING
.
While driving on a slippery surface,
be careful when braking, accelerat-
ing or downshifting. Abrupt braking
or accelerating could cause the
wheels to skid and result in an
accident.
. If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
Braking will be harder.
GUID-424E6C43-23C1-48EA-B39B-41DA78EC93D1BRAKE ASSISTGUID-EA21D7FA-3494-4201-9914-5865E67F8BE7When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force than a
conventional brake booster even with light pedal
force.
WARNING
The Brake Assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. It is the
driver's responsibility to stay alert, drive
safely and be in control of the vehicle at
all times.
ANTI-LOCK BRAKING SYSTEM (ABS)GUID-B7350BDF-8854-429A-B2F3-935BFC82FFF3
WARNING
.The Anti-lock Braking System (ABS)
is a sophisticated device, but it
cannot prevent accidents resulting
from careless or dangerous driving
techniques. It can help maintain
vehicle control during braking on
slippery surfaces. Remember that
stopping distances on slippery sur-
faces will be longer than on normal
Starting and driving5-27
BRAKE SYSTEM BRAKE ASSIST
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
5-28Starting and driving
surfaces even with ABS. Stopping
distances may also be longer on
rough, gravel or snow covered
roads, or if you are using tire chains.
Always maintain a safe distance
from the vehicle in front of you.
Ultimately, the driver is responsible
for safety.
. Tire type and condition may also
affect braking effectiveness.
Ð When replacing tires, install the
specified size of tires on all four
wheels.
Ð When installing a spare tire, make sure that it is the proper
size and type as specified on the
Tire and Loading Information
label. See ªTire and Loading
Information labelº (P.10-13) of
this manual.
Ð For detailed information, see ªWheels and tiresº (P.8-26) of
this manual.
The Anti-lock Braking System (ABS) controls
the brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using the systemGUID-5F8F3DF3-1213-44B2-819C-394D031FC9DBDepress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels from
locking up. Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.
Self-test featureGUID-7E716B57-87FA-4414-818C-3D591D470B85The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer. The
computer has a built-in diagnostic feature that
tests the system each time you start the engine
and move the vehicle at a low speed in forward
or reverse. When the self-test occurs, you may
hear a ªclunkº noise and/or feel a pulsation in the
brake pedal. This is normal and does notindicate a malfunction. If the computer senses
a malfunction, it switches the ABS off and
illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked. It is recommended you visit a NISSAN
dealer for this service.
Normal operationGUID-BDC138D9-7206-40B2-891C-4FFE2C9E11B2The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h) .
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are
hazardous and extra care is required while
driving.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
5-32Starting and driving
GUID-E006F8EB-AB14-4983-8267-C797B0E3C4BFFREEING A FROZEN DOOR LOCKGUID-EE112D0C-BBDD-4077-8BA9-53541B872015To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTIFREEZEGUID-C6044260-21E7-40A7-BEB0-7FF96E7A3938In the winter when it is anticipated that the
outside temperature will drop below 328F (08C) ,
check antifreeze to assure proper winter protec-
tion. For additional information, see ªEngine
cooling systemº (P.8-4).
BATTERYGUID-4EB718E1-BF81-46F0-8027-6F5A99E09969If the battery is not fully charged during
extremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery should
be checked regularly. For additional information,
see ªBatteryº (P.8-11) .
DRAINING OF COOLANT WATERGUID-1383667C-4F22-4E77-90AC-F8D09E3B847AIf the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see ªEngine cooling systemº
(P.8-4) .
TIRE EQUIPMENTGUID-ED78C8A3-07DD-4857-A808-AB61C42A0B88SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or icy
roads, NISSAN recommends the use of MUD &
SNOW or ALL SEASON tires on all four wheels.
It is recommended you consult a NISSAN dealer
for the tire type, size, speed rating and
availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
Tire chains may be used. For details, see ªTire
chainsº (P.8-33) of this manual.
SPECIAL WINTER EQUIPMENTGUID-FFCFD728-8757-4ED4-B2B8-5725E4F7B286It is recommended that the following items be
carried in the vehicle during winter:
.A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades. .
A sturdy, flat board to be placed under the
jack to give it firm support.
. A shovel to dig the vehicle out of snowdrifts.
. Extra window washer fluid to refill the
reservoir tank.
DRIVING ON SNOW OR ICEGUID-32C999F5-3E37-4462-A88C-8A1D1D2A89DA
WARNING
.Wet ice (328F, 08C and freezing rain) ,
very cold snow or ice can be slick
and very hard to drive on. The
vehicle will have much less traction
orªgripº under these conditions. Try
to avoid driving on wet ice until the
road is salted or sanded.
. Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels
will lose even more traction.
. Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pave-
ment.
. Allow greater following distances
on slippery roads.
COLD WEATHER DRIVING
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

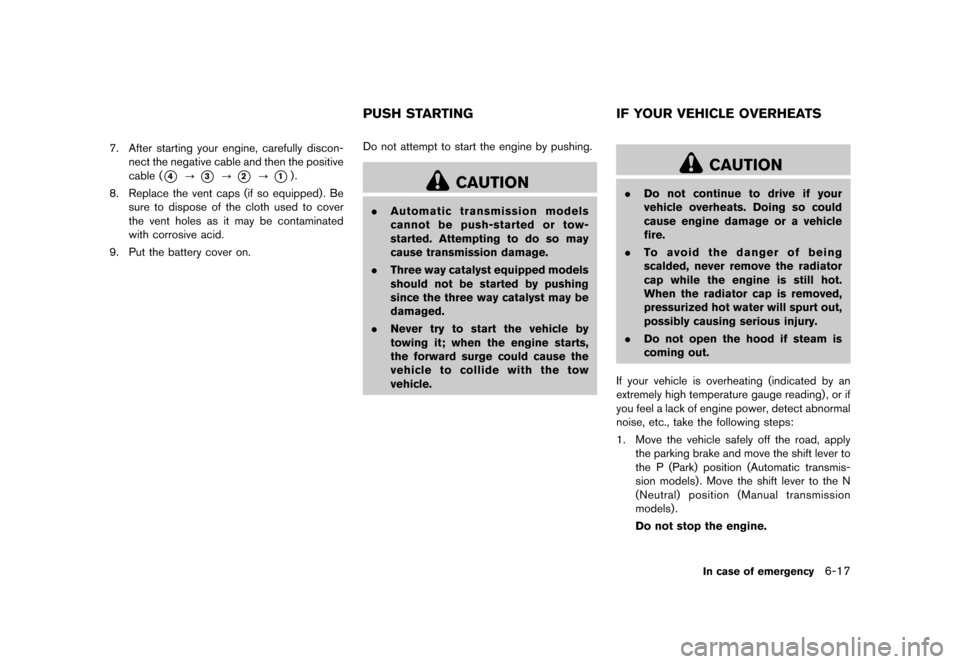

7. After starting your engine, carefully discon-nect the negative cable and then the positive
cable (
*4?*3?*2?*1) .
8. Replace the vent caps (if so equipped) . Be sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.
9. Put the battery cover on.
GUID-E11D40BA-8C48-4BF2-9C65-4736439851E6Do not attempt to start the engine by pushing.
CAUTION
. Automatic transmission models
cannot be push-started or tow-
started. Attempting to do so may
cause transmission damage.
. Three way catalyst equipped models
should not be started by pushing
since the three way catalyst may be
damaged.
. Never try to start the vehicle by
towing it; when the engine starts,
the forward surge could cause the
vehicle to collide with the tow
vehicle.
GUID-DC895B76-A74E-4040-9622-94CA1A87B215
CAUTION
.Do not continue to drive if your
vehicle overheats. Doing so could
cause engine damage or a vehicle
fire.
. To avoid the danger of being
scalded, never remove the radiator
cap while the engine is still hot.
When the radiator cap is removed,
pressurized hot water will spurt out,
possibly causing serious injury.
. Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading) , or if
you feel a lack of engine power, detect abnormal
noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the shift lever to
the P (Park) position (Automatic transmis-
sion models) . Move the shift lever to the N
(Neutral) position (Manual transmission
models) .
Do not stop the engine.
In case of emergency6-17
PUSH STARTING IF YOUR VEHICLE OVERHEATS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
6-18In case of emergency
2. Turn off the air conditioner. Open all thewindows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed.
3. If engine overheating is caused by climbing a long hill on a hot day, run the engine at a
fast idle (approximately 1,500 rpm) until the
temperature gauge indication returns to
normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check if the cooling fan is running. The radiator hoses and radiator should not
leak water. If coolant is leaking or the cooling
fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine
cooling fan can start at any time.
7. After the engine cools down, check the coolant level in the reservoir with the engine
running. Add coolant to the reservoir if
necessary. Have your vehicle repaired. It is
recommended you visit a NISSAN dealer for
this service.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
SDI2020
REPLACING SPARK PLUGSGUID-0359E55E-51E2-4ACB-A2A9-1765BDAD8C12If replacement is required, it is recommended
you visit a NISSAN dealer for this service.
Iridium-tipped spark plugsGUID-596B34FC-64FF-4C1D-B407-1D9F9F2A841DIt is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much longer.
Follow the maintenance schedule shown in the
ª9. Maintenance and schedulesº section, but do
not reuse them by cleaning or regapping.
Always replace spark plugs with recom-
mended or equivalent ones.
GUID-5265C6D1-2D47-4B0E-8014-DF0E2BEC764C
SDI2350
Remove the retainers*1as illustrated and pull
out the filter element
*2.
The filter element should not be cleaned and
reused. Replace it according to the maintenance
schedule shown in the ª9. Maintenance and
schedulesº section. When replacing the filter,
wipe the inside of the air cleaner housing and the cover with a damp cloth.
WARNING
.
Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops
flame if the engine backfires. If it
is not there, and the engine back-
fires, you could be burned. Do not
drive with the air cleaner removed,
and be careful when working on the
engine with the air cleaner removed.
. Never pour fuel into the throttle
body or attempt to start the engine
with the air cleaner removed. Doing
so could result in serious injury.
Do-it-yourself8-15
AIR CLEANER
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

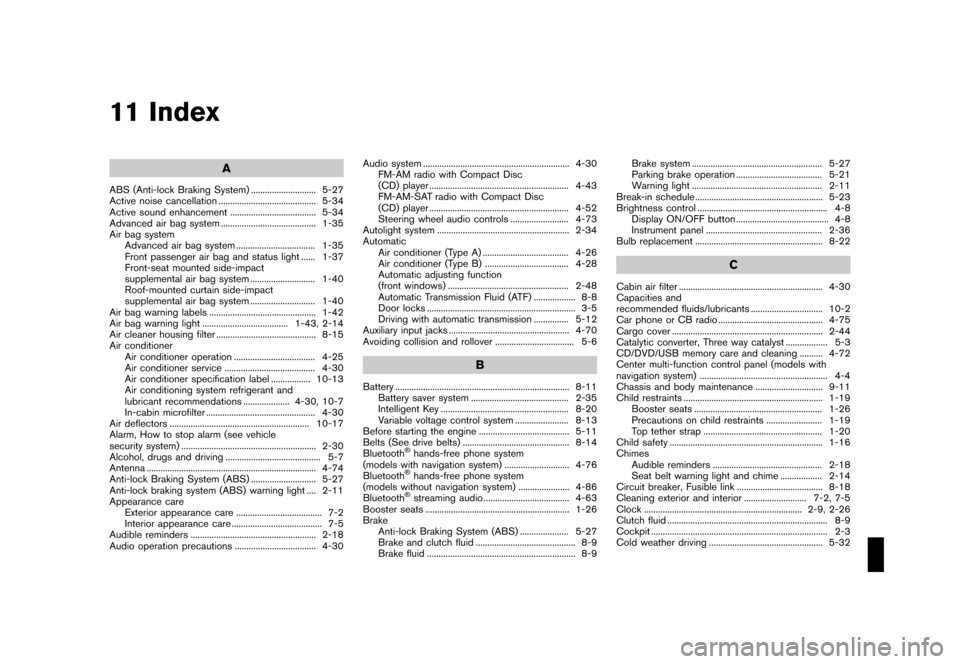

11 Index
A
ABS (Anti-lock Braking System)...
............................ 5-27
Active noise cancellation ...
.......................................... 5-34
Active sound enhancement ...
..................................... 5-34
Advanced air bag system ...
......................................... 1-35
Air bag system Advanced air bag system ...
.................................. 1-35
Front passenger air bag and status light ...
...... 1-37
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-40
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-40
Air bag warning labels ...
.............................................. 1-42
Air bag warning light ...
..................................... 1-43, 2-14
Air cleaner housing filter ...
........................................... 8-15
Air conditioner Air conditioner operation ...
................................... 4-25
Air conditioner service ...
....................................... 4-30
Air conditioner specification label ...
................. 10-13
Air conditioning system refrigerant and
lubricant recommendations ...
.................... 4-30, 10-7
In-cabin microfilter ...
............................................... 4-30
Air deflectors ...
............................................................ 10-17
Alarm, How to stop alarm (see vehicle
security system) ...
.......................................................... 2-30
Alcohol, drugs and driving ...
......................................... 5-7
Antenna ...
......................................................................... 4-74
Anti-lock Braking System (ABS) ...
............................ 5-27
Anti-lock braking system (ABS) warning light ...
.... 2-11
Appearance care Exterior appearance care ...
..................................... 7-2
Interior appearance care ...
....................................... 7-5
Audible reminders ...
...................................................... 2-18
Audio operation precautions ...
................................... 4-30 Audio system
...
............................................................... 4-30
FM-AM radio with Compact Disc
(CD) player ...
............................................................ 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
............................................................ 4-52
Steering wheel audio controls ...
......................... 4-73
Autolight system ...
......................................................... 2-34
Automatic Air conditioner (Type A) ...
..................................... 4-26
Air conditioner (Type B) ...
.................................... 4-28
Automatic adjusting function
(front windows) ...
.................................................... 2-48
Automatic Transmission Fluid (ATF) ...
.................. 8-8
Door locks ...
................................................................ 3-5
Driving with automatic transmission ...
............... 5-12
Auxiliary input jacks ...
.................................................... 4-70
Avoiding collision and rollover ...
.................................. 5-6
B
Battery ...
........................................................................... 8-11
Battery saver system ...
.......................................... 2-35
Intelligent Key ...
....................................................... 8-20
Variable voltage control system ...
....................... 8-13
Before starting the engine ...
....................................... 5-11
Belts (See drive belts) ...
.............................................. 8-14
Bluetooth
