2017 NISSAN 370Z COUPE turn signal


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
8-22Do-it-yourself
GUID-EB65B981-E72F-4FAC-ADF0-40E2A575A79F
JVM0467X

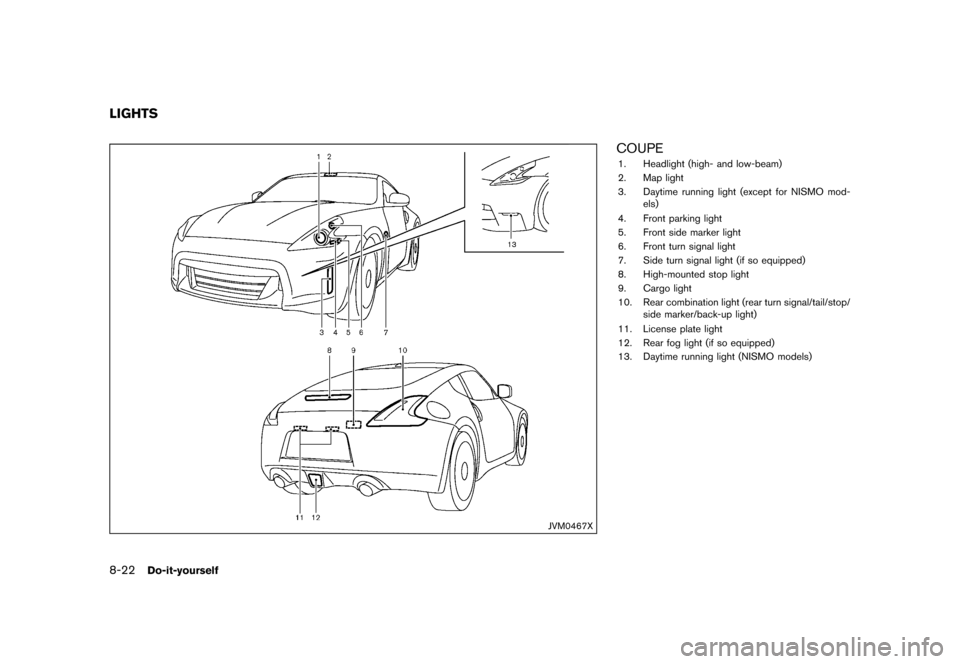

COUPEGUID-D2ED99C7-EF8E-4A18-AFC1-576969341A871. Headlight (high- and low-beam)
2. Map light
3. Daytime running light (except for NISMO mod-els)
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light (if so equipped)
8. High-mounted stop light
9. Cargo light
10. Rear combination light (rear turn signal/tail/stop/ side marker/back-up light)
11. License plate light
12. Rear fog light (if so equipped)
13. Daytime running light (NISMO models)
LIGHTS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
JVM0140X

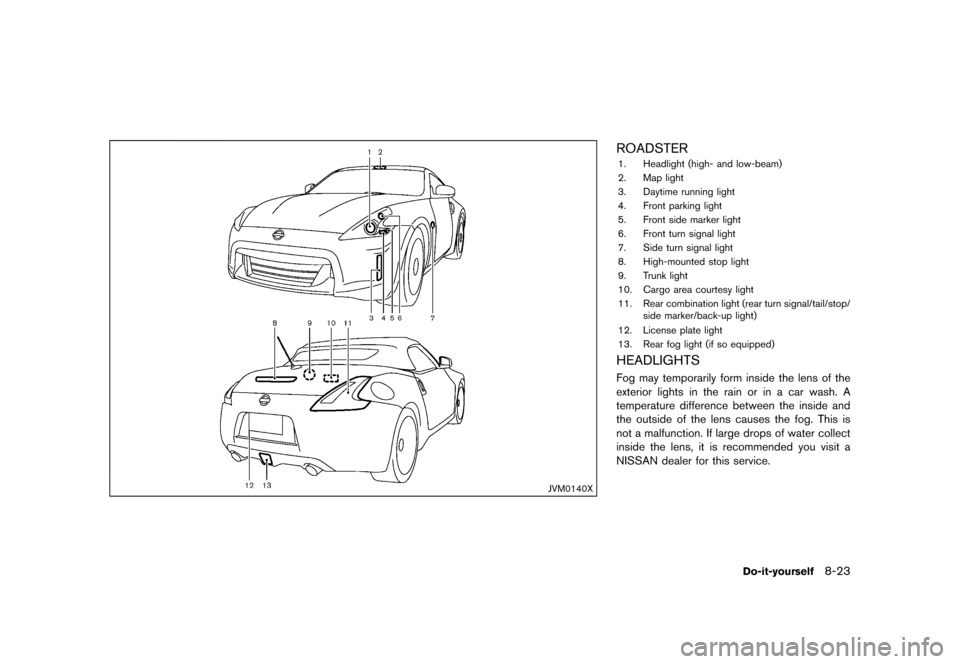

ROADSTERGUID-DD6E3D5F-4BF6-4D01-9DFF-ADB1800DCFEF1. Headlight (high- and low-beam)
2. Map light
3. Daytime running light
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light
8. High-mounted stop light
9. Trunk light
10. Cargo area courtesy light
11. Rear combination light (rear turn signal/tail/stop/side marker/back-up light)
12. License plate light
13. Rear fog light (if so equipped)
HEADLIGHTSGUID-68508CC1-7E92-42CD-BC8E-938EDC02B062Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, it is recommended you visit a
NISSAN dealer for this service.
Do-it-yourself8-23
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
8-24Do-it-yourself

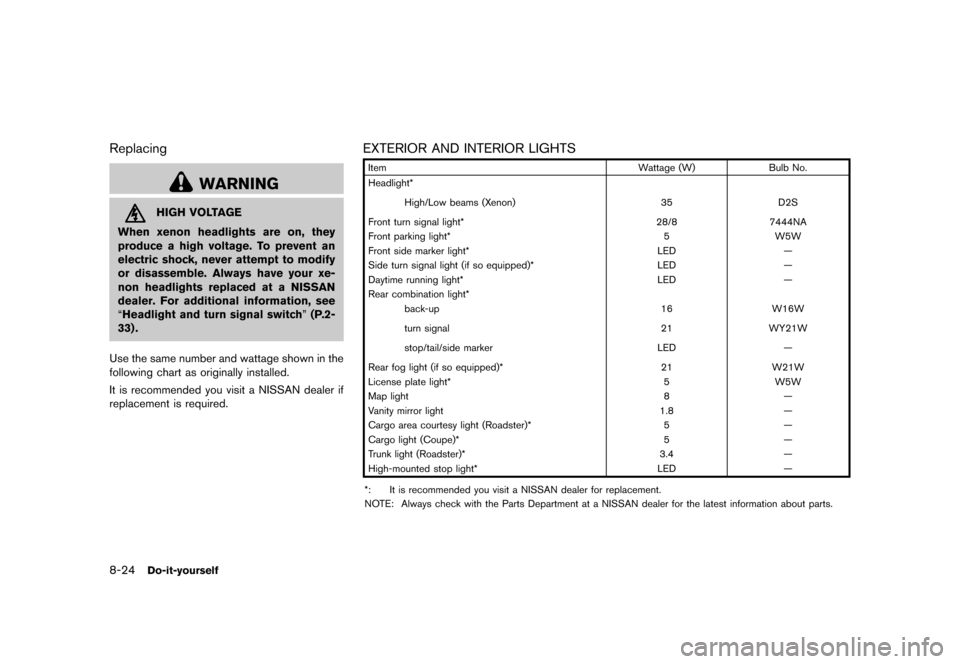

ReplacingGUID-105F3D6B-9444-472D-BFB1-087774285E30
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
ªHeadlight and turn signal switchº (P.2-
33) .
Use the same number and wattage shown in the
following chart as originally installed.
It is recommended you visit a NISSAN dealer if
replacement is required.
EXTERIOR AND INTERIOR LIGHTSGUID-17A30D44-BE09-4C34-ABD1-5E9AA886DA61
Item Wattage (W)Bulb No.
Headlight*
High/Low beams (Xenon) 35D2S
Front turn signal light* 28/87444NA
Front parking light* 5W5W
Front side marker light* LEDÐ
Side turn signal light (if so equipped)* LEDÐ
Daytime running light* LEDÐ
Rear combination light*
back-up 16W16W
turn signal 21WY21W
stop/tail/side marker LEDÐ
Rear fog light (if so equipped)* 21W21W
License plate light* 5W5W
Map light 8Ð
Vanity mirror light 1.8Ð
Cargo area courtesy light (Roadster)* 5Ð
Cargo light (Coupe)* 5Ð
Trunk light (Roadster)* 3.4Ð
High-mounted stop light* LEDÐ
*: It is recommended you visit a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
When driving in areas using road salt or other
corrosive materials, check lubrication frequently.
Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires cannot be rotated, as the
front tires are a different size from the rear tires
and the direction of wheel rotation is fixed in
each tire.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If
necessary, adjust the pressure in all tires,
including the spare, to the pressure specified.
Check carefully for damage, cuts or excessive
wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap
when the tires are replaced due to wear or age.
Wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the
NISSAN Warranty Information Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicleGUID-E15964BB-B42E-4249-B9EF-31ED8BEF32A4The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the shift lever in the
P (Park) position without applying any brakes. Brake pedal:
Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, have your vehicle checked immediately. It
is recommended you visit a NISSAN dealer for
this service. Keep the floor mat away from the
pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only the
parking brake applied. If the parking brake needs
adjusted, it is recommended you visit a NISSAN
dealer for this service.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt
webbing for cuts, fraying, wear or damage.
Maintenance and schedules9-3
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

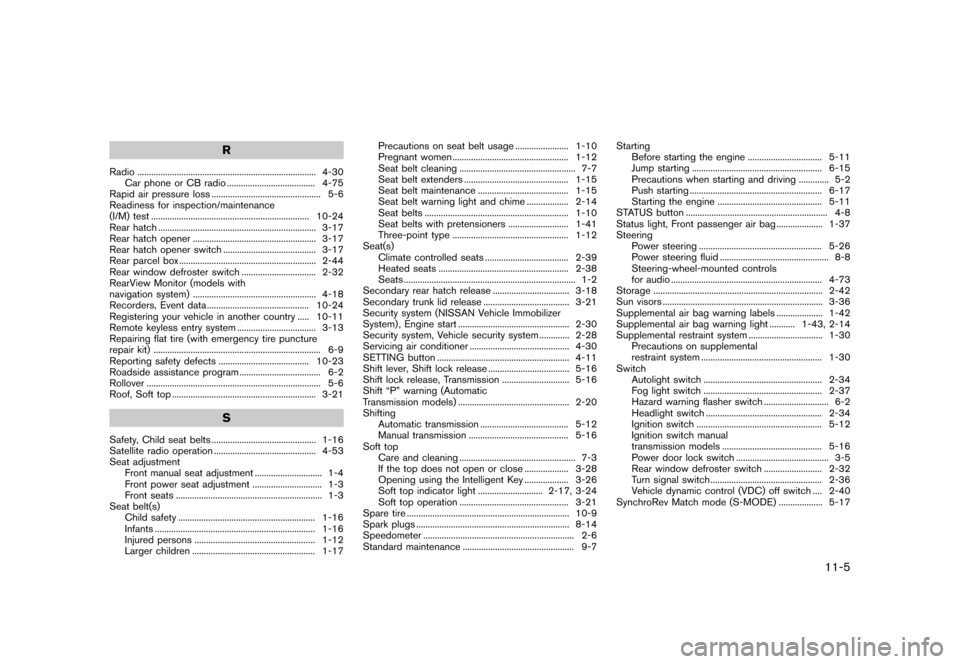

R
Radio...
............................................................................. 4-30
Car phone or CB radio ...
...................................... 4-75
Rapid air pressure loss ...
............................................... 5-6
Readiness for inspection/maintenance
(I/M) test ...
.................................................................... 10-24
Rear hatch ...
.................................................................... 3-17
Rear hatch opener ...
..................................................... 3-17
Rear hatch opener switch ...
........................................ 3-17
Rear parcel box ...
........................................................... 2-44
Rear window defroster switch ...
................................ 2-32
RearView Monitor (models with
navigation system) ...
..................................................... 4-18
Recorders, Event data ...
............................................ 10-24
Registering your vehicle in another country ...
..... 10-11
Remote keyless entry system ...
.................................. 3-13
Repairing flat tire (with emergency tire puncture
repair kit) ...
........................................................................ 6-9
Reporting safety defects ...
....................................... 10-23
Roadside assistance program ...
................................... 6-2
Rollover ...
........................................................................... 5-6
Roof, Soft top ...
.............................................................. 3-21
S
Safety, Child seat belts ...
............................................. 1-16
Satellite radio operation ...
............................................ 4-53
Seat adjustment Front manual seat adjustment ...
............................. 1-4
Front power seat adjustment ...
.............................. 1-3
Front seats ...
............................................................... 1-3
Seat belt(s) Child safety ...
........................................................... 1-16
Infants ...
..................................................................... 1-16
Injured persons ...
.................................................... 1-12
Larger children ...
..................................................... 1-17 Precautions on seat belt usage
...
....................... 1-10
Pregnant women ...
.................................................. 1-12
Seat belt cleaning ...
.................................................. 7-7
Seat belt extenders ...
............................................. 1-15
Seat belt maintenance ...
....................................... 1-15
Seat belt warning light and chime ...
.................. 2-14
Seat belts ...
.............................................................. 1-10
Seat belts with pretensioners ...
.......................... 1-41
Three-point type ...
.................................................. 1-12
Seat(s) Climate controlled seats ...
.................................... 2-39
Heated seats ...
........................................................ 2-38
Seats ...
.......................................................................... 1-2
Secondary rear hatch release ...
................................. 3-18
Secondary trunk lid release ...
..................................... 3-21
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................ 2-30
Security system, Vehicle security system ...
............. 2-28
Servicing air conditioner ...
........................................... 4-30
SETTING button ...
......................................................... 4-11
Shift lever, Shift lock release ...
................................... 5-16
Shift lock release, Transmission ...
............................. 5-16
Shift ªPº warning (Automatic
Transmission models) ...
................................................ 2-20
Shifting Automatic transmission ...
...................................... 5-12
Manual transmission ...
........................................... 5-16
Soft top Care and cleaning ...
.................................................. 7-3
If the top does not open or close ...
................... 3-28
Opening using the Intelligent Key ...
................... 3-26
Soft top indicator light ...
............................ 2-17, 3-24
Soft top operation ...
............................................... 3-21
Spare tire ...
...................................................................... 10-9
Spark plugs ...
.................................................................. 8-14
Speedometer ...
................................................................. 2-6
Standard maintenance ...
................................................ 9-7 Starting
Before starting the engine ...
................................ 5-11
Jump starting ...
........................................................ 6-15
Precautions when starting and driving ...
............. 5-2
Push starting ...
......................................................... 6-17
Starting the engine ...
............................................. 5-11
STATUS button ...
............................................................. 4-8
Status light, Front passenger air bag ...
.................... 1-37
Steering Power steering ...
..................................................... 5-26
Power steering fluid ...
............................................... 8-8
Steering-wheel-mounted controls
for audio ...
................................................................. 4-73
Storage ...
......................................................................... 2-42
Sun visors ...
..................................................................... 3-36
Supplemental air bag warning labels ...
.................... 1-42
Supplemental air bag warning light ...
........... 1-43, 2-14
Supplemental restraint system ...
................................ 1-30
Precautions on supplemental
restraint system ...
.................................................... 1-30
Switch Autolight switch ...
................................................... 2-34
Fog light switch ...
................................................... 2-37
Hazard warning flasher switch ...
............................ 6-2
Headlight switch ...
.................................................. 2-34
Ignition switch ...
...................................................... 5-12
Ignition switch manual
transmission models ...
........................................... 5-16
Power door lock switch ...
........................................ 3-5
Rear window defroster switch ...
......................... 2-32
Turn signal switch ...
................................................ 2-36
Vehicle dynamic control (VDC) off switch ...
.... 2-40
SynchroRev Match mode (S-MODE) ...
................... 5-17
11-5
&RQGLWLRQ
