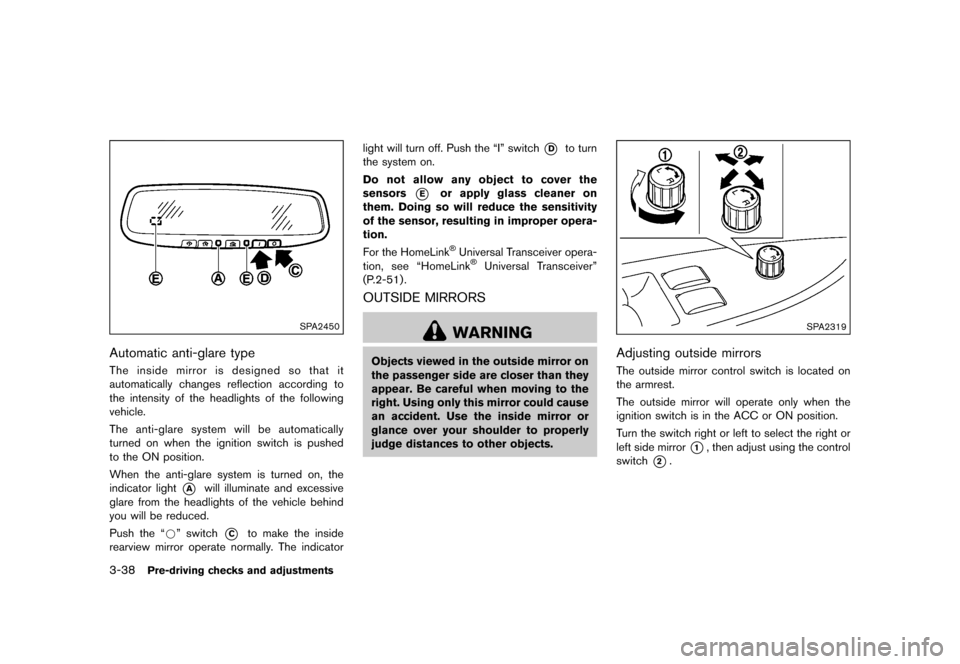

3-38Pre-driving checks and adjustments
SPA2450
Automatic anti-glare typeGUID-19DC64A6-67BD-481F-BAB1-0D06BE7C5D4EThe inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Push the ª*º switch
*Cto make the inside
rearview mirror operate normally. The indicator light will turn off. Push the ªIº switch
*Dto turn
the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper opera-
tion.
For the HomeLink


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
Defrosting outside mirrors (if so
equipped)
GUID-4D5D3A44-0E2D-46BF-95C5-C8D8BD23C98DThe outside mirrors will be heated when the rear
window defroster switch is operated.
SPA1829
Foldable outside mirrorsGUID-04D17BAA-A19D-410B-8EBE-9A888C9CD553Fold the outside mirror by pushing it toward the
rear of the vehicle.
SIC3869
VANITY MIRRORGUID-38DA8E6D-FED6-40B3-8A3A-839D89CFEFDBTo use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-39
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-18Center display, heater, air conditioner, audio, phone and voice recognition systems
GUID-1540451A-299B-4D2F-A4B8-92CD293DC8E7
WARNING
Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor system could result in
serious injury or death.
.The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing. Always turn and
look out the windows, and check
mirrors to be sure that it is safe to
move before operating the vehicle.
Always back up slowly.
. The system is designed as an aid to
the driver in showing large station-
ary objects directly behind the vehi-
cle, to help avoid damaging the
vehicle.
. The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.
The RearView Monitor system automatically
shows a rear view of the vehicle when the shift
lever is placed in the ªRº (Reverse) position.
The radio can still be heard while the RearView
Monitor is active.
JVH1353X
To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle's license plate
*1.
REARVIEW MONITOR SYSTEM OP-
ERATION
GUID-731F2BE0-BAE7-4D00-A1C9-41117EBCCEB1With the ignition switch in the ªONº position,
move the shift lever to the ªRº (Reverse) position
to operate the RearView Monitor.
REARVIEW MONITOR (models with
navigation system)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-22Center display, heater, air conditioner, audio, phone and voice recognition systems
course.
ADJUSTING THE SCREENGUID-6909FA34-339A-4CA3-8E7D-96A8841A81F8To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
Monitor, push the SETTING button with the
RearView Monitor on, select the ªDisplayº key
on the screen and select the item key and adjust
the level using the multifunction controller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the Rear View
Monitor while the vehicle is moving. Make sure
the parking brake is firmly applied.
NOTE:
Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.
SAA2404
PREDICTIVE COURSE LINE SETTINGSGUID-AAECF1B8-4C6B-4110-BDDC-38B8FF00F2FATo toggle on and off the predictive course lines:
1. Push theSETTINGbutton.
2. Select ªOthersº key and push the ENTER
button.
3. Select ªCameraº key and push the ENTER
button.
Predictive Course Lines:
When this item is turned on, the predictive
course lines will be displayed on the monitor
when the shift lever is in the ªRº (Reverse)
position.
REARVIEW MONITOR SYSTEM LIM-
ITATIONS
GUID-83269630-43CA-405D-B641-50CD6303C993
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in ser-
ious injury or death.
. The system cannot completely elim-
inate blind spots and may not show
every object.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite com-
pared to when viewed in the rear
view and outside mirrors.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
GUID-C6B42399-76C7-4110-95FB-5AA51B59B2C1.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seat and adjust head restraints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See ªWarning lights, indicator
lights and audible remindersº (P.2-10) .)GUID-24615BF4-CF94-4B41-80B7-9F4B04D434581. Apply the parking brake.
2.Automatic Transmission (AT) model:
Move the shift lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the shift lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully to
the floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried
when operating the ignition switch.
3. Push the ignition switch to the ON position. Depress the brake pedal (AT model) or the
clutch pedal (MT model) and push the
ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or the clutch pedal with the
ignition switch in any position.
.If the engine is very hard to start inextremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the accelerator pedal when the engine starts.
.If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON
position to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the engine with your
foot off the accelerator pedal by
depressing the brake pedal and pushing
the push-button ignition switch to start
the engine. If the engine starts, but fails
to run, repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to OFF and wait 10 seconds before
cranking again, otherwise the starter
could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
Starting and driving5-11
BEFORE STARTING THE ENGINE STARTING THE ENGINE
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
8-24Do-it-yourself
ReplacingGUID-105F3D6B-9444-472D-BFB1-087774285E30
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
ªHeadlight and turn signal switchº (P.2-
33) .
Use the same number and wattage shown in the
following chart as originally installed.
It is recommended you visit a NISSAN dealer if
replacement is required.
EXTERIOR AND INTERIOR LIGHTSGUID-17A30D44-BE09-4C34-ABD1-5E9AA886DA61
Item Wattage (W)Bulb No.
Headlight*
High/Low beams (Xenon) 35D2S
Front turn signal light* 28/87444NA
Front parking light* 5W5W
Front side marker light* LEDÐ
Side turn signal light (if so equipped)* LEDÐ
Daytime running light* LEDÐ
Rear combination light*
back-up 16W16W
turn signal 21WY21W
stop/tail/side marker LEDÐ
Rear fog light (if so equipped)* 21W21W
License plate light* 5W5W
Map light 8Ð
Vanity mirror light 1.8Ð
Cargo area courtesy light (Roadster)* 5Ð
Cargo light (Coupe)* 5Ð
Trunk light (Roadster)* 3.4Ð
High-mounted stop light* LEDÐ
*: It is recommended you visit a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
Replacement proceduresGUID-BE5E958F-B1EB-45FE-9F88-37F2E0CC655BAll other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
SDI1679
SDI2352
Map light
SDI1839
Vanity mirror light
Do-it-yourself8-25
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

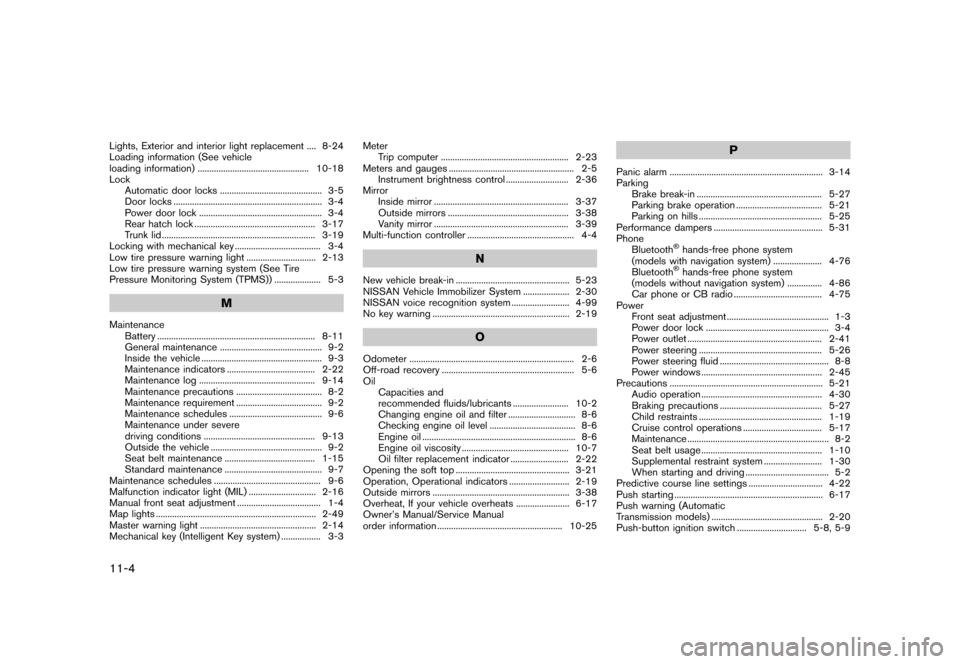

11-4
Lights, Exterior and interior light replacement...
.... 8-24
Loading information (See vehicle
loading information) ...
................................................ 10-18
Lock Automatic door locks ...
............................................ 3-5
Door locks ...
................................................................ 3-4
Power door lock ...
..................................................... 3-4
Rear hatch lock ...
.................................................... 3-17
Trunk lid ...
.................................................................. 3-19
Locking with mechanical key ...
..................................... 3-4
Low tire pressure warning light ...
.............................. 2-13
Low tire pressure warning system (See Tire
Pressure Monitoring System (TPMS)) ...
.................... 5-3
M
Maintenance
Battery ...
.................................................................... 8-11
General maintenance ...
............................................ 9-2
Inside the vehicle ...
.................................................... 9-3
Maintenance indicators ...
...................................... 2-22
Maintenance log ...
.................................................. 9-14
Maintenance precautions ...
..................................... 8-2
Maintenance requirement ...
..................................... 9-2
Maintenance schedules ...
........................................ 9-6
Maintenance under severe
driving conditions ...
................................................ 9-13
Outside the vehicle ...
................................................ 9-2
Seat belt maintenance ...
....................................... 1-15
Standard maintenance ...
.......................................... 9-7
Maintenance schedules ...
.............................................. 9-6
Malfunction indicator light (MIL) ...
............................. 2-16
Manual front seat adjustment ...
.................................... 1-4
Map lights ...
..................................................................... 2-49
Master warning light ...
.................................................. 2-14
Mechanical key (Intelligent Key system) ...
................. 3-3 Meter
Trip computer ...
....................................................... 2-23
Meters and gauges ...
...................................................... 2-5
Instrument brightness control ...
........................... 2-36
Mirror Inside mirror ...
.......................................................... 3-37
Outside mirrors ...
.................................................... 3-38
Vanity mirror ...
.......................................................... 3-39
Multi-function controller ...
.............................................. 4-4
N
New vehicle break-in ...
................................................. 5-23
NISSAN Vehicle Immobilizer System ...
.................... 2-30
NISSAN voice recognition system ...
......................... 4-99
No key warning ...
........................................................... 2-19
O
Odometer ...
....................................................................... 2-6
Off-road recovery ...
......................................................... 5-6
Oil Capacities and
recommended fluids/lubricants ...
........................ 10-2
Changing engine oil and filter ...
............................. 8-6
Checking engine oil level ...
..................................... 8-6
Engine oil ...
.................................................................. 8-6
Engine oil viscosity ...
.............................................. 10-7
Oil filter replacement indicator ...
......................... 2-22
Opening the soft top ...
................................................. 3-21
Operation, Operational indicators ...
.......................... 2-19
Outside mirrors ...
........................................................... 3-38
Overheat, If your vehicle overheats ...
....................... 6-17
Owner's Manual/Service Manual
order information ...
...................................................... 10-25
P
Panic alarm ...
.................................................................. 3-14
Parking Brake break-in ...
...................................................... 5-27
Parking brake operation ...
..................................... 5-21
Parking on hills ...
..................................................... 5-25
Performance dampers ...
............................................... 5-31
Phone Bluetooth
